ENet: A Deep Neural Network Architecture for Real-Time Semantic Segmentation
PDF:https://arxiv.org/abs/1606.02147.pdf
PyTorch: https://github.com/shanglianlm0525/PyTorch-Networks
1 概述
ENet是16年初的一篇工作了，能够达到实时的语义分割，包括在嵌入式设备NVIDIA TX1，同时还能够保证网络的效果。
2 Network architecture

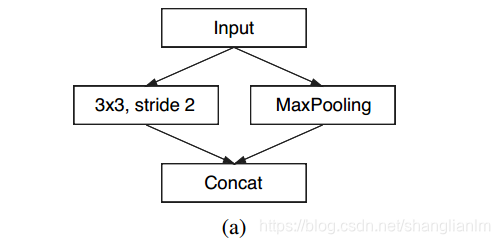

2-1 ENet initial block
PyTorch代码:
class InitialBlock(nn.Module):
def __init__(self,in_channels,out_channels):
super(InitialBlock, self).__init__()
self.conv = nn.Conv2d(in_channels, out_channels-in_channels, kernel_size=3, stride=2,padding=1, bias=False)
self.pool = nn.MaxPool2d(kernel_size=3,stride=2,padding=1)
self.bn = nn.BatchNorm2d(out_channels)
self.relu = nn.PReLU()
def forward(self, x):
return self.relu(self.bn(torch.cat([self.conv(x),self.pool(x)],dim=1)))

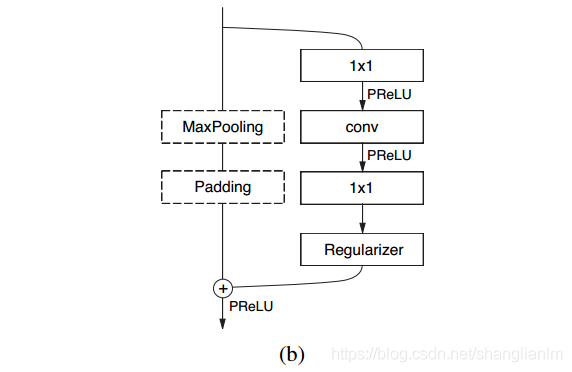

2-2 ENet bottleneck module
下采样的bottleneck：
主线包括三个卷积层，
- 先是2×2投影做降采样;
- 然后是卷积(有三种可能，Conv普通卷积,asymmetric分解卷积，Dilated空洞卷积)
- 后面再接一个1×1的做升维
注意每个卷积层后均接Batch Norm和PReLU。
辅线包括最大池化和Padding层
- 最大池化负责提取上下文信息
- Padding负责填充通道，达到后续的残差融合
融合后再接PReLU。
非下采样的bottleneck:
主线包括三个卷积层，
- 先是1×1投影;
- 然后是卷积(有三种可能，Conv普通卷积,asymmetric分解卷积，Dilated空洞卷积)
- 后面再接一个1×1的做升维
注意每个卷积层后均接Batch Norm和PReLU。 - 辅线直接恒等映射(只有下采样才会增加通道数，故这里不需要padding层)
融合后再接PReLU。
PyTorch代码:
class RegularBottleneck(nn.Module):
def __init__(self,in_places,places, stride=1, expansion = 4,dilation=1,is_relu=False,asymmetric=False,p=0.01):
super(RegularBottleneck, self).__init__()
mid_channels = in_places // expansion
self.bottleneck = nn.Sequential(
Conv1x1BNReLU(in_places, mid_channels, False),
AsymmetricConv(mid_channels, 1, is_relu) if asymmetric else Conv3x3BNReLU(mid_channels, mid_channels, 1,dilation, is_relu),
Conv1x1BNReLU(mid_channels, places,is_relu),
nn.Dropout2d(p=p)
)
self.relu = nn.ReLU(inplace=True) if is_relu else nn.PReLU()
def forward(self, x):
residual = x
out = self.bottleneck(x)
out += residual
out = self.relu(out)
return out
class DownBottleneck(nn.Module):
def __init__(self,in_places,places, stride=2, expansion = 4,is_relu=False,p=0.01):
super(DownBottleneck, self).__init__()
mid_channels = in_places // expansion
self.bottleneck = nn.Sequential(
Conv2x2BNReLU(in_places, mid_channels, is_relu),
Conv3x3BNReLU(mid_channels, mid_channels, 1, 1, is_relu),
Conv1x1BNReLU(mid_channels, places,is_relu),
nn.Dropout2d(p=p)
)
self.downsample = nn.MaxPool2d(3,stride=stride,padding=1,return_indices=True)
self.relu = nn.ReLU(inplace=True) if is_relu else nn.PReLU()
def forward(self, x):
out = self.bottleneck(x)
residual,indices = self.downsample(x)
n, ch, h, w = out.size()
ch_res = residual.size()[1]
padding = torch.zeros(n, ch - ch_res, h, w)
residual = torch.cat((residual, padding), 1)
out += residual
out = self.relu(out)
return out, indices
class UpBottleneck(nn.Module):
def __init__(self,in_places,places, stride=2, expansion = 4,is_relu=True,p=0.01):
super(UpBottleneck, self).__init__()
mid_channels = in_places // expansion
self.bottleneck = nn.Sequential(
Conv1x1BNReLU(in_places,mid_channels,is_relu),
TransposeConv3x3BNReLU(mid_channels,mid_channels,stride,is_relu),
Conv1x1BNReLU(mid_channels,places,is_relu),
nn.Dropout2d(p=p)
)
self.upsample_conv = Conv1x1BN(in_places, places)
self.upsample_unpool = nn.MaxUnpool2d(kernel_size=2)
self.relu = nn.ReLU(inplace=True) if is_relu else nn.PReLU()
def forward(self, x, indices):
out = self.bottleneck(x)
residual = self.upsample_conv(x)
residual = self.upsample_unpool(residual,indices)
out += residual
out = self.relu(out)
return out

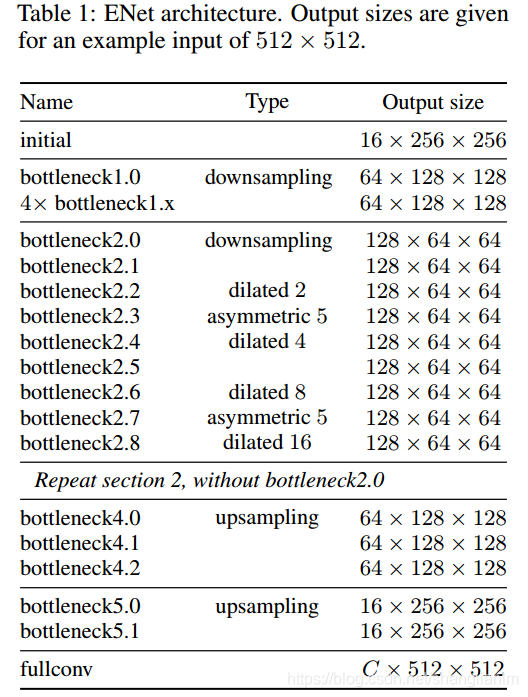

2-3 ENet architecture
Stage 1： encoder阶段。包括5个bottleneck，第一个bottleneck做下采样，后面4个重复的bottleneck
Stage 2-3： encoder阶段。stage2的bottleneck2.0做了下采样，后面有时加空洞卷积，或分解卷积。stage3没有下采样，其他都一样。
Stage 4~5： 属于decoder阶段。比较简单，一个上采样配置两个普通的bottleneck模型架构在任何投影上都没有使用bias,这样可以减少内核调用和存储操作。在每个卷积操作中使用Batch Norm。encoder阶段是使用padding配合max pooling做下采样。在decoder时使用max unpooling配合空洞卷积完成上采样
PyTorch代码:
class ENet(nn.Module):
def __init__(self, num_classes):
super(ENet, self).__init__()
self.initialBlock = InitialBlock(3,16)
self.stage1_1 = DownBottleneck(16, 64, 2)
self.stage1_2 = nn.Sequential(
RegularBottleneck(64, 64, 1),
RegularBottleneck(64, 64, 1),
RegularBottleneck(64, 64, 1),
RegularBottleneck(64, 64, 1),
)
self.stage2_1 = DownBottleneck(64, 128, 2)
self.stage2_2 = nn.Sequential(
RegularBottleneck(128, 128, 1),
RegularBottleneck(128, 128, 1, dilation=2),
RegularBottleneck(128, 128, 1, asymmetric=True),
RegularBottleneck(128, 128, 1, dilation=4),
RegularBottleneck(128, 128, 1),
RegularBottleneck(128, 128, 1, dilation=8),
RegularBottleneck(128, 128, 1, asymmetric=True),
RegularBottleneck(128, 128, 1, dilation=16),
)
self.stage3 = nn.Sequential(
RegularBottleneck(128, 128, 1),
RegularBottleneck(128, 128, 1, dilation=2),
RegularBottleneck(128, 128, 1, asymmetric=True),
RegularBottleneck(128, 128, 1, dilation=4),
RegularBottleneck(128, 128, 1),
RegularBottleneck(128, 128, 1, dilation=8),
RegularBottleneck(128, 128, 1, asymmetric=True),
RegularBottleneck(128, 128, 1, dilation=16),
)
self.stage4_1 = UpBottleneck(128, 64, 2, is_relu=True)
self.stage4_2 = nn.Sequential(
RegularBottleneck(64, 64, 1, is_relu=True),
RegularBottleneck(64, 64, 1, is_relu=True),
)
self.stage5_1 = UpBottleneck(64, 16, 2, is_relu=True)
self.stage5_2 = RegularBottleneck(16, 16, 1, is_relu=True)
self.final_conv = nn.ConvTranspose2d(in_channels=16, out_channels=num_classes, kernel_size=3, stride=2, padding=1,
output_padding=1, bias=False)
def forward(self, x):
x = self.initialBlock(x)
x,indices1 = self.stage1_1(x)
x = self.stage1_2(x)
x, indices2 = self.stage2_1(x)
x = self.stage2_2(x)
x = self.stage3(x)
x = self.stage4_1(x, indices2)
x = self.stage4_2(x)
x = self.stage5_1(x, indices1)
x = self.stage5_2(x)
out = self.final_conv(x)
return out

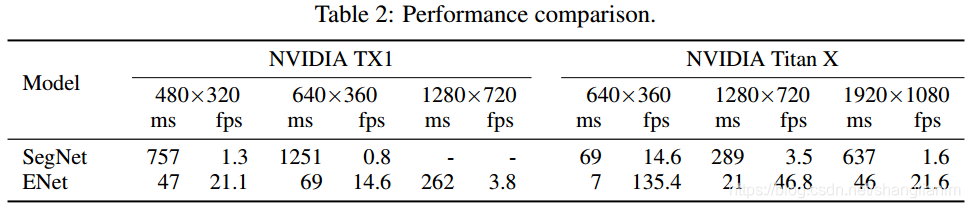

3 Results
