准备好文件

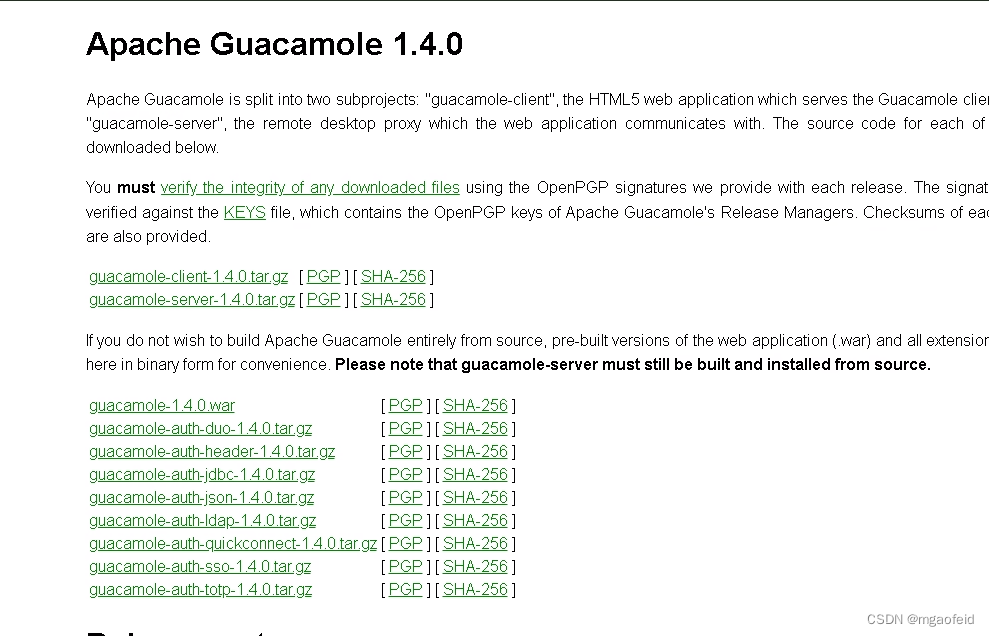

Apache Guacamole™: Release Archive

这里下载 1.4   这边计划采用ad统一认证的方案。

安装依赖文件

apt -y install libcairo2-dev libjpeg-turbo8-dev libpng-dev libtool-bin libossp-uuid-dev

安装可选依赖（这里全安装，如果有不用的具体可以参考官方）

apt -y install libavcodec-dev libavformat-dev libavutil-dev libswscale-dev freerdp2-dev libpango1.0-dev libssh2-1-dev libtelnet-dev libvncserver-dev libwebsockets-dev libpulse-dev libssl-dev libvorbis-dev libwebp-dev

安装支持组件

apt -y install default-jdk

apt -y install tomcat9 tomcat9-admin

apt -y install mysql-client

安装编译组件

apt-get -y install make gcc libelf-dev

安装服务器端

# 解压

tar -xzf guacamole-server-1.4.0.tar.gz

# 进入到源码文件夹

cd guacamole-server-1.4.0/

编译源码

首先做configure检查环境, 查看系统环境和依赖库是否满足编译要求.

./configure --with-init-dir=/etc/init.d

若环境正常会输出如下检查结果.

------------------------------------------------

guacamole-server version 1.4.0

------------------------------------------------

   Library status:

     freerdp2 ............ yes

     pango ............... yes

     libavcodec .......... yes

     libavformat ......... yes

     libavutil ........... yes

     libssh2 ............. yes

     libssl .............. yes

     libswscale .......... yes

     libtelnet ........... yes

     libVNCServer ........ yes

     libvorbis ........... yes

     libpulse ............ yes

     libwebsockets ....... yes

     libwebp ............. yes

     wsock32 ............. no

   Protocol support:

      Kubernetes .... yes

      RDP ........... yes

      SSH ........... yes

      Telnet ........ yes

      VNC ........... yes

   Services / tools:

      guacd ...... yes

      guacenc .... yes

      guaclog .... yes

   Init scripts: /etc/init.d

   Systemd units: no

Type "make" to compile guacamole-server.

编译安装源码并配置

# 编译

make

# 安装

make install

# 配置

ldconfig

至此, 服务端就安装完成了, 也会新增一个guacd的service.

部署客户端客户端

cp guacamole-1.4.0.war /var/lib/tomcat9/webapps/guacamole.war

环境变量设置

vi  /etc/profile

如果jdk版本不一致, 则需要按实际版本填写路径

# 在/etc/profile文件末尾添加如下变量

#set java env

export JAVA_HOME=/usr/lib/jvm/java-11-openjdk-amd64

#set guacamole env

export GUACAMOLE_HOME=/etc/guacamole

设置完后需要运行如下命令立即生效.

source /etc/profile

创建配置文件夹

mkdir /etc/guacamole

mkdir /etc/guacamole/lib

mkdir /etc/guacamole/extensions

cp jar文件到目录

cp mysql-connector-java-8.0.30.jar   /etc/guacamole/lib/

cp guacamole-auth-jdbc-mysql-1.4.0.jar /etc/guacamole/extensions/

cp guacamole-auth-ldap-1.4.0.jar /etc/guacamole/extensions/

配置配置文件

 vim /etc/guacamole/guacamole.properties

根据自己的实际情况修改

# MySQL properties
mysql-hostname:
mysql-port: 3306
mysql-database: guacamole
mysql-username: root
mysql-password: password
mysql-default-max-connections-per-user: 0
mysql-default-max-group-connections-per-user: 0

# LDAP properties
ldap-hostname:
ldap-port:               389
ldap-user-base-dn:   DC=vditest,DC=local
ldap-config-base-dn: dc=vditest,dc=local
ldap-search-bind-dn: test@vditest.local
ldap-search-bind-password: password

重新启动服务

systemctl restart tomcat9

service guacd restart

登录管理地址：http://ip:8080/guacamole/

初始用户名密码都是 guacadmin
