原理

若当前位置可通,则纳入“当前位置”,并继续朝下一位置探索,即切换“下一位置”为“当前位置”,如此重复以达到出口,若当前位置“不可通”,则应顺着“来向”退回到“前一通道快”,然后朝着除“来向之外”的其他方向继续探索;若该通道快的四周4个方块都 不可通,则应从“当前路径”上删除该通道块。所谓“下一位置”是指“当前位置”四周四个方向(东、西、南、北)上相邻的方块。假设以栈S记录“当前路径”,则栈顶中存放的是“当前路径上最后一个通道块”。因此,“纳入路径”的操作即为“当前位置入栈”;“从当前路径删除前一通道块”即为“出栈”。

具体代码

#include<stdio.h>
#define mazeRowNum 10//迷宫行数
#define mazeColNum 10//迷宫列数
#define MAXSIZE 100//栈大小

//迷宫中的坐标位置
typedef struct{
	int x;//行号
	int y;//列号
}PosType;

//栈的元素类型
typedef struct{
	PosType seat;//坐标位置
	int direction;//di=1,2,3,4分别表示东,南,西,北
}SElemType;


typedef struct SqStack{
	SElemType data[MAXSIZE];
	int top;//指向栈顶元素
}SqStack;

//初始化空栈
void initStack(SqStack &s){
	s.top = 0;
}

//判栈空
bool isEmpty(SqStack s){
	if(s.top == 0){
		printf("是空栈\n");//
		return true;
	}else{
		return false;
	}
}

//判栈满
bool isFull(SqStack s){
	if(s.top == MAXSIZE){
		return true;
	}
	else{
		return false;
	}
}

//入栈
void push(SqStack &s, SElemType e){
	if(!isFull(s)){
		s.data[s.top] = e;
		s.top++;
	}else
		printf("此栈已满,入栈操作失败\n");
}

//出栈
void pop(SqStack &s, SElemType &e){
	if(!isEmpty(s)){
		e = s.data[s.top-1];
		s.top--;
	}
	else
		printf("此栈为空栈,出栈操作失败\n");
}

//'1'表示通道块,'0'表示墙壁
static char maze[mazeRowNum][mazeRowNum] = {
	{'0', '0', '0', '0', '0', '0', '0', '0', '0', '0'},
	{'0', '1', '1', '0', '1', '1', '1', '0', '1', '0'},
	{'0', '1', '1', '0', '1', '1', '1', '0', '1', '0'},
	{'0', '1', '1', '1', '1', '0', '0', '1', '1', '0'},
	{'0', '1', '0', '0', '0', '1', '1', '1', '1', '0'},
	{'0', '1', '1', '1', '0', '1', '1', '1', '1', '0'},
	{'0', '1', '0', '1', '1', '1', '0', '1', '1', '0'},
	{'0', '1', '0', '0', '0', '1', '0', '0', '1', '0'},
	{'0', '0', '1', '1', '1', '1', '1', '1', '1', '0'},
	{'0', '0', '0', '0', '0', '0', '0', '0', '0', '0'}
};

PosType start = {1, 1};//设置迷宫起点
PosType end = {7, 7};//设置迷宫终点



void footPrint(PosType curpos){
	maze[curpos.x][curpos.y] = 'y';//表示到达
}
void markPrint(PosType curpos){
	maze[curpos.x][curpos.y] = 'n';//表示该通道块虽然不是墙壁,但是它仍然不通
}

PosType nextPos(PosType curpos, int direction){
	switch(direction){
		case 1: curpos.y++;break;//向东走,行号不变,列号加1
		case 2: curpos.x++;break;//向南走,行号加1,列号不变
		case 3: curpos.y--;break;//向西走,行号不变,列号减1
		case 4: curpos.x--;break;//向北走,行号减1,列号不变
	}
	return curpos;
}
//判断当前位置是否可通,即为'1',而不是'0'、'y'(已走过)、'n'(已走过但不通)
bool pass(PosType curpos){
	if(maze[curpos.x][curpos.y] == '1')
		return true;
	else
		return false;
}
//求得一条路径存放在栈中,并返回TRUE,否则返回FALSE
bool mazePath(PosType start, PosType end){
	SqStack s;
	initStack(s);
	PosType curpos = start;//设定当前位置为“入口”位置
	do{
		if(pass(curpos)){//当前路径可通
			footPrint(curpos);//留下标记
			SElemType e;
			e.seat = curpos;
			e.direction = 1;
			push(s, e);  //加入路径
			if(curpos.x == end.x && curpos.y == end.y)  //到达出口
				return true;
			curpos = nextPos(curpos, 1);//下一位置是东边
			//curstep++;   //探索下一步
		}else{//当前位置不能通过,则栈顶元素出栈
			SElemType e;
			pop(s, e);
			//如果弹出的栈顶位置的四周均不可通,则继续往“来路”通道块回退
			while(e.direction == 4 && !isEmpty(s)){
				markPrint(e.seat);//标记,避免陷入死胡同
				pop(s, e);
			}
			//弹出的栈顶位置尚有其他方向的方块未探索,则切换到下一个方向的方块为当前位置
			if(e.direction < 4){
				e.direction++;
				push(s, e);
				curpos = nextPos(e.seat, e.direction);
			}
		}
	}while(!isEmpty(s));//栈不为空则循环继续
	return false;
}


//打印迷宫
void printMaze(){
	for(int i = 0; i < mazeRowNum; i++){
		for(int j = 0; j < mazeColNum; j++){
			printf("%c ", maze[i][j]);
		}
		printf("\n");
	}
	printf("\n");
}

void main(){
	printf("迷宫的初始状态:\n");
	printMaze();
	if(mazePath(start, end)){
		printf("存在通路\n");
		printf("迷宫如下:\n");
		printMaze();

	}else
		printf("不存在通路!\n");
}

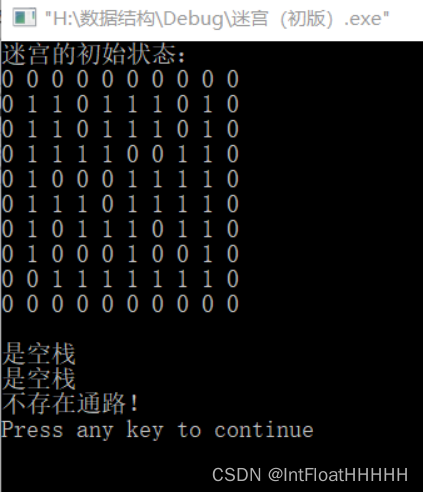

运行结果

在这里插入图片描述
