1 简介

2015 年，Hussain Shareef 等基于闪电的机理提出了一种新型的启发式优化算法———闪电搜索算法( lightning search algorithm，LSA) ，该算法具有调节参数少、收敛精度高和全局寻优能力强等优点，已在函数优化、旅行商问题寻优等方面得到应用。

2 部分代码

%{
Lightning Search Algorithm (LSA)

Platform: Matlab 2012a,2013a


Cite this algorithm as;
[1]. Hussain Shareef , Ahmad Asrul Ibrahim, Ammar Hussein Mutlag, Lightning Search Algorithm,
Applied Soft Computing 36 (2015) 315?333.


Copyright Notice
Copyright (c) 2015, Hussain Shareef and Ahmad Asrul Ibrahim
All rights reserved.

Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:

  * Redistributions of source code must retain the above copyright
    notice, this list of conditions and the following disclaimer.
  * Redistributions in binary form must reproduce the copyright
    notice, this list of conditions and the following disclaimer in
    the documentation and/or other materials provided with the distribution

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.


%}


clc
clear all
close all

tic;%start stopwatch
F_index =6; % Function 1-6 % Refer to other test function 7-24 in [1].
[low,up,dim]=test_functions_range(F_index);

N = 20; % population size/number of agents
D = dim; % number of dimension
T = 100; % maximum number of iteration

% Set upper bound & lower bound
if size(up,2)==1
   UB = ones(1,D).*up;
   LB = ones(1,D).*low;
end
if size(up,2)>1
   UB = up;
   LB = low;
end

%randomly create 1st population
for d = 1:D
   Dpoint(:,d)= rand(N,1)*(UB(d)-LB(d))+LB(d);
end

ch_time = 0; % reset
max_ch_time = 10;
fit_old = 10^10*(ones(1,N));
direct = sign(unifrnd(-1,1,1,dim));

for t = 1:T
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
   % Evaluate performance
   fit = evaluateF(Dpoint,F_index);
   Ec = fit;

   % update channel
   ch_time = ch_time+1;
   if ch_time >= max_ch_time
      [Ms ds]=sort(Ec,'ascend');
       Dpoint(ds(N),:) = Dpoint(ds(1),:); % Eliminate the worst channel
       Ec(ds(N)) = Ec(ds(1)); % Update
       ch_time = 0; % reset
   end

   % Rangking the fitness value
  [Ms ds]=sort(Ec,'ascend');
   best = Ec(ds(1));
   worst = Ec(ds(N));

   Energy = 2.05 - 2*exp(-5*(T-t)/T);% Update energy

   % update direction
   for d = 1:D
       Dpoint_test = Dpoint(ds(1),:);
       Dpoint_test(d) = Dpoint_test(d)+direct(d)*0.005*(UB(d)-LB(d));
       fv_test = evaluateF(Dpoint_test,F_index);
       if fv_test < best % If better, +ve direction
           direct(d) = direct(d);
       else
           direct(d) = -1*direct(d);
       end
   end
   % update position
   for i = 1:N
       dist=Dpoint(i,:)-Dpoint(ds(1),:);
           for d = 1:D
               if Dpoint(i,:)==Dpoint(ds(1),:)
                   Dpoint_temp(d) = Dpoint(i,d)+direct(d)*abs(normrnd(0,Energy));
               else
                   if dist(d)<0
                       Dpoint_temp(d) = Dpoint(i,d)+exprnd(abs(dist(d)));
                   else
                       Dpoint_temp(d) = Dpoint(i,d)-exprnd(dist(d));
                   end
               end
               if (Dpoint_temp(d)>UB(d))||(Dpoint_temp(d)<LB(d))
                   Dpoint_temp(d) = rand(1)*(UB(d)-LB(d))+LB(d); % Re-initialized
               end
           end

           fv = evaluateF(Dpoint_temp,F_index);
           if fv < Ec(i)
               Dpoint(i,:) = Dpoint_temp;
               Ec(i) = fv;
               % Focking procedure
               if rand < 0.01
                   for d = 1:D
                       Dpoint_fock(d) = UB(d)+LB(d)-Dpoint_temp(d);% Focking
                   end
                   fock_fit = evaluateF(Dpoint_fock,F_index); % Evaluate
                   if fock_fit < Ec(i)
                       Dpoint(i,:) = Dpoint_fock; % Replace the channel
                       Ec(i) = fock_fit;
                   end
               end
           end
   end
   if best == worst
       break
   end
% record the performance
   fitness(t) = min(fit);

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
end
elapsed_time=toc; % time taken for this algorithm
% select the optimal value
grandmin = min(fitness);
y = fitness;
x = 1:length(y);
plot(x,y,'Linewidth',2)
xlabel('No of Iteration');
ylabel('Fitness Value');
axis([0 max(x) min(y) max(y)]);
fprintf(1,'Optimal value = %f\n', grandmin);

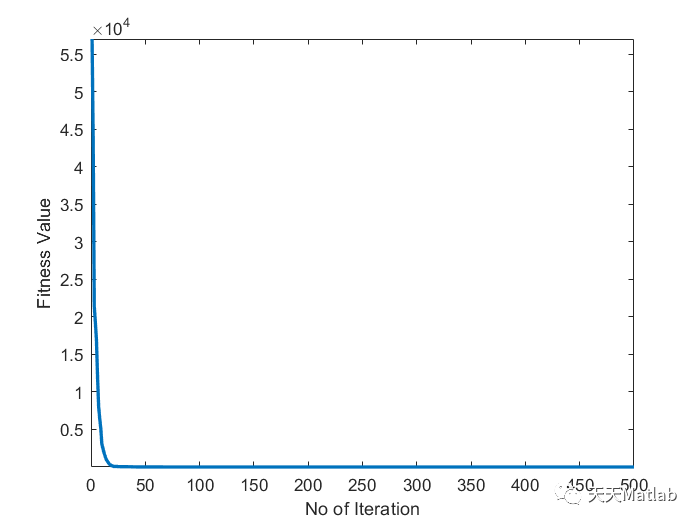

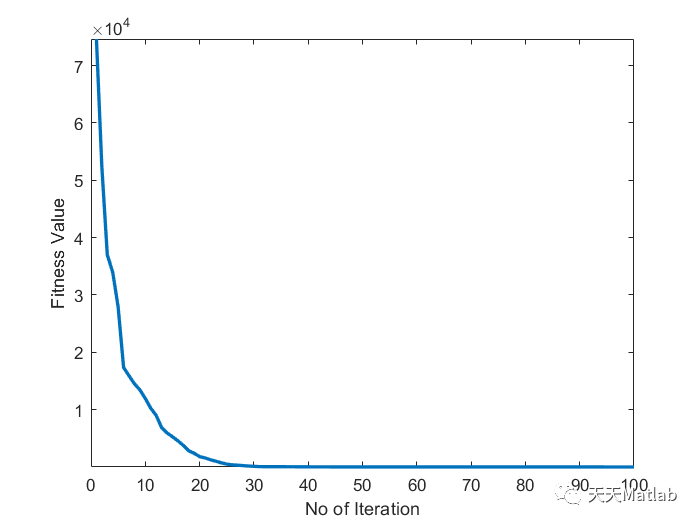

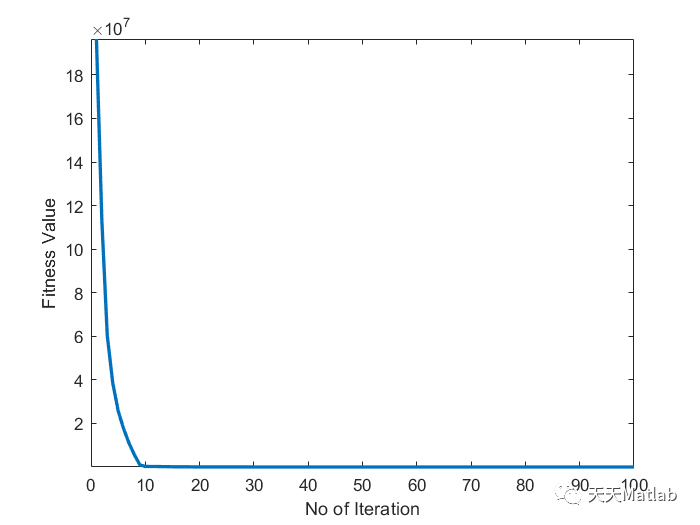

3 仿真结果

4 参考文献

[1]卢玉婷. 元启发式闪电搜索算法及应用研究[D]. 广西大学, 2019.
