LSTM

创建模型

指标函数参考《如何用keras/tf/pytorch实现TP/TN/FP/FN和accuracy/sensiivity/precision/specificity/f1-score等评价指标（python）》

# 二、创建LSTM模型

hidden_size = 10
output_size = 2
input_size = miData.shape[1]

class RNN(nn.Module):
    def __init__(self):
        super(RNN,self).__init__() #面向对象中的继承
        # TODO: 调整参数
        self.lstm = nn.LSTM(input_size = input_size, hidden_size = hidden_size, num_layers = 2) #输入数据2个特征维度，6个隐藏层维度，2个LSTM串联，第二个LSTM接收第一个的计算结果
        self.out = nn.Linear(hidden_size, hidden_size) #线性拟合，接收数据的维度为6，输出数据的维度为1

        self.out2 = nn.Linear(hidden_size, output_size)
        self.s = nn.ReLU()
    def forward(self,x):
        x1,_ = self.lstm(x)
        # output (seq_len, batch, hidden_size * num_directions)
        a,b,c = x1.shape
        out = self.out(x1.view(-1, hidden_size)) #因为线性层输入的是个二维数据，所以此处应该将lstm输出的三维数据x1调整成二维数据，最后的特征维度不能变
        out = self.s(out)
        out2 = self.out2(out)
        out2 = self.s(out2)
        # out1 = out.view(a, b, -1) #因为是循环神经网络，最后的时候要把二维的out调整成三维数据，下一次循环使用
        output = out2.view(a, b, -1)
        return output

rnn = RNN()
print(rnn)
#参数寻优，计算损失函数
optimizer = torch.optim.Adam(rnn.parameters(),lr = 0.001)
# TODO：损失函数
loss_func = nn.CrossEntropyLoss()
scheduler = torch.optim.lr_scheduler.ReduceLROnPlateau(optimizer, mode='min', factor=0.1, patience=20, verbose=True)

# SR : Segmentation Result
# GT : Ground Truth
def get_accuracy(SR,GT,threshold=0.5):
    SR = SR > threshold
    GT = GT == torch.max(GT)
    corr = torch.sum(SR==GT)
    # tensor_size = SR.size(0)*SR.size(1)*SR.size(2)*SR.size(3)
    tensor_size = SR.size(0)*SR.size(1)
    acc = float(corr)/float(tensor_size)

    return acc

def get_recall(SR,GT,threshold=0.5):
    # Sensitivity == Recall
    SR = SR > threshold
    GT = GT == torch.max(GT)

    # TP : True Positive
    # FN : False Negative
    TP = ((SR==1)&(GT==1))
    FN = ((SR==0)&(GT==1))

    SE = float(torch.sum(TP))/(float(torch.sum(TP+FN)) + 1e-6)

    return SE

def get_specificity(SR,GT,threshold=0.5):
    SR = SR > threshold
    GT = GT == torch.max(GT)

    # TN : True Negative
    # FP : False Positive
    TN = ((SR==0)&(GT==0))
    FP = ((SR==1)&(GT==0))

    SP = float(torch.sum(TN))/(float(torch.sum(TN+FP)) + 1e-6)

    return SP

def get_precision(SR,GT,threshold=0.5):
    SR = SR > threshold
    GT = GT == torch.max(GT)

    # TP : True Positive
    # FP : False Positive
    TP = ((SR==1)&(GT==1))
    FP = ((SR==1)&(GT==0))

    PC = float(torch.sum(TP))/(float(torch.sum(TP+FP)) + 1e-6)

    return PC

模型训练

loss_history = []

accuracy_his = []
precision_his = []
recall_his = []
specificity_his = []

all_y = torch.tensor([])
all_p = torch.tensor([])

#三、训练模型
for k in range(len(end_ptr)):
    if end_ptr[k] >= len(miData):
        break
    trainX, trainY = create_dataset(miData[train_ptr[k]:test_ptr[k],:], yData[train_ptr[k]:test_ptr[k]], 10)
    trainLoaderX, trainLoaderY, validateLoaderX, validateLoaderY = trainSet_split(trainX, trainY)
    testLoaderX, testLoaderY = create_Test_dataset(miData[test_ptr[k]-10:end_ptr[k],:], yData[test_ptr[k]-10:end_ptr[k]], 10)
    print('\nDataSet No.{} data row {}-{}-{}'.format(k, train_ptr[k], test_ptr[k], end_ptr[k]))
    # 训练集和验证集
    loss_sum_flag = 10 # 用来判断loss是否下降
    fall_cnt = 0
    train_len = len(trainLoaderX)

    train_loss_his = []
    for epoch in range(0, 1000):
        loss_sum_item = 0

        for i, var_x in enumerate(trainLoaderX, 0):
            # var_x = Variable(x_train).type(torch.FloatTensor)
            # var_y = Variable(y_train).type(torch.FloatTensor)
            var_y = trainLoaderY[i]
            out = rnn(var_x)

            # loss = loss_func(out[-1], var_y[-1].view(-1))
            loss = loss_func(out.view(-1, 2), var_y.view(-1))
            optimizer.zero_grad()
            loss.backward()
            optimizer.step()

            loss_sum_item += loss.item()
            # if (epoch+1) % 50 == 0:
                # print('Train Epoch:{}, step:{}, Loss:{:.5f}'.format(epoch, i, loss.item()))
                #loss_history.append(loss.item())
        if loss_sum_item < loss_sum_flag:
            loss_sum_flag = loss_sum_item
            fall_cnt += 1
            if fall_cnt % 100 == 0:
                print('\nDataSet No.{}, Train Epoch:{}, Avg Loss:{:.10f}'.format(k, epoch, loss_sum_item/train_len))
            else:
                print('>',end='')
        else:
            # fall_cnt += 1
            print('-',end='')

        train_loss_his.append(loss_sum_item)

        loss_sum_validate = 0
        for i, var in enumerate(validateLoaderX, 0):
            var_y = trainLoaderY[i]
            out = rnn(var_x)
            # loss = loss_func(out[-1], var_y[-1].view(-1))
            loss = loss_func(out.view(-1, 2), var_y.view(-1))
            loss_sum_validate += loss.item()
            # optimizer.zero_grad()
            # loss.backward()
            # optimizer.step()

            # if (epoch+1) % 50==0:
                # print('Validate Epoch:{}, step:{}, Loss:{:.5f}'.format(epoch, i, loss.item()))
        # print('Validate Epoch:{}, Loss:{:.5f}'.format(epoch, i, loss.item()))
        # scheduler.step(loss, epoch=epoch)
        # TODO: 不知道这种用法对不对
        # scheduler.step(loss_sum_validate)
        if (epoch+1) % 200==0:
            print('\nValidate Epoch:{}, Loss Avg:{:.5f}'.format(epoch, loss_sum_validate/len(validateLoaderX)))

    plt.plot(train_loss_his)
    plt.show()

    torch.save(obj=rnn.state_dict(), f="main_models/LSTM_k"+str(k)+".pth")

    # 测试
    print('Test')
    test_y = torch.tensor([])
    test_p = torch.tensor([])
    softm_p = torch.tensor([])
    for i, var_x in enumerate(testLoaderX, 0):
        var_y = testLoaderY[i]
        out = rnn(var_x)
        # loss = loss_func(out[-1], var_y[-1].view(-1))
        loss = loss_func(out.view(-1, 2), var_y.view(-1))
        # 取最后一个数，由于batch_size不为1
        test_y = torch.cat((test_y, var_y[-1]), 0)
        # test_p = torch.cat((test_p, out[-1]), 1)
        # if (i+1) % 20==0:
            # print('DataSet No.{}, Test step:{}, Loss:{:.5f}'.format(k, i, loss.item()))
        loss_history.append(loss.item())

#         ind_y = torch.max(var_y[-1], dim = 1)
        ind_p = torch.max(out[-1], dim = 1)
#         print(out[-1],end=' ')
        # 用于计算ROC
        softMax_func = nn.Softmax(dim=1)
        out_p = softMax_func(out[-1])
        softm_p = torch.cat((softm_p, out_p), 0)

#         test_y = torch.cat((test_y, ind_y.indices.view(-1, 1)), 1)
        test_p = torch.cat((test_p, ind_p.indices.view(-1, 1)), 0)

    all_y = torch.cat((all_y, test_y), 0)
    all_p = torch.cat((all_p, softm_p), 0)

    print((test_p + test_y*10).view(-1))
    Acc = get_accuracy(test_p, test_y)
    accuracy_his.append(Acc)
    print('------------- DataSet:{}, Accuracy:{:.5f} -------------'.format(k, Acc))
    Pc = get_precision(test_p, test_y)
    precision_his.append(Pc)
    print('------------- DataSet:{}, Precision:{:.5f} -------------'.format(k, Pc))
    Recall = get_recall(test_p, test_y)
    recall_his.append(Recall)
    print('------------- DataSet:{}, Recall:{:.5f} -------------'.format(k, Recall))
    Sp = get_specificity(test_p, test_y)
    specificity_his.append(Sp)
    print('------------- DataSet:{}, Specificity:{:.5f} -------------'.format(k, Sp))


查看指标

print(np.mean(accuracy_his))
print(np.mean(recall_his))
print(np.mean(precision_his))

print(accuracy_his)
print(recall_his)
print(precision_his)

left = test_ptr[0]
right = end_ptr[42] - test_ptr[0]
total_y = torch_all_y[left:right, :]
total_p = torch.max(torch_all_p[left:right, :], dim = 1).indices.view(-1, 1)

Acc = get_accuracy(total_p, total_y)

print('------------- DataSet:total, Accuracy:{:.5f} -------------'.format(Acc))
Pc = get_precision(total_p, total_y)

print('------------- DataSet:total, Precision:{:.5f} -------------'.format(Pc))
Recall = get_recall(total_p, total_y)

print('------------- DataSet:total, Recall:{:.5f} -------------'.format(Recall))
Sp = get_specificity(total_p, total_y)

print('------------- DataSet:total, Specificity:{:.5f} -------------'.format(Sp))

year_accuracy_his = []
year_precision_his = []
year_recall_his = []
year_specificity_his = []

for i in range(int(len(accuracy_his) / 4)):
    left = test_ptr[i*4] - test_ptr[0]
    right = end_ptr[i*4+3] - test_ptr[0]
    item_y = torch_all_y[left:right, :]
    item_p = torch.max(torch_all_p[left:right, :], dim = 1).indices.view(-1, 1)

    Acc = get_accuracy(item_p, item_y)
    year_accuracy_his.append(Acc)
    print('------------- DataSet:{}, Accuracy:{:.5f} -------------'.format(i, Acc))
    Pc = get_precision(item_p, item_y)
    year_precision_his.append(Pc)
    print('------------- DataSet:{}, Precision:{:.5f} -------------'.format(i, Pc))
    Recall = get_recall(item_p, item_y)
    year_recall_his.append(Recall)
    print('------------- DataSet:{}, Recall:{:.5f} -------------'.format(i, Recall))
    Sp = get_specificity(item_p, item_y)
    year_specificity_his.append(Sp)
    print('------------- DataSet:{}, Specificity:{:.5f} -------------'.format(i, Sp))

if len(accuracy_his)%4 != 0:
    left = test_ptr[len(accuracy_his)-(len(accuracy_his)%4)-1] - test_ptr[0]
    right = end_ptr[len(accuracy_his)-1] - test_ptr[0]
    item_y = torch_all_y[left:right, :]
    item_p = torch.max(torch_all_p[left:right, :], dim = 1).indices.view(-1, 1)

    Acc = get_accuracy(item_p, item_y)
    year_accuracy_his.append(Acc)
    print('------------- DataSet:final, Accuracy:{:.5f} -------------'.format(Acc))
    Pc = get_precision(item_p, item_y)
    year_precision_his.append(Pc)
    print('------------- DataSet:final, Precision:{:.5f} -------------'.format(Pc))
    Recall = get_recall(item_p, item_y)
    year_recall_his.append(Recall)
    print('------------- DataSet:final, Recall:{:.5f} -------------'.format(Recall))
    Sp = get_specificity(item_p, item_y)
    year_specificity_his.append(Sp)
    print('------------- DataSet:final, Specificity:{:.5f} -------------'.format(Sp))

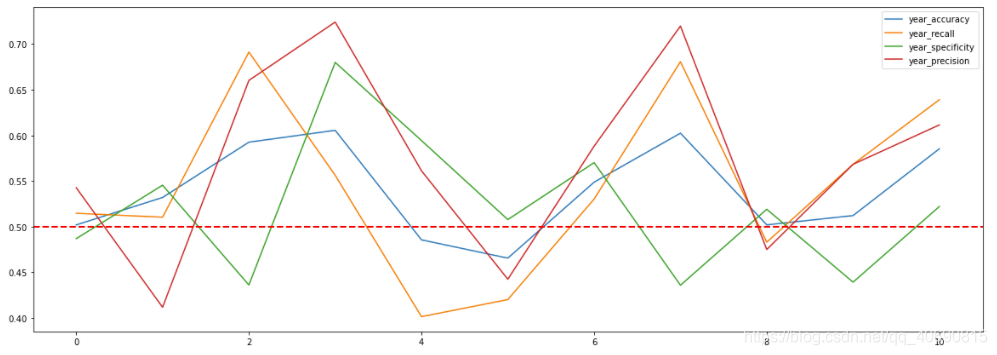

plt.figure(figsize=(20,7))
plt.plot(np.arange(len(year_accuracy_his)), year_accuracy_his, label='year_accuracy')
plt.plot(np.arange(len(year_recall_his)), year_recall_his, label='year_recall')
plt.plot(np.arange(len(year_specificity_his)), year_specificity_his, label='year_specificity')
plt.plot(np.arange(len(year_precision_his)), year_precision_his, label='year_precision')
# plt.grid(True, ls=':', c='r')
plt.axhline(y=0.5, c='r', ls='--', lw=2)
plt.legend();
plt.show()

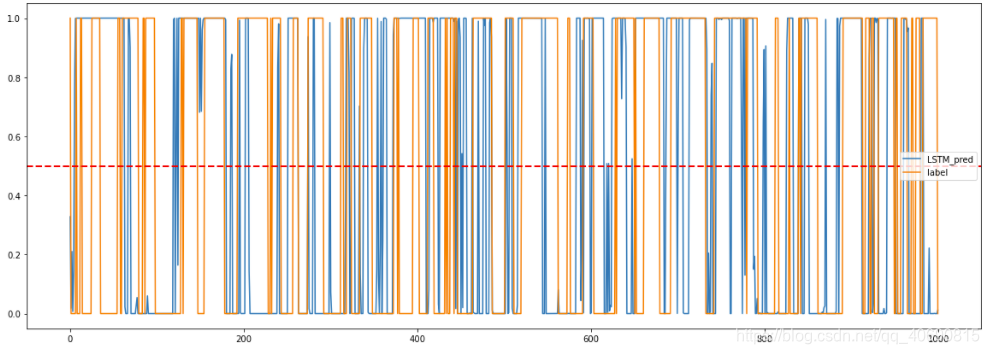

plt.figure(figsize=(20,7))

plt.plot(np.arange(len(all_p[:1000, 1])), all_p[:1000, 1], label='LSTM_pred')
plt.plot(np.arange(len(all_y[:1000])), all_y[:1000], label='label' )
# plt.title('');
plt.axhline(y=0.5, c='r', ls='--', lw=2)
plt.legend()
plt.show()
