1、准备好opencv、opencv_contrib-4.8.0、cmake、vs2022，cuda

        配置不好的话，可直接找我要配置好的build文件：可进群：482742815，问题答案：opencv，也可加qq：1401682937，请备注好，否则不同意

        另外，我上传了一部分文件，可以查看链接：https://download.csdn.net/download/Word_And_Me_/88605111

        opencv：Release OpenCV 4.8.0 · opencv/opencv · GitHub

        opencv：Release OpenCV 4.8.0 · opencv/opencv · GitHub

        opencv_contrib：Release 4.8.0 · opencv/opencv_contrib · GitHub

        cmake：https://cmake.org/files/v3.23/cmake-3.23.0-rc1-windows-i386.msi

        cuda我使用的是11.7，可以配置其他版本一样，具体不再介绍

2、开始使用cmake编译

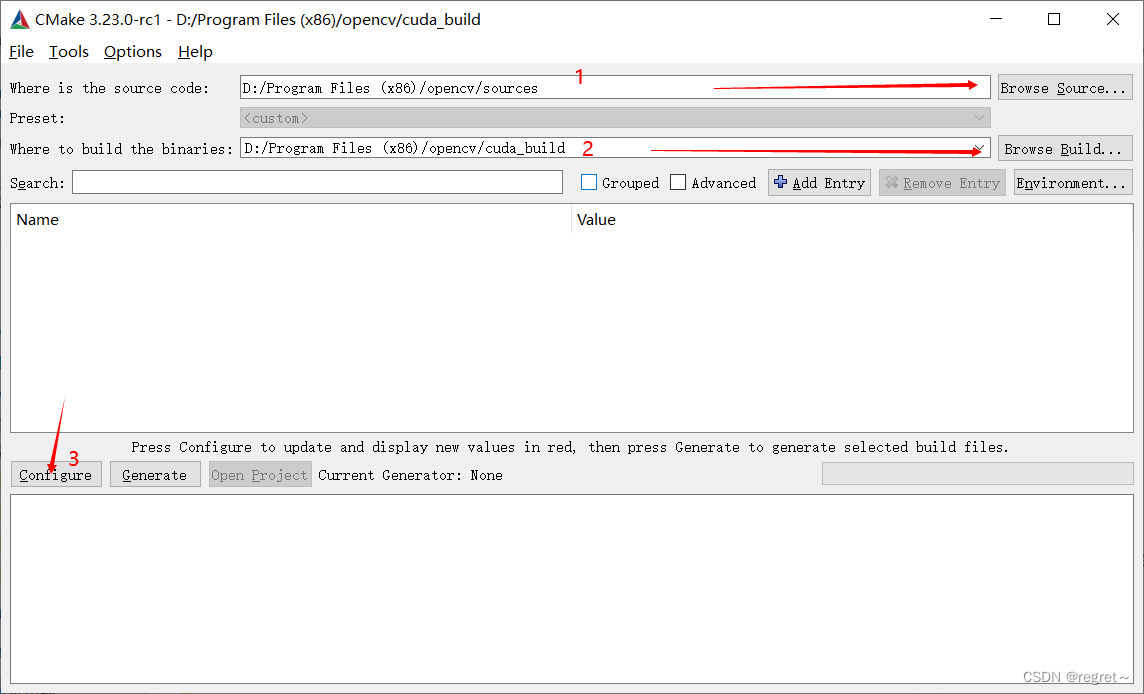

首先，选择好路径，source为本来就有的，cuda_build为自定义名称，设置好点击configure

点击configure之后会弹出选择编译器，选好之后finish

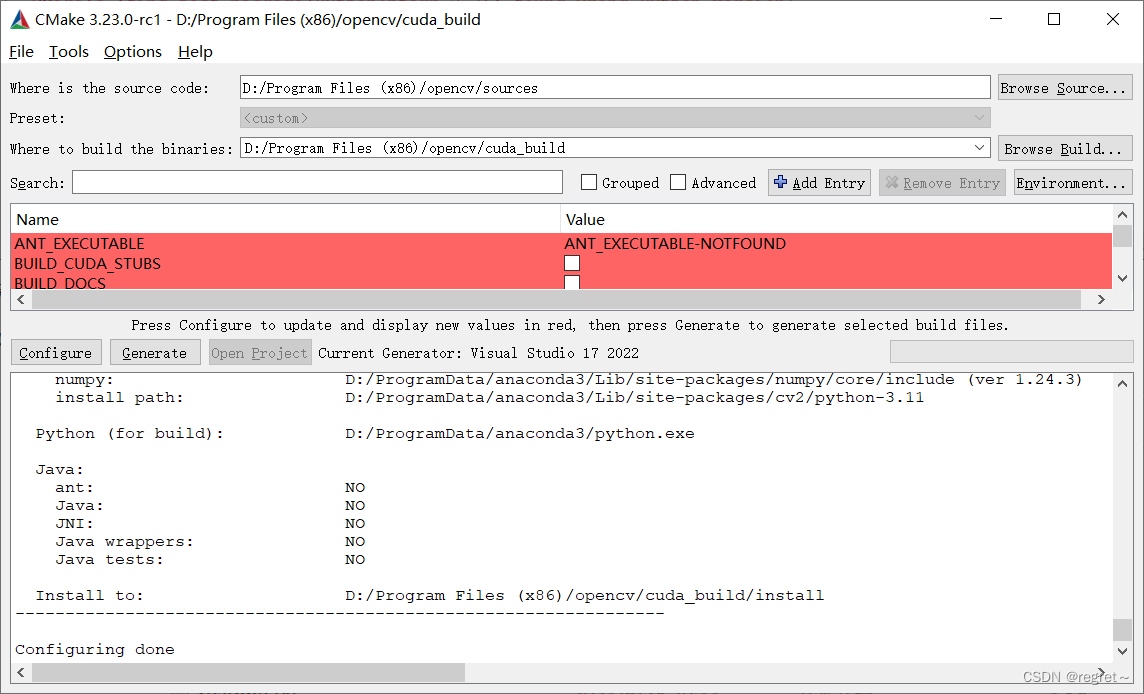

编译过程中，或出现一些错误（红字体），这里第一个关于python的不用理会

另外一些问题是因为一些包不能下载，例如ffmpeg，ippicv

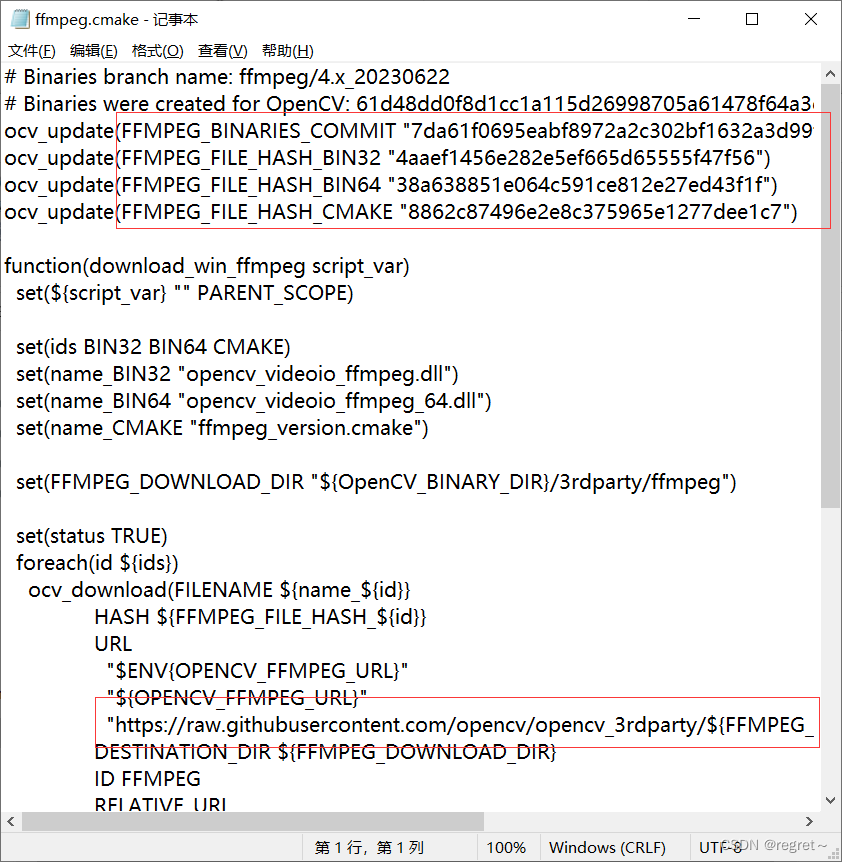

对应的文件可以在source源码中，找到对应的cmake文件，里面有下载地址，如果实在下不下来，我后面将提供文件

文件下载的地址为：（注意：新下载的文件命名需要在前面再加一段哈希字符，可在上面所说的cmake文件中找到）

cmake中需要查找的信息：

缺失的包下载完毕，并存储到相应位置后，点击generate

generate之后，配置opencv_ex目录，如下图：

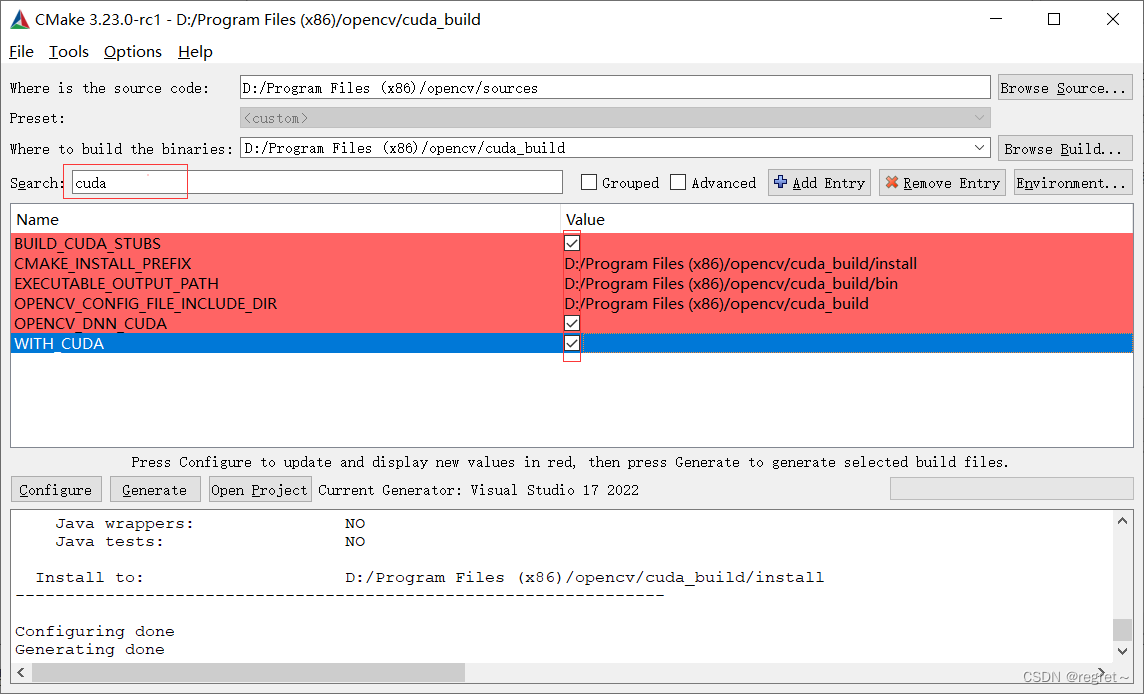

搜索cuda，全部勾选，如图：

搜索test，取消勾选前三个，没有用，如图：

完成以上内容后，继续点击configure，如图：（注意，这一次的configure时间稍微较长）

configure完成之后，搜索cuda，会发现有一堆东西，这里我们找到cuda_fast_math勾选，其余不要动，如图：

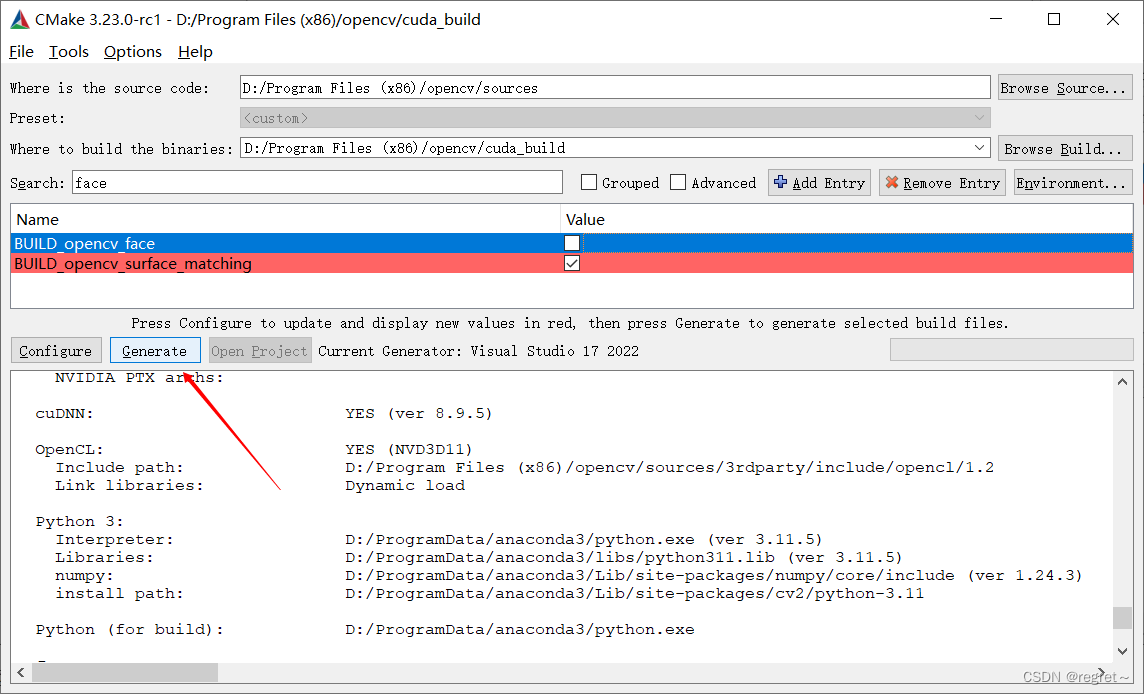

在上个configure之后，你还会发现一些错误，这里也是因为下载失败，需要手动下载：（这里我选择不要face，其余两个尝试下载，同样方法找到cmake文件，找url，这里的cmake文件在opencv_contrib/moudules中）

这里如果你不用xfeatures2d，wechat_qrcode，也可以搜索相应的文件，取消勾选；以上操作完成之后，点击gengrate，如下图：

generate完成之后，进入对应的文件夹（cuda_build），打开opencv.sln

将debug改为release，生成对应的文件，如图：（生成一般需要1-2个小时，我使用了3个半小时，这里根据自己的设备不同，时间不一样，我了解到有人使用8个小时）

all_build生成完毕：

install生成完毕：

使用配置

1、打开自己创建的项目，右键-->属性-->vc++目录

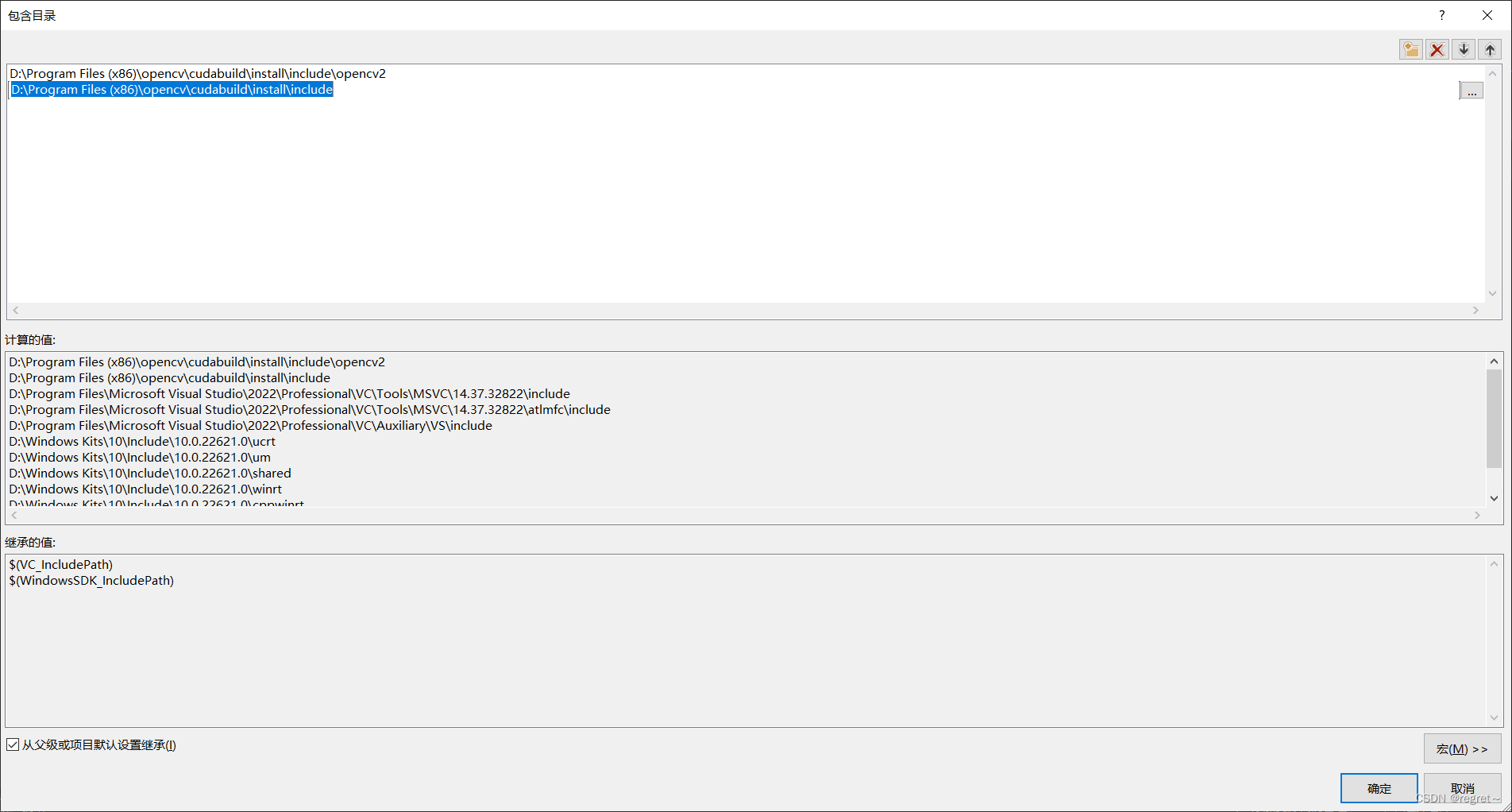

包含目录：

库目录：

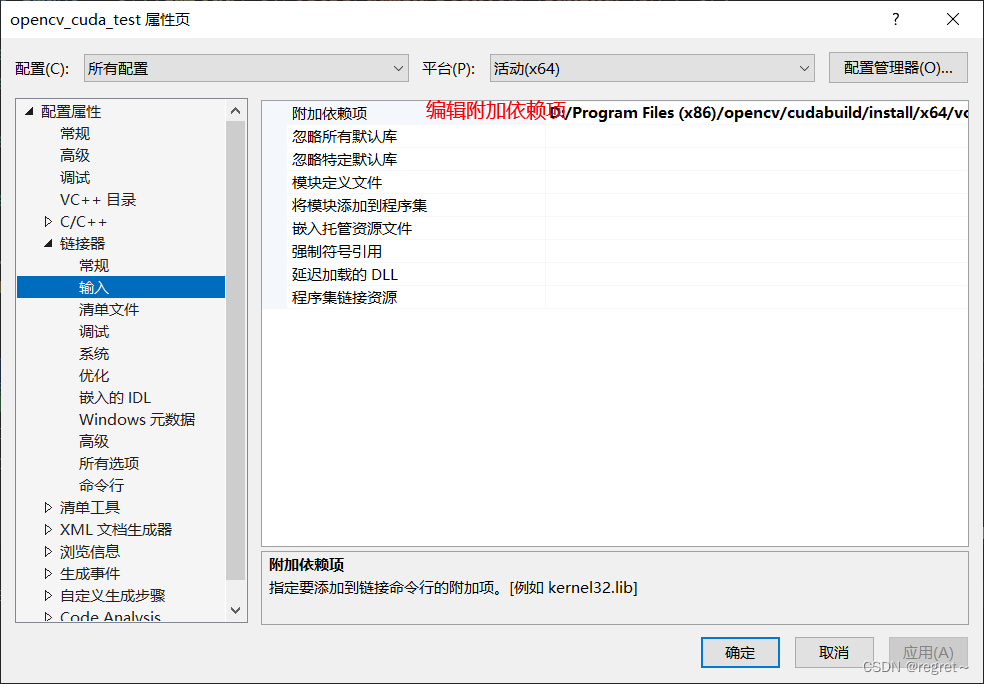

2、打开自己创建的项目，右键-->属性-->链接器-->输入-->编辑附加依赖项

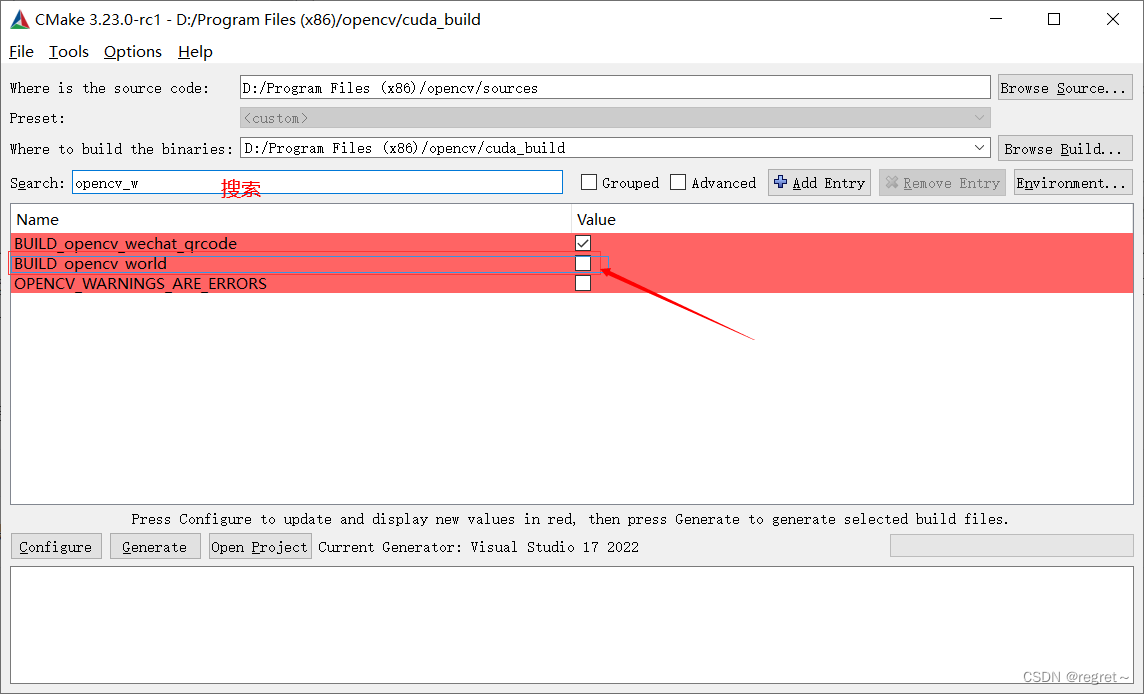

这里依赖项可能是一堆，没有集成起来，可以使用Python获得所有的.lib文件,如果想要一个文件可以在编译阶段勾选，然后生成即可获得一个封装好的，但是存在风险，一旦有一个编译不成功，则不会生成这一个集成的文件，勾选项如下图：

我的有.lib文件有：

D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_aruco480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_bgsegm480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_bioinspired480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_calib3d480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_ccalib480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_core480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudaarithm480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudabgsegm480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudacodec480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudafeatures2d480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudafilters480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudaimgproc480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudalegacy480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudaobjdetect480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudaoptflow480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudastereo480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudawarping480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_cudev480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_datasets480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_dnn480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_dnn_objdetect480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_dnn_superres480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_dpm480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_features2d480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_flann480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_fuzzy480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_gapi480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_hdf480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_hfs480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_highgui480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_imgcodecs480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_imgproc480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_img_hash480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_intensity_transform480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_line_descriptor480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_mcc480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_ml480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_objdetect480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_optflow480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_phase_unwrapping480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_photo480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_plot480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_quality480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_rapid480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_reg480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_rgbd480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_saliency480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_shape480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_stereo480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_stitching480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_structured_light480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_superres480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_surface_matching480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_text480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_tracking480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_video480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_videoio480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_videostab480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_wechat_qrcode480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_xfeatures2d480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_ximgproc480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_xobjdetect480.lib
D:/Program Files (x86)/opencv/cuda_build/install/x64/vc17/lib/opencv_xphoto480.lib

提供一个代码：

import os
​
path = os.getcwd()
for file in os.listdir(path):
    with open('all.txt', 'a', encoding='utf-8') as f:
        if file.endswith('.lib'):
            newpath = path + "/" + file
            newpath = newpath.replace("\\", "/")
            print(newpath)
            f.write(f"{newpath}\n")

我目前完成的测试：

#include <iostream>
#include <opencv2/opencv.hpp>
#include <opencv2/core/cuda.hpp>
#include <opencv2/cudaimgproc.hpp>  // cvtColor
#include <opencv2/cudafilters.hpp>  // createGaussianFilter()
#include <opencv2/cudafeatures2d.hpp>
#include <opencv2/xfeatures2d.hpp>
#include <opencv2/xfeatures2d/cuda.hpp>
#include <opencv2/cudaimgproc.hpp>
#include <opencv2/cudaarithm.hpp>
#include <vector>
​
​
​
int main() {
    // =================================cuda 测试=======================================
    /*cv::cuda::printCudaDeviceInfo(cv::cuda::getDevice());
    int count = cv::cuda::getCudaEnabledDeviceCount();
    std::cout << "可以使用的数量：" << count << std::endl;
    return 0;*/
    // ==================================灰度转换=======================================
    /*cv::Mat src_host = cv::imread("C:/Users/admin/Desktop/lena.jpg");
    cv::cuda::GpuMat src, gray;
    src.upload(src_host);
    cv::cuda::cvtColor(src, gray, cv::COLOR_BGR2GRAY);
    cv::Mat gray_host;
    gray.download(gray_host);
    cv::imshow("src", src_host);
    cv::imshow("gray", gray_host);
    cv::waitKey();
    cv::destroyAllWindows();
    return 0;*/
    // ==================================高斯模糊=======================================
    /*cv::Mat h_img1 = cv::imread("C:/Users/admin/Desktop/lenasp.jpg");
    cv::cuda::GpuMat d_img1, d_result3x3, d_result5x5, d_result7x7;
    // 加载数据
    d_img1.upload(h_img1);
    // 创建高斯
    auto filter3x3 = cv::cuda::createGaussianFilter(CV_8UC3, CV_8UC3, cv::Size(3, 3), 5);
    auto filter5x5 = cv::cuda::createGaussianFilter(CV_8UC3, CV_8UC3, cv::Size(5, 5), 5);
    auto filter7x7 = cv::cuda::createGaussianFilter(CV_8UC3, CV_8UC3, cv::Size(7, 7), 5);
    // 执行
    filter3x3->apply(d_img1, d_result3x3);
    filter5x5->apply(d_img1, d_result5x5);
    filter7x7->apply(d_img1, d_result7x7);
    // 获取结果
    cv::Mat h_result3x3, h_result5x5, h_result7x7;
    d_result3x3.download(h_result3x3);
    d_result5x5.download(h_result5x5);
    d_result7x7.download(h_result7x7);
    // 显示
    cv::imshow("original image", h_img1);
    cv::imshow("Blurred with kernel size 3x3", h_result3x3);
    cv::imshow("Blurred with kernel size 5x5", h_result5x5);
    cv::imshow("Blurred with kernel size 7x7", h_result7x7);
    cv::waitKey();
    cv::destroyAllWindows();
    return 0;*/
    // ==============================shi-tomas角点检测============================
    /*cv::Mat src_host = cv::imread("C:/Users/admin/Desktop/jianzhu.jpg");
    cv::imshow("input", src_host);
    cv::cuda::GpuMat src, gray, corners;
    cv::Mat dst;
    src.upload(src_host);
    cv::cuda::cvtColor(src, gray, cv::COLOR_BGR2GRAY);
    auto corner_detector = cv::cuda::createGoodFeaturesToTrackDetector(gray.type(), 1000, 0.01, 15, 3);
    corner_detector->detect(gray, corners);
    corners.download(dst);
    printf("detected corners %d....\n", corners.cols);
    printf("detected corners %d....\n", dst.cols);
    cv::RNG rng(123456);
    for (int i = 0; i < dst.cols; i++) {
        int r = rng.uniform(0, 255);
        int g = rng.uniform(0, 255);
        int b = rng.uniform(0, 255);
        cv::Point2f pt = dst.at<cv::Point2f>(0, i);
        circle(src_host, pt, 3, cv::Scalar(b, g, r), 2, 8, 0);
    }
    imshow("corner detect", src_host);
    cv::waitKey();
    cv::destroyAllWindows();
    return 0;*/
​
    // ================================双边模糊（美颜）===========================
    /*try {
        cv::Mat src_host = cv::imread("C:/Users/admin/Desktop/hh.jpg");
        cv::imshow("input", src_host);
        cv::cuda::GpuMat src(src_host);
        cv::cuda::GpuMat dst;
        cv::cuda::bilateralFilter(src, dst, 0, 100, 15, 4);
        cv::Mat dst_host;
        dst.download(dst_host);
        cv::imshow("result", dst_host);
    }
    catch (const cv::Exception& ec) {
        std::cout << "Error" << ec.what() << std::endl;
    }
    cv::waitKey();
    return 0;*/
​
    // ==============================ORB 特征匹配==========================
    /*// cpu data
    cv::Mat h_object_image = cv::imread("C:/Users/admin/Desktop/jianzhu1.jpg", 0);
    cv::Mat h_scene_image = cv::imread("C:/Users/admin/Desktop/jianzhu.jpg", 0);
​
    assert(h_object_image != nullptr && h_scene_image != nullptr), "======没有读取成功=====";
    cv::waitKey();
    // gpu data
    cv::cuda::GpuMat d_object_image;
    cv::cuda::GpuMat d_scene_image;
​
    cv::cuda::GpuMat d_keypoints_scene, d_keypoints_object;       // GPU key points
    std::vector<cv::KeyPoint> h_keypoints_scene, h_keypoints_object; // CPU key points
    cv::cuda::GpuMat d_descriptors_scene, d_descriptors_object;   // GPU descriptor
​
    // Image CPU uploaded to GPU
    d_object_image.upload(h_object_image);
    d_scene_image.upload(h_scene_image);
​
    // 对象检测
    auto orb = cv::cuda::ORB::create();
    // 检测特征点并提取相应的描述符
    // Detect feature points and extract corresponding descriptors
    orb->detectAndCompute(d_object_image, cv::cuda::GpuMat(), h_keypoints_object, d_descriptors_object);
    orb->detectAndCompute(d_scene_image, cv::cuda::GpuMat(), h_keypoints_scene, d_descriptors_scene);
​
    // 暴力匹配器
    // Brute Force Violence Matcher
    cv::Ptr<cv::cuda::DescriptorMatcher> matcher = cv::cuda::DescriptorMatcher::createBFMatcher(cv::NORM_HAMMING);
    std::vector<std::vector<cv::DMatch> > d_matches;
    matcher->knnMatch(d_descriptors_object, d_descriptors_scene, d_matches, 2);
​
    std::cout << "match size:" << d_matches.size() << std::endl;
    std::vector< cv::DMatch > good_matches;
    for (int k = 0; k < std::min(h_keypoints_object.size() - 1, d_matches.size()); k++)
    {
        if ((d_matches[k][0].distance < 0.9 * (d_matches[k][1].distance)) &&
            ((int)d_matches[k].size() <= 2 && (int)d_matches[k].size() > 0))
        {
            good_matches.push_back(d_matches[k][0]);
        }
    }
    std::cout << "size:" << good_matches.size() << std::endl;
    cv::Mat h_image_result;
    cv::drawMatches(h_object_image, h_keypoints_object, h_scene_image, h_keypoints_scene,
        good_matches, h_image_result, cv::Scalar::all(-1), cv::Scalar::all(-1),
        std::vector<char>(), cv::DrawMatchesFlags::DEFAULT);
    std::vector<cv::Point2f> object, scene;
    for (int i = 0; i < good_matches.size(); i++) {
        object.push_back(h_keypoints_object[good_matches[i].queryIdx].pt);
        scene.push_back(h_keypoints_scene[good_matches[i].trainIdx].pt);
    }
    cv::Mat Homo = cv::findHomography(object, scene, cv::RANSAC);
    std::vector<cv::Point2f> corners(4), scene_corners(4);
    corners[0] = cv::Point(0, 0);
    corners[1] = cv::Point(h_object_image.cols, 0);
    corners[2] = cv::Point(h_object_image.cols, h_object_image.rows);
    corners[3] = cv::Point(0, h_object_image.rows);
    cv::perspectiveTransform(corners, scene_corners, Homo);
​
    cv::line(h_image_result, scene_corners[0] + cv::Point2f(h_object_image.cols, 0), scene_corners[1] + cv::Point2f(h_object_image.cols, 0), cv::Scalar(255, 0, 0), 4);
    cv::line(h_image_result, scene_corners[1] + cv::Point2f(h_object_image.cols, 0), scene_corners[2] + cv::Point2f(h_object_image.cols, 0), cv::Scalar(255, 0, 0), 4);
    cv::line(h_image_result, scene_corners[2] + cv::Point2f(h_object_image.cols, 0), scene_corners[3] + cv::Point2f(h_object_image.cols, 0), cv::Scalar(255, 0, 0), 4);
    cv::line(h_image_result, scene_corners[3] + cv::Point2f(h_object_image.cols, 0), scene_corners[0] + cv::Point2f(h_object_image.cols, 0), cv::Scalar(255, 0, 0), 4);
    cv::imshow("Good Matches & Object detection", h_image_result);
    cv::waitKey(0);
​
    return 0;*/
    // ==============================surf 特征检测==============================
    cv::Mat h_object_image = cv::imread("C:/Users/admin/Desktop/jianzhu1.jpg", 0);
    cv::Mat h_scene_image = cv::imread("C:/Users/admin/Desktop/jianzhu.jpg", 0);
​
    cv::cuda::GpuMat d_object_image;
    cv::cuda::GpuMat d_scene_image;
​
    cv::cuda::GpuMat d_keypoints_scene, d_keypoints_object;
    std::vector<cv::KeyPoint> h_keypoints_scene, h_keypoints_object;
    cv::cuda::GpuMat d_descriptors_scene, d_descriptors_object;
​
    d_object_image.upload(h_object_image);
    d_scene_image.upload(h_scene_image);
​
    // 对象检测
    cv::cuda::SURF_CUDA surf(100);
    // 检测特征点并提取相应的描述符
    surf(d_object_image, cv::cuda::GpuMat(), d_keypoints_object, d_descriptors_object);
    surf(d_scene_image, cv::cuda::GpuMat(), d_keypoints_scene, d_descriptors_scene);
​
    // 暴力匹配器
    cv::Ptr<cv::cuda::DescriptorMatcher> matcher = cv::cuda::DescriptorMatcher::createBFMatcher();
    std::vector<std::vector<cv::DMatch>> d_matches;
    matcher->knnMatch(d_descriptors_object, d_descriptors_scene, d_matches, 2);

    surf.downloadKeypoints(d_keypoints_scene, h_keypoints_scene);
    surf.downloadKeypoints(d_keypoints_object, h_keypoints_object);
​
    std::vector<cv::DMatch> good_matches;
    for (int k = 0; k < std::min(h_keypoints_object.size() - 1, d_matches.size()); k++)
    {
        if ((d_matches[k][0].distance < 0.6 * (d_matches[k][1].distance)) && ((int)d_matches[k].size() <= 2 && (int)d_matches[k].size() > 0))
        {
            good_matches.push_back(d_matches[k][0]);
        }
    }
    std::cout << "size:" << good_matches.size();
    cv::Mat h_image_result;
    cv::drawMatches(h_object_image, h_keypoints_object, h_scene_image, h_keypoints_scene,
        good_matches, h_image_result, cv::Scalar::all(-1), cv::Scalar::all(-1),
        std::vector<char>(), cv::DrawMatchesFlags::DEFAULT);
​
    std::vector<cv::Point2f> object;
    std::vector<cv::Point2f> scene;
    for (int i = 0; i < good_matches.size(); i++)
    {
        object.push_back(h_keypoints_object[good_matches[i].queryIdx].pt);
        scene.push_back(h_keypoints_scene[good_matches[i].trainIdx].pt);
    }
    cv::Mat Homo = cv::findHomography(object, scene, cv::RANSAC);
    std::vector<cv::Point2f> corners(4);
    std::vector<cv::Point2f> scene_corners(4);
    corners[0] = cv::Point(0, 0);
    corners[1] = cv::Point(h_object_image.cols, 0);
    corners[2] = cv::Point(h_object_image.cols, h_object_image.rows);
    corners[3] = cv::Point(0, h_object_image.rows);
    cv::perspectiveTransform(corners, scene_corners, Homo);
​
    cv::line(h_image_result, scene_corners[0] + cv::Point2f(h_object_image.cols, 0), scene_corners[1] + cv::Point2f(h_object_image.cols, 0), cv::Scalar(255, 0, 0), 4);
    cv::line(h_image_result, scene_corners[1] + cv::Point2f(h_object_image.cols, 0), scene_corners[2] + cv::Point2f(h_object_image.cols, 0), cv::Scalar(255, 0, 0), 4);
    cv::line(h_image_result, scene_corners[2] + cv::Point2f(h_object_image.cols, 0), scene_corners[3] + cv::Point2f(h_object_image.cols, 0), cv::Scalar(255, 0, 0), 4);
    cv::line(h_image_result, scene_corners[3] + cv::Point2f(h_object_image.cols, 0), scene_corners[0] + cv::Point2f(h_object_image.cols, 0), cv::Scalar(255, 0, 0), 4);
    cv::imshow("Good Matches & Object detection", h_image_result);
    cv::waitKey(0);
    return 0;

    // =================================ORB特征检测================================
    /*cv::Mat h_image = cv::imread("C:/Users/admin/Desktop/jianzhu.jpg", 0);
    cv::Ptr<cv::cuda::ORB> detector = cv::cuda::ORB::create();
    std::vector<cv::KeyPoint> keypoints;
    cv::cuda::GpuMat d_image;
    d_image.upload(h_image);
    detector->detect(d_image, keypoints);
    cv::drawKeypoints(h_image, keypoints, h_image);
    cv::imshow("Final Result", h_image);
    cv::waitKey(0);
    return 0;*/
}
​
