STM32模拟I2C协议获取HDC1080温度和湿度传感器数据

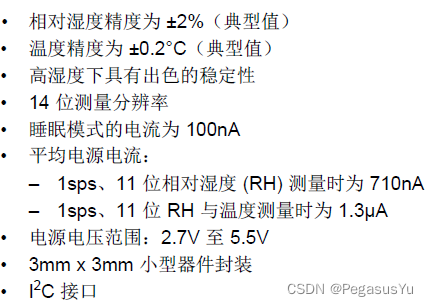

HDC1080是一款温湿度传感器，具有如下特点：

其中温度和湿度经过出厂校准。这里介绍STM32模拟I2C总线协议访问HDC1080的HAL库实现范例。

HDC1080电路连接

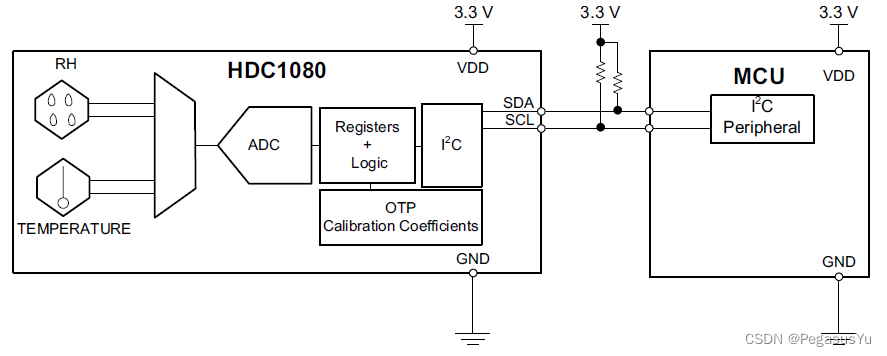

HDC1080的内部原理及电路连接如下：

HDC1080具有低功耗特征，每次触发检测转换后进入睡眠状态，另外内部有一个加热电阻，在环境湿度高时，可以出发加热去湿度，从而增强温度检测部分的准确性。

HDC1080可以检测供电电压阀值，判断供电电压是否高于或低于2.8V，对于简单电池供电场合可以进行供电判断处理。

HDC1080寄存器说明

HDC1080有如下的一些寄存器，按作用分为读数，配置，读ID三种：

在触发读取温度寄存器操作时，除了会触发温度转换也会触发湿度转换，从而可以一次性将温度和湿度都读出来。

原始数据和常见格式的转换关系为：


这里采用STM32CUBEIDE开发环境，以STM32F103CBT6为例，介绍 HDC1080的访问和温湿度数据获取。

STM32工程基本配置

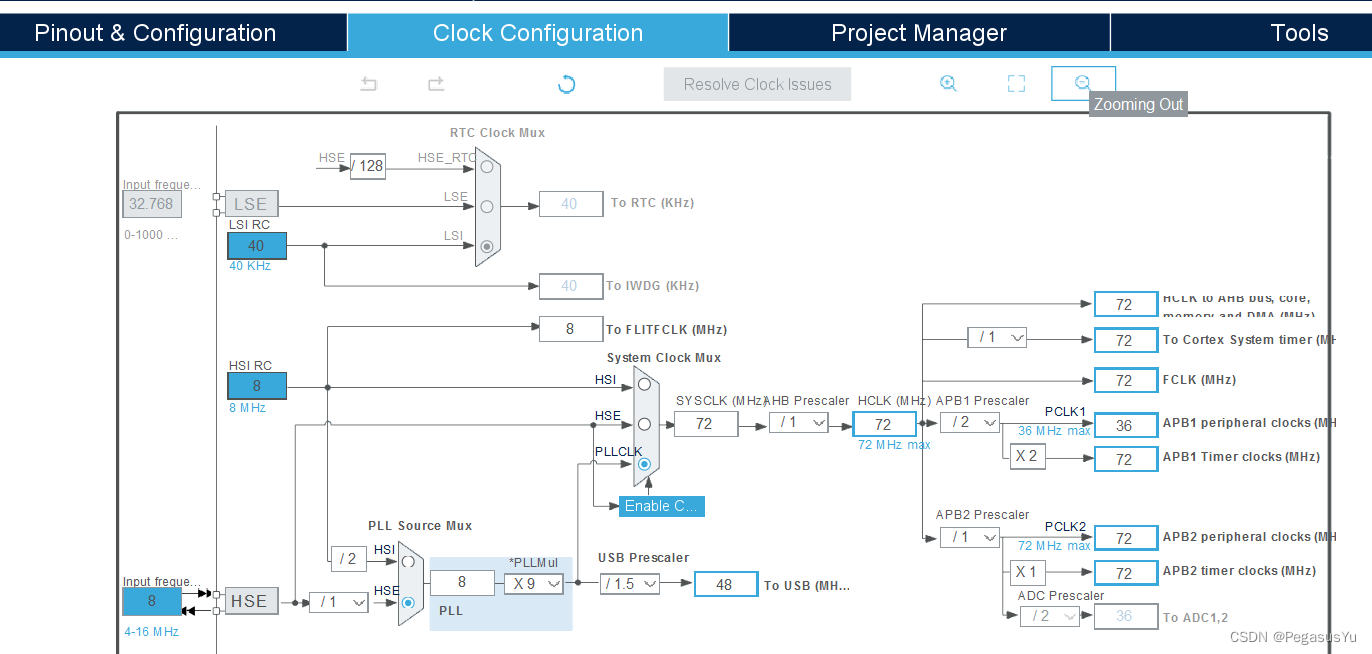

首先建立基本工程并初始化时钟系统：


选择两个管脚作为模拟I2C协议的管脚：

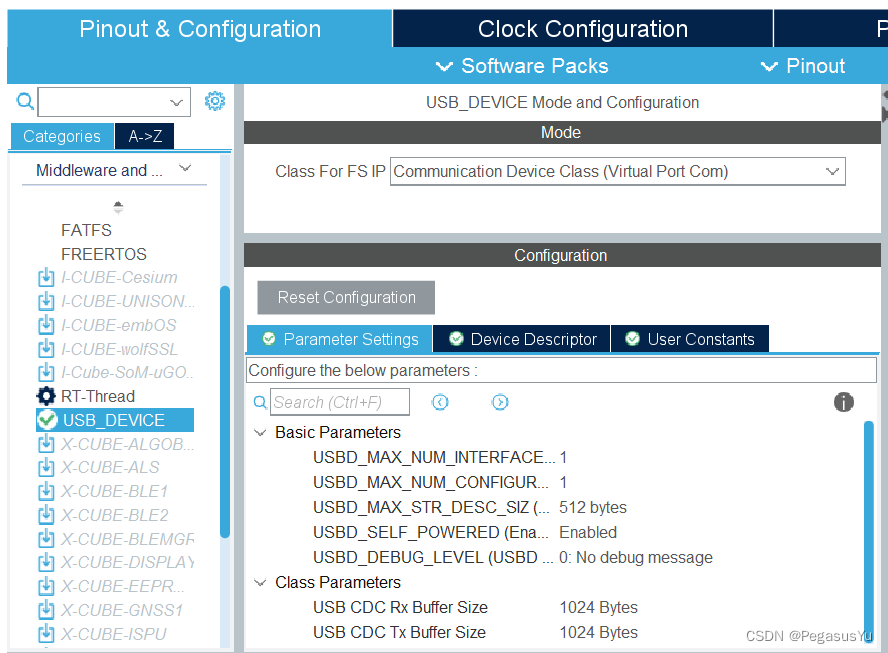

并配置USB虚拟串口作为打印输出接口：




保存并生成基本工程代码：

STM32工程代码

代码实现HDC1080访问函数，循环读取并打印出HDC1080的设备码，温度和湿度原始数据，温度和湿度的常见格式。

代码里所用的微秒延时函数，参考：STM32 HAL us delay（微秒延时）的指令延时实现方式及优化
代码里所用的浮点转字符处理函数，参考： STM32 UART串口printf函数应用及浮点打印代码空间节省 (HAL)

完整的main.c代码如下：

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2023 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
//Written by Pegasus Yu in 2023
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "usb_device.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include <string.h>
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
__IO float usDelayBase;
void PY_usDelayTest(void)
{
  __IO uint32_t firstms, secondms;
  __IO uint32_t counter = 0;

  firstms = HAL_GetTick()+1;
  secondms = firstms+1;

  while(uwTick!=firstms) ;

  while(uwTick!=secondms) counter++;

  usDelayBase = ((float)counter)/1000;
}

void PY_Delay_us_t(uint32_t Delay)
{
  __IO uint32_t delayReg;
  __IO uint32_t usNum = (uint32_t)(Delay*usDelayBase);

  delayReg = 0;
  while(delayReg!=usNum) delayReg++;
}

void PY_usDelayOptimize(void)
{
  __IO uint32_t firstms, secondms;
  __IO float coe = 1.0;

  firstms = HAL_GetTick();
  PY_Delay_us_t(1000000) ;
  secondms = HAL_GetTick();

  coe = ((float)1000)/(secondms-firstms);
  usDelayBase = coe*usDelayBase;
}

void PY_Delay_us(uint32_t Delay)
{
  __IO uint32_t delayReg;

  __IO uint32_t msNum = Delay/1000;
  __IO uint32_t usNum = (uint32_t)((Delay%1000)*usDelayBase);

  if(msNum>0) HAL_Delay(msNum);

  delayReg = 0;
  while(delayReg!=usNum) delayReg++;
}



/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
#define us_num 10

#define SCL_OUT_H HAL_GPIO_WritePin(GPIOB, GPIO_PIN_0, GPIO_PIN_SET)
#define SCL_OUT_L HAL_GPIO_WritePin(GPIOB, GPIO_PIN_0, GPIO_PIN_RESET)
#define SDA_OUT_H HAL_GPIO_WritePin(GPIOB, GPIO_PIN_1, GPIO_PIN_SET)
#define SDA_OUT_L HAL_GPIO_WritePin(GPIOB, GPIO_PIN_1, GPIO_PIN_RESET)
#define SDA_IN HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_1)

void I2C_Init(void)
{
	SDA_OUT_H;
	SCL_OUT_H;
	PY_Delay_us_t(1000000) ;
}

void I2C_Start(void)
{
	PY_Delay_us_t(us_num) ;
	SDA_OUT_H;
	SCL_OUT_H;
	PY_Delay_us_t(us_num/2) ;
	SDA_OUT_L;
	PY_Delay_us_t(us_num/2) ;
	SCL_OUT_L;
}

void I2C_Stop(void)
{
	SCL_OUT_L;
	PY_Delay_us_t(us_num) ;
	SDA_OUT_L;
	PY_Delay_us_t(us_num) ;
	SCL_OUT_H;
	PY_Delay_us_t(us_num) ;
	SDA_OUT_H;
	PY_Delay_us_t(us_num) ;
}

void I2C_Write_Ack(void)
{

    PY_Delay_us_t(us_num/2) ;
	SDA_OUT_L;
	PY_Delay_us_t(us_num/2) ;
	SCL_OUT_H;
	PY_Delay_us_t(us_num) ;
	SCL_OUT_L;
	SDA_OUT_H;

}

uint8_t I2C_Read_Ack(void)
{
	uint8_t status=0;

	SCL_OUT_L;
	PY_Delay_us_t(us_num/2) ;
	SDA_OUT_H;
	PY_Delay_us_t(us_num/2) ;
	status = SDA_IN;
	SCL_OUT_H;
	PY_Delay_us_t(us_num) ;
	SCL_OUT_L;
	SDA_OUT_L;

	return status;

}


void I2C_Send_Byte(uint8_t txd)
{


    for(uint8_t i=0;i<8;i++)
    {
    	PY_Delay_us_t(us_num/2) ;
        if((txd&0x80)>>7) SDA_OUT_H;
        else SDA_OUT_L;
        txd<<=1;
        PY_Delay_us_t(us_num/2) ;
        SCL_OUT_H;
        PY_Delay_us_t(us_num) ;
		SCL_OUT_L;
    }

    SDA_OUT_L;
}

uint8_t I2C_Read_Byte(unsigned char rdack)
{
	uint8_t rxd=0;


    for(uint8_t i=0;i<8;i++ )
	{
    	SCL_OUT_L;
    	PY_Delay_us_t(us_num/2) ;
    	SDA_OUT_H;
    	PY_Delay_us_t(us_num/2) ;
    	SCL_OUT_H;
        rxd<<=1;
        if(SDA_IN) rxd++;
        PY_Delay_us_t(us_num) ;
    }

    SCL_OUT_L;
    SDA_OUT_H;

    if (rdack) I2C_Write_Ack();

    return rxd;
}
void HDC1080_WRITE_REG(uint8_t WrAddr, uint16_t data)
{
	  uint8_t daddr = 0x80; //HDC1080 device address (0x40<<1)

	  I2C_Start();
	  I2C_Send_Byte(daddr);
	  I2C_Read_Ack();
  	  I2C_Send_Byte(WrAddr);
  	  I2C_Read_Ack();
  	  I2C_Send_Byte(data>>8);
  	  I2C_Read_Ack();
  	  I2C_Send_Byte(data);
  	  I2C_Read_Ack();
  	  I2C_Stop();

}

uint16_t HDC1080_READ_REG(uint8_t RdAddr)
{
      uint8_t D[2];
	  uint8_t daddr = 0x80; //HDC1080 device address (0x40<<1)

	  I2C_Start();
	  I2C_Send_Byte(daddr);
	  I2C_Read_Ack();
  	  I2C_Send_Byte(RdAddr);
  	  I2C_Read_Ack();

  	  I2C_Start();
	  I2C_Send_Byte(daddr+1);
	  I2C_Read_Ack();
	  D[0]=I2C_Read_Byte(1);
	  D[1]=I2C_Read_Byte(0);
  	  I2C_Stop();

	  return (D[0]<<8|D[1]);
}

uint16_t HDC1080_READ_REG_DEVICE_ID(void)
{
	return HDC1080_READ_REG(0xFF);  //0x1050
}

#define Retrieve_Mode


void HDC1080_Heater_Enable(void)
{
	uint16_t reg_content;
	reg_content = HDC1080_READ_REG(0x02);
	reg_content |= 0x2000;
	HDC1080_WRITE_REG(0x02, reg_content);
}

void HDC1080_Heater_Disable(void)
{
	uint16_t reg_content;
	reg_content = HDC1080_READ_REG(0x02);
	reg_content &= 0xdfff;
	HDC1080_WRITE_REG(0x02, reg_content);
}

uint8_t HDC1080_READ_REG_Battery_Vol(void)
{
	uint16_t reg_content;
	reg_content = HDC1080_READ_REG(0x02);

	if(reg_content&0x0800) return 1; //Battery voltage < 2.8V (read only)
	else return 0; //Battery voltage > 2.8V
}

#define OP_Delay_us 20000
void HDC1080_READ_DATA(uint16_t * temperature, uint16_t * moisture)
{
	  uint8_t daddr = 0x80; //HDC1080 device address (0x40<<1)
	  uint8_t D[4];

	  I2C_Start();
	  I2C_Send_Byte(daddr);
	  I2C_Read_Ack();
	  I2C_Send_Byte(0x00);
	  I2C_Read_Ack();
	  I2C_Stop();

	  PY_Delay_us_t(OP_Delay_us); //Conversion Time, RHCT>=6.5ms for 14 bit resolution

  	  I2C_Start();
	  I2C_Send_Byte(daddr+1);
	  I2C_Read_Ack();
	  D[0]=I2C_Read_Byte(1);
	  D[1]=I2C_Read_Byte(1);
	  D[2]=I2C_Read_Byte(1);
	  D[3]=I2C_Read_Byte(0);
  	  I2C_Stop();

  	  *temperature = (D[0]<<8|D[1]);
  	  *moisture =  (D[2]<<8|D[3]);

}

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */
/*
*Convert float to string type
*Written by Pegasus Yu in 2022
*stra: string address as mychar from char mychar[];
*float: float input like 12.345
*flen: fraction length as 3 for 12.345
*/
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <math.h>
void py_f2s4printf(char * stra, float x, uint8_t flen)
{
	uint32_t base;
	int64_t dn;
	char mc[32];

	base = pow(10,flen);
	dn = x*base;
	sprintf(stra, "%d.", (int)(dn/base));
	dn = abs(dn);
	if(dn%base==0)
	{
		for(uint8_t j=1;j<=flen;j++)
		{
			stra = strcat(stra, "0");
		}
		return;
	}
	else
	{
		if(flen==1){
			sprintf(mc, "%d", (int)(dn%base));
			stra = strcat(stra, mc);
			return;
		}

		for(uint8_t j=1;j<flen;j++)
		{
			if((dn%base)<pow(10,j))
			{
				for(uint8_t k=1;k<=(flen-j);k++)
				{
					stra = strcat(stra, "0");
				}
				sprintf(mc, "%d", (int)(dn%base));
				stra = strcat(stra, mc);
				return;
			}
		}
		sprintf(mc, "%d", (int)(dn%base));
		stra = strcat(stra, mc);
		return;
	}
}

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
char * degree = "°";
/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */
   uint16_t DEVID;
   char console[256];
   char fconsole[256];

   uint16_t D_T;
   uint16_t D_M;

   float F_T;
   float F_M;
  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_USB_DEVICE_Init();
  /* USER CODE BEGIN 2 */
  PY_usDelayTest();
  PY_usDelayOptimize();


  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
	  DEVID = HDC1080_READ_REG_DEVICE_ID();
	  sprintf(console, "\r\nDevice ID = 0x%x\r\n", DEVID);
	  while(CDC_Transmit_FS((uint8_t* )console, strlen(console))==USBD_BUSY) PY_Delay_us_t(1);
	  PY_Delay_us_t(500000);

	  HDC1080_READ_DATA(&D_T, &D_M);
	  sprintf(console, "\r\nTemperature Read Value = 0x%x\r\nMoisture Read Value = 0x%x", D_T, D_M);
	  while(CDC_Transmit_FS((uint8_t* )console, strlen(console))==USBD_BUSY) PY_Delay_us_t(1);


	  F_T = (float)D_T*165/65536-40;
	  py_f2s4printf(fconsole, F_T, 2);
	  sprintf(console, "\r\nTemperature = %s%s", fconsole, degree);
	  while(CDC_Transmit_FS((uint8_t* )console, strlen(console))==USBD_BUSY) PY_Delay_us_t(1);
	  F_M = (float)D_M*100/65536;
	  py_f2s4printf(fconsole, F_M, 2);
	  sprintf(console, "\r\nMoisture = %s%%\r\n", fconsole);
	  while(CDC_Transmit_FS((uint8_t* )console, strlen(console))==USBD_BUSY) PY_Delay_us_t(1);

	  PY_Delay_us_t(500000);

    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
  RCC_PeriphCLKInitTypeDef PeriphClkInit = {0};

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
  PeriphClkInit.PeriphClockSelection = RCC_PERIPHCLK_USB;
  PeriphClkInit.UsbClockSelection = RCC_USBCLKSOURCE_PLL_DIV1_5;
  if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInit) != HAL_OK)
  {
    Error_Handler();
  }
}

/**
  * @brief GPIO Initialization Function
  * @param None
  * @retval None
  */
static void MX_GPIO_Init(void)
{
  GPIO_InitTypeDef GPIO_InitStruct = {0};
/* USER CODE BEGIN MX_GPIO_Init_1 */
/* USER CODE END MX_GPIO_Init_1 */

  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOD_CLK_ENABLE();
  __HAL_RCC_GPIOB_CLK_ENABLE();
  __HAL_RCC_GPIOA_CLK_ENABLE();

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(GPIOB, GPIO_PIN_0|GPIO_PIN_1, GPIO_PIN_SET);

  /*Configure GPIO pins : PB0 PB1 */
  GPIO_InitStruct.Pin = GPIO_PIN_0|GPIO_PIN_1;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_OD;
  GPIO_InitStruct.Pull = GPIO_PULLUP;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
  HAL_GPIO_Init(GPIOB, &GPIO_InitStruct);

/* USER CODE BEGIN MX_GPIO_Init_2 */
/* USER CODE END MX_GPIO_Init_2 */
}

/* USER CODE BEGIN 4 */

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

测试效果

代码的打印输出：

例程下载

STM32F103模拟I2C协议获取HDC1080温湿度传感器数据例程

–End–
