20251203给飞凌OK3588-C开发板适配Rockchip原厂的Buildroot【linux-5.10】后调通eth0并测速94.1 Mbits/sec【4线】
2025/12/3 8:53


缘起：为了彻底熟悉飞凌OK3588-C开发板，使用Rockchip原厂的Buildroot【linux-5.10】来适配飞凌OK3588-C开发板。
默认HDMI可以显示的！^_
先适配比较容易/简单的eth0网卡。
直接将飞凌OK3588-C开发板的linux R4版本总以太网相关的DTS搬过来即可！【还需要解决必要的GPIO口冲突！】


当你把荣品RD-RK3588开发板重新适配一把，就相当于从头做了一个项目：【荣品RD-RK3588开发板】。
当然，开发板的功能都是好的，你免除了调试的过程，也就没有解决相关硬件出错的经验/机会了！


结论：荣品的FAE工程师是真的很忙。
代码写的非常写意/潇洒！
【整个DTS，TAB和空格按键都是混用的！^_有些时候看着很难受的！^_】
DTS中的代码排版真的让人看得很难受！

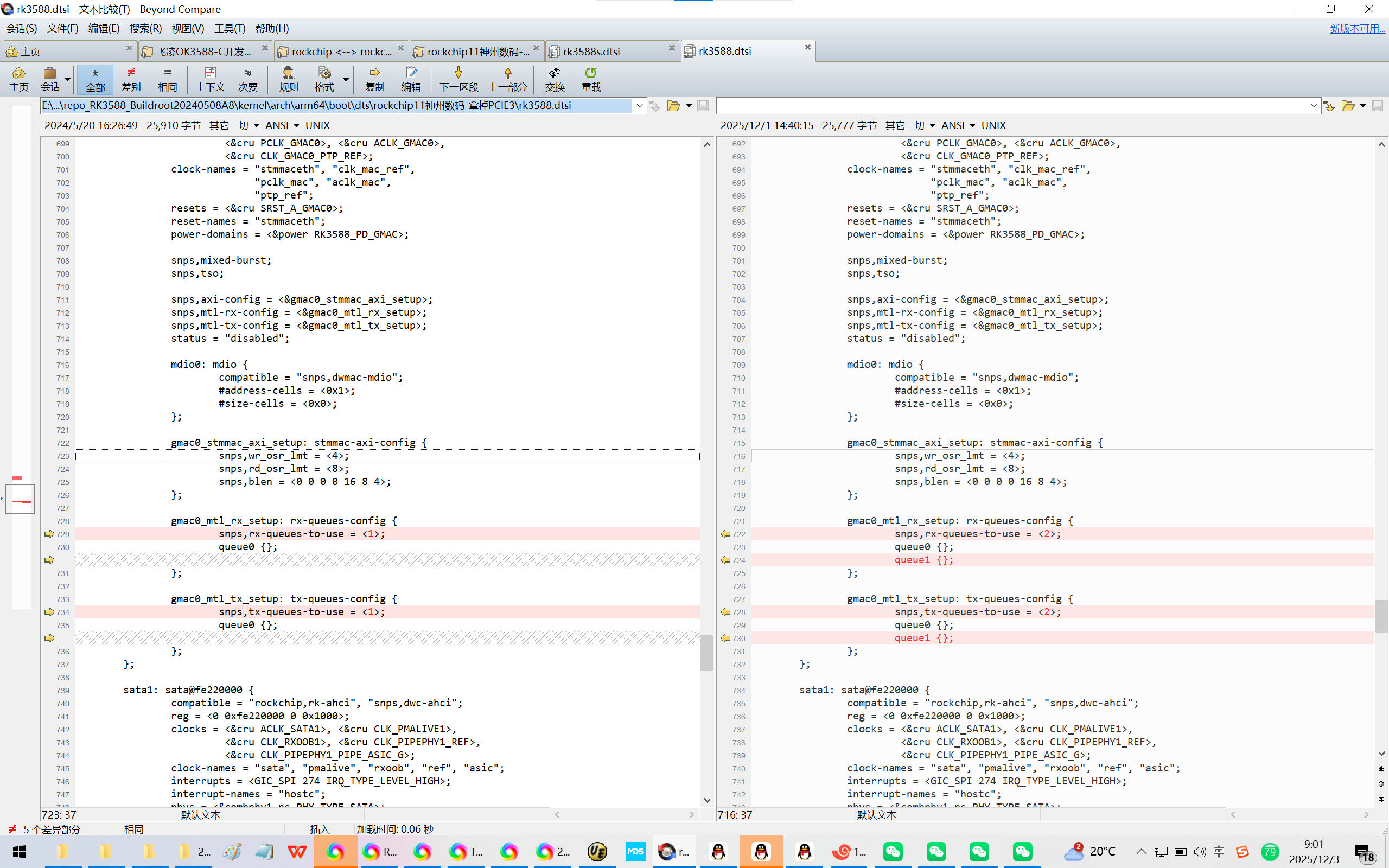

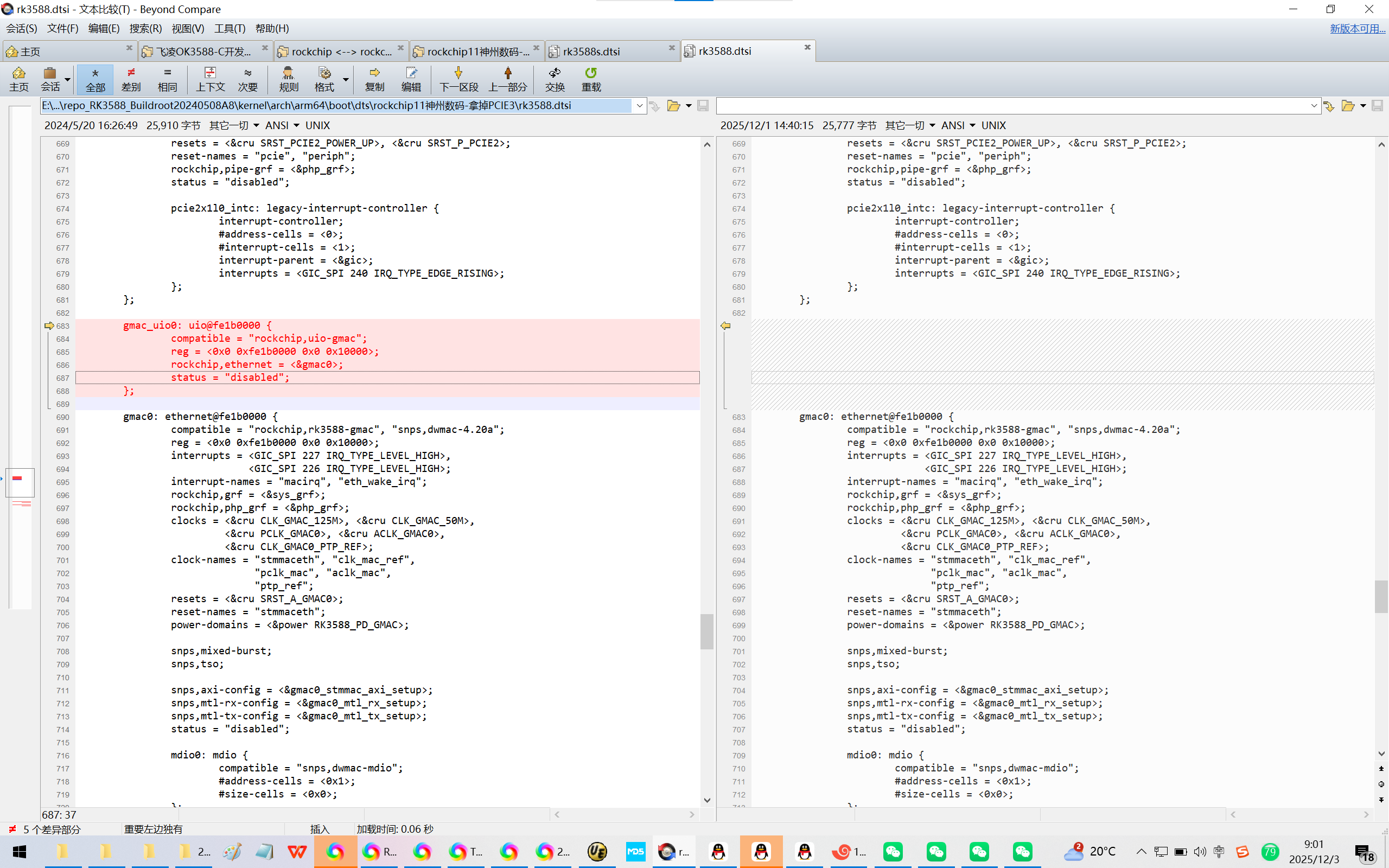

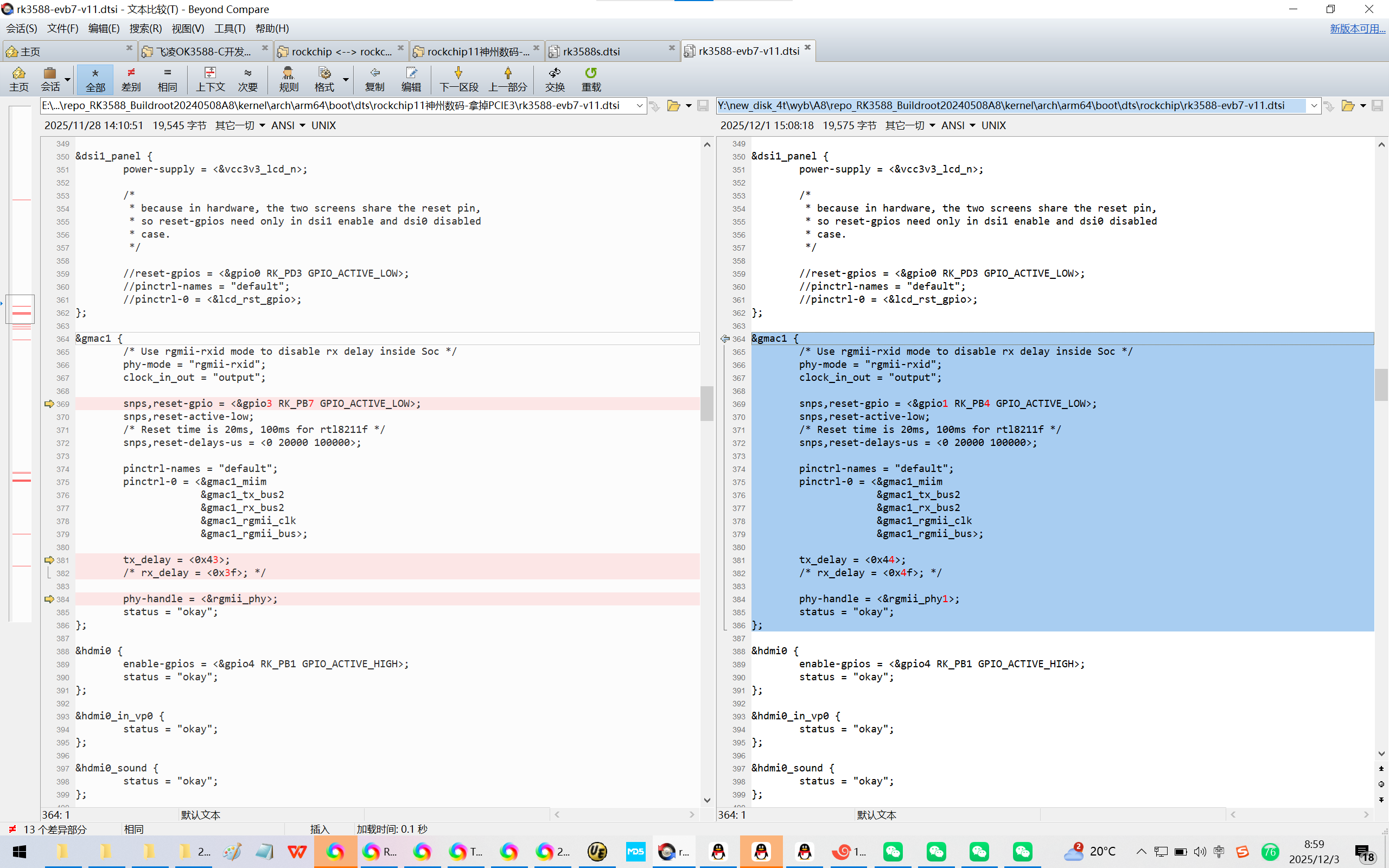

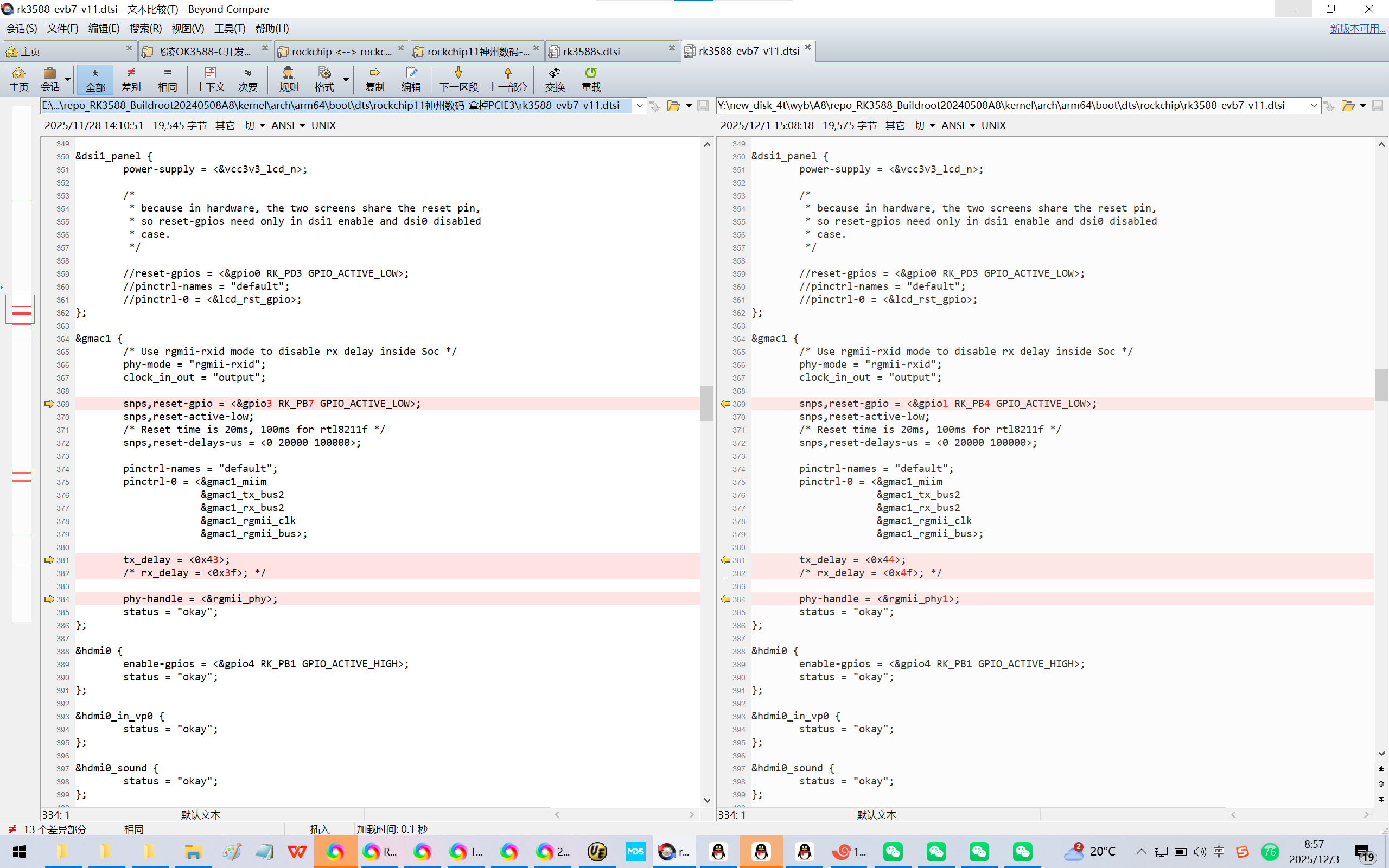

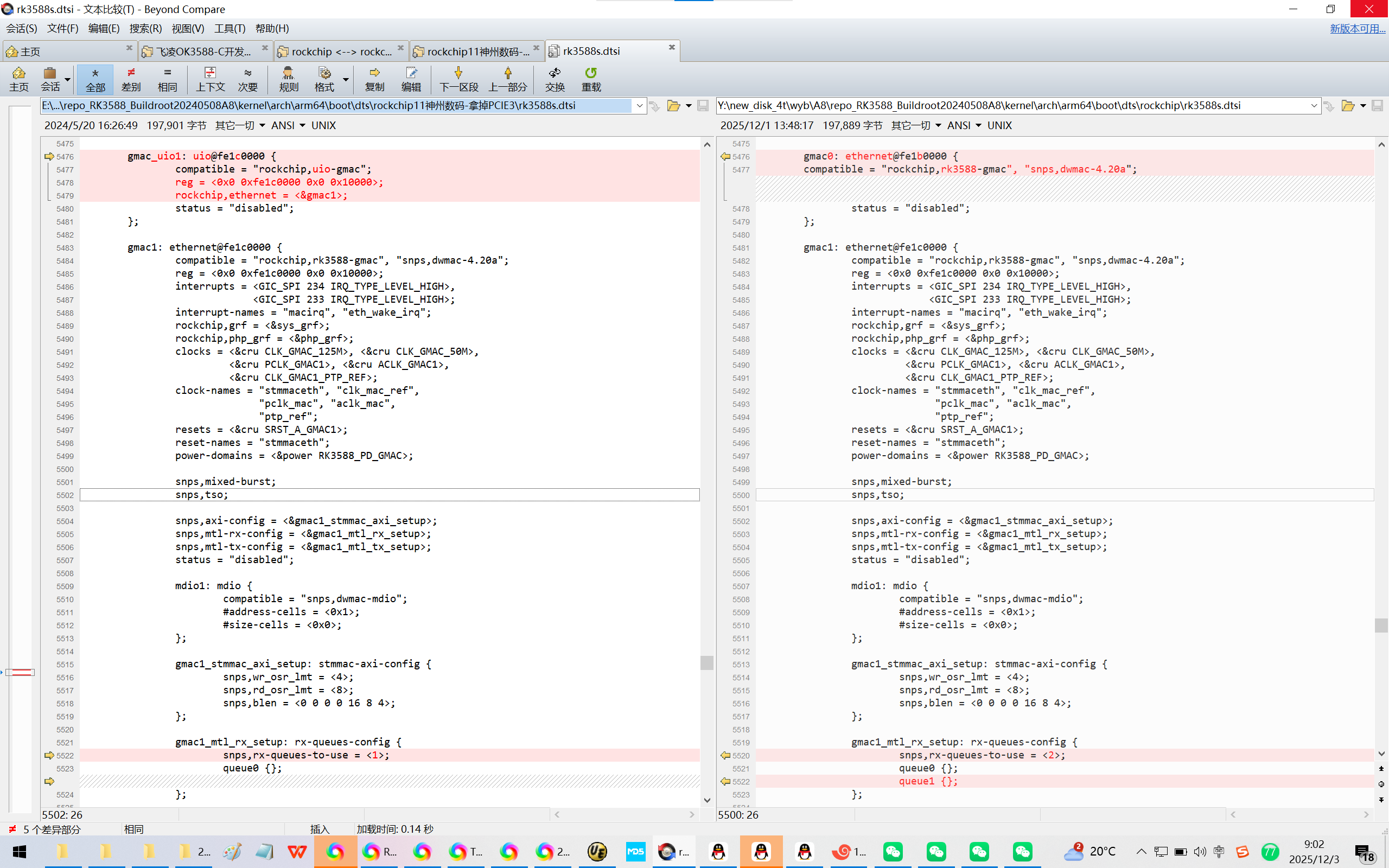

1、配置gmac1
Y:\new_disk_4t\wyb\A8\repo_RK3588_Buildroot20240508A8\kernel\arch\arm64\boot\dts\rockchip\rk3588-evb7-v11.dtsi

&gmac1 {
    /* Use rgmii-rxid mode to disable rx delay inside Soc */
    phy-mode = "rgmii-rxid";
    clock_in_out = "output";

    snps,reset-gpio = <&gpio3 RK_PB7 GPIO_ACTIVE_LOW>;
    snps,reset-active-low;
    /* Reset time is 20ms, 100ms for rtl8211f */
    snps,reset-delays-us = <0 20000 100000>;

    pinctrl-names = "default";
    pinctrl-0 = <&gmac1_miim
             &gmac1_tx_bus2
             &gmac1_rx_bus2
             &gmac1_rgmii_clk
             &gmac1_rgmii_bus>;

    tx_delay = <0x43>;
    /* rx_delay = <0x3f>; */

    phy-handle = <&rgmii_phy>;
    status = "okay";
};

修改为：

&gmac1 {
    /* Use rgmii-rxid mode to disable rx delay inside Soc */
    phy-mode = "rgmii-rxid";
    clock_in_out = "output";

    snps,reset-gpio = <&gpio1 RK_PB4 GPIO_ACTIVE_LOW>;
    snps,reset-active-low;
    /* Reset time is 20ms, 100ms for rtl8211f */
    snps,reset-delays-us = <0 20000 100000>;

    pinctrl-names = "default";
    pinctrl-0 = <&gmac1_miim
             &gmac1_tx_bus2
             &gmac1_rx_bus2
             &gmac1_rgmii_clk
             &gmac1_rgmii_bus>;

    tx_delay = <0x44>;
    /* rx_delay = <0x4f>; */

    phy-handle = <&rgmii_phy1>;
    status = "okay";
};

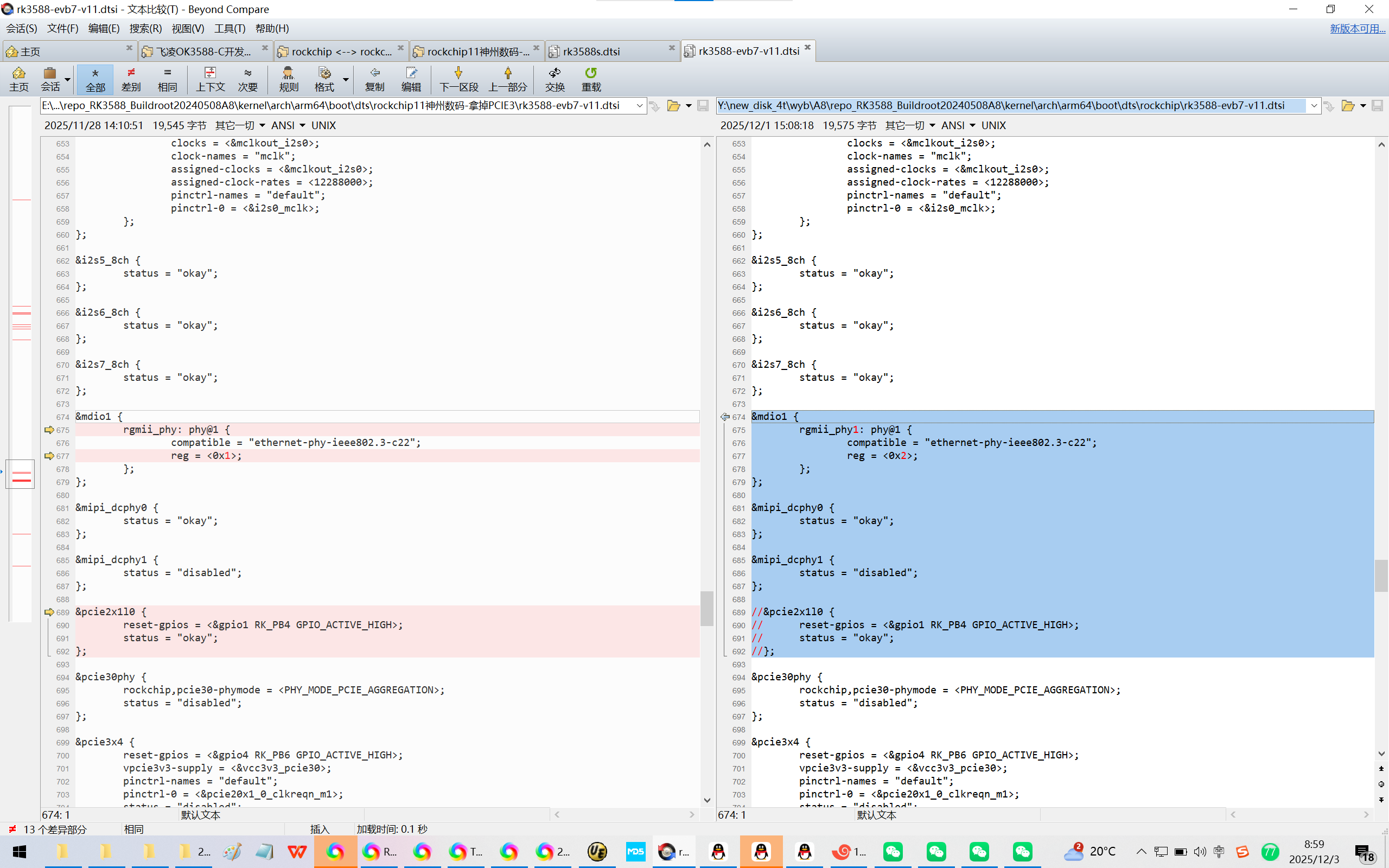

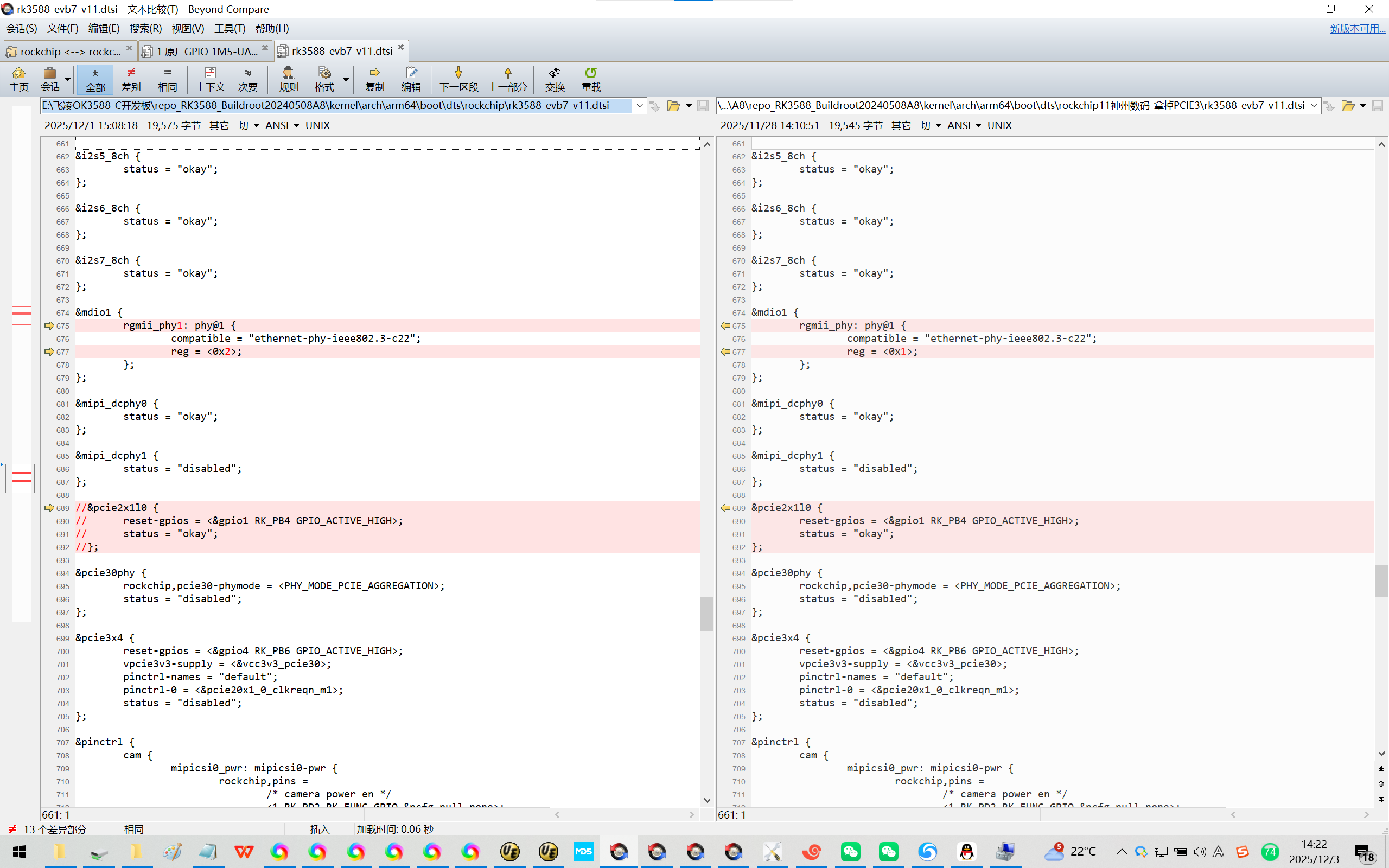

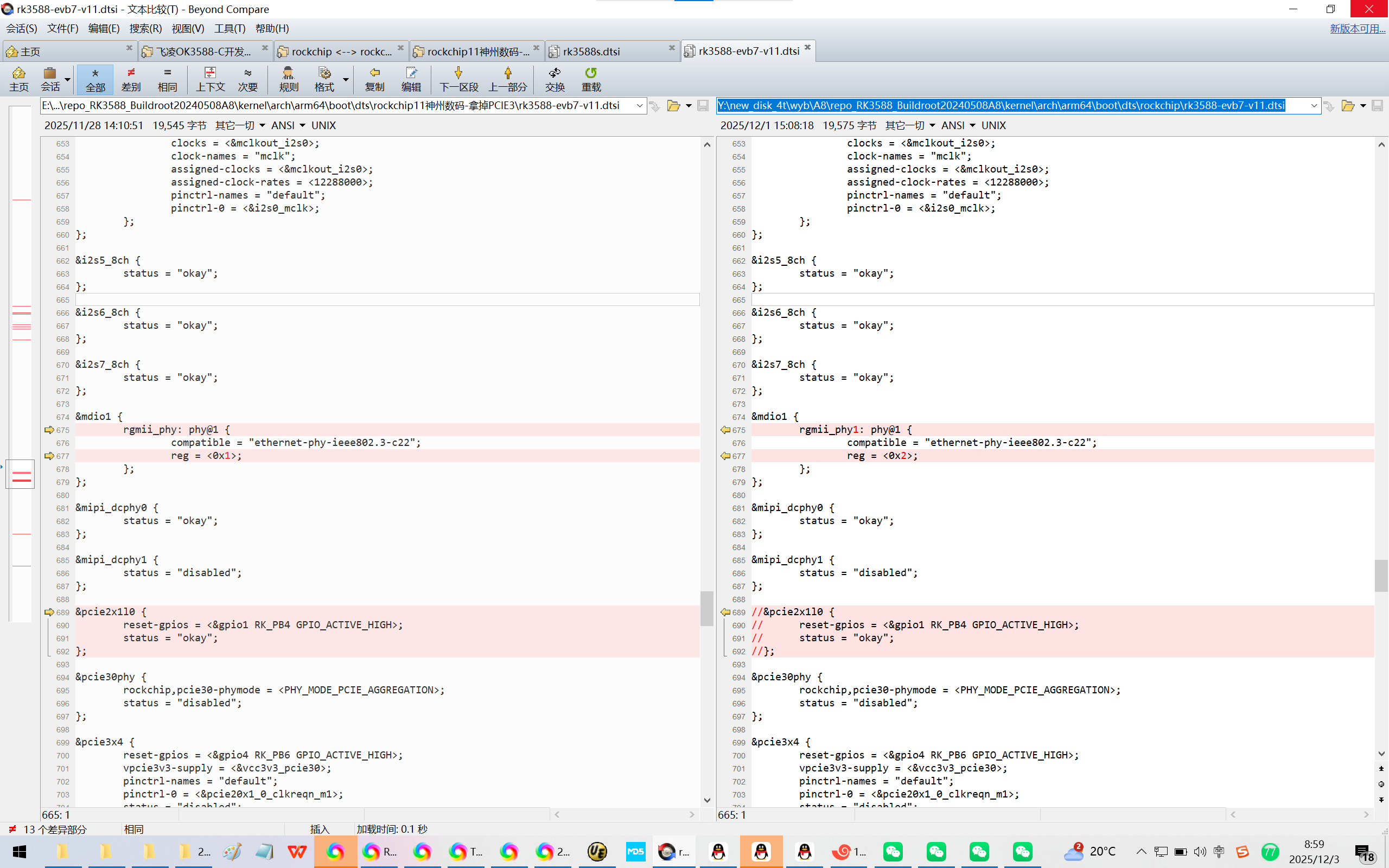

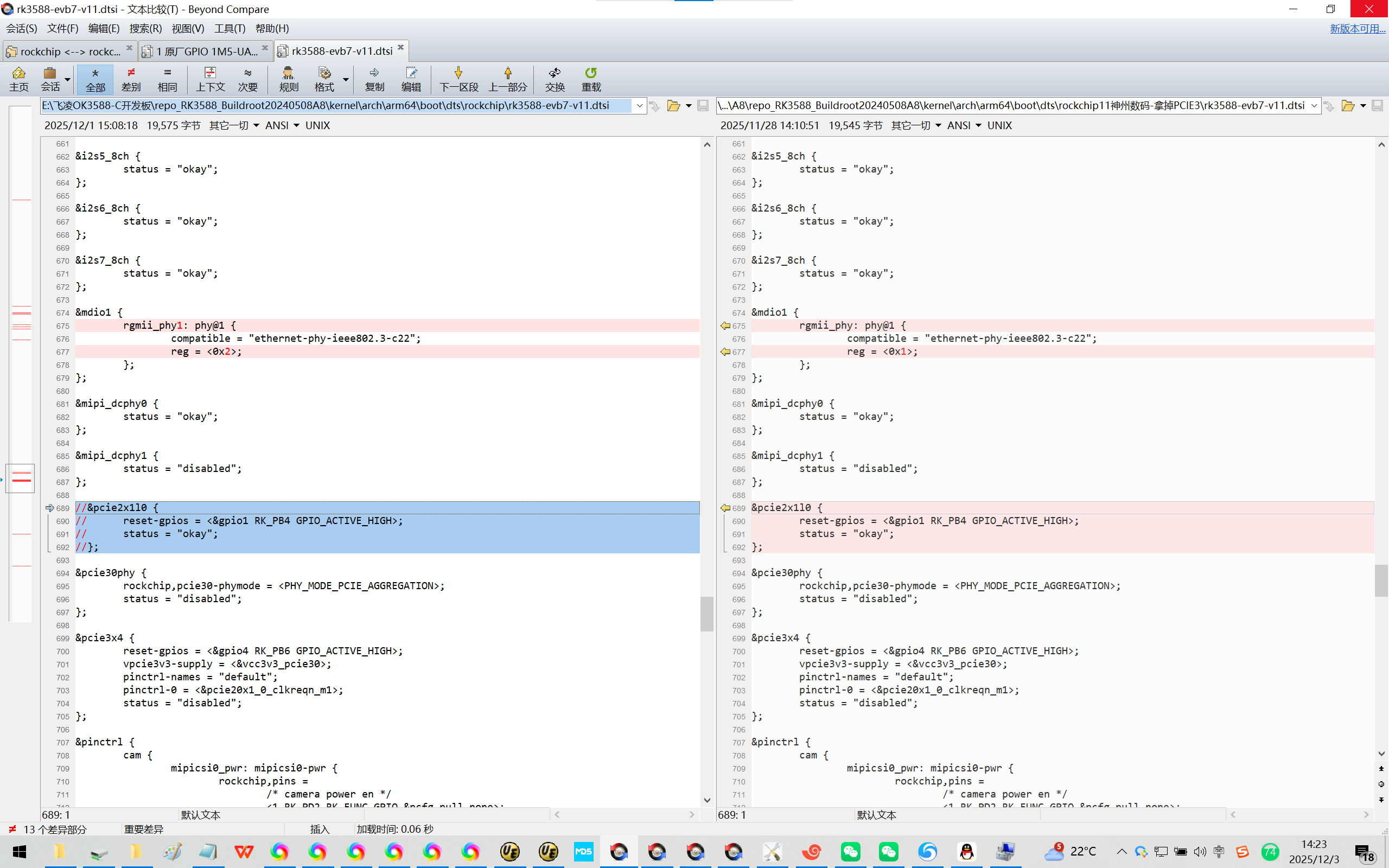

2、配置mdio1
Y:\new_disk_4t\wyb\A8\repo_RK3588_Buildroot20240508A8\kernel\arch\arm64\boot\dts\rockchip\rk3588-evb7-v11.dtsi
&mdio1 {
    rgmii_phy: phy@1 {
        compatible = "ethernet-phy-ieee802.3-c22";
        reg = <0x1>;
    };
};

&mipi_dcphy0 {
    status = "okay";
};

&mipi_dcphy1 {
    status = "disabled";
};

&pcie2x1l0 {
    reset-gpios = <&gpio1 RK_PB4 GPIO_ACTIVE_HIGH>;
    status = "okay";
};

修改为：

&mdio1 {
    rgmii_phy1: phy@1 {
        compatible = "ethernet-phy-ieee802.3-c22";
        reg = <0x2>;
    };
};

&mipi_dcphy0 {
    status = "okay";
};

&mipi_dcphy1 {
    status = "disabled";
};

//&pcie2x1l0 {
//    reset-gpios = <&gpio1 RK_PB4 GPIO_ACTIVE_HIGH>;
//    status = "okay";
//};


3、【可选】
Y:\new_disk_4t\wyb\A8\repo_RK3588_Buildroot20240508A8\kernel\arch\arm64\boot\dts\rockchip\rk3588.dtsi


4、【可选】
Y:\new_disk_4t\wyb\A8\repo_RK3588_Buildroot20240508A8\kernel\arch\arm64\boot\dts\rockchip\rk3588s.dtsi

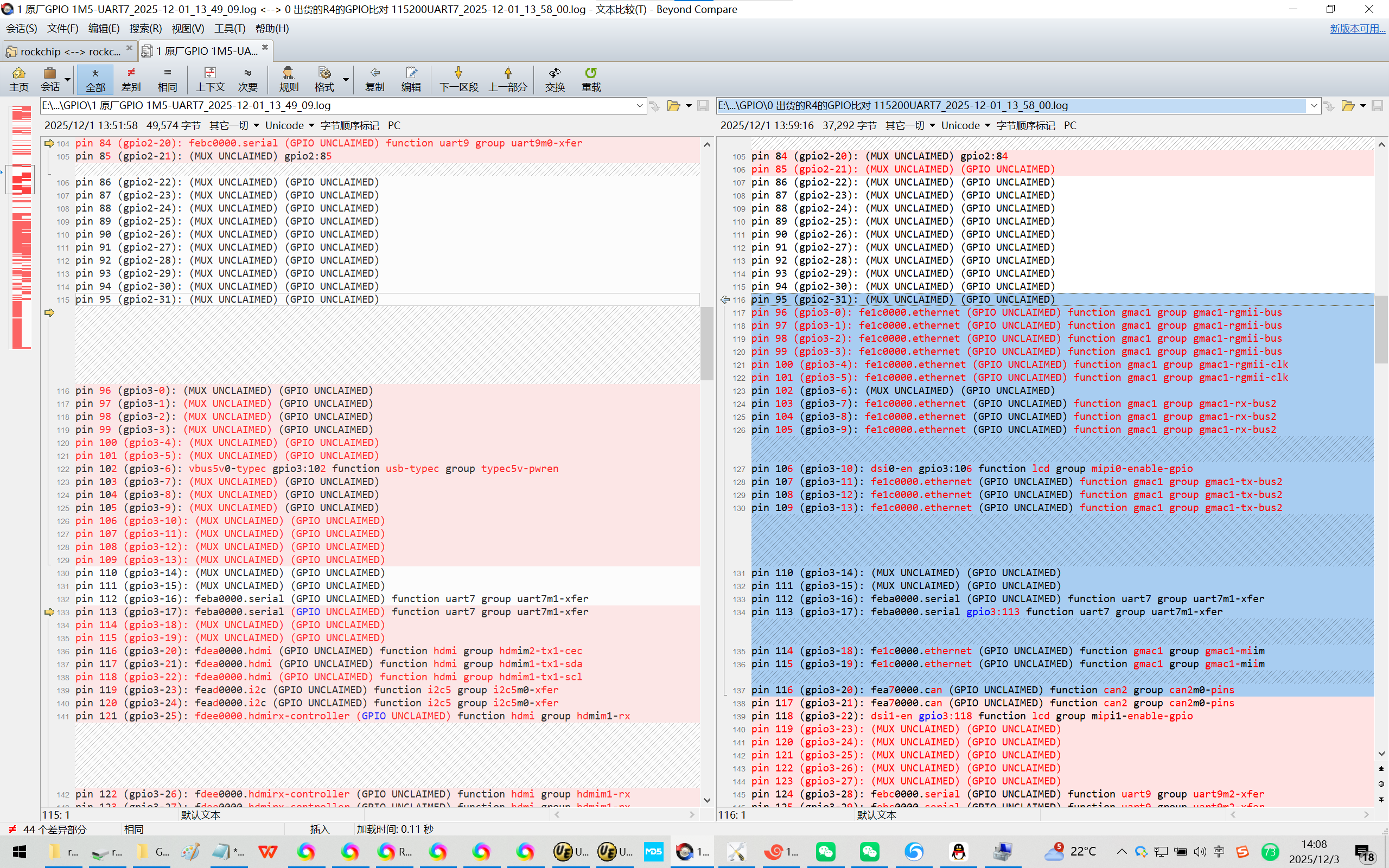

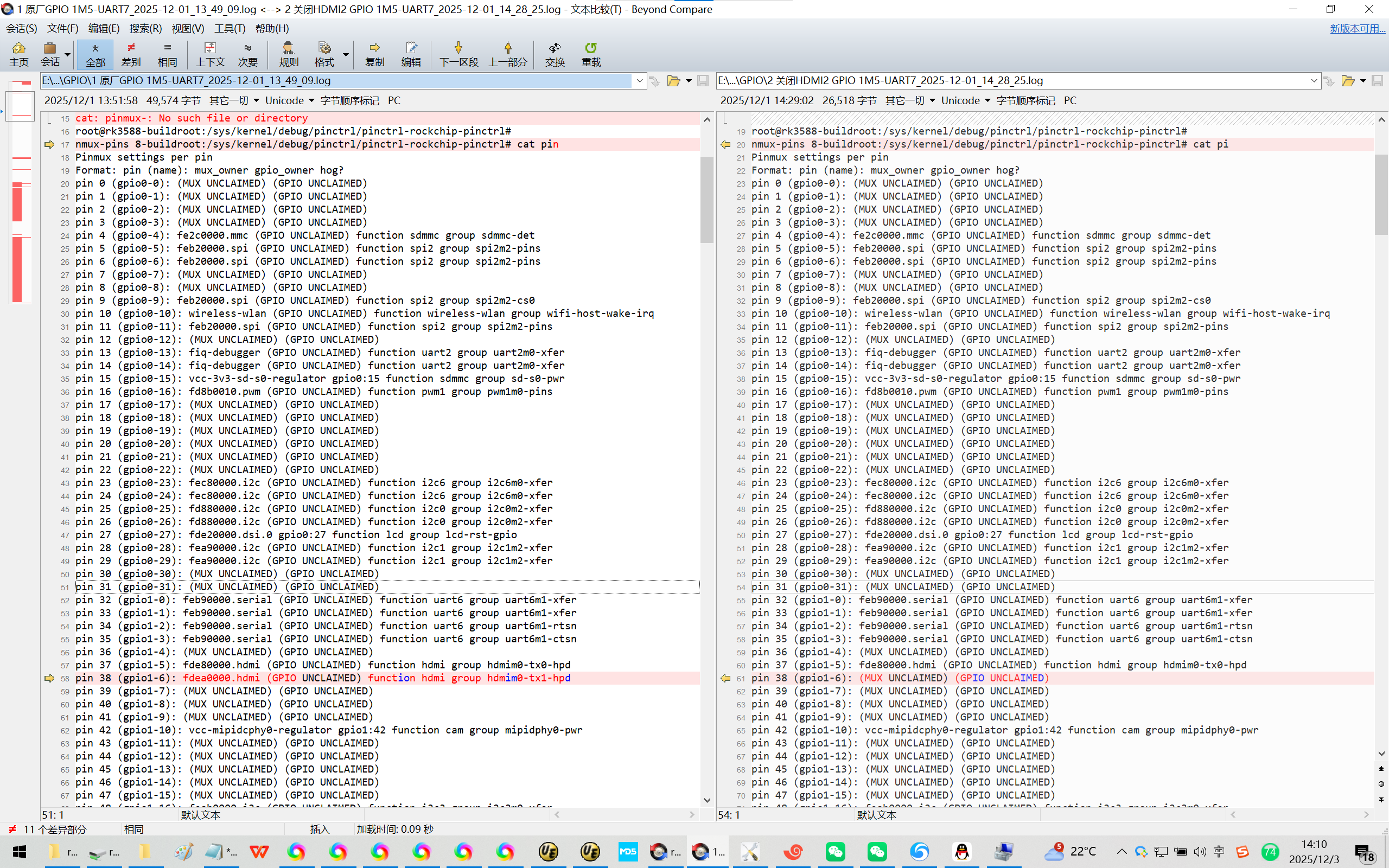

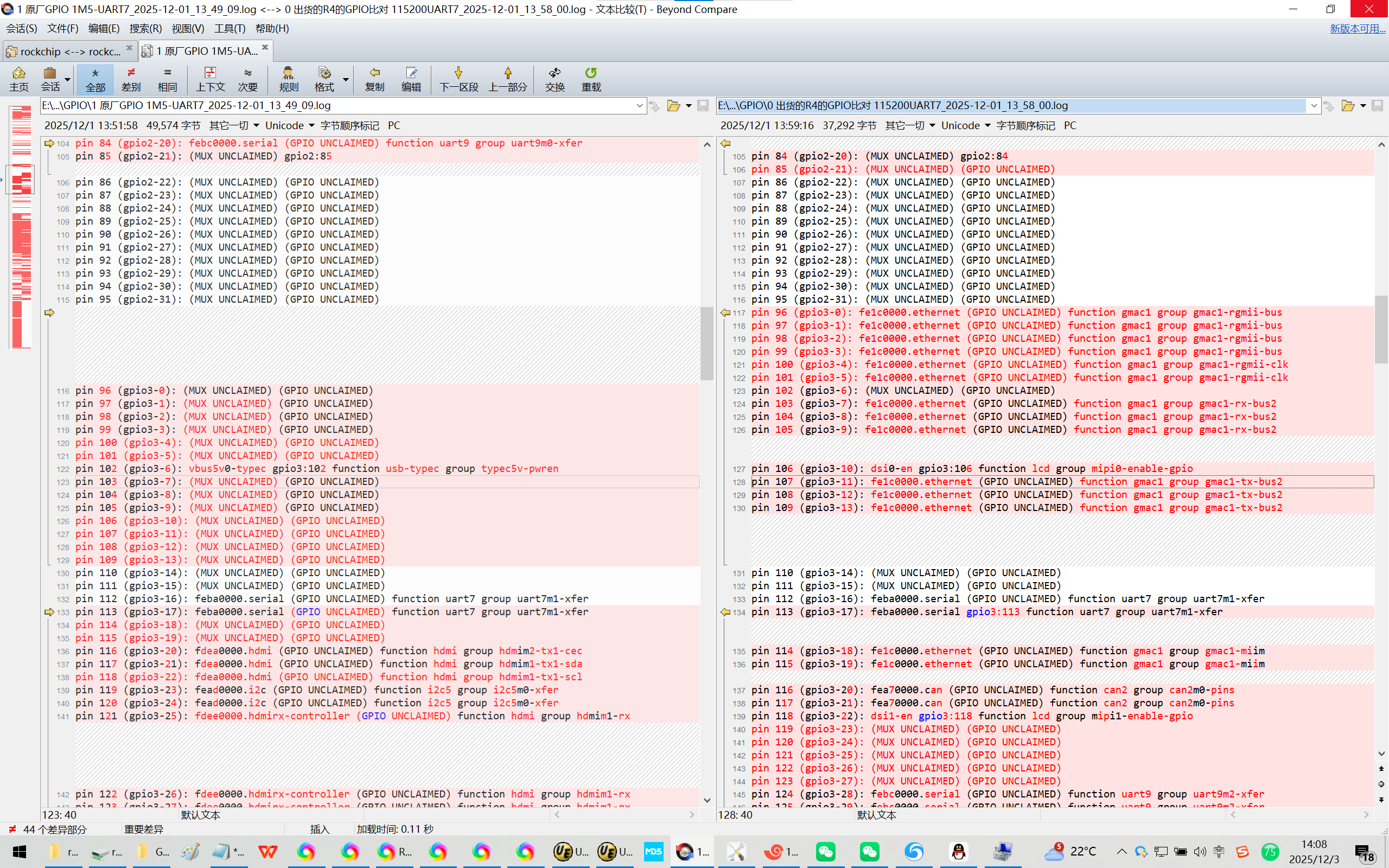

5、GPIO口的比对：
【好用的飞凌R4版本系统的GPIO口状态：】
pin 95 (gpio2-31): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 96 (gpio3-0): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-bus
pin 97 (gpio3-1): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-bus
pin 98 (gpio3-2): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-bus
pin 99 (gpio3-3): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-bus
pin 100 (gpio3-4): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-clk
pin 101 (gpio3-5): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-clk
pin 102 (gpio3-6): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 103 (gpio3-7): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rx-bus2
pin 104 (gpio3-8): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rx-bus2
pin 105 (gpio3-9): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rx-bus2
pin 106 (gpio3-10): dsi0-en gpio3:106 function lcd group mipi0-enable-gpio
pin 107 (gpio3-11): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-tx-bus2
pin 108 (gpio3-12): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-tx-bus2
pin 109 (gpio3-13): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-tx-bus2
pin 110 (gpio3-14): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 111 (gpio3-15): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 112 (gpio3-16): feba0000.serial (GPIO UNCLAIMED) function uart7 group uart7m1-xfer
pin 113 (gpio3-17): feba0000.serial gpio3:113 function uart7 group uart7m1-xfer
pin 114 (gpio3-18): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-miim
pin 115 (gpio3-19): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-miim
pin 116 (gpio3-20): fea70000.can (GPIO UNCLAIMED) function can2 group can2m0-pins


Rockchip原厂的Buildroot【linux-5.10】的GPIO口状态：
pin 95 (gpio2-31): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 96 (gpio3-0): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 97 (gpio3-1): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 98 (gpio3-2): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 99 (gpio3-3): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 100 (gpio3-4): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 101 (gpio3-5): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 102 (gpio3-6): vbus5v0-typec gpio3:102 function usb-typec group typec5v-pwren
pin 103 (gpio3-7): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 104 (gpio3-8): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 105 (gpio3-9): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 106 (gpio3-10): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 107 (gpio3-11): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 108 (gpio3-12): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 109 (gpio3-13): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 110 (gpio3-14): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 111 (gpio3-15): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 112 (gpio3-16): feba0000.serial (GPIO UNCLAIMED) function uart7 group uart7m1-xfer
pin 113 (gpio3-17): feba0000.serial (GPIO UNCLAIMED) function uart7 group uart7m1-xfer
pin 114 (gpio3-18): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 115 (gpio3-19): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 116 (gpio3-20): fdea0000.hdmi (GPIO UNCLAIMED) function hdmi group hdmim2-tx1-cec

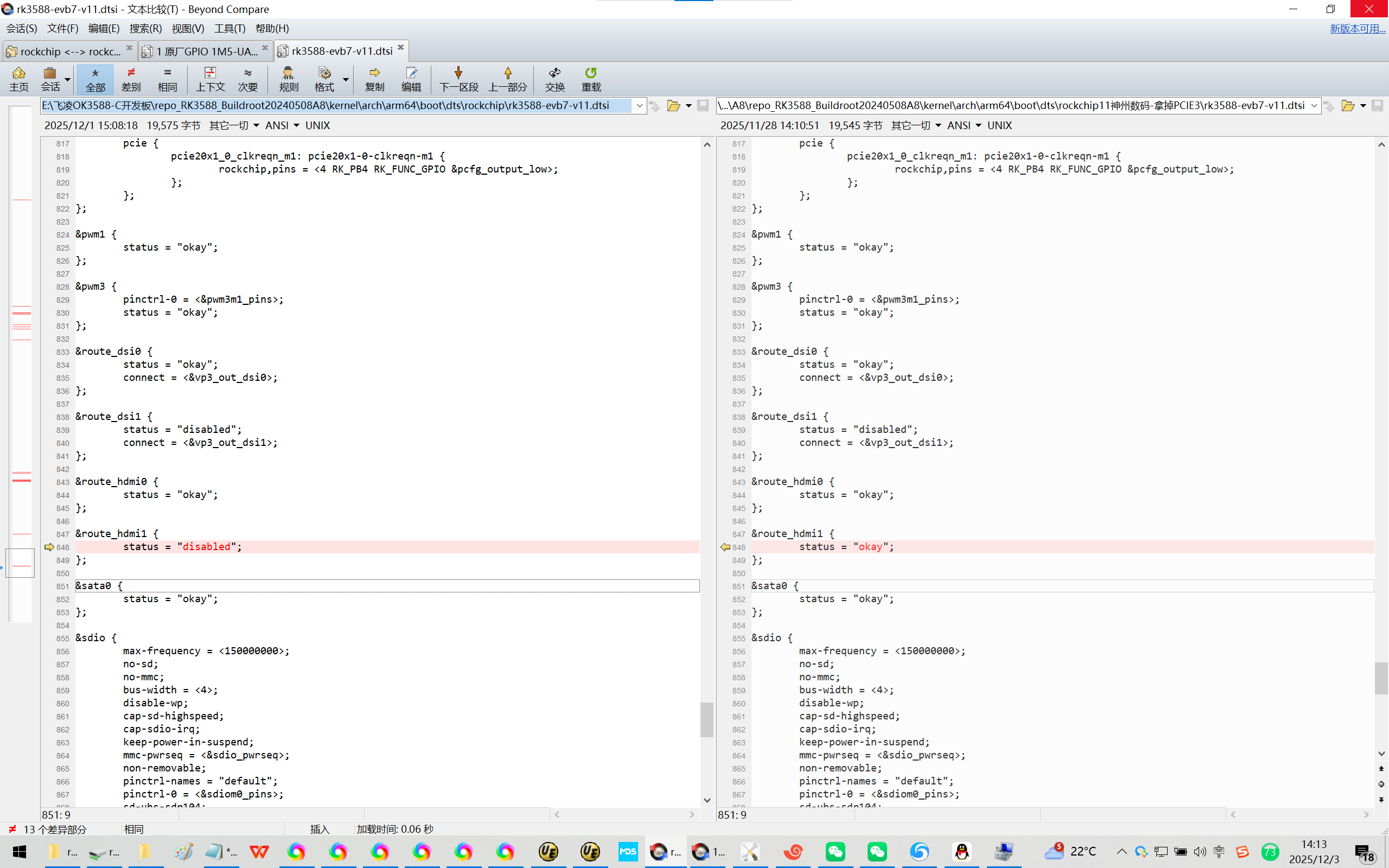

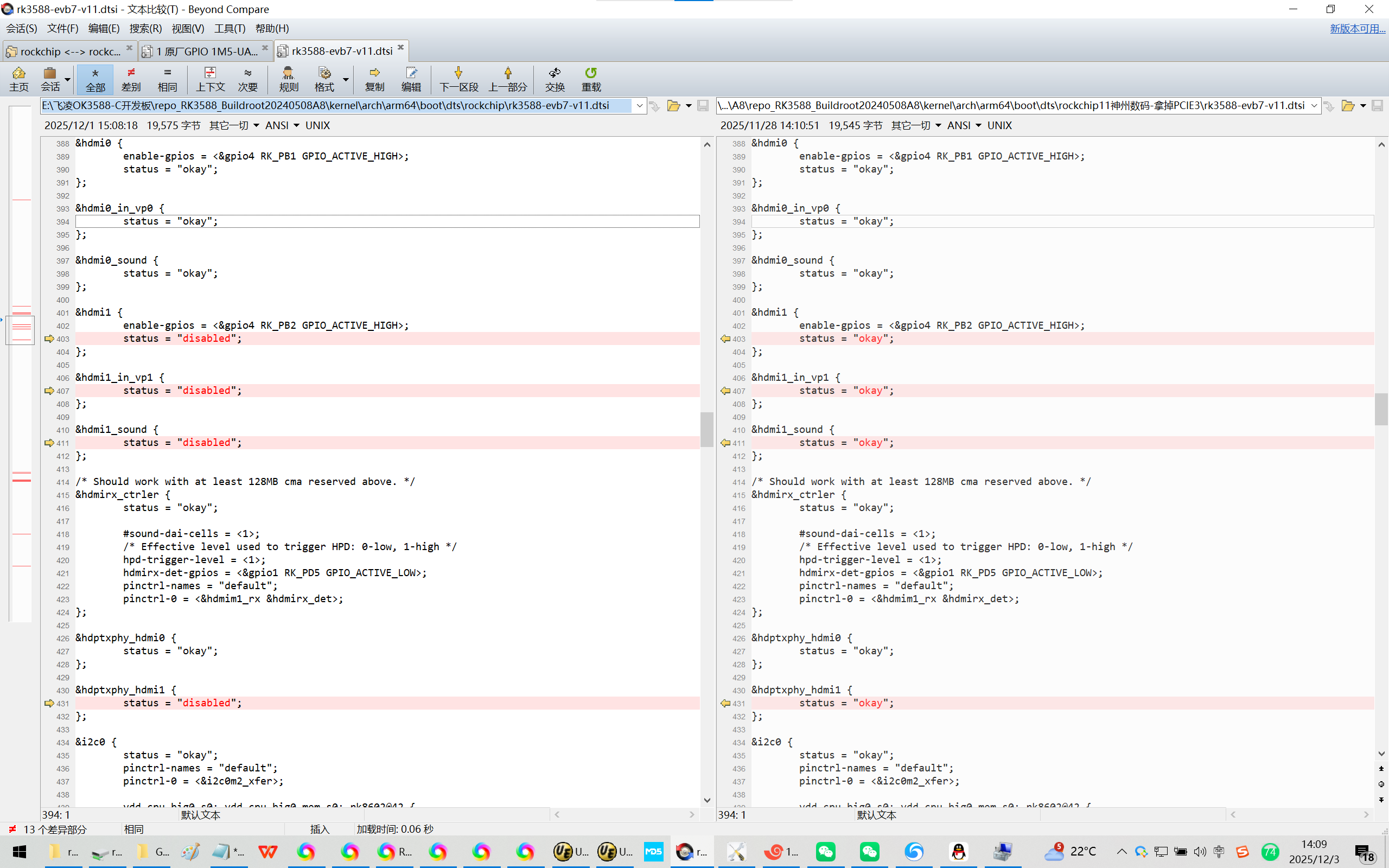

为了排除可能得干扰：拿掉HDMI2【可选】
&hdmi1 {
    enable-gpios = <&gpio4 RK_PB2 GPIO_ACTIVE_HIGH>;
    status = "disabled";
};

&hdmi1_in_vp1 {
    status = "disabled";
};

&hdmi1_sound {
    status = "disabled";
};

/* Should work with at least 128MB cma reserved above. */
&hdmirx_ctrler {
    status = "okay";

    #sound-dai-cells = <1>;
    /* Effective level used to trigger HPD: 0-low, 1-high */
    hpd-trigger-level = <1>;
    hdmirx-det-gpios = <&gpio1 RK_PD5 GPIO_ACTIVE_LOW>;
    pinctrl-names = "default";
    pinctrl-0 = <&hdmim1_rx &hdmirx_det>;
};

&hdptxphy_hdmi0 {
    status = "okay";
};

&hdptxphy_hdmi1 {
    status = "disabled";
};


&route_hdmi1 {
    status = "disabled";
};

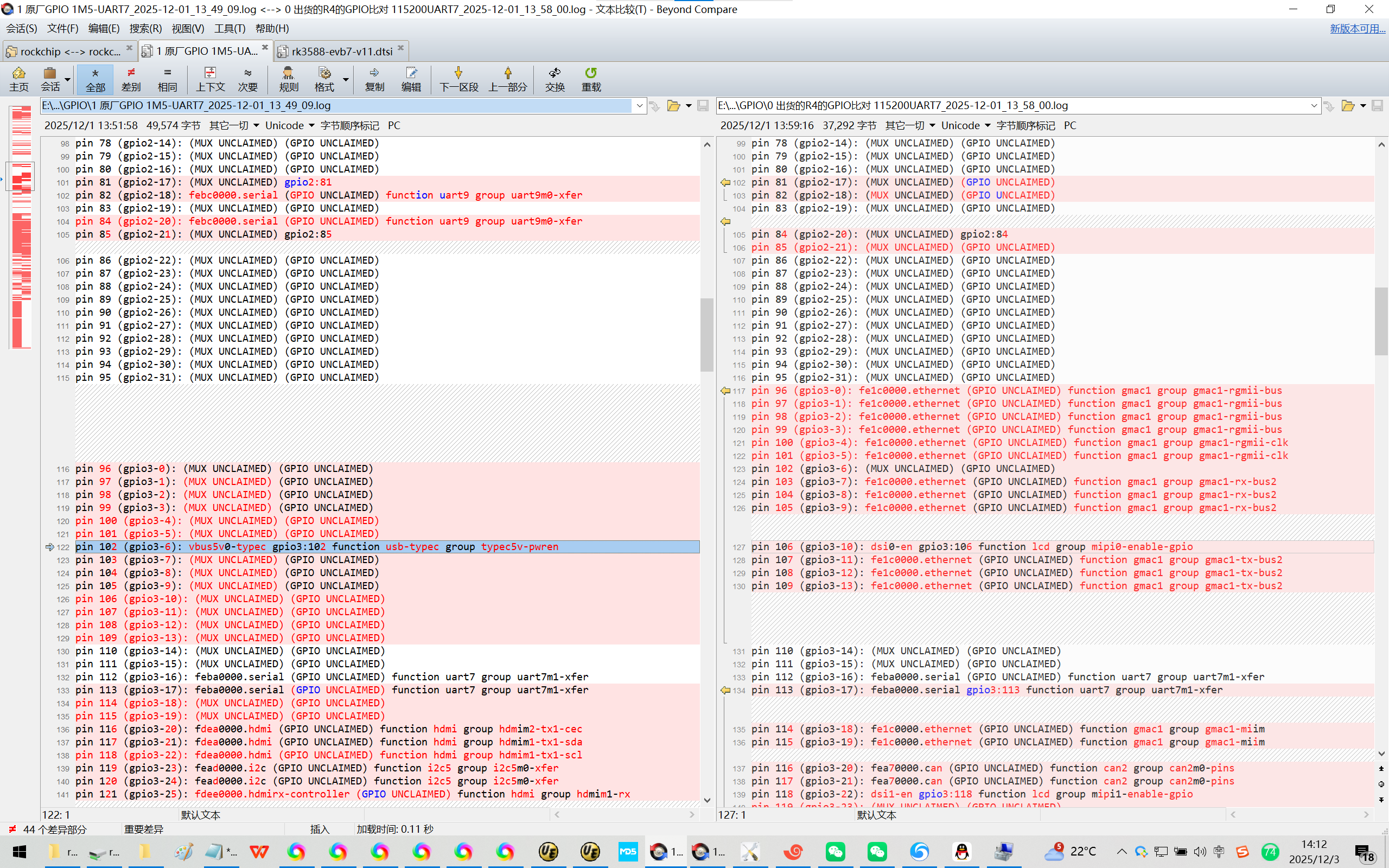

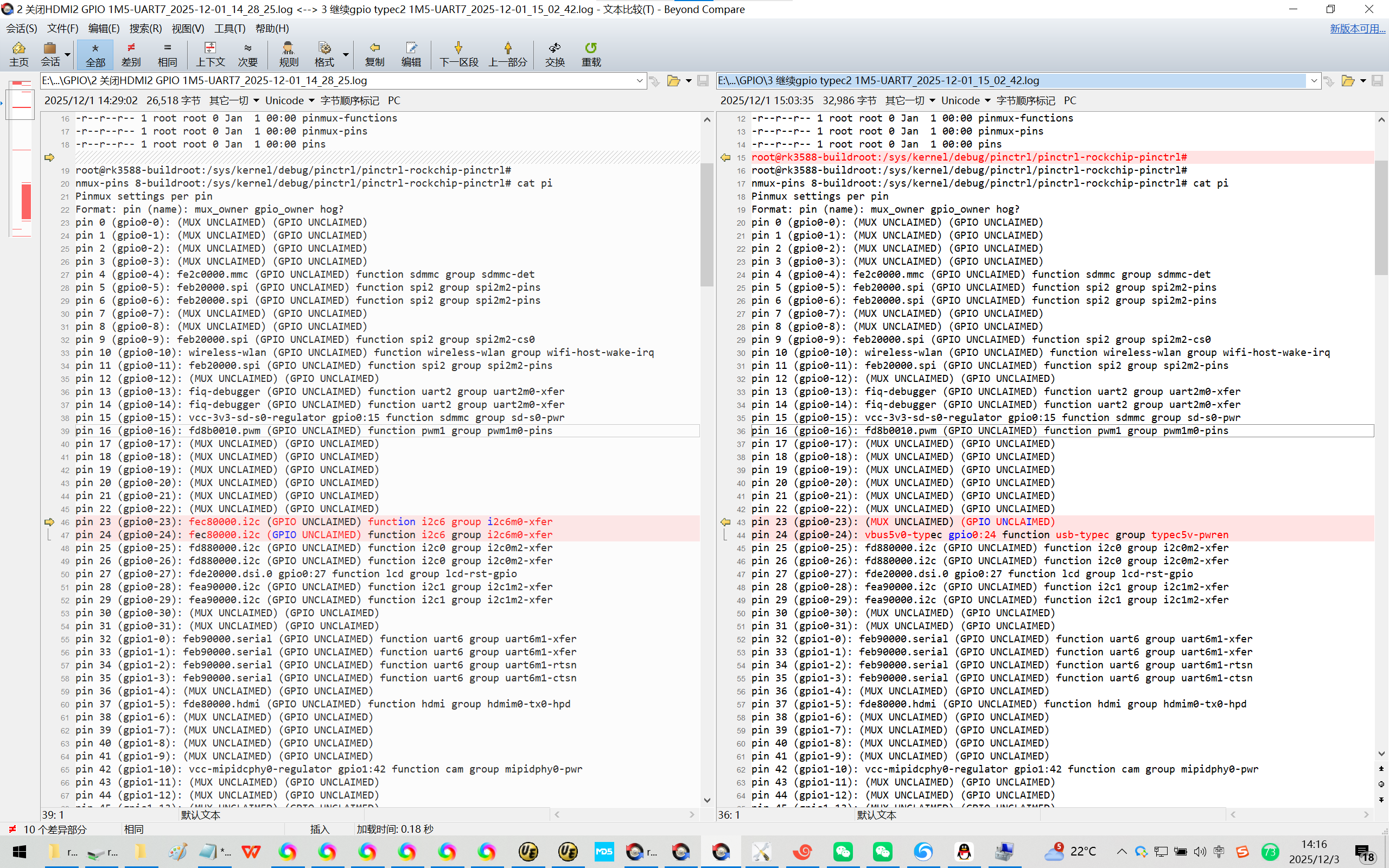

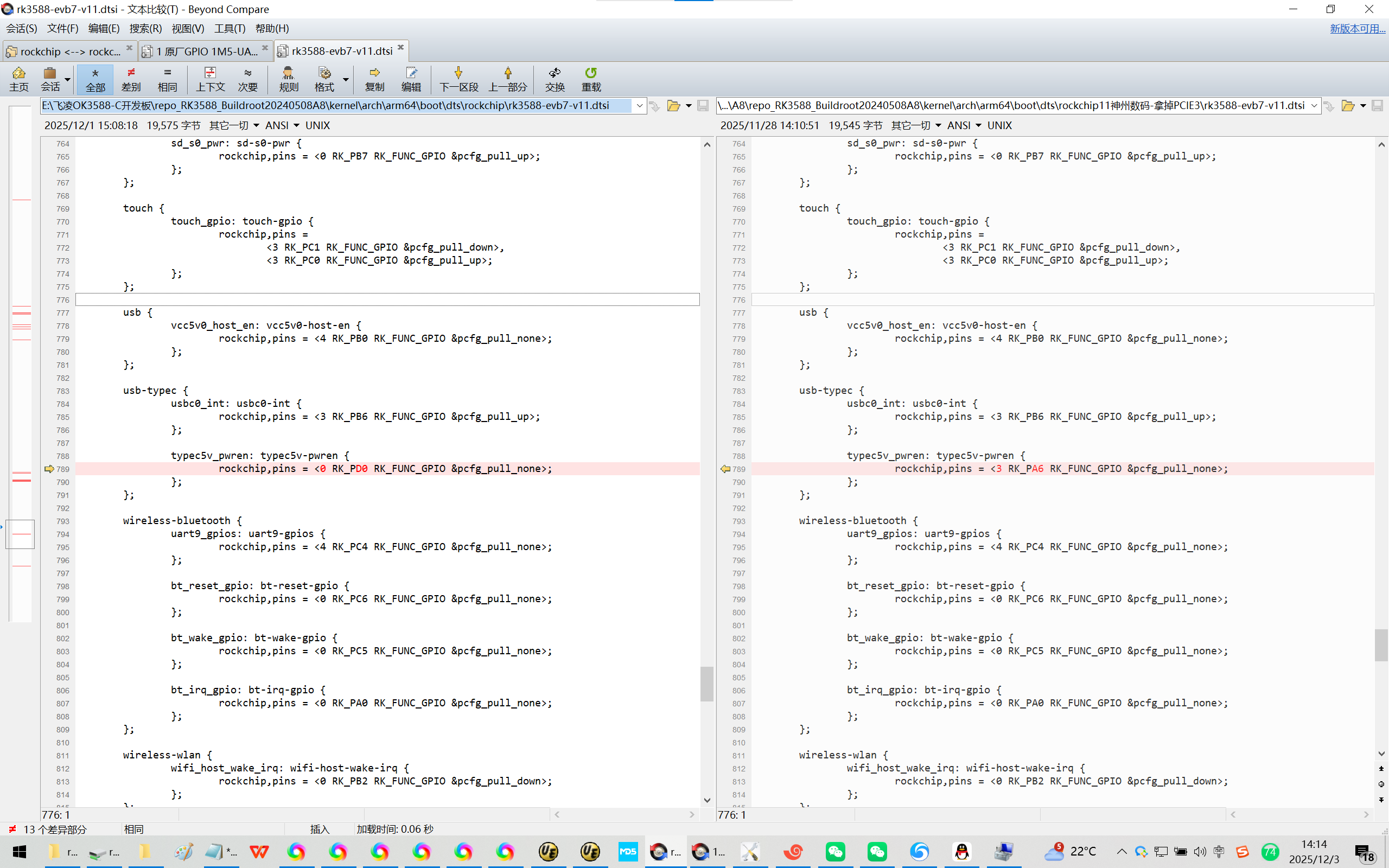

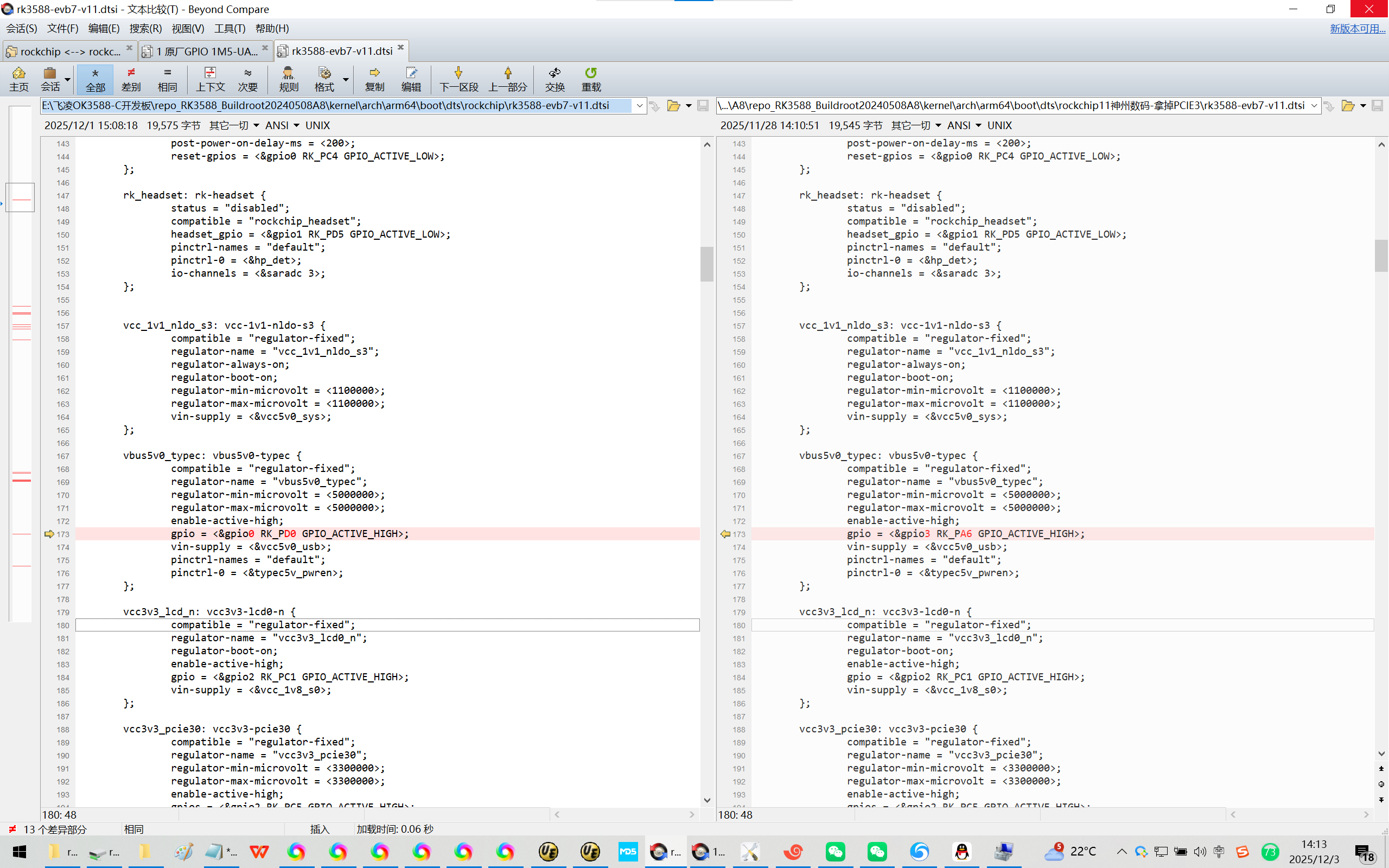

6、为了排除可能得干扰：拿掉vbus5v0-typec【可选】
pin 102 (gpio3-6): vbus5v0-typec gpio3:102 function usb-typec group typec5v-pwren


    vbus5v0_typec: vbus5v0-typec {
        compatible = "regulator-fixed";
        regulator-name = "vbus5v0_typec";
        regulator-min-microvolt = <5000000>;
        regulator-max-microvolt = <5000000>;
        enable-active-high;
        gpio = <&gpio0 RK_PD0 GPIO_ACTIVE_HIGH>;
        vin-supply = <&vcc5v0_usb>;
        pinctrl-names = "default";
        pinctrl-0 = <&typec5v_pwren>;
    };


    usb {
        vcc5v0_host_en: vcc5v0-host-en {
            rockchip,pins = <4 RK_PB0 RK_FUNC_GPIO &pcfg_pull_none>;
        };
    };

    usb-typec {
        usbc0_int: usbc0-int {
            rockchip,pins = <3 RK_PB6 RK_FUNC_GPIO &pcfg_pull_up>;
        };

        typec5v_pwren: typec5v-pwren {
            rockchip,pins = <0 RK_PD0 RK_FUNC_GPIO &pcfg_pull_none>;
        };
    };

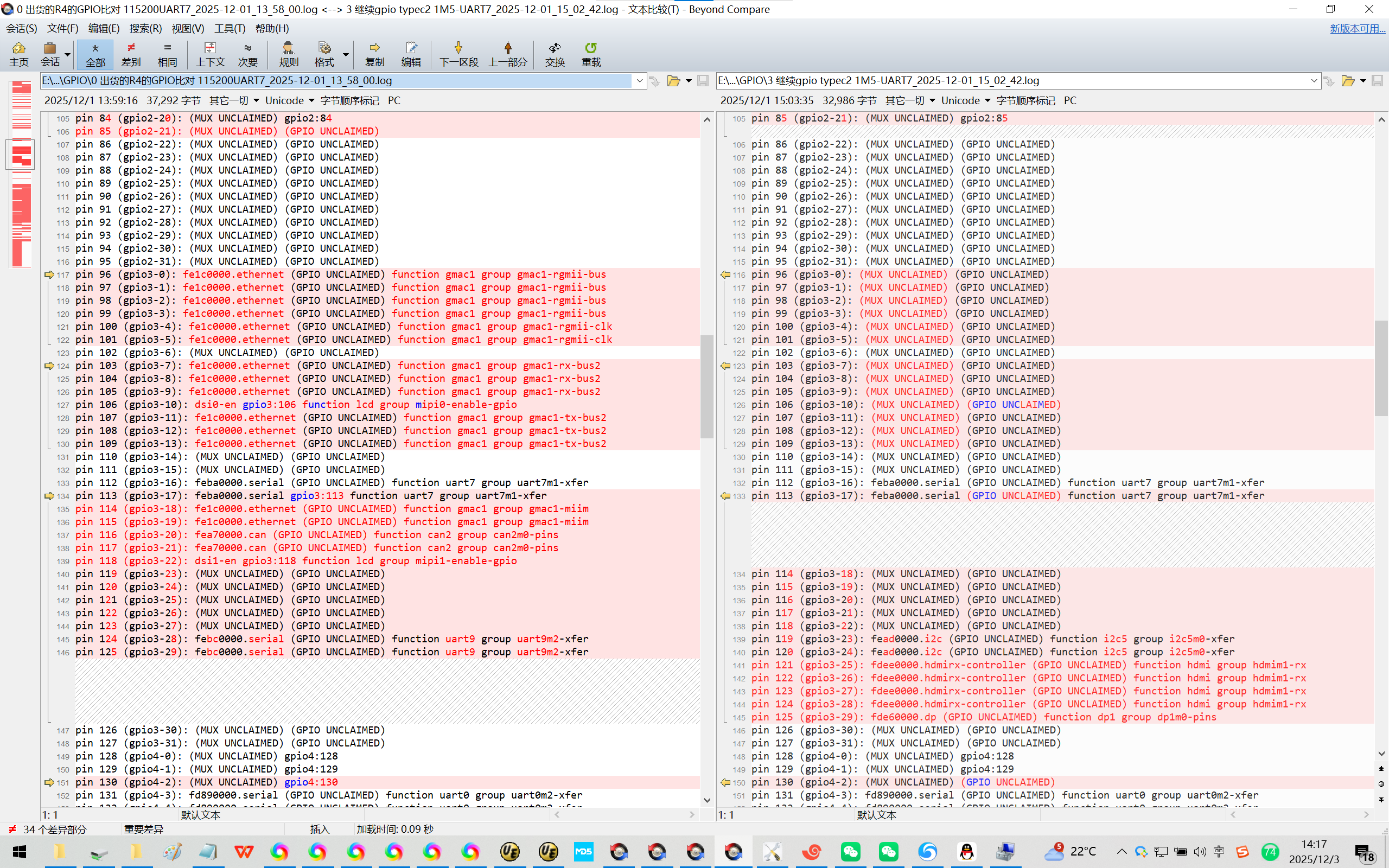

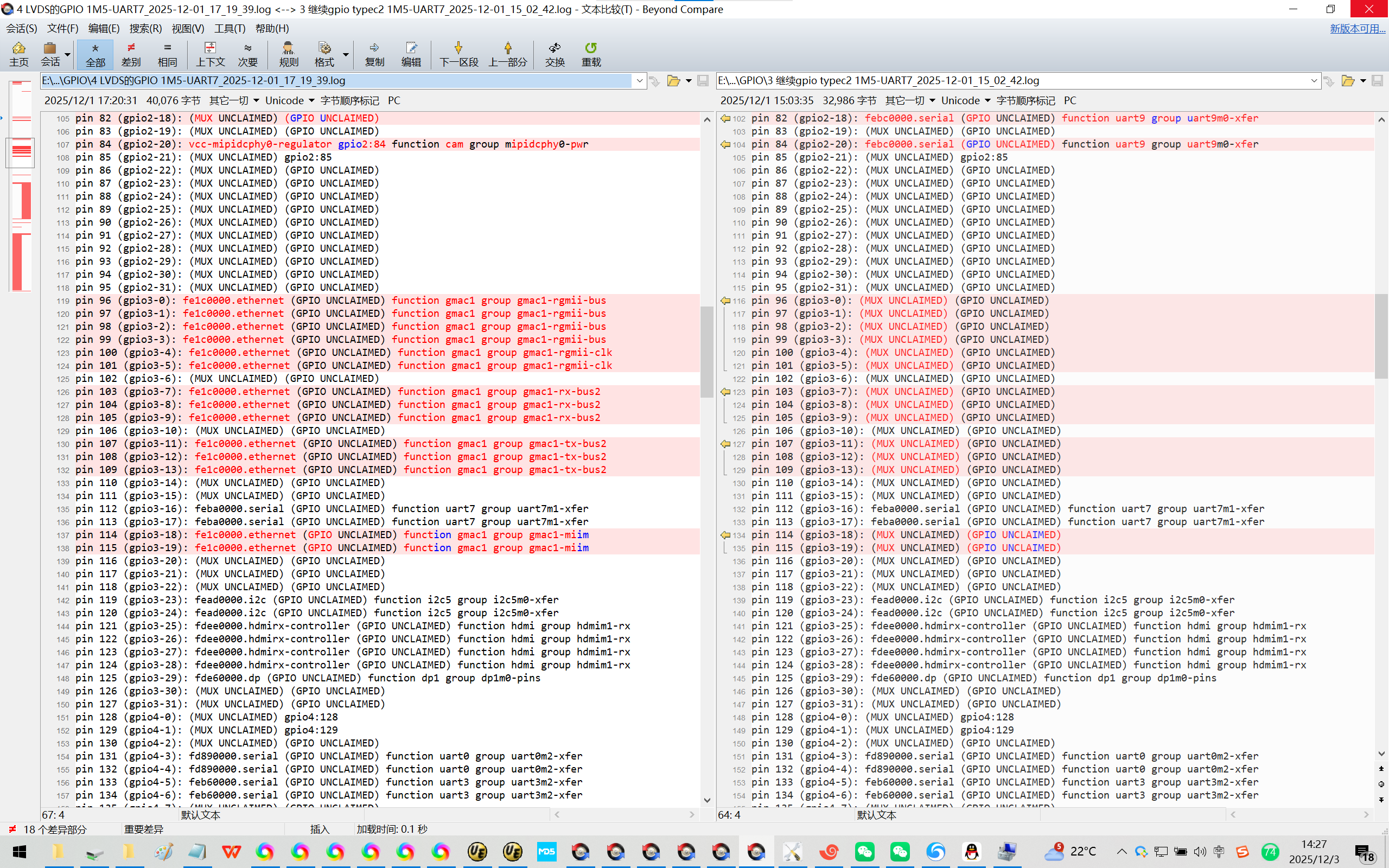

7、gmac1口的GPIO口状态肉眼可见的趋同了！【没有被复用！】
Rockchip原厂的Buildroot【linux-5.10】的GPIO口状态：

pin 95 (gpio2-31): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 96 (gpio3-0): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 97 (gpio3-1): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 98 (gpio3-2): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 99 (gpio3-3): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 100 (gpio3-4): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 101 (gpio3-5): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 102 (gpio3-6): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 103 (gpio3-7): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 104 (gpio3-8): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 105 (gpio3-9): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 106 (gpio3-10): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 107 (gpio3-11): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 108 (gpio3-12): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 109 (gpio3-13): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 110 (gpio3-14): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 111 (gpio3-15): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 112 (gpio3-16): feba0000.serial (GPIO UNCLAIMED) function uart7 group uart7m1-xfer
pin 113 (gpio3-17): feba0000.serial (GPIO UNCLAIMED) function uart7 group uart7m1-xfer
pin 114 (gpio3-18): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 115 (gpio3-19): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 116 (gpio3-20): (MUX UNCLAIMED) (GPIO UNCLAIMED)


【好用的飞凌R4版本系统的GPIO口状态：】
pin 95 (gpio2-31): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 96 (gpio3-0): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-bus
pin 97 (gpio3-1): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-bus
pin 98 (gpio3-2): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-bus
pin 99 (gpio3-3): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-bus
pin 100 (gpio3-4): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-clk
pin 101 (gpio3-5): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rgmii-clk
pin 102 (gpio3-6): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 103 (gpio3-7): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rx-bus2
pin 104 (gpio3-8): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rx-bus2
pin 105 (gpio3-9): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-rx-bus2
pin 106 (gpio3-10): dsi0-en gpio3:106 function lcd group mipi0-enable-gpio
pin 107 (gpio3-11): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-tx-bus2
pin 108 (gpio3-12): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-tx-bus2
pin 109 (gpio3-13): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-tx-bus2
pin 110 (gpio3-14): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 111 (gpio3-15): (MUX UNCLAIMED) (GPIO UNCLAIMED)
pin 112 (gpio3-16): feba0000.serial (GPIO UNCLAIMED) function uart7 group uart7m1-xfer
pin 113 (gpio3-17): feba0000.serial gpio3:113 function uart7 group uart7m1-xfer
pin 114 (gpio3-18): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-miim
pin 115 (gpio3-19): fe1c0000.ethernet (GPIO UNCLAIMED) function gmac1 group gmac1-miim
pin 116 (gpio3-20): fea70000.can (GPIO UNCLAIMED) function can2 group can2m0-pins

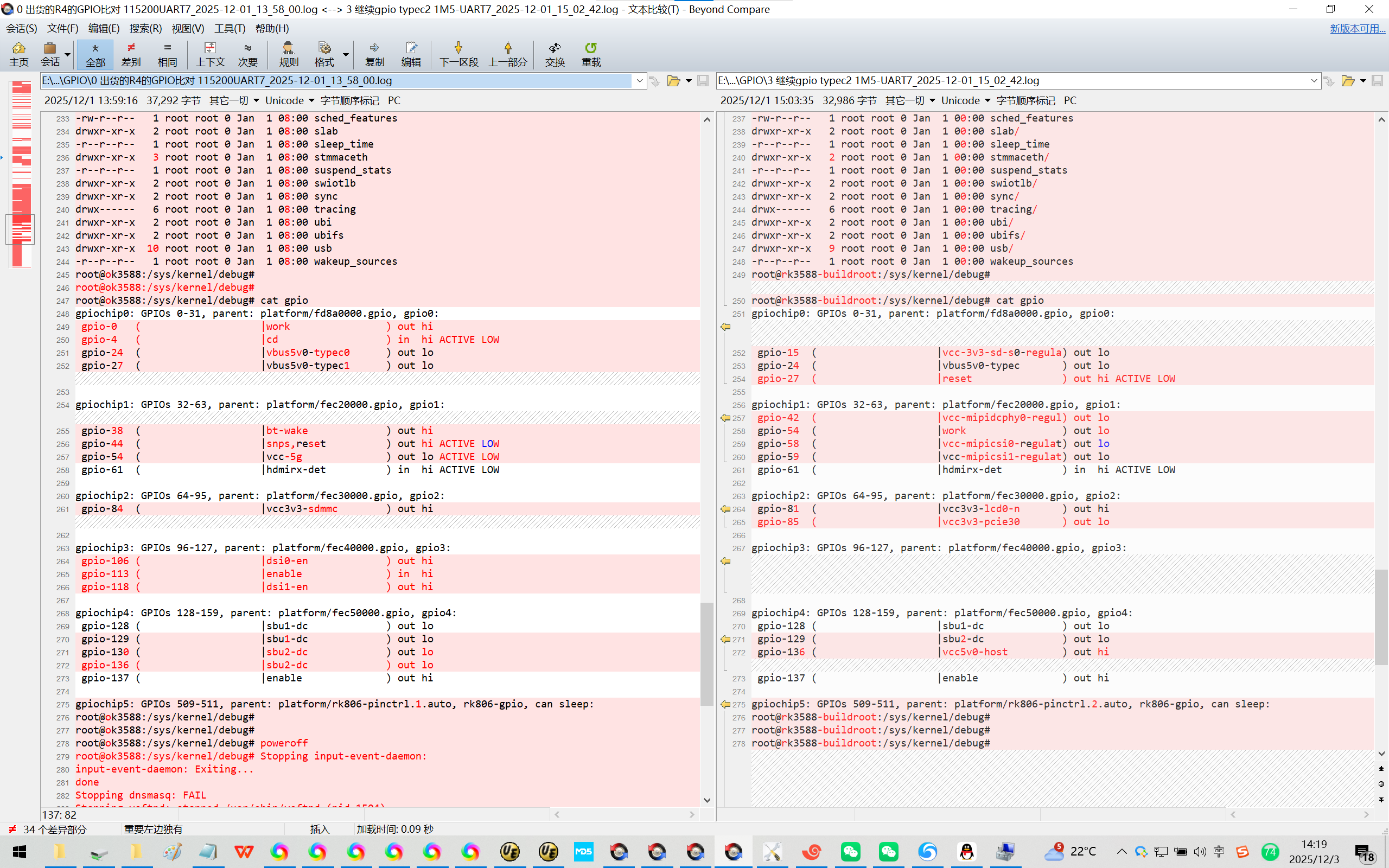

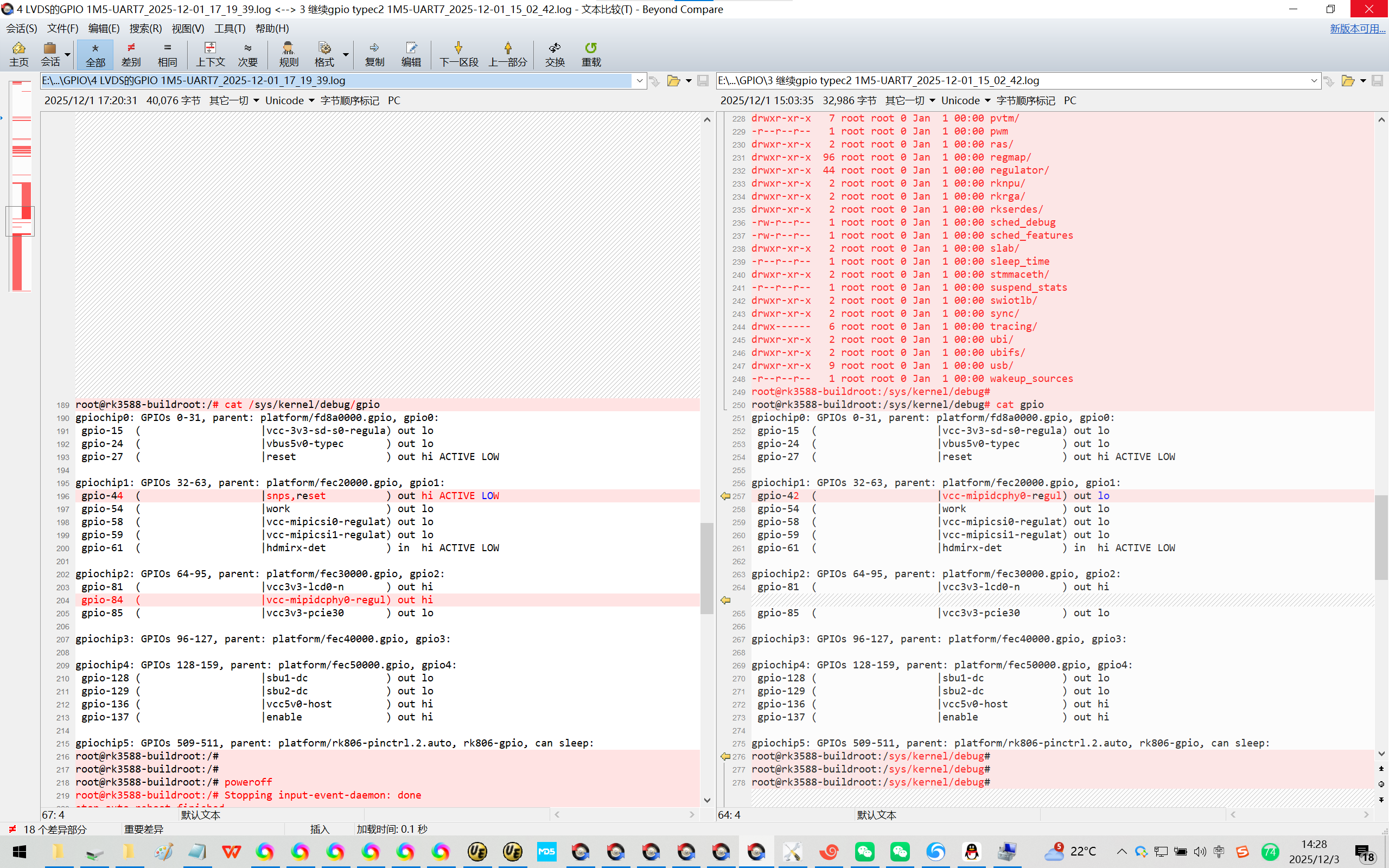

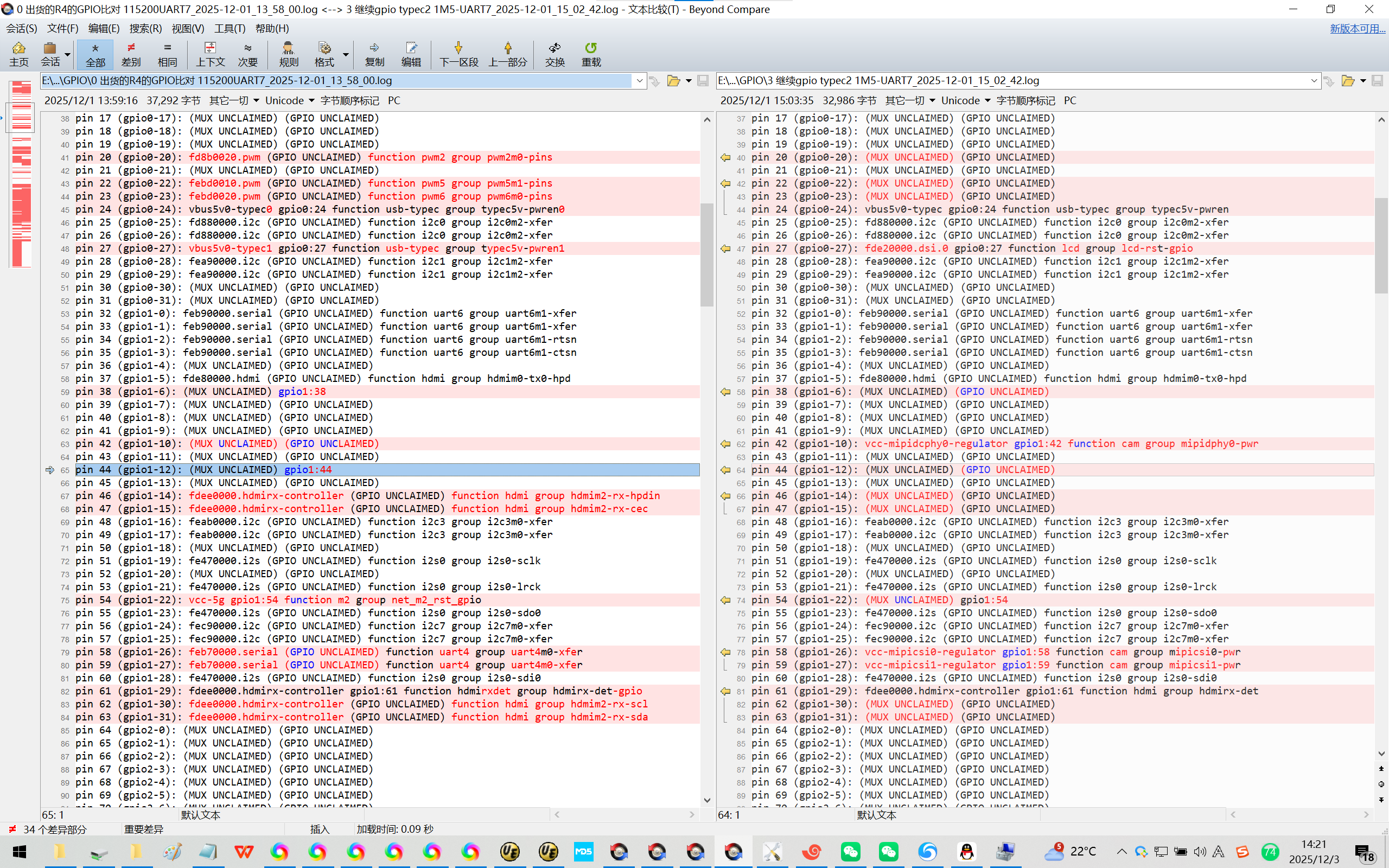

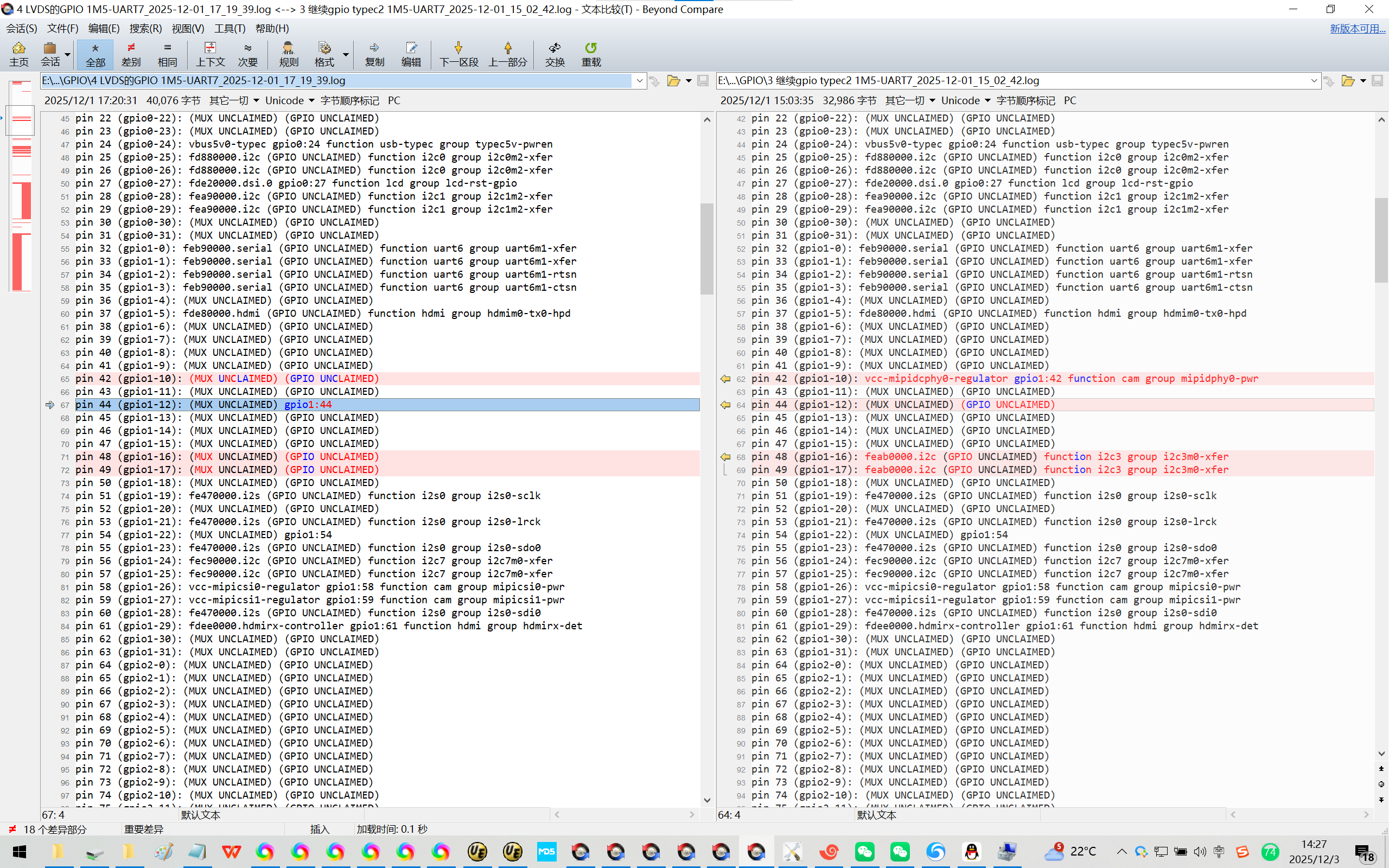

根据经验/艰难得知：【问题出在这里！】
 gpio-44  (                    |snps,reset          ) out hi ACTIVE LOW


8、
&pcie2x1l0 {
    reset-gpios = <&gpio1 RK_PB4 GPIO_ACTIVE_HIGH>;
    status = "okay";
};

修改为：

//&pcie2x1l0 {
//    reset-gpios = <&gpio1 RK_PB4 GPIO_ACTIVE_HIGH>;
//    status = "okay";
//};

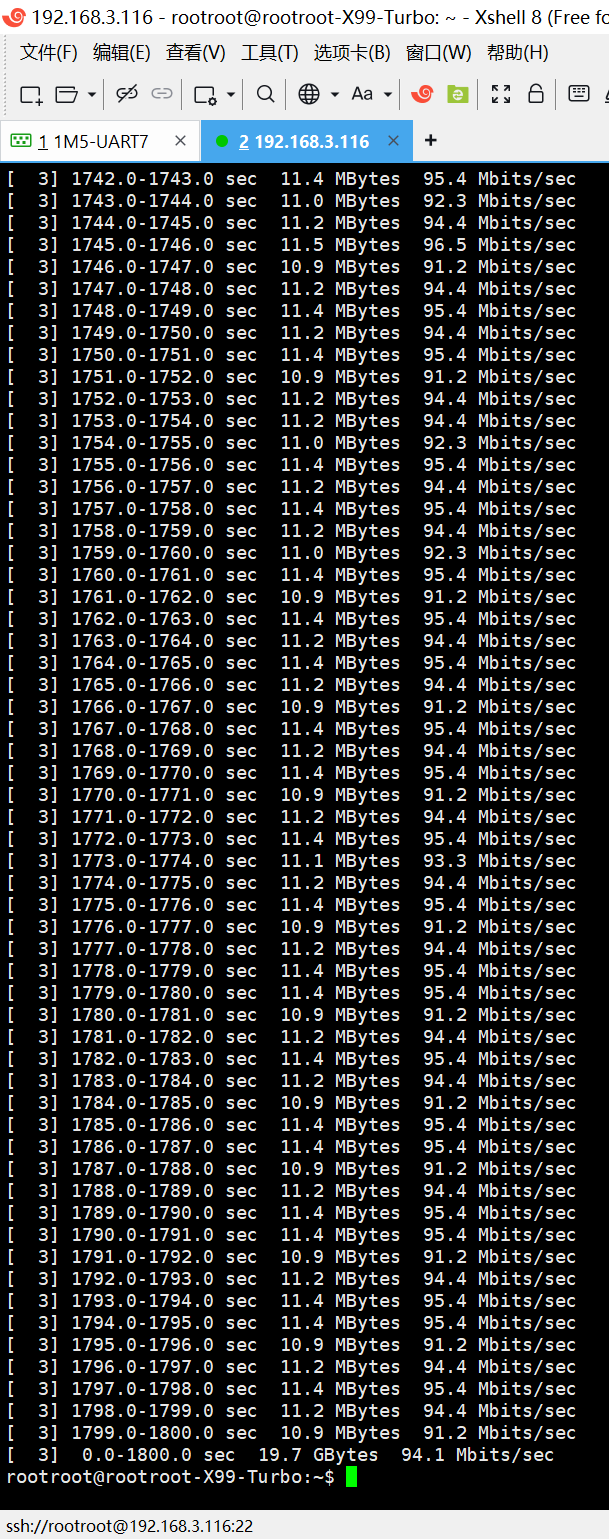

9、使用系统自带的iperf2测试【iperf3需要在编译buildroot的时候手工打开！^_】

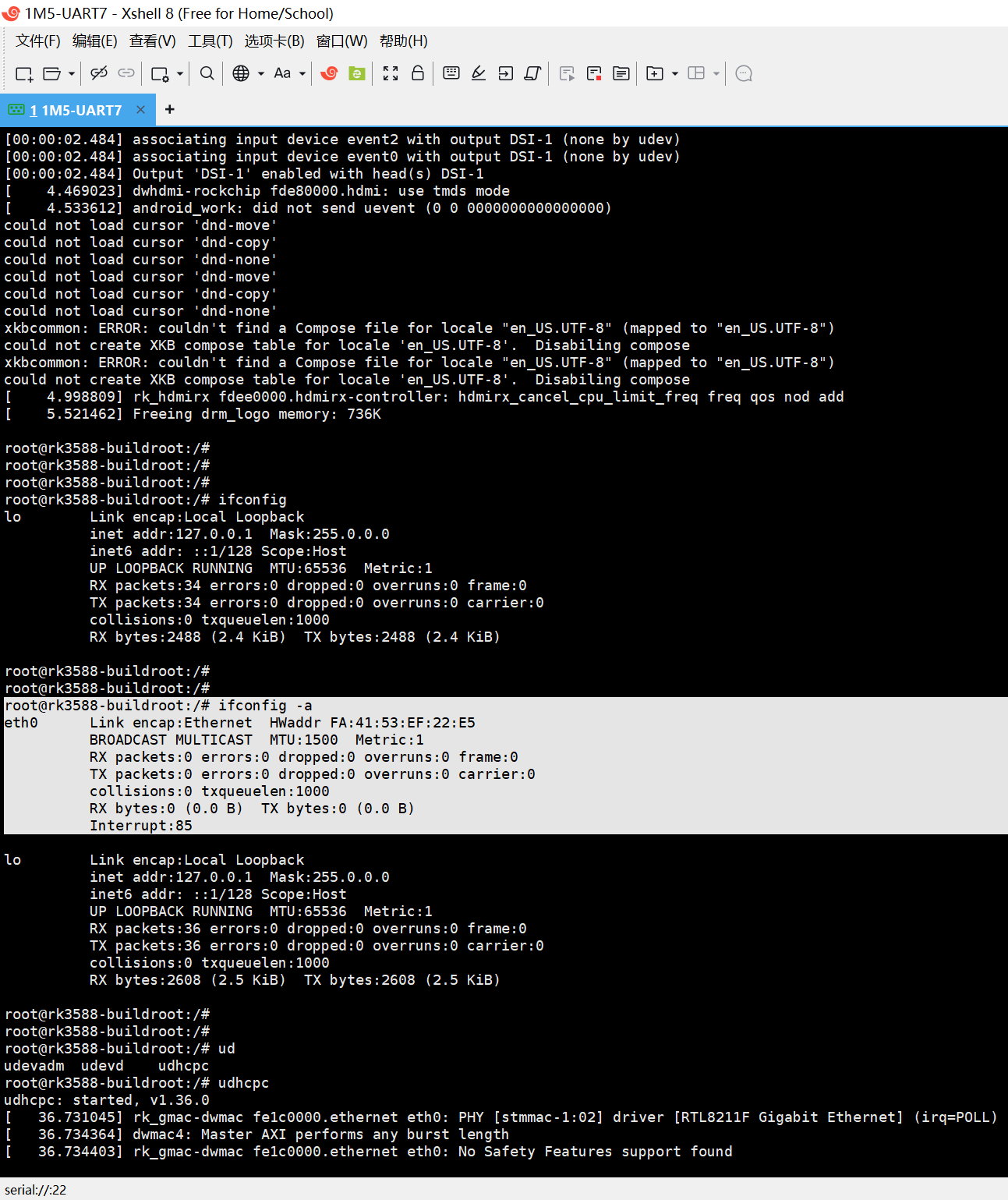

飞凌OK3588-C核心板 跑 你提供的 Buildroot【linux-5.10】
先插网线再开机，找不到eth0。

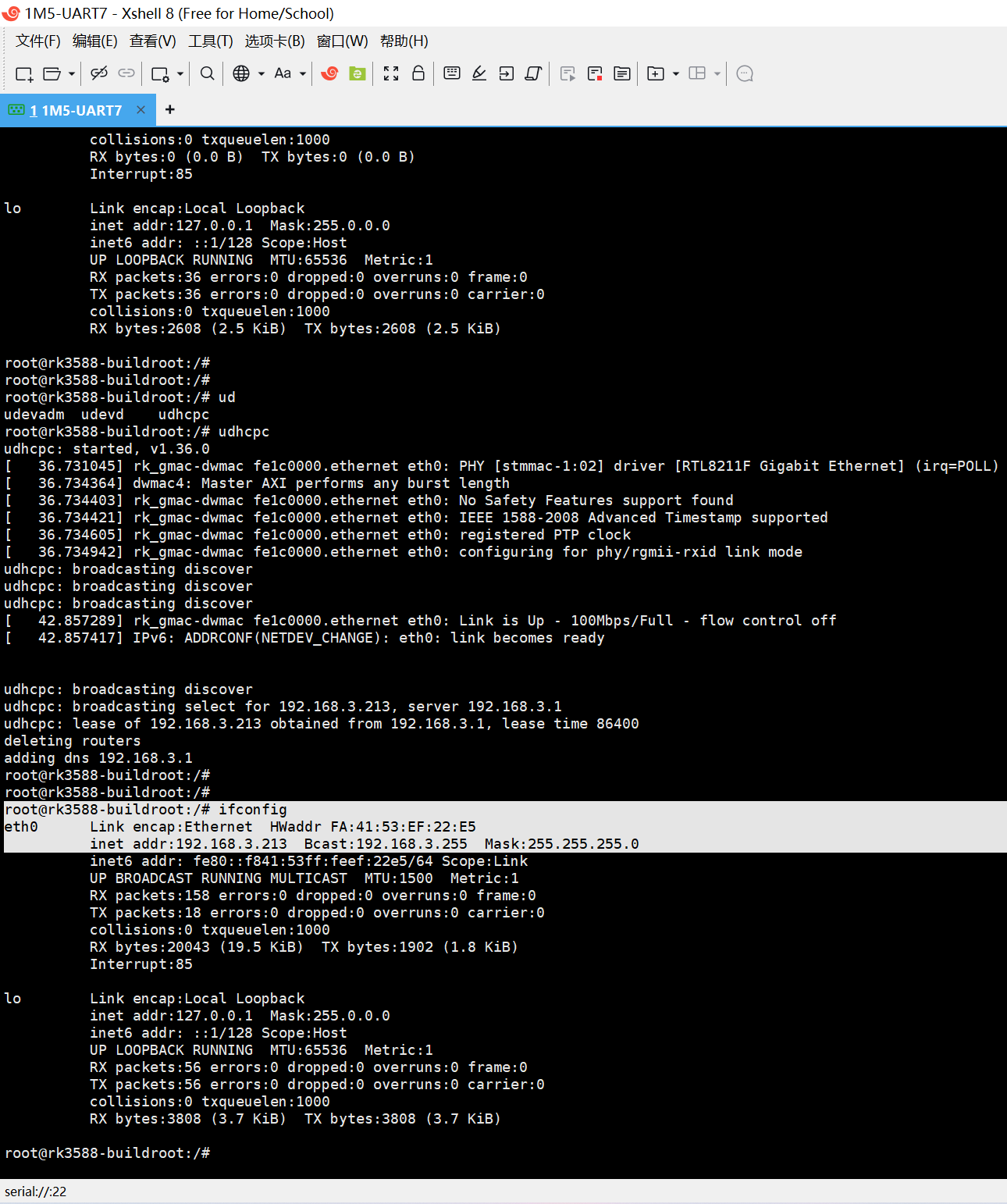

但是 开机之后使用 udhcpc是可以 自动分配IP地址的！。
请问 udhcpc是在哪里 加载的？能否让它加载的晚那么一点？延迟10s?

[BEGIN] 2025/12/3 8:49:42
rootroot@rootroot-X99-Turbo:~$ iperf -c 192.168.3.213 -i 1 -t 1800
------------------------------------------------------------
Client connecting to 192.168.3.213, TCP port 5001
TCP window size:  212 KByte (default)
------------------------------------------------------------
[  3] local 192.168.3.116 port 34282 connected with 192.168.3.213 port 5001
[ ID] Interval       Transfer     Bandwidth
[  3]  0.0- 1.0 sec  12.4 MBytes   104 Mbits/sec
[  3]  1.0- 2.0 sec  10.9 MBytes  91.2 Mbits/sec
[  3]  2.0- 3.0 sec  11.4 MBytes  95.4 Mbits/sec
[  3]  3.0- 4.0 sec  11.4 MBytes  95.4 Mbits/sec
[  3]  4.0- 5.0 sec  11.4 MBytes  95.4 Mbits/sec
[  3]  5.0- 6.0 sec  10.9 MBytes  91.2 Mbits/sec

[  3] 1794.0-1795.0 sec  11.4 MBytes  95.4 Mbits/sec
[  3] 1795.0-1796.0 sec  10.9 MBytes  91.2 Mbits/sec
[  3] 1796.0-1797.0 sec  11.2 MBytes  94.4 Mbits/sec
[  3] 1797.0-1798.0 sec  11.4 MBytes  95.4 Mbits/sec
[  3] 1798.0-1799.0 sec  11.2 MBytes  94.4 Mbits/sec
[  3] 1799.0-1800.0 sec  10.9 MBytes  91.2 Mbits/sec
[  3]  0.0-1800.0 sec  19.7 GBytes  94.1 Mbits/sec
rootroot@rootroot-X99-Turbo:~$

[END] 2025/12/3 9:38:52

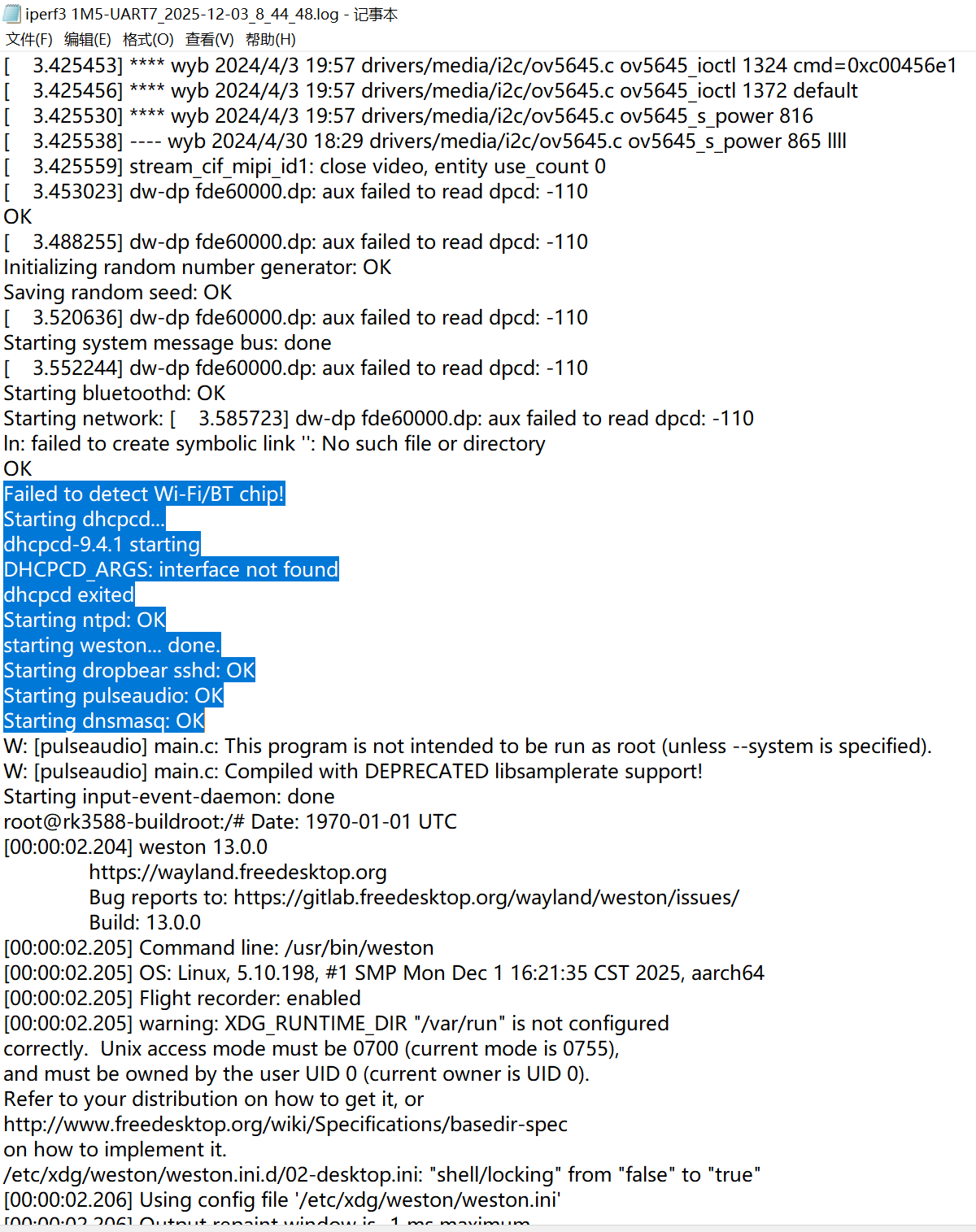

Initializing random number generator: OK
Saving random seed: OK
Starting system message bus: [    3.942144] dw-dp fde60000.dp: aux failed to read dpcd: -110
done
Starting bluetoothd: OK
Starting network: [    3.974653] dw-dp fde60000.dp: aux failed to read dpcd: -110
ln: failed to create symbolic link '': No such file or directory
Failed to detect Wi-Fi/BT chip!
[    4.007038] dw-dp fde60000.dp: aux failed to read dpcd: -110
OK
Starting dhcpcd...
dhcpcd-9.4.1 starting
DHCPCD_ARGS: interface not found
Starting ntpd: [    4.041473] dw-dp fde60000.dp: aux failed to read dpcd: -110
OK
starting weston... done.
Starting dropbear sshd: OK
Starting pulseaudio: OK
Starting dnsmasq: OK
Starting input-event-daemon: done
W: [pulseaudio] main.c: This program is not intended to be run as root (unless --system is specified).
W: [pulseaudio] main.c: Compiled with DEPRECATED libsamplerate support!
root@rk3588-buildroot:/# Date: 1970-01-01 UTC
[00:00:02.245] weston 13.0.0
               https://wayland.freedesktop.org
               Bug reports to: https://gitlab.freedesktop.org/wayland/weston/issues/
               Build: 13.0.0
[00:00:02.246] Command line: /usr/bin/weston
[00:00:02.246] OS: Linux, 5.10.198, #1 SMP Mon Dec 1 16:21:35 CST 2025, aarch64
[00:00:02.246] Flight recorder: enabled
[00:00:02.246] warning: XDG_RUNTIME_DIR "/var/run" is not configured
correctly.  Unix access mode must be 0700 (current mode is 0755),
and must be owned by the user UID 0 (current owner is UID 0).
Refer to your distribution on how to get it, or
http://www.freedesktop.org/wiki/Specifications/basedir-spec
on how to implement it.
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
[00:00:02.247] Using config file '/etc/xdg/weston/weston.ini'
[00:00:02.247] Output repaint window is -1 ms maximum.
[00:00:02.248] Loading module '/usr/lib/libweston-13/drm-backend.so'
[00:00:02.251] initializing drm backend
[00:00:02.251] Entering mirror mode.
[00:00:02.251] Trying direct launcher...
[00:00:02.253] using /dev/dri/card0
[00:00:02.253] DRM: does not support atomic modesetting
[00:00:02.253] DRM: does not support GBM modifiers
[00:00:02.253] DRM: does not support async page flipping
[00:00:02.253] DRM: supports picture aspect ratio
[00:00:02.255] Loading module '/usr/lib/libweston-13/gl-renderer.so'
arm_release_ver: g13p0-01eac0, rk_so_ver: 10
[    4.216852] rk_hdmirx fdee0000.hdmirx-controller: hdmirx_audio_startup: device is no connected or audio is off
[    4.216862] hdmi-audio-codec hdmi-audio-codec.6.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19
[    4.223434] mali fb000000.gpu: Loading Mali firmware 0x1010000
[    4.225761] mali fb000000.gpu: Mali firmware git_sha: ee476db42870778306fa8d559a605a73f13e455c
[    4.228300] rk_hdmirx fdee0000.hdmirx-controller: hdmirx_audio_startup: device is no connected or audio is off
[    4.228329] hdmi-audio-codec hdmi-audio-codec.6.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19
[    4.239923] rk_hdmirx fdee0000.hdmirx-controller: hdmirx_audio_startup: device is no connected or audio is off
[00:00:02.289] EGL version: 1.4 Valhall-"g13p0-01eac0"
[    4.239942] hdmi-audio-codec hdmi-audio-codec.6.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19
[00:00:02.289] EGL vendor: ARM
[00:00:02.289] EGL client APIs: OpenGL_ES
[00:00:02.289] EGL features:
               EGL Wayland extension: yes
               context priority: yes
               buffer age: no
               partial update: yes
               swap buffers with damage: no
               configless context: yes
               surfaceless context: yes
               dmabuf support: modifiers
E: [pulseaudio] module-alsa-card.c: Failed to find a working profile.
E: [pulseaudio] module.c: Failed to load module "module-alsa-card" (argument: "device_id="0" name="platform-hdmiin-sound" card_name="alsa_card.platform-hdmiin-sound" namereg_fail=false tsched=no fixed_latency_range=no ignore_dB=no deferred_volume=yes use_ucm=yes avoid_resampling=no card_properties="module-udev-detect.discovered=1""): initialization failed.
E: [pulseaudio] module-rescue-streams.c: module-rescue-stream is obsolete and should no longer be loaded. Please remove it from your configuration.
[00:00:02.304] GL version: OpenGL ES 3.2 v1.g13p0-01eac0.11addb9882ee8209dc0912af75110af7
[00:00:02.304] GLSL version: OpenGL ES GLSL ES 3.20
[00:00:02.304] GL vendor: ARM
[00:00:02.304] GL renderer: Mali-G610
E: [pulseaudio] module-console-kit.c: GetSessionsForUnixUser() call failed: org.freedesktop.DBus.Error.ServiceUnknown: The name org.freedesktop.ConsoleKit was not provided by any .service files
E: [pulseaudio] module.c: Failed to load module "module-console-kit" (argument: ""): initialization failed.
W: [pulseaudio] server-lookup.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
W: [pulseaudio] main.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
[    4.305607] file system registered
[    4.344971] read descriptors
[    4.344983] read strings
[00:00:02.403] GL ES 3.2 - renderer features:
               read-back format: ARGB8888
               glReadPixels supports y-flip: no
               wl_shm 10 bpc formats: yes
               wl_shm 16 bpc formats: no
               wl_shm half-float formats: yes
               internal R and RG formats: yes
               OES_EGL_image_external: yes
               wl_shm sub-image to texture: yes
[00:00:02.403] Using GL renderer
[00:00:02.412] event2  - adc-keys: is tagged by udev as: Keyboard
[00:00:02.412] event2  - adc-keys: device is a keyboard
[00:00:02.413] event0  - rk805 pwrkey: is tagged by udev as: Keyboard
[00:00:02.413] event0  - rk805 pwrkey: device is a keyboard
[00:00:02.414] event3  - rockchip-hdmi0 rockchip-hdmi0: is tagged by udev as: Switch
[00:00:02.414] event3  - not using input device '/dev/input/event3'
[00:00:02.415] event1  - rockchip,hdmiin rockchip,hdmiin: is tagged by udev as: Switch
[00:00:02.415] event1  - not using input device '/dev/input/event1'
[00:00:02.448] libinput: configuring device "adc-keys".
[00:00:02.448] libinput: configuring device "rk805 pwrkey".
[00:00:02.448] Registered plugin API 'weston_drm_output_api_v1' of size 40
[00:00:02.448] Color manager: no-op
[00:00:02.448] Compositor capabilities:
               arbitrary surface rotation: yes
               screen capture uses y-flip: yes
               cursor planes: yes
               arbitrary resolutions: no
               view mask clipping: yes
               explicit sync: yes
               color operations: yes
               presentation clock: CLOCK_MONOTONIC, id 1
               presentation clock resolution: 0.000000001 s
[00:00:02.449] Loading module '/usr/lib/weston/desktop-shell.so'
[00:00:02.451] DRM: head 'HDMI-A-1' found, connector 208 is connected, EDID make 'GSM', model '27MP35', serial ''
               Supported EOTF modes: SDR
[00:00:02.452] DRM: head 'DSI-1' found, connector 224 is connected, EDID make 'unknown', model 'unknown', serial ''
               Supported EOTF modes: SDR
[00:00:02.452] DRM: head 'DP-1' found, connector 226 is disconnected.
[    4.431742] dw-dp fde60000.dp: aux failed to read dpcd: -110
[00:00:02.481] DRM: head 'DP-2' found, connector 234 is disconnected.
[00:00:02.481] launching '/usr/libexec/weston-keyboard'
[00:00:02.482] launching '/usr/libexec/weston-desktop-shell'
[00:00:02.482] HDMI-A-1 using at least 2 buffers
[00:00:02.483] Output 'HDMI-A-1' attempts EOTF mode: SDR
[00:00:02.483] Output 'HDMI-A-1' using color profile: stock sRGB color profile
[00:00:02.483] Chosen EGL config details: id:   9 rgba: 8 8 8 0 buf: 24 dep:  0 stcl: 0 int: 0-1 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[00:00:02.483] Output HDMI-A-1 (crtc 71) video modes:
               1920x1080@60.0, preferred, current, 148.5 MHz
               1920x1080@60.0 16:9, 148.5 MHz
               1920x1080i@60.0, 74.2 MHz
               1920x1080i@60.0 16:9, 74.2 MHz
               1920x1080@50.0 16:9, 148.5 MHz
               1920x1080i@50.0 16:9, 74.2 MHz
               1600x900@60.0, 108.0 MHz
               1280x1024@60.0, 108.0 MHz
               1152x864@75.0, 108.0 MHz
               1280x720@60.0, 74.2 MHz
               1280x720@60.0 16:9, 74.2 MHz
               1280x720@50.0 16:9, 74.2 MHz
               800x600@75.0, 49.5 MHz
               720x576@50.0 16:9, 27.0 MHz
               720x480@59.9, 27.0 MHz
               720x480@59.9 16:9, 27.0 MHz
[00:00:02.483] associating input device event2 with output HDMI-A-1 (none by udev)
[00:00:02.483] associating input device event0 with output HDMI-A-1 (none by udev)
[00:00:02.483] Output HDMI-A-1 changed to mirror output
[00:00:02.483] Output 'HDMI-A-1' enabled with head(s) HDMI-A-1
[00:00:02.483] DSI-1 using at least 2 buffers
[    4.444863] dwhdmi-rockchip fde80000.hdmi: use tmds mode
[00:00:02.483] Output 'DSI-1' attempts EOTF mode: SDR
[00:00:02.483] Output 'DSI-1' using color profile: stock sRGB color profile
[00:00:02.483] Chosen EGL config details: id:   9 rgba: 8 8 8 0 buf: 24 dep:  0 stcl: 0 int: 0-1 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[00:00:02.483] Output DSI-1 (crtc 137) video modes:
               1080x1920@59.9, preferred, current, 132.0 MHz
[00:00:02.484] associating input device event2 with output DSI-1 (none by udev)
[00:00:02.484] associating input device event0 with output DSI-1 (none by udev)
[00:00:02.484] Output 'DSI-1' enabled with head(s) DSI-1
[    4.469023] dwhdmi-rockchip fde80000.hdmi: use tmds mode
[    4.533612] android_work: did not send uevent (0 0 0000000000000000)
could not load cursor 'dnd-move'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-none'
could not load cursor 'dnd-move'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-none'
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'.  Disabiling compose
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'.  Disabiling compose
[    4.998809] rk_hdmirx fdee0000.hdmirx-controller: hdmirx_cancel_cpu_limit_freq freq qos nod add
[    5.521462] Freeing drm_logo memory: 736K

root@rk3588-buildroot:/#
root@rk3588-buildroot:/#
root@rk3588-buildroot:/#
root@rk3588-buildroot:/# ifconfig
lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:34 errors:0 dropped:0 overruns:0 frame:0
          TX packets:34 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:2488 (2.4 KiB)  TX bytes:2488 (2.4 KiB)

root@rk3588-buildroot:/#
root@rk3588-buildroot:/#
root@rk3588-buildroot:/# ifconfig -a
eth0      Link encap:Ethernet  HWaddr FA:41:53:EF:22:E5
          BROADCAST MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)
          Interrupt:85

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:36 errors:0 dropped:0 overruns:0 frame:0
          TX packets:36 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:2608 (2.5 KiB)  TX bytes:2608 (2.5 KiB)

root@rk3588-buildroot:/#
root@rk3588-buildroot:/#
root@rk3588-buildroot:/# ud
udevadm  udevd    udhcpc
root@rk3588-buildroot:/# udhcpc
udhcpc: started, v1.36.0
[   36.731045] rk_gmac-dwmac fe1c0000.ethernet eth0: PHY [stmmac-1:02] driver [RTL8211F Gigabit Ethernet] (irq=POLL)
[   36.734364] dwmac4: Master AXI performs any burst length
[   36.734403] rk_gmac-dwmac fe1c0000.ethernet eth0: No Safety Features support found
[   36.734421] rk_gmac-dwmac fe1c0000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported
[   36.734605] rk_gmac-dwmac fe1c0000.ethernet eth0: registered PTP clock
[   36.734942] rk_gmac-dwmac fe1c0000.ethernet eth0: configuring for phy/rgmii-rxid link mode
udhcpc: broadcasting discover
udhcpc: broadcasting discover
udhcpc: broadcasting discover
[   42.857289] rk_gmac-dwmac fe1c0000.ethernet eth0: Link is Up - 100Mbps/Full - flow control off
[   42.857417] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready


udhcpc: broadcasting discover
udhcpc: broadcasting select for 192.168.3.213, server 192.168.3.1
udhcpc: lease of 192.168.3.213 obtained from 192.168.3.1, lease time 86400
deleting routers
adding dns 192.168.3.1
root@rk3588-buildroot:/#
root@rk3588-buildroot:/#
root@rk3588-buildroot:/# ifconfig
eth0      Link encap:Ethernet  HWaddr FA:41:53:EF:22:E5
          inet addr:192.168.3.213  Bcast:192.168.3.255  Mask:255.255.255.0
          inet6 addr: fe80::f841:53ff:feef:22e5/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:158 errors:0 dropped:0 overruns:0 frame:0
          TX packets:18 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:20043 (19.5 KiB)  TX bytes:1902 (1.8 KiB)
          Interrupt:85

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:56 errors:0 dropped:0 overruns:0 frame:0
          TX packets:56 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:3808 (3.7 KiB)  TX bytes:3808 (3.7 KiB)

root@rk3588-buildroot:/#
root@rk3588-buildroot:/#
root@rk3588-buildroot:/# iperf -s
------------------------------------------------------------
Server listening on TCP port 5001
TCP window size:  128 KByte (default)
------------------------------------------------------------
[  1] local 192.168.3.213 port 5001 connected with 192.168.3.116 port 34282
[ ID] Interval       Transfer     Bandwidth
[  1] 0.00-1800.06 sec  19.7 GBytes  94.1 Mbits/sec
^Croot@rk3588-buildroot:/#

[END] 2025/12/3 9:38:50

# c语言 # linux # 开发语言
Logo
魔乐社区

魔乐社区（Modelers.cn) 是一个中立、公益的人工智能社区，提供人工智能工具、模型、数据的托管、展示与应用协同服务，为人工智能开发及爱好者搭建开放的学习交流平台。社区通过理事会方式运作，由全产业链共同建设、共同运营、共同享有，推动国产AI生态繁荣发展。

更多推荐

OpenLayers大数据可视化终极指南：10个性能优化技巧提升交互体验

OpenLayers作为一款功能强大的开源地图库，在处理大规模地理数据可视化时，性能优化是提升用户体验的关键。本文将分享10个实用的性能优化技巧，帮助开发者在使用OpenLayers构建大数据地图应用时，实现流畅的交互体验和高效的数据渲染。## 1. 合理使用WebGL渲染器提升大数据渲染速度 🚀WebGL渲染器是处理大规模地理数据的理想选择，它利用GPU加速图形渲染，能够显著提升数据量

avatar 魔乐社区

终极指南：如何用ffmpeg-python实现惊艳的视频合成效果

ffmpeg-python是一个强大的Python绑定库，为FFmpeg提供了简洁易用的接口，特别擅长处理复杂的视频过滤和合成任务。无论是简单的视频翻转还是复杂的多轨道合成，ffmpeg-python都能让你轻松实现专业级的视频效果。## 为什么选择ffmpeg-python进行视频合成？FFmpeg是视频处理领域的瑞士军刀，但命令行接口复杂且难以维护。ffmpeg-python将这种复杂

avatar 魔乐社区

揭秘CSDN博客之星TOP1攻略：从质量分查询到高分写作全解析

本文深度解析了在CSDN平台提升文章质量分、冲击“博客之星”评选的实战攻略。核心在于理解并优化CSDN文章质量分，通过详解目录结构设计、有效字数把控、代码规范、外链与图片使用技巧以及标签精准设置等方法，系统性地指导技术博主稳定产出高分内容，从而提升流量与评选竞争力。

avatar 魔乐社区
