rootroot@rootroot-X99-Turbo:~/rk3399_buildroot6.1$ ./build.sh rk3566_rk3568:rockchip_rk3566_evb2_lp4x_v10_defconfig
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/rk3566sdk2024-6.1$ ./build.sh lunch
3. rockchip_rk3566_evb2_lp4x_v10_defconfig
Which would you like? [1]: 3
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/rk3566sdk2024-6.1$ ./build.sh

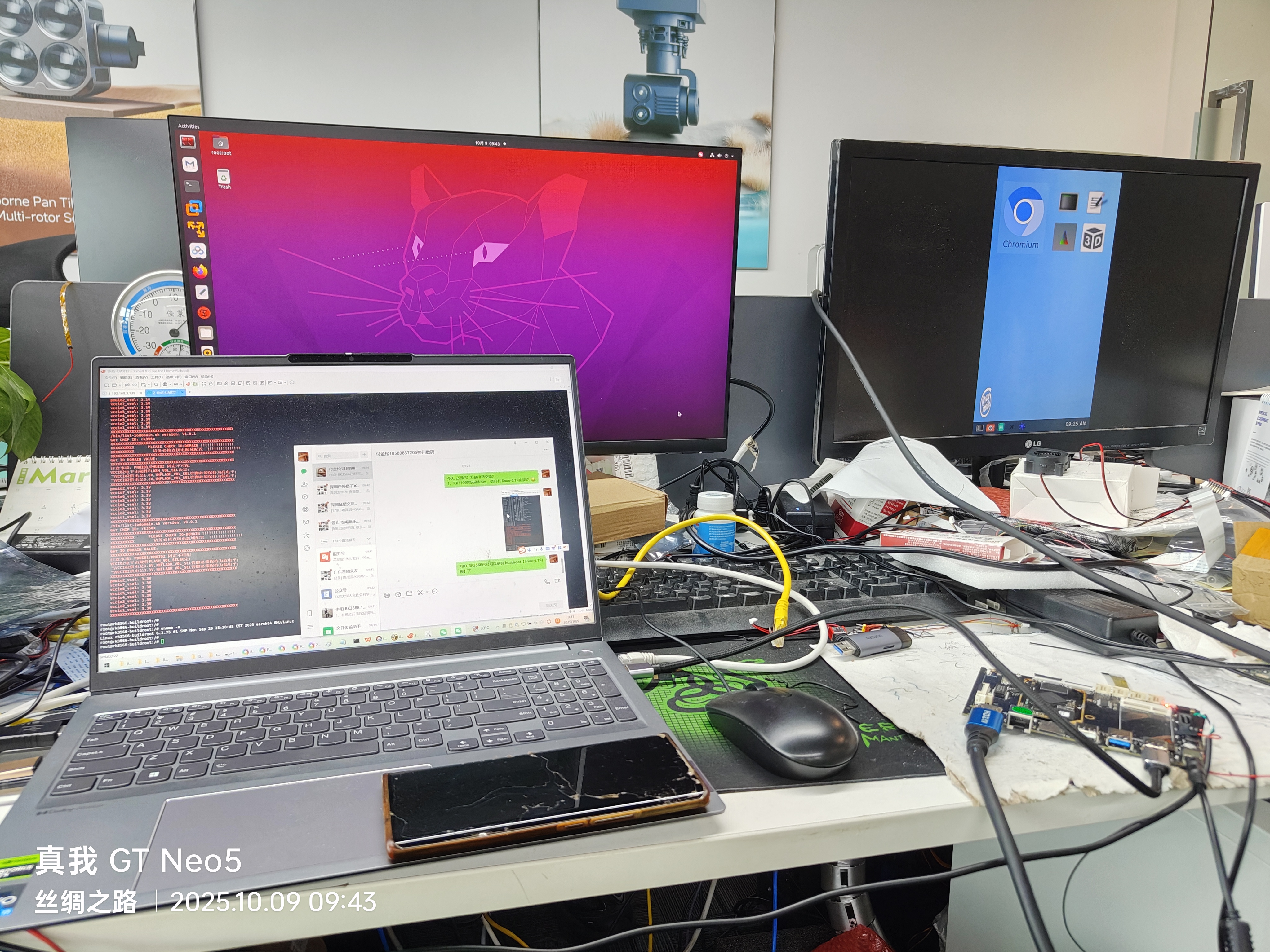

20251009给荣品的PRO-RK3566开发板刷机原厂buildroot【linux-6.1内核】
2025/10/9 9:58

缘起：使用RK3588的buildroot【linux-6.1内核】，在device目录加入RK3566/RK3568的配置文件之后编译得到。
Y:\new_disk_4t\rk3566sdk2024-6.1\kernel-6.1\arch\arm64\boot\dts\rockchip\rk3566-evb2-lp4x-v10-linux.dtb

Y:\new_disk_4t\rk3566sdk2024-6.1\device\rockchip\rk3566_rk3568

rootroot@rootroot-X99-Turbo:~/rk3399_buildroot6.1$ ./build.sh rk3399:rockchip_rk3399_sapphire_excavator_lp4_defconfig
rootroot@rootroot-X99-Turbo:~/rk3399_buildroot6.1$ ./build.sh rk3566_rk3568:rockchip_rk3566_evb2_lp4x_v10_defconfig

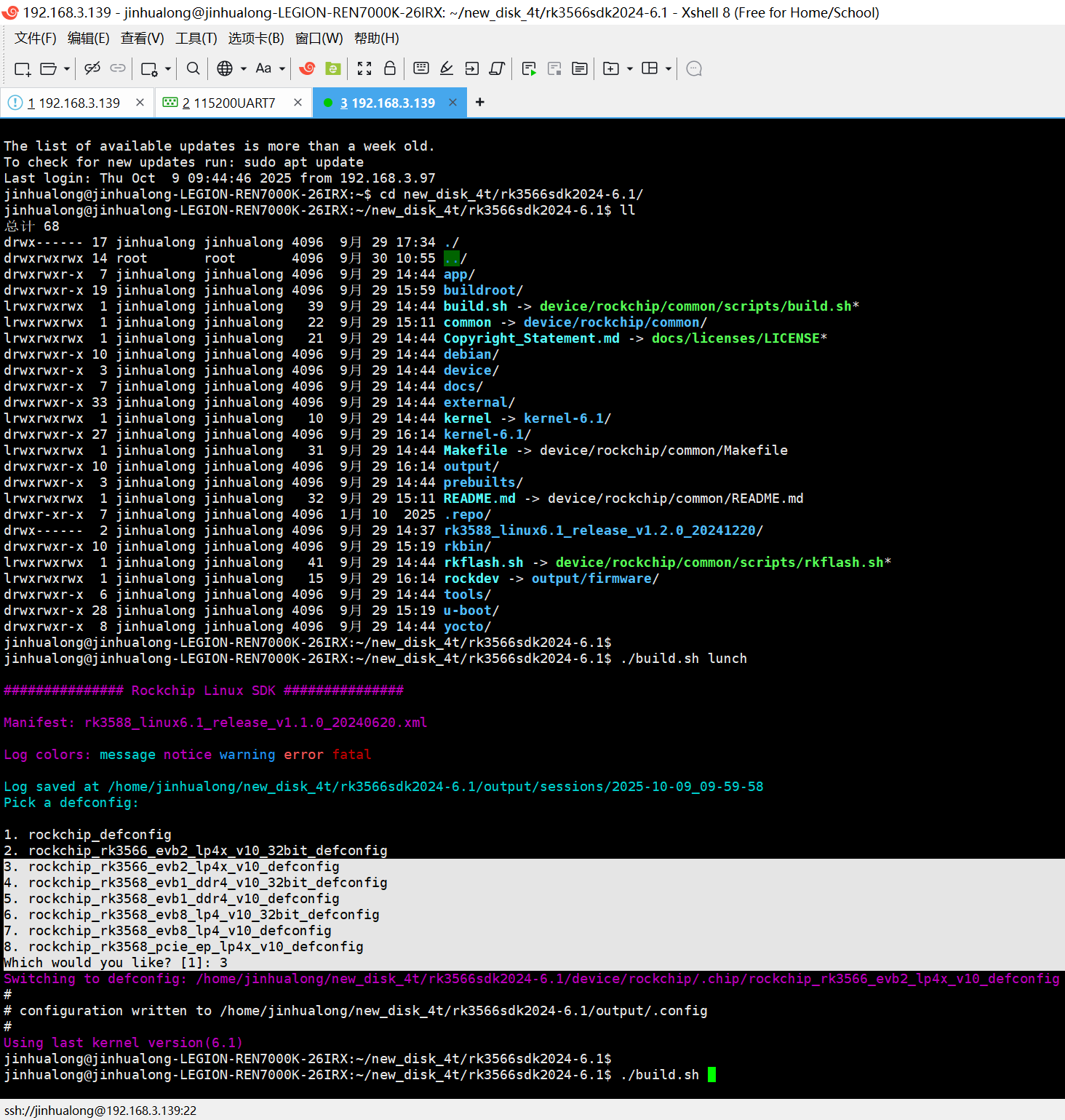

jinhualong@jinhualong-LEGION-REN7000K-26IRX:~$ cd new_disk_4t/rk3566sdk2024-6.1/
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/rk3566sdk2024-6.1$ ll
总计 68
drwx------ 17 jinhualong jinhualong 4096  9月 29 17:34 ./
drwxrwxrwx 14 root       root       4096  9月 30 10:55 ../
drwxrwxr-x  7 jinhualong jinhualong 4096  9月 29 14:44 app/
drwxrwxr-x 19 jinhualong jinhualong 4096  9月 29 15:59 buildroot/
lrwxrwxrwx  1 jinhualong jinhualong   39  9月 29 14:44 build.sh -> device/rockchip/common/scripts/build.sh*
lrwxrwxrwx  1 jinhualong jinhualong   22  9月 29 15:11 common -> device/rockchip/common/
lrwxrwxrwx  1 jinhualong jinhualong   21  9月 29 14:44 Copyright_Statement.md -> docs/licenses/LICENSE*
drwxrwxr-x 10 jinhualong jinhualong 4096  9月 29 14:44 debian/
drwxrwxr-x  3 jinhualong jinhualong 4096  9月 29 14:44 device/
drwxrwxr-x  7 jinhualong jinhualong 4096  9月 29 14:44 docs/
drwxrwxr-x 33 jinhualong jinhualong 4096  9月 29 14:44 external/
lrwxrwxrwx  1 jinhualong jinhualong   10  9月 29 14:44 kernel -> kernel-6.1/
drwxrwxr-x 27 jinhualong jinhualong 4096  9月 29 16:14 kernel-6.1/
lrwxrwxrwx  1 jinhualong jinhualong   31  9月 29 14:44 Makefile -> device/rockchip/common/Makefile
drwxrwxr-x 10 jinhualong jinhualong 4096  9月 29 16:14 output/
drwxrwxr-x  3 jinhualong jinhualong 4096  9月 29 14:44 prebuilts/
lrwxrwxrwx  1 jinhualong jinhualong   32  9月 29 15:11 README.md -> device/rockchip/common/README.md
drwxr-xr-x  7 jinhualong jinhualong 4096  1月 10  2025 .repo/
drwx------  2 jinhualong jinhualong 4096  9月 29 14:37 rk3588_linux6.1_release_v1.2.0_20241220/
drwxrwxr-x 10 jinhualong jinhualong 4096  9月 29 15:19 rkbin/
lrwxrwxrwx  1 jinhualong jinhualong   41  9月 29 14:44 rkflash.sh -> device/rockchip/common/scripts/rkflash.sh*
lrwxrwxrwx  1 jinhualong jinhualong   15  9月 29 16:14 rockdev -> output/firmware/
drwxrwxr-x  6 jinhualong jinhualong 4096  9月 29 14:44 tools/
drwxrwxr-x 28 jinhualong jinhualong 4096  9月 29 15:19 u-boot/
drwxrwxr-x  8 jinhualong jinhualong 4096  9月 29 14:44 yocto/
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/rk3566sdk2024-6.1$
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/rk3566sdk2024-6.1$ ./build.sh lunch

############### Rockchip Linux SDK ###############

Manifest: rk3588_linux6.1_release_v1.1.0_20240620.xml

Log colors: message notice warning error fatal

Log saved at /home/jinhualong/new_disk_4t/rk3566sdk2024-6.1/output/sessions/2025-10-09_09-59-58
Pick a defconfig:

1. rockchip_defconfig
2. rockchip_rk3566_evb2_lp4x_v10_32bit_defconfig
3. rockchip_rk3566_evb2_lp4x_v10_defconfig
4. rockchip_rk3568_evb1_ddr4_v10_32bit_defconfig
5. rockchip_rk3568_evb1_ddr4_v10_defconfig
6. rockchip_rk3568_evb8_lp4_v10_32bit_defconfig
7. rockchip_rk3568_evb8_lp4_v10_defconfig
8. rockchip_rk3568_pcie_ep_lp4x_v10_defconfig
Which would you like? [1]: 3
Switching to defconfig: /home/jinhualong/new_disk_4t/rk3566sdk2024-6.1/device/rockchip/.chip/rockchip_rk3566_evb2_lp4x_v10_defconfig
#
# configuration written to /home/jinhualong/new_disk_4t/rk3566sdk2024-6.1/output/.config
#
Using last kernel version(6.1)
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/rk3566sdk2024-6.1$
jinhualong@jinhualong-LEGION-REN7000K-26IRX:~/new_disk_4t/rk3566sdk2024-6.1$ ./build.sh
