开发反馈使用kettle工具连pdb连不上，报错如下：

Caused by: org.pentaho.di.core.exception.KettleDatabaseException:
Error connecting to database: (using class oracle.jdbc.driver.OracleDriver)
Listener refused the connection with the following error:
ORA-12505, TNS:listener does not currently know of SID given in connect descriptor
...
	at org.pentaho.di.core.database.Database.connectUsingClass(Database.java:588)
	at org.pentaho.di.core.database.Database.normalConnect(Database.java:461)
	... 48 more
Caused by: java.sql.SQLException: Listener refused the connection with the following error:
ORA-12505, TNS:listener does not currently know of SID given in connect descriptor

看这个报错可以猜测jdbc的连接串是使用sid去连的，让开发尝试使用sid去连，确实能连上。但由于pdb使用的是service_name，还需要找到使用service_name连接oracle数据库方法。

查询文档发现方法如下：

• 不需要填主机名
• 数据库名写如下连接字符串：(DESCRIPTION =(ADDRESS = (PROTOCOL = TCP)(HOST = IP地址)(PORT = 1521))(CONNECT_DATA = (SERVER = DEDICATED)(SERVICE_NAME = 服务名)))
• 端口号填：-1

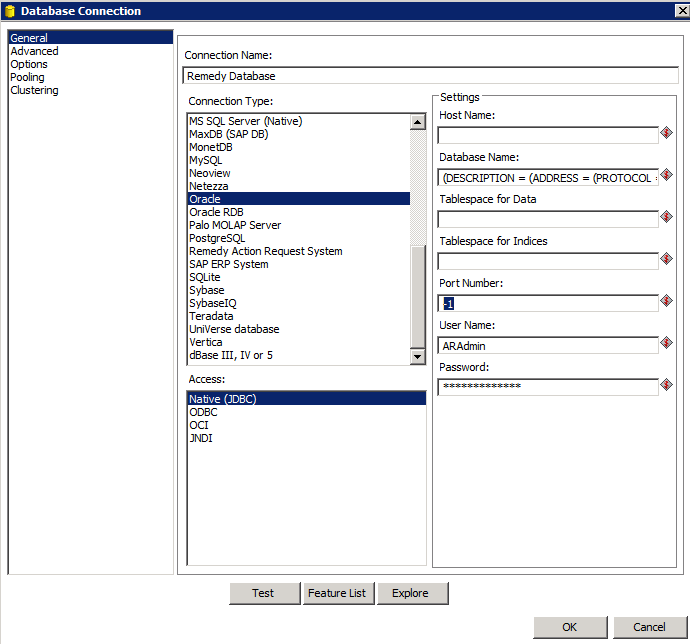

如图：

文末吐槽一下，真不科学的连接方法。。。
