【微信小程序】webview内嵌H5中回调小程序原生方法实现GET请求获取的文件流预览功能
*解决方案:**在webview中引入微信所需要的的SDK,目的是和微信小程序进行互动,将下面代码直接扔进H5的index.html中。参考微信的原生方法**wx.getFileSystemManager().readFile()**将文件读取到临时文件夹中产生临时路径。微信小程序的主体内容使用了标签将H5的页面内容展示,H5中有页面存放了下载的路径。pages/upload/page页面处理方式
项目场景如下
开发框架是uniapp,使用uniapp脚手架搭建,最终打包成H5部署在服务器上。
微信小程序的主体内容使用了标签将H5的页面内容展示,H5中有页面存放了下载的路径。点击下载按钮下载文件,或者预览文件让用户手动保存。
难点一、在于webview不能使用如下代码直接下载。
h5_download(blobURL, fileName) {
// 创建a标签,用于跳转至下载链接
const tempLink = document.createElement("a");
tempLink.style.display = "none";
tempLink.href = blobURL;
tempLink.setAttribute("download", decodeURI(fileName));
// 兼容:某些浏览器不支持HTML5的download属性
if (typeof tempLink.download === "undefined") {
tempLink.setAttribute("target", "_blank");
}
document.body.appendChild(tempLink);
tempLink.click();
document.body.removeChild(tempLink);
// 释放blob URL地址
window.URL.revokeObjectURL(blobURL);
},
参考大多数网站常见的就是使用uni.downloadFile进行文件的的下载,然后通过 uni.openDocument进行文件预览,实际上 uni.openDocument无法将GET请求文件流直接打开
参考微信的原生方法**wx.getFileSystemManager().readFile()**将文件读取到临时文件夹中产生临时路径
难点二 webview内嵌页面无法直接使用wx原生方法
**解决方案:**在webview中引入微信所需要的的SDK,目的是和微信小程序进行互动,将下面代码直接扔进H5的index.html中
<script type="text/javascript">
var userAgent = navigator.userAgent;
if (userAgent.indexOf('AlipayClient') > -1) {
// 支付宝小程序的 JS-SDK 防止 404 需要动态加载,如果不需要兼容支付宝小程序,则无需引用此 JS 文件。
document.writeln('<script src="https://appx/web-view.min.js"' + '>' + '<' + '/' + 'script>');
} else if (/QQ/i.test(userAgent) && /miniProgram/i.test(userAgent)) {
// QQ 小程序
document.write(
'<script type="text/javascript" src="https://qqq.gtimg.cn/miniprogram/webview_jssdk/qqjssdk-1.0.0.js"><\/script>'
);
} else if (/miniProgram/i.test(userAgent) && /micromessenger/i.test(userAgent)) {
// 微信小程序 JS-SDK 如果不需要兼容微信小程序,则无需引用此 JS 文件。
document.write('<script type="text/javascript" src="https://res.wx.qq.com/open/js/jweixin-1.4.0.js"><\/script>');
} else if (/toutiaomicroapp/i.test(userAgent)) {
// 头条小程序 JS-SDK 如果不需要兼容头条小程序,则无需引用此 JS 文件。
document.write(
'<script type="text/javascript" src="https://s3.pstatp.com/toutiao/tmajssdk/jssdk-1.0.1.js"><\/script>');
} else if (/swan/i.test(userAgent)) {
// 百度小程序 JS-SDK 如果不需要兼容百度小程序,则无需引用此 JS 文件。
document.write(
'<script type="text/javascript" src="https://b.bdstatic.com/searchbox/icms/searchbox/js/swan-2.0.18.js"><\/script>'
);
} else if (/quickapp/i.test(userAgent)) {
// quickapp
document.write('<script type="text/javascript" src="https://quickapp/jssdk.webview.min.js"><\/script>');
}
</script>
<!--上面的都是copy uni-app web-view组件官方的案例,懒得再去删减修改了 -->
<!-- uni 的 SDK -->
<script type="text/javascript" src="<%= BASE_URL %>static/js/uni.webview.1.5.3.js"></script>
<script type="text/javascript">
// 待触发 `UniAppJSBridgeReady` 事件后,即可调用 uni 的 API。
document.addEventListener('UniAppJSBridgeReady', function() {
webUni.getEnv(function(res) {
console.log('当前环境:' + JSON.stringify(res));
});
});
// window.handleMessage = function(msg){
// console.log("接收到消息",msg);
// alert("接收到消息"+msg);
// }
</script>
使用webUni即可完成与小程序的交互
点击下载按钮调用download方法回到小程序的pages/upload/page页面并带上你的get请求文件流路径
download(item){
webUni.navigateTo({
url: '/pages/upload/page?url='+encodeURIComponent(item.url),
})
// this.h5_download(item.url,item.name)
},
pages/upload/page页面处理方式,在onload方法完成对小程序中webview页面参数的赋值,这里使用的是previousPage.$vm.customFun 获取webview中customFun 并传值true wx.navigateBack回到上页
onLoad(options) {
let that = this;
wx.setStorageSync('uploadData', options)//保存传入的参数
//option为一个对象,内容就是{ link,fileToken,fileName,cookie等之前使用&拼上的数据}
let pages = getCurrentPages();
let previousPage = pages[pages.length - 2]; //上一个页面
if(previousPage!=undefined){
previousPage.$vm.customFun({
isDownLoadPageBack: true //在上一个页面设置标记,用来判断
})
// previousPage.setData({
// isDownLoadPageBack: true //在上一个页面设置标记,用来判断
// })
wx.navigateBack({
delta: 1
})
}
},

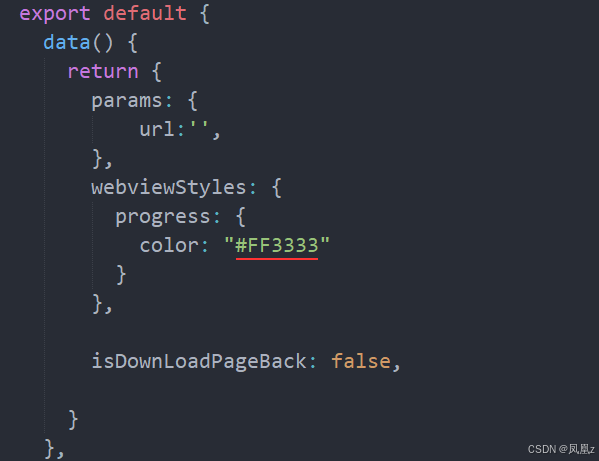

处理小程序webview页面,提供方法给upload/page页面并在onshow里完成每次的处理工作
onShow() {
wx.hideHomeButton();
let pages = getCurrentPages()
// 取得当前页面
let currPage = pages[pages.length-1]
if (this.isDownLoadPageBack) {
this.previewFile1() //具体的微信下载文件的方法
}
//每次onShow执行完,还有上面的下载方法执行完后要把这个标记重置为false,这样不同情况触发的onShow才能区分是否是下载文件页面回来的。可能写的重复但是多写几次比较放心
this.isDownLoadPageBack =false
},
在method中完成文件的预览 uni.openDocument
customFun (obj) {
if (obj) {
// 将打印出 { name: '周某某', sex: '女' }
console.log(obj)
this.isDownLoadPageBack = obj.isDownLoadPageBack
}
},
previewFile1() {
// 流程步骤: 利用下载文件功能 先生成临时文件 - 调用api打开临时文件里面的内容,从而生成预览的效果,但是这个未能真实的下载到本地
// 1.pdfUrl 可以直接在浏览器打开 2.一定要在小程序后台配置该pdf的域名 让其可以下载
let that =this
let options = wx.getStorageSync('uploadData')
uni.downloadFile({
url: decodeURIComponent(options.url), // 图片或者文件地址
success: function(res) {
console.log('下载的res', res);
uni.showLoading({
title: '下载的res',
duration: 3,
mask:true,
});
var filePath = res.tempFilePath; // 临时文件存储路径
// 文件打开文件预览
wx.getFileSystemManager().readFile({
filePath: filePath,
encoding: "utf-8",
position: 0,
length: 8, // 通常读取前8个字节即可
success: (fileRes) => {
// 文件保存到本地
wx.getFileSystemManager().saveFile({
tempFilePath: res.tempFilePath, //临时路径
success: function (res) {
const fileHead = fileRes.data;
if (
fileHead.indexOf("PK") ||
fileHead.indexOf("pk")
) {
that.saveSucFunc( res, "docx");
} else {
that.saveSucFunc( res, "pdf");
}
},
fail: function (saveerr) {
wx.showModal({
title: "保存失败",
showCancel: false, // 是否显示取消按钮,默认为true
success: function (res) {
wx.navigateBack({ delta: 1 });
},
});
},
});
},
fail: (err) => {
wx.showModal({
title: "读取文件失败",
showCancel: false, // 是否显示取消按钮,默认为tr
success: function (res) {
wx.navigateBack({ delta: 1 });
},
});
},
});
},
fail: function(err) {
console.log('下载失败原因', err);
uni.hideLoading();
uni.showModal({
title: '您需要授权相册权限',
success(res) {
if (res.confirm) {
uni.openSetting({
success(res) {},
fail(res) {
console.log(res);
}
});
}
}
});
}
});
},
saveSucFunc(res, fileType) {
console.log(res, "savesuc");
uni.hideLoading();
uni.openDocument({
filePath: res.savedFilePath,
fileType: fileType,
showMenu: true,
success: function (res) {
console.log("打开成功", res);
},
fail: function (error) {
console.log("打开失败", error);
},
});
// }, 3000);
},
经测试,Android和iOS,微信小程序内都能够预览文件
参考链接:https://www.jianshu.com/p/b544f8deed7e
