在验证某些关键步骤时，需要截个图来记录一下当时的情况

Webdriver截图时，需要引入

importjava.io.File;importjava.io.IOException;importorg.apache.commons.io.FileUtils;importorg.openqa.selenium.OutputType;import org.openqa.selenium.TakesScreenshot;

截图方法

public static voidsnapshot(TakesScreenshot drivername, String filename)

{//this method will take screen shot ,require two parameters ,one is driver name, another is file name

String currentPath= System.getProperty("user.dir"); //get current work folder

System.out.println(currentPath);

File scrFile=drivername.getScreenshotAs(OutputType.FILE);//Now you can do whatever you need to do with it, for example copy somewhere

try{

System.out.println("save snapshot path is:"+currentPath+"/"+filename);

FileUtils.copyFile(scrFile,new File(currentPath+"\\"+filename));

}catch(IOException e) {//TODO Auto-generated catch block

System.out.println("Can't save screenshot");

e.printStackTrace();

}finally{

System.out.println("screen shot finished");

}

}

以下任务：

1.使用selenium打开百度，截图；

2.输入selenium关键字，截图；

3.搜索 并打开 selenium的百度百科，截图；

具体代码如下：

1 packagebaidu;2

3

4

5 importjava.io.File;6 importjava.io.IOException;7

8

9

10 importorg.apache.commons.io.FileUtils;11

12 importorg.openqa.selenium.By;13 importorg.openqa.selenium.OutputType;14 importorg.openqa.selenium.TakesScreenshot;15 importorg.openqa.selenium.WebDriver;16 //import org.openqa.selenium.WebDriver.Navigation;

17 importorg.openqa.selenium.WebElement;18 importorg.openqa.selenium.chrome.ChromeDriver;19

20

21

22

23 public classselenium {24

25

26

27 public static voidsnapshot(TakesScreenshot drivername, String filename)28 {29 //this method will take screen shot ,require two parameters ,one is driver name, another is file name

30

31

32 File scrFile =drivername.getScreenshotAs(OutputType.FILE);33 //Now you can do whatever you need to do with it, for example copy somewhere

34 try{35 System.out.println("save snapshot path is:E:/"+filename);36 FileUtils.copyFile(scrFile, new File("E:\\"+filename));37 } catch(IOException e) {38 //TODO Auto-generated catch block

39 System.out.println("Can't save screenshot");40 e.printStackTrace();41 }42 finally

43 {44 System.out.println("screen shot finished");45 }46 }47

48 public static void main (String [] args) throwsInterruptedException49 {50

51

52 String URL="http://www.baidu.com";53 System.setProperty("webdriver.chrome.driver", "E:\\chromedriver.exe");54 WebDriver driver = newChromeDriver();55 driver.get(URL);56 //max size the browser

57 driver.manage().window().maximize();58 /*

59 Navigation navigation = driver.navigate();60 navigation.to(URL);*/

61 Thread.sleep(2000);62 snapshot((TakesScreenshot)driver,"open_baidu.png");63 //WebElement reg=driver.findElement(By.name("tj_reg"));64 //reg.click();65 //WebElement keyWord = driver.findElement(By.id("kw1"));66

67 //find the element

68 WebElement keyWord = driver.findElement(By.xpath("//input[@id='kw1']"));69 keyWord.clear();70 //send key words

71 keyWord.sendKeys("Selenium");72 Thread.sleep(3000);73 snapshot((TakesScreenshot)driver,"input_keyWord.png");74

75

76

77 WebElement submit = driver.findElement(By.id("su1"));78

79 System.out.println(submit.getLocation());80 submit.click();81 //System.out.println(driver.getWindowHandle());

82 Thread.sleep(5000);83

84 //System.out.println(driver.getPageSource());

85

86 String pageSource=driver.getPageSource();87 //System.out.println(pageSource);88 //WebElement link =driver.findElement(By.xpath(SELENIUM_LINK));

89 WebElement link =driver.findElement(By.xpath("//*[@id=\"1\"]/h3/a")); //*[@id="1"]/h3/a

90 link.click();91 Thread.sleep(5000);92 driver.switchTo().window(driver.getWindowHandles().toArray(new String[0])[1]);93

94 //get page title

95 System.out.println(driver.getTitle());96 Thread.sleep(5000);97 //navigation.back();

98 snapshot((TakesScreenshot)driver,"open_bake.png");99 System.out.println(driver.getTitle()+"\n"+driver.getCurrentUrl());100

101

102

103 driver.quit();104

105

106 }107

108 }

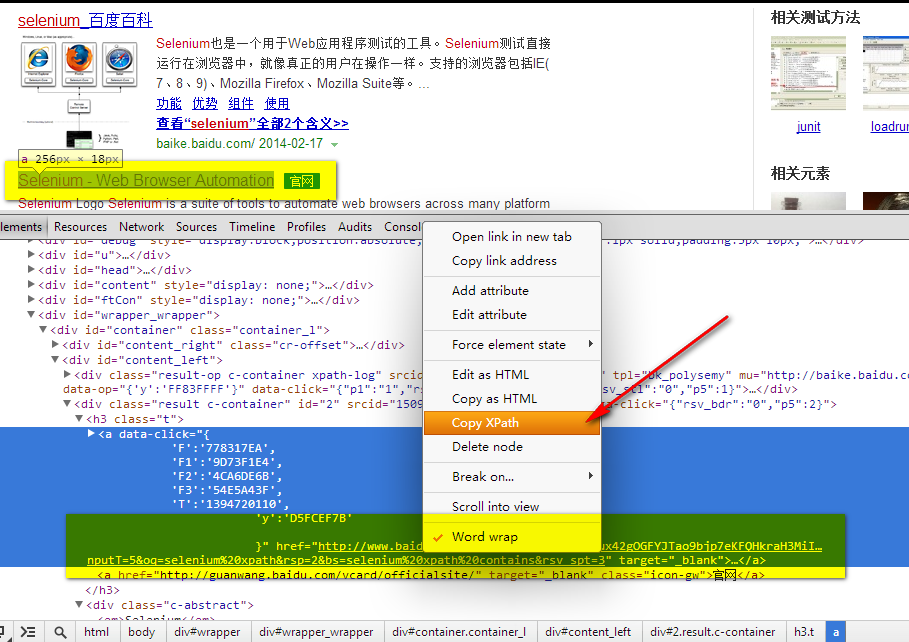

在百度搜索结果中，拿到你想要的elements，可以使用浏览器的查看元素，通过xpath方法获取

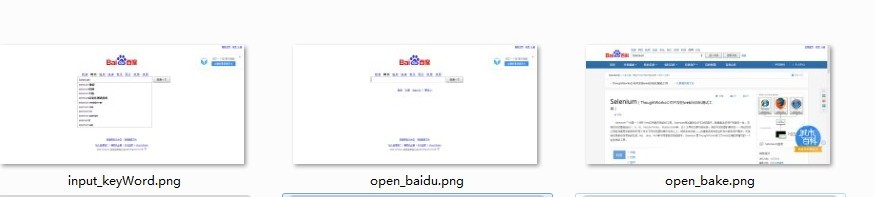

运行此代码后截图效果如下：

console输出：

Starting ChromeDriver (v2.9.248315) on port 33834

save snapshot path is:E:/open_baidu.png

screen shot finished

save snapshot path is:E:/input_keyWord.png

screen shot finished

(858, 179)

Selenium_百度百科

save snapshot path is:E:/open_bake.png

screen shot finished

Selenium_百度百科

http://baike.baidu.com/subview/478050/6464537.htm?fr=aladdin
