基于Yolov8-pose自制数据集模型导出onnx模型推理&预测

   
模型训练成功后，我们可以通过程序测试pytorch框架下模型的性能，代码如下所示。

import cv2
import numpy as np
from ultralytics import YOLO
import random


def hsv2bgr(h, s, v):
    h_i = int(h * 6)
    f = h * 6 - h_i
    p = v * (1 - s)
    q = v * (1 - f * s)
    t = v * (1 - (1 - f) * s)

    r, g, b = 0, 0, 0

    if h_i == 0:
        r, g, b = v, t, p
    elif h_i == 1:
        r, g, b = q, v, p
    elif h_i == 2:
        r, g, b = p, v, t
    elif h_i == 3:
        r, g, b = p, q, v
    elif h_i == 4:
        r, g, b = t, p, v
    elif h_i == 5:
        r, g, b = v, p, q

    return int(b * 255), int(g * 255), int(r * 255)

def random_color(id):
    h_plane = (((id << 2) ^ 0x937151) % 100) / 100.0
    s_plane = (((id << 3) ^ 0x315793) % 100) / 100.0
    return hsv2bgr(h_plane, s_plane, 1)

#骨架连接
skeleton = [[1, 2], [2, 3], [3, 4], [4, 5], [1, 6], [6, 7], [7, 8], [8, 9], [6, 10],
            [10, 11], [11, 12], [12, 13], [10, 14], [14, 15], [15, 16], [16, 17], [14, 18], [18, 19], [19, 20],[20,21],[1,18]]
#调色板
pose_palette = np.array([[255, 128, 0], [255, 153, 51], [255, 178, 102], [230, 230, 0], [255, 153, 255],
                         [153, 204, 255], [255, 102, 255], [255, 51, 255], [102, 178, 255], [51, 153, 255],
                         [255, 153, 153], [255, 102, 102], [255, 51, 51], [153, 255, 153], [102, 255, 102],
                         [51, 255, 51], [0, 255, 0], [0, 0, 255], [255, 0, 0], [255, 255, 255]],dtype=np.uint8)
#关键点颜色
kpt_color  = pose_palette[[0, 16, 16, 16, 16, 0, 16, 16, 16, 0, 16, 16, 16, 0, 16, 16, 16, 0, 16, 16, 16, 16, 16]]
#骨架颜色
limb_color = pose_palette[[8, 8, 8, 8, 0, 13, 13, 13, 0, 10, 10, 10, 0, 2, 2, 2, 0, 7, 7, 7, 0]]

if __name__ == "__main__":

    model = YOLO("/home/lx/model_deploy/yolov8/runs/pose/train3/weights/best.pt")	#改成自己模型的存储地址

    img = cv2.imread("predict_test.jpg")	#改成自己要推理的图片
    results = model(img)[0]
    names   = results.names
    boxes   = results.boxes.data.tolist()

    # keypoints.data.shape -> n,21,2
    keypoints = results.keypoints.cpu().numpy()

    # keypoint -> 每个人的关键点
    for keypoint in keypoints.data:
        for i, (x, y) in enumerate(keypoint):
            color_k = [int(x) for x in kpt_color[i]]
            if x != 0 and y != 0:
                cv2.circle(img, (int(x), int(y)), 5, color_k , -1, lineType=cv2.LINE_AA)
        for i, sk in enumerate(skeleton):
            pos1 = (int(keypoint[(sk[0] - 1), 0]), int(keypoint[(sk[0] - 1), 1]))
            pos2 = (int(keypoint[(sk[1] - 1), 0]), int(keypoint[(sk[1] - 1), 1]))

            if pos1[0] == 0 or pos1[1] == 0 or pos2[0] == 0 or pos2[1] == 0:
                continue
            cv2.line(img, pos1, pos2, [int(x) for x in limb_color[i]], thickness=2, lineType=cv2.LINE_AA)

    for obj in boxes:
        left, top, right, bottom = int(obj[0]), int(obj[1]), int(obj[2]), int(obj[3])
        confidence = obj[4]
        label = int(obj[5])
        color = random_color(random.randint(1,100))
        cv2.rectangle(img, (left, top), (right, bottom), color = color ,thickness=2, lineType=cv2.LINE_AA)
        caption = f"{names[label]} {confidence:.2f}"
        w, h = cv2.getTextSize(caption, 0, 1, 2)[0]
        cv2.rectangle(img, (left - 3, top - 33), (left + w + 10, top), color, -1)
        cv2.putText(img, caption, (left, top - 5), 0, 1, (0, 0, 0), 2, 16)

    cv2.imwrite("predict-pose.jpg", img)
    print("save done")

   
其中，skeleton数组表示关键点之间的连线关系，具体连线关系对应我上一节内容中的图，pose_palette数组存储颜色，我预设了一些颜色，也可以自己添加新的。kpt_color数组表示关键点的颜色，limb_color数组表示连线的颜色。

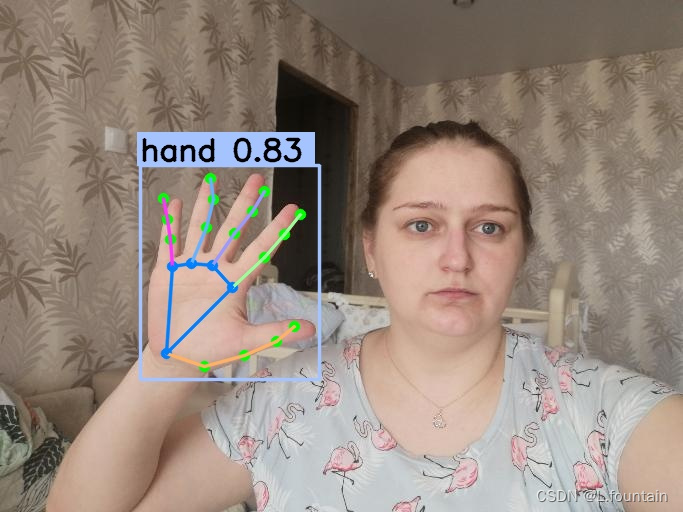

执行成功后，就可以看到如下图的效果了

   
由于华为昇腾框架不支持直接从pt到om格式的转化，我们需要先将模型由pt转化为onnx格式，然后再将模型转化成om格式。
根据下面代码进行pt到onnx格式的转化。

from ultralytics import YOLO

# Load a model
#model = YOLO('yolov8s-pose.pt')  # load an official model
model = YOLO("/home/lx/model_deploy/yolov8/runs/pose/train3/weights/handpose.pt")  # load a custom trained model

# Export the model
model.export(format='onnx',imgsz=640)

转化细节如下所示，我们的onnx版本为1.12.0 opset 17，如果发生意外可以在转换时指定opset版本与我的一致。

Ultralytics YOLOv8.0.225 🚀 Python-3.8.0 torch-2.0.1+cu117 CPU (Intel Core(TM) i7-10700 2.90GHz)
YOLOv8n-pose summary (fused): 187 layers, 3228485 parameters, 0 gradients, 8.9 GFLOPs

PyTorch: starting from '/home/lx/model_deploy/yolov8/runs/pose/train3/weights/best.pt' with input shape (1, 3, 640, 640) BCHW and output shape(s) (1, 47, 8400) (6.4 MB)

ONNX: starting export with onnx 1.12.0 opset 17...
============= Diagnostic Run torch.onnx.export version 2.0.1+cu117 =============
verbose: False, log level: Level.ERROR
======================= 0 NONE 0 NOTE 0 WARNING 0 ERROR ========================

ONNX: export success ✅ 0.8s, saved as '/home/lx/model_deploy/yolov8/runs/pose/train3/weights/best.onnx' (12.6 MB)

Export complete (2.1s)
Results saved to /home/lx/model_deploy/yolov8/runs/pose/train3/weights
Predict:         yolo predict task=pose model=/home/lx/model_deploy/yolov8/runs/pose/train3/weights/best.onnx imgsz=640
Validate:        yolo val task=pose model=/home/lx/model_deploy/yolov8/runs/pose/train3/weights/best.onnx imgsz=640 data=pose.yaml
Visualize:       https://netron.app

   
然后在我们的目录中就会出现handpose.onnx了(具体名字和onnx模型的生成路径与你导入的pt模型路径有关)。

   
onnx相关包需要自行安装，版本肯定是越新的越好。下面我们测试一下导出的onnx模型的性能，具体代码如下所示

import onnxruntime
import numpy as np
import cv2
import time
import torch
from ultralytics.nn.autobackend import AutoBackend

# 调色板
palette = np.array([[255, 128, 0], [255, 153, 51], [255, 178, 102], [230, 230, 0], [255, 153, 255],
                         [153, 204, 255], [255, 102, 255], [255, 51, 255], [102, 178, 255], [51, 153, 255],
                         [255, 153, 153], [255, 102, 102], [255, 51, 51], [153, 255, 153], [102, 255, 102],
                         [51, 255, 51], [0, 255, 0], [0, 0, 255], [255, 0, 0], [255, 255, 255]],dtype=np.uint8)

# 21个关键点连接顺序
skeleton = [[1, 2], [2, 3], [3, 4], [4, 5], [1, 6], [6, 7], [7, 8], [8, 9], [6, 10],
            [10, 11], [11, 12], [12, 13], [10, 14], [14, 15], [15, 16], [16, 17], [14, 18], [18, 19], [19, 20],[20,21],[1,18]]

# 骨架颜色
pose_limb_color = palette[[8, 8, 8, 8, 0, 13, 13, 13, 0, 10, 10, 10, 0, 2, 2, 2, 0, 7, 7, 7, 0]]
# 关键点颜色
pose_kpt_color = palette[[0, 16, 16, 16, 16, 0, 16, 16, 16, 0, 16, 16, 16, 0, 16, 16, 16, 0, 16, 16, 16, 16, 16]]


def preprocess_warpAffine(image, dst_width=640, dst_height=640):
    scale = min((dst_width / image.shape[1], dst_height / image.shape[0]))
    ox = (dst_width  - scale * image.shape[1]) / 2
    oy = (dst_height - scale * image.shape[0]) / 2
    M = np.array([
        [scale, 0, ox],
        [0, scale, oy]
    ], dtype=np.float32)

    img_pre = cv2.warpAffine(image, M, (dst_width, dst_height), flags=cv2.INTER_LINEAR,
                             borderMode=cv2.BORDER_CONSTANT, borderValue=(114, 114, 114))
    IM = cv2.invertAffineTransform(M)

    img_pre = (img_pre[...,::-1] / 255.0).astype(np.float32)
    img_pre = img_pre.transpose(2, 0, 1)[None]

    #转化为tentor，用pytorch推理时使用
    #img_pre = torch.from_numpy(img_pre)
    return img_pre, IM

def iou(box1, box2):

    def area_box(box):
        return (box[2] - box[0]) * (box[3] - box[1])

    left, top = max(box1[:2], box2[:2])
    right, bottom = min(box1[2:4], box2[2:4])
    union = max((right-left), 0) * max((bottom-top), 0)
    cross = area_box(box1) + area_box(box2) - union
    if cross == 0 or union == 0:
        return 0
    return union / cross

def NMS(boxes, iou_thres):

    remove_flags = [False] * len(boxes)

    keep_boxes = []
    for i, ibox in enumerate(boxes):
        if remove_flags[i]:
            continue

        keep_boxes.append(ibox)
        for j in range(i + 1, len(boxes)):
            if remove_flags[j]:
                continue

            jbox = boxes[j]
            if iou(ibox, jbox) > iou_thres:
                remove_flags[j] = True
    return keep_boxes

def postprocess(pred, IM=[], conf_thres=0.25, iou_thres=0.45):

    # 输入是模型推理的结果，即8400个预测框
    # 1,8400,42 [cx,cy,w,h,conf,21*2]
    boxes = []
    for img_id, box_id in zip(*np.where(pred[...,4] > conf_thres)):
        item = pred[img_id, box_id]
        cx, cy, w, h, conf = item[:5]
        left    = cx - w * 0.5
        top     = cy - h * 0.5
        right   = cx + w * 0.5
        bottom  = cy + h * 0.5

        keypoints = item[5:].reshape(-1, 2)
        keypoints[:, 0] = keypoints[:, 0] * IM[0][0] + IM[0][2]
        keypoints[:, 1] = keypoints[:, 1] * IM[1][1] + IM[1][2]
        boxes.append([left, top, right, bottom, conf, *keypoints.reshape(-1).tolist()])

    #防止原始图像没有待测目标
    if boxes !=[]:
        boxes = np.array(boxes)
        lr = boxes[:,[0, 2]]
        tb = boxes[:,[1, 3]]
        boxes[:,[0,2]] = IM[0][0] * lr + IM[0][2]
        boxes[:,[1,3]] = IM[1][1] * tb + IM[1][2]
        boxes = sorted(boxes.tolist(), key=lambda x:x[4], reverse=True)

        return NMS(boxes, iou_thres)

    return []

def hsv2bgr(h, s, v):
    h_i = int(h * 6)
    f = h * 6 - h_i
    p = v * (1 - s)
    q = v * (1 - f * s)
    t = v * (1 - (1 - f) * s)

    r, g, b = 0, 0, 0

    if h_i == 0:
        r, g, b = v, t, p
    elif h_i == 1:
        r, g, b = q, v, p
    elif h_i == 2:
        r, g, b = p, v, t
    elif h_i == 3:
        r, g, b = p, q, v
    elif h_i == 4:
        r, g, b = t, p, v
    elif h_i == 5:
        r, g, b = v, p, q

    return int(b * 255), int(g * 255), int(r * 255)

def random_color(id):
    h_plane = (((id << 2) ^ 0x937151) % 100) / 100.0
    s_plane = (((id << 3) ^ 0x315793) % 100) / 100.0
    return hsv2bgr(h_plane, s_plane, 1)


class Keypoint():
    def __init__(self,modelpath):
        # self.session = onnxruntime.InferenceSession(modelpath, providers=['CUDAExecutionProvider','CPUExecutionProvider'])
        self.session = onnxruntime.InferenceSession(modelpath, providers=['CPUExecutionProvider'])
        self.input_name = self.session.get_inputs()[0].name
        self.label_name = self.session.get_outputs()[0].name
    def inference(self,image):
        #预处理 img为预处理后的图像 IM为缩放比例系数
        img, IM = preprocess_warpAffine(image)

        # pytorch模型推理
        #model  = AutoBackend(weights="/home/lx/model_deploy/yolov8/runs/pose/train3/weights/best.pt")
        #result = model(img)[0].transpose(-1, -2)  # 1,8400,47

        # 预测输出float32[1, 47, 8400]
        pred = self.session.run([self.label_name], {self.input_name: img.astype(np.float32)})[0]
        # 转化成[1,8400,47]
        pred =np.transpose(pred,(0,2,1))

        #后处理
        boxes = postprocess(pred,IM)

        for box in boxes:
            left, top, right, bottom = int(box[0]), int(box[1]), int(box[2]), int(box[3])
            confidence = box[4]
            label = 0
            color = random_color(label)
            cv2.rectangle(image, (left, top), (right, bottom), color, 2, cv2.LINE_AA)
            caption = f"hand {confidence:.2f}"
            w, h = cv2.getTextSize(caption, 0, 1, 2)[0]
            cv2.rectangle(image, (left - 3, top - 33), (left + w + 10, top), color, -1)
            cv2.putText(image, caption, (left, top - 5), 0, 1, (0, 0, 0), 2, 16)

            keypoints = box[5:]
            keypoints = np.array(keypoints).reshape(-1, 2)

            for i, keypoint in enumerate(keypoints):
                x, y = keypoint
                color_k = [int(x) for x in pose_kpt_color[i]]

                if x != 0 and y != 0:
                    cv2.circle(image, (int(x), int(y)), 5, color_k, -1, lineType=cv2.LINE_AA)

            for i, sk in enumerate(skeleton):
                pos1 = (int(keypoints[(sk[0] - 1), 0]), int(keypoints[(sk[0] - 1), 1]))
                pos2 = (int(keypoints[(sk[1] - 1), 0]), int(keypoints[(sk[1] - 1), 1]))

                if pos1[0] == 0 or pos1[1] == 0 or pos2[0] == 0 or pos2[1] == 0:
                    continue
                cv2.line(image, pos1, pos2, [int(x) for x in pose_limb_color[i]], thickness=2, lineType=cv2.LINE_AA)

        return image


if __name__ == '__main__':
    modelpath = r'handpose.onnx'    #改为自己模型的目录
    # 实例化模型
    keydet = Keypoint(modelpath)
    # 两种模式 1为图片预测，并显示结果图片；2为摄像头检测，并实时显示FPS
    mode = 1
    if mode == 1:
        # 输入图片路径
        image = cv2.imread('predict_test.jpg')	#要预测的图片
        start = time.time()
        image = keydet.inference(image)
        end = time.time()
        det_time = (end - start) * 1000
        print("推理时间为：{:.2f} ms".format(det_time))
        print("图片完成检测")
        cv2.namedWindow("keypoint", cv2.WINDOW_NORMAL)
        cv2.imshow("keypoint", image)
        cv2.imwrite('imgs/res.jpg',image)
        #按'q'退出
        cv2.waitKey(0)
        cv2.destroyAllWindows()

    elif mode == 2:
        # 摄像头人体关键点检测
        cap = cv2.VideoCapture(0)
        # 返回当前时间
        start_time = time.time()
        counter = 0
        while True:
            # 从摄像头中读取一帧图像
            ret, frame = cap.read()
            image  = keydet.inference(frame)
            counter += 1  # 计算帧数
            # 实时显示帧数
            if (time.time() - start_time) != 0:
                cv2.putText(image, "FPS:{0}".format(float('%.1f' % (counter / (time.time() - start_time)))), (5, 30),
                            cv2.FONT_HERSHEY_SIMPLEX, 0.75, (0, 0, 255), 1)
                # 显示图像
                cv2.imshow('keypoint', image)
            if cv2.waitKey(1) & 0xFF == ord('q'):
                break
        # 释放资源
        cap.release()
        cv2.destroyAllWindows()
    else:
        print("\033[1;91m 输入错误,请检查mode的赋值 \033[0m")

   
上述代码中两种推理模式，一种是输入单张图片进行推理保存，一种是读取摄像头输入进行推理实时显示，当然自己也可以加个功能实现读取本地视频进行推理保存的功能。

最开始的地方我导入了torch的库和yolov8中的AutoBackend模块，用来实现pytorch模型的推理部分，进一步验证前处理和后处理模块是否有问题。前后处理模块可以参考这个链接。

前处理的代码和网上大部分人写的差不多，修改图像大小，加灰条，图像归一化，将图像从BGR转换为RGB,如果使用pytorch框架推理还要将图像从numpy转化为tensor。

后处理的代码跟网上的版本有些差异，因为yolov8的代码封装程度很高，我也是根据网上的模板自己修改的。我们的数据集中关键点只有x和y两个特征，与原始的yolov8-pose中使用的数据集不同，原始的数据集有x,y和v（v代表关键点是否可见）三个特征，所以在实现后处理时需要很小心，我们提取打包的关键点特征时只能2个、2个特征提取，不可以跟之前一样提取三个特征，另外，对于后面的代码也需要改动，要把关于第三个特征v的代码统统删除，即默认所有关键点都是可见的，这样才可以走通，当然自己写个脚本直接修改label也是可以的，给所有关键点的x和y后面统统加上数字2（0代表不可见，2代表可见）补上第三个特征也可以对齐。此外，列表boxes也要判断是否非空，避免传入图像不存在待测物体时，程序越界崩溃。

当使用pytorch模型走通前处理、推理、后处理流程生成图片正确后，我们将推理部分替换为onnx模型的推理。onnx的输入使用numpy，不用在预处理中将其转化为tensor。

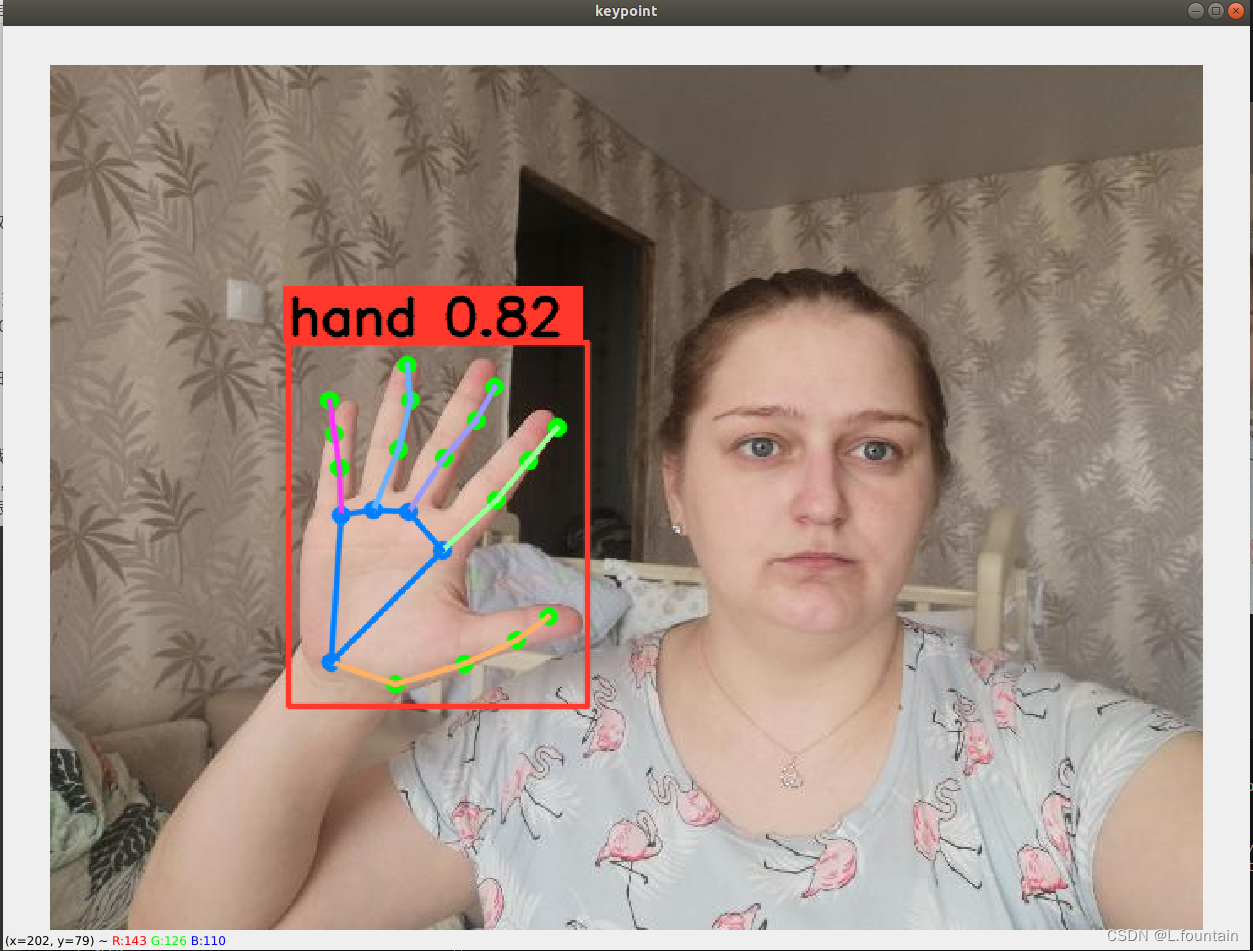

下面就可以展示我们onnx模型的推理结果啦

   

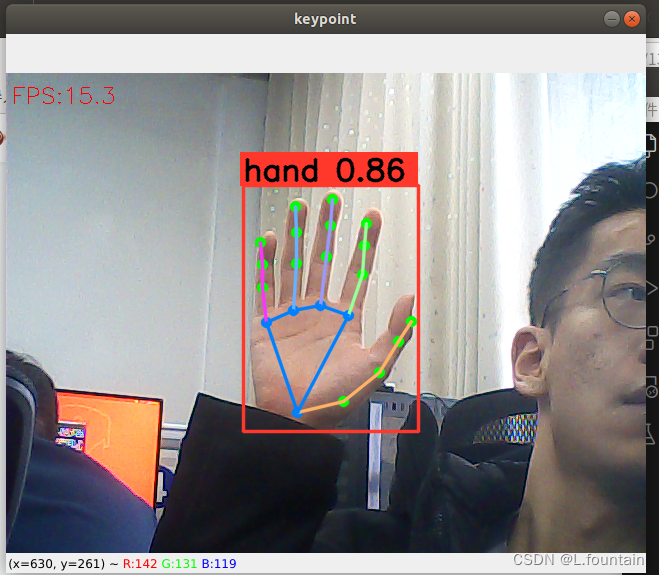

测试发现我们推理视频差不多有个15-20帧的效果，如果我们对onnx进一步量化减枝优化，将会取得更好的效果。

以上就是基于Yolov8-pose自制数据集训练的模型导出onnx模型推理验证的全部的过程了^ _ ^
