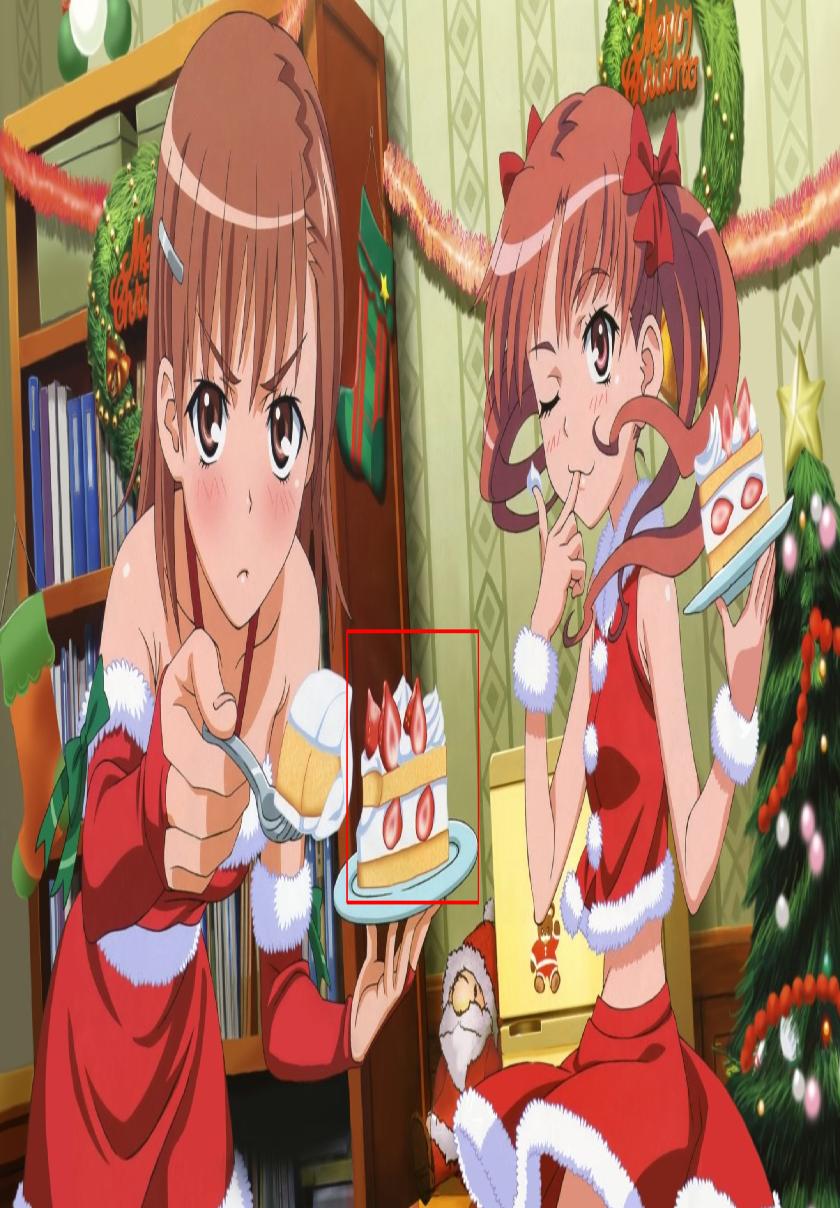

效果如下，就算有一些不一样也是能够匹配成功的，但是大小必须一样，不能是缩小或者放大后的图片，不然无法匹配成功

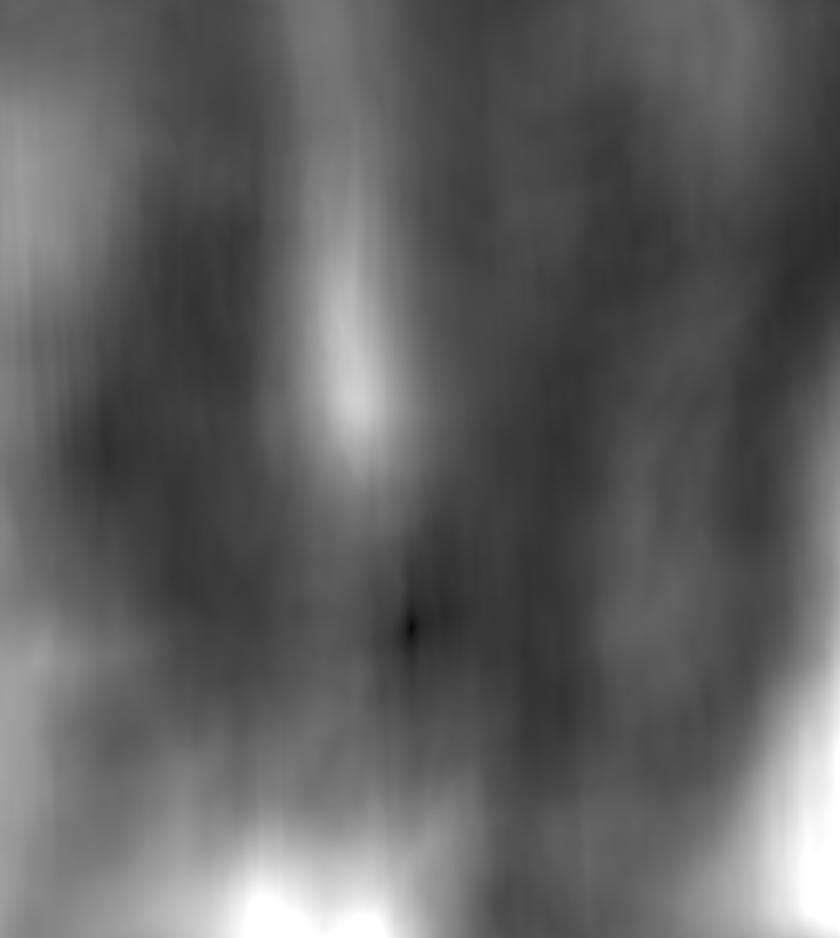

最亮的代表最优匹配

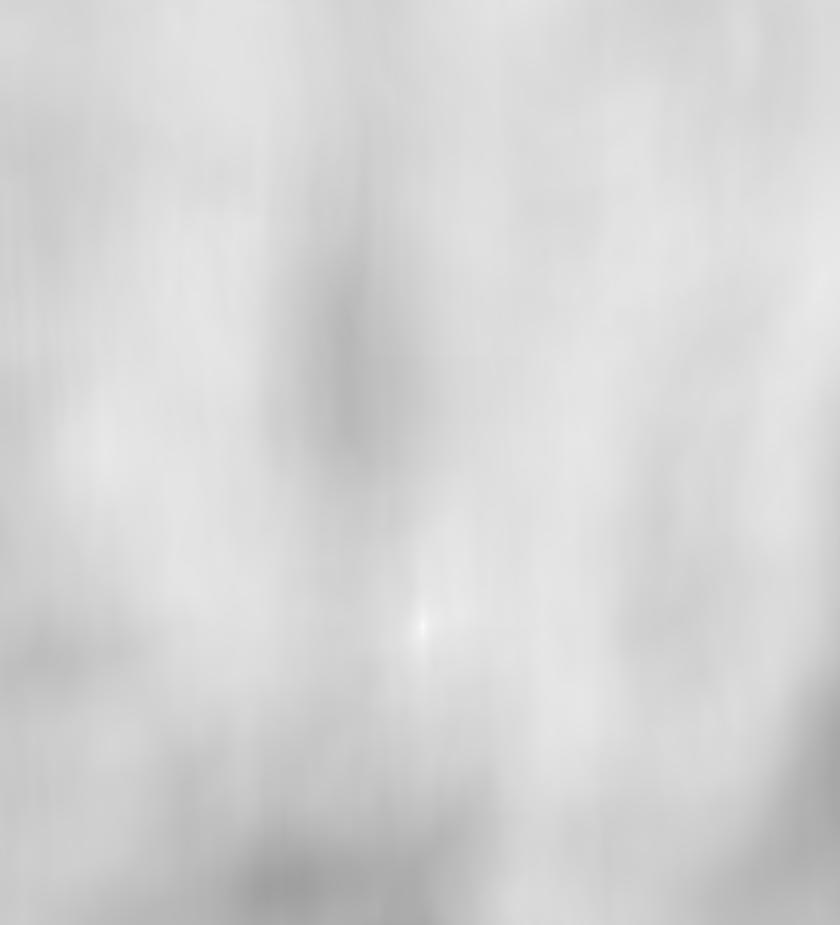

最暗的地方代表最优匹配

使用不同的函数计算匹配程度，有的函数值越大匹配程度越高，有的相反，注意下

import cv2

img = cv2.imread('img.png')

part = cv2.imread('part_big.png')

cv2.imshow('img', img)

cv2.imshow('part', part)

methods = [cv2.TM_SQDIFF_NORMED, cv2.TM_CCORR_NORMED, cv2.TM_CCOEFF_NORMED]

part_height, part_weight = part.shape[:2]

print(part_height, part_weight)

for method in methods:

# print(method)

result = cv2.matchTemplate(img, part, method)

# print(result)

# 根据不同的公式计算不同的值

min_val, max_val, min_loc, max_loc = cv2.minMaxLoc(result)

print(min_val, max_val, min_loc, max_loc)

# 根据不同的算法，选择匹配程度最大的区域

if method == cv2.TM_SQDIFF_NORMED:

# 该算法值越小，匹配程度越高

img_loc = min_loc

else:

img_loc = max_loc

br = (img_loc[0] + part_weight, img_loc[1] + part_height)

cv2.rectangle(img, img_loc, br, (0, 0, 255), 2)

cv2.imshow("match" + str(method), img)

cv2.imshow("res" + str(method), result)

cv2.waitKey(1000)

cv2.waitKey(0)

计算出来的位置都差不多

0.030255908146500587 1.0 (712, 505) (1455, 590)

0.6245771050453186 0.9769605994224548 (488, 713) (712, 505)

-0.43960249423980713 0.8634197115898132 (1386, 614) (712, 505)
