mysql新建连接报错_【已解决】Kettle新建数据库连接报错（Mysql，MS Sql Server）
【转载须知】转载请标注本文链接。
Kettle版本：7.1
E:\迅雷下载\Kettle-pdi-ce-7.1.0.0-12\data-integration
运行spoon.bat

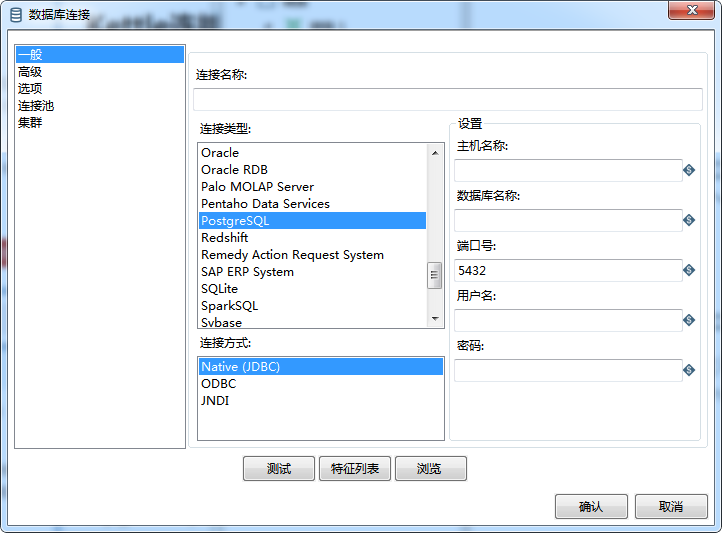

新建-数据库
报错内容：
org.pentaho.ui.xul.XulException: org.pentaho.ui.xul.XulException: java.lang.reflect.InvocationTargetException
at org.pentaho.ui.xul.impl.AbstractXulLoader.loadXul(AbstractXulLoader.java:134)
at org.pentaho.ui.xul.swt.SwtXulLoader.loadXul(SwtXulLoader.java:128)
at org.pentaho.ui.xul.swt.SwtXulLoader.loadXul(SwtXulLoader.java:122)
at org.pentaho.ui.xul.impl.AbstractXulLoader.loadXul(AbstractXulLoader.java:242)
at org.pentaho.ui.database.DatabaseConnectionDialog.getSwtInstance(DatabaseConnectionDialog.java:60)
at org.pentaho.di.ui.core.database.dialog.XulDatabaseDialog.createDialog(XulDatabaseDialog.java:147)
at org.pentaho.di.ui.core.database.dialog.XulDatabaseDialog.open(XulDatabaseDialog.java:105)
at org.pentaho.di.ui.core.database.dialog.DatabaseDialog.open(DatabaseDialog.java:60)
at org.pentaho.di.ui.spoon.delegates.SpoonDBDelegate.newConnection(SpoonDBDelegate.java:485)
at org.pentaho.di.ui.spoon.delegates.SpoonDBDelegate.newConnection(SpoonDBDelegate.java:472)
at org.pentaho.di.ui.spoon.Spoon.newConnection(Spoon.java:8788)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:564)
at org.pentaho.ui.xul.impl.AbstractXulDomContainer.invoke(AbstractXulDomContainer.java:313)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:157)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:141)
at org.pentaho.ui.xul.jface.tags.JfaceMenuitem.access$100(JfaceMenuitem.java:43)
at org.pentaho.ui.xul.jface.tags.JfaceMenuitem$1.run(JfaceMenuitem.java:106)
at org.eclipse.jface.action.Action.runWithEvent(Action.java:498)
at org.eclipse.jface.action.ActionContributionItem.handleWidgetSelection(ActionContributionItem.java:545)
at org.eclipse.jface.action.ActionContributionItem.access$2(ActionContributionItem.java:490)
at org.eclipse.jface.action.ActionContributionItem$5.handleEvent(ActionContributionItem.java:402)
at org.eclipse.swt.widgets.EventTable.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Widget.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Unknown Source)
at org.eclipse.swt.widgets.Display.readAndDispatch(Unknown Source)
at org.pentaho.di.ui.spoon.Spoon.readAndDispatch(Spoon.java:1366)
at org.pentaho.di.ui.spoon.Spoon.waitForDispose(Spoon.java:8022)
at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9277)
at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:692)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:564)
at org.pentaho.commons.launcher.Launcher.main(Launcher.java:92)
Caused by: org.pentaho.ui.xul.XulException: java.lang.reflect.InvocationTargetException
at org.pentaho.ui.xul.impl.XulParser.getElement(XulParser.java:239)
at org.pentaho.ui.xul.impl.XulParser.parse(XulParser.java:164)
at org.pentaho.ui.xul.impl.XulParser.parseDocument(XulParser.java:85)
at org.pentaho.ui.xul.impl.AbstractXulLoader.loadXul(AbstractXulLoader.java:126)
...37more
Caused by: java.lang.reflect.InvocationTargetException
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:564)
at org.apache.commons.beanutils.PropertyUtilsBean.invokeMethod(PropertyUtilsBean.java:2127)
at org.apache.commons.beanutils.PropertyUtilsBean.setSimpleProperty(PropertyUtilsBean.java:2108)
at org.apache.commons.beanutils.PropertyUtilsBean.setNestedProperty(PropertyUtilsBean.java:1914)
at org.apache.commons.beanutils.PropertyUtilsBean.setProperty(PropertyUtilsBean.java:2021)
at org.apache.commons.beanutils.BeanUtilsBean.setProperty(BeanUtilsBean.java:1018)
at org.apache.commons.beanutils.BeanUtilsBean.populate(BeanUtilsBean.java:823)
at org.apache.commons.beanutils.BeanUtils.populate(BeanUtils.java:431)
at org.pentaho.ui.xul.impl.XulParser.getElement(XulParser.java:235)
...40more
Caused by: java.lang.ClassCastException:class [Ljava.lang.Object; cannot be cast to class [Ljava.lang.String; ([Ljava.lang.Object; and [Ljava.lang.String; are in module java.base of loader 'bootstrap')
at org.pentaho.ui.xul.swt.tags.SwtDialog.setButtons(SwtDialog.java:268)
...52 more
解决方案： 重新安装jdk8，并配置环境变量。
As mentioned in Pentaho Components Reference, Only Java 8 is supported by Pentaho Data Integration, So it is not recommended to try out Java 9 or Java 11 at the moment (until they release a version which supports above Java 8).
jdk8下载：
下载地址：https://download.oracle.com/otn/java/jdk/8u251-b08/3d5a2bb8f8d4428bbe94aed7ec7ae784/jdk-8u251-windows-x64.exe?AuthParam=1592214346_b478a010230ec68704d8566f35aa3c18
安装成功后，会有Rusn configurations出现。
创建mysql连接:
create USER 'mytest'@'%' IDENTIFIED BY 'admin';
GRANT ALL ON *.* TO 'mytest'@'%';
FLUSH privileges
mysql-connector-java-5.1.5-bin.jar 放到lib\下测试。
连接Mysql报错：
报错：
错误连接数据库 [mysql1] : org.pentaho.di.core.exception.KettleDatabaseException:
Error occurredwhiletrying to connect to the database
Error connecting to database: (using classorg.gjt.mm.mysql.Driver)
Unknown initial characterset index '255' received from server. Initial client character set can be forced via the 'characterEncoding'property.
org.pentaho.di.core.exception.KettleDatabaseException:
Error occurredwhiletrying to connect to the database
Error connecting to database: (using classorg.gjt.mm.mysql.Driver)
Unknown initial characterset index '255' received from server. Initial client character set can be forced via the 'characterEncoding'property.
at org.pentaho.di.core.database.Database.normalConnect(Database.java:472)
at org.pentaho.di.core.database.Database.connect(Database.java:370)
at org.pentaho.di.core.database.Database.connect(Database.java:341)
at org.pentaho.di.core.database.Database.connect(Database.java:331)
at org.pentaho.di.core.database.DatabaseFactory.getConnectionTestReport(DatabaseFactory.java:80)
at org.pentaho.di.core.database.DatabaseMeta.testConnection(DatabaseMeta.java:2783)
at org.pentaho.ui.database.event.DataHandler.testDatabaseConnection(DataHandler.java:597)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.pentaho.ui.xul.impl.AbstractXulDomContainer.invoke(AbstractXulDomContainer.java:313)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:157)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:141)
at org.pentaho.ui.xul.swt.tags.SwtButton.access$500(SwtButton.java:43)
at org.pentaho.ui.xul.swt.tags.SwtButton$4.widgetSelected(SwtButton.java:137)
at org.eclipse.swt.widgets.TypedListener.handleEvent(Unknown Source)
at org.eclipse.swt.widgets.EventTable.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Widget.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Unknown Source)
at org.eclipse.swt.widgets.Display.readAndDispatch(Unknown Source)
at org.eclipse.jface.window.Window.runEventLoop(Window.java:820)
at org.eclipse.jface.window.Window.open(Window.java:796)
at org.pentaho.di.ui.xul.KettleDialog.show(KettleDialog.java:80)
at org.pentaho.di.ui.xul.KettleDialog.show(KettleDialog.java:47)
at org.pentaho.di.ui.core.database.dialog.XulDatabaseDialog.open(XulDatabaseDialog.java:116)
at org.pentaho.di.ui.core.database.dialog.DatabaseDialog.open(DatabaseDialog.java:60)
at org.pentaho.di.ui.spoon.delegates.SpoonDBDelegate.newConnection(SpoonDBDelegate.java:485)
at org.pentaho.di.ui.spoon.delegates.SpoonDBDelegate.newConnection(SpoonDBDelegate.java:472)
at org.pentaho.di.ui.spoon.Spoon.doubleClickedInTree(Spoon.java:3073)
at org.pentaho.di.ui.spoon.Spoon.doubleClickedInTree(Spoon.java:3043)
at org.pentaho.di.ui.spoon.Spoon.access$2300(Spoon.java:361)
at org.pentaho.di.ui.spoon.Spoon$26.widgetDefaultSelected(Spoon.java:6184)
at org.eclipse.swt.widgets.TypedListener.handleEvent(Unknown Source)
at org.eclipse.swt.widgets.EventTable.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Widget.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Unknown Source)
at org.eclipse.swt.widgets.Display.readAndDispatch(Unknown Source)
at org.pentaho.di.ui.spoon.Spoon.readAndDispatch(Spoon.java:1366)
at org.pentaho.di.ui.spoon.Spoon.waitForDispose(Spoon.java:8022)
at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9277)
at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:692)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.pentaho.commons.launcher.Launcher.main(Launcher.java:92)
Caused by: org.pentaho.di.core.exception.KettleDatabaseException:
Error connecting to database: (using classorg.gjt.mm.mysql.Driver)
Unknown initial characterset index '255' received from server. Initial client character set can be forced via the 'characterEncoding'property.
at org.pentaho.di.core.database.Database.connectUsingClass(Database.java:585)
at org.pentaho.di.core.database.Database.normalConnect(Database.java:456)
...48more
Caused by: java.sql.SQLException: Unknown initial characterset index '255' received from server. Initial client character set can be forced via the 'characterEncoding'property.
at com.mysql.jdbc.SQLError.createSQLException(SQLError.java:1056)
at com.mysql.jdbc.SQLError.createSQLException(SQLError.java:957)
at com.mysql.jdbc.SQLError.createSQLException(SQLError.java:927)
at com.mysql.jdbc.ConnectionImpl.configureClientCharacterSet(ConnectionImpl.java:1681)
at com.mysql.jdbc.ConnectionImpl.initializePropsFromServer(ConnectionImpl.java:3422)
at com.mysql.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:2046)
at com.mysql.jdbc.ConnectionImpl.(ConnectionImpl.java:729)
at com.mysql.jdbc.JDBC4Connection.(JDBC4Connection.java:46)
at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
at com.mysql.jdbc.Util.handleNewInstance(Util.java:406)
at com.mysql.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:302)
at com.mysql.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:283)
at java.sql.DriverManager.getConnection(DriverManager.java:664)
at java.sql.DriverManager.getConnection(DriverManager.java:247)
at org.pentaho.di.core.database.Database.connectUsingClass(Database.java:567)
...49more

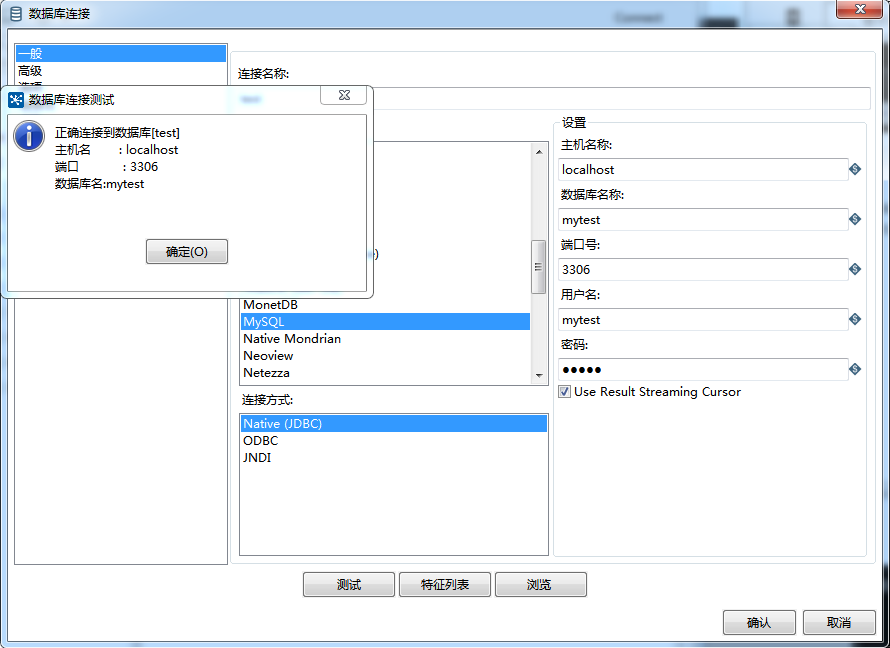

主机名 : localhost
端口 :3306数据库名:mytest
把data-integration/lib下mysql-connector-java-5.1.5-bin.jar，换成mysql-connector-java-8.0.20.jar,报错:
错误连接数据库 [mysql1] : org.pentaho.di.core.exception.KettleDatabaseException:
Error occurredwhiletrying to connect to the database
Driverclass 'sun.jdbc.odbc.JdbcOdbcDriver' could not be found, make sure the 'MS SQL Server' driver (jar file) isinstalled.
sun.jdbc.odbc.JdbcOdbcDriver
org.pentaho.di.core.exception.KettleDatabaseException:
Error occurredwhiletrying to connect to the database
Driverclass 'sun.jdbc.odbc.JdbcOdbcDriver' could not be found, make sure the 'MS SQL Server' driver (jar file) isinstalled.
sun.jdbc.odbc.JdbcOdbcDriver
at org.pentaho.di.core.database.Database.normalConnect(Database.java:472)
at org.pentaho.di.core.database.Database.connect(Database.java:370)
at org.pentaho.di.core.database.Database.connect(Database.java:341)
at org.pentaho.di.core.database.Database.connect(Database.java:331)
at org.pentaho.di.core.database.DatabaseFactory.getConnectionTestReport(DatabaseFactory.java:80)
at org.pentaho.di.core.database.DatabaseMeta.testConnection(DatabaseMeta.java:2783)
at org.pentaho.ui.database.event.DataHandler.testDatabaseConnection(DataHandler.java:597)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.pentaho.ui.xul.impl.AbstractXulDomContainer.invoke(AbstractXulDomContainer.java:313)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:157)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:141)
at org.pentaho.ui.xul.swt.tags.SwtButton.access$500(SwtButton.java:43)
at org.pentaho.ui.xul.swt.tags.SwtButton$4.widgetSelected(SwtButton.java:137)
at org.eclipse.swt.widgets.TypedListener.handleEvent(Unknown Source)
at org.eclipse.swt.widgets.EventTable.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Widget.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Unknown Source)
at org.eclipse.swt.widgets.Display.readAndDispatch(Unknown Source)
at org.eclipse.jface.window.Window.runEventLoop(Window.java:820)
at org.eclipse.jface.window.Window.open(Window.java:796)
at org.pentaho.di.ui.xul.KettleDialog.show(KettleDialog.java:80)
at org.pentaho.di.ui.xul.KettleDialog.show(KettleDialog.java:47)
at org.pentaho.di.ui.core.database.dialog.XulDatabaseDialog.open(XulDatabaseDialog.java:116)
at org.pentaho.di.ui.core.database.dialog.DatabaseDialog.open(DatabaseDialog.java:60)
at org.pentaho.di.ui.spoon.delegates.SpoonDBDelegate.newConnection(SpoonDBDelegate.java:485)
at org.pentaho.di.ui.spoon.delegates.SpoonDBDelegate.newConnection(SpoonDBDelegate.java:472)
at org.pentaho.di.ui.spoon.Spoon.doubleClickedInTree(Spoon.java:3073)
at org.pentaho.di.ui.spoon.Spoon.doubleClickedInTree(Spoon.java:3043)
at org.pentaho.di.ui.spoon.Spoon.access$2300(Spoon.java:361)
at org.pentaho.di.ui.spoon.Spoon$26.widgetDefaultSelected(Spoon.java:6184)
at org.eclipse.swt.widgets.TypedListener.handleEvent(Unknown Source)
at org.eclipse.swt.widgets.EventTable.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Widget.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Unknown Source)
at org.eclipse.swt.widgets.Display.readAndDispatch(Unknown Source)
at org.pentaho.di.ui.spoon.Spoon.readAndDispatch(Spoon.java:1366)
at org.pentaho.di.ui.spoon.Spoon.waitForDispose(Spoon.java:8022)
at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9277)
at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:692)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.pentaho.commons.launcher.Launcher.main(Launcher.java:92)
Caused by: org.pentaho.di.core.exception.KettleDatabaseException:
Driverclass 'sun.jdbc.odbc.JdbcOdbcDriver' could not be found, make sure the 'MS SQL Server' driver (jar file) isinstalled.
sun.jdbc.odbc.JdbcOdbcDriver
at org.pentaho.di.core.database.Database.connectUsingClass(Database.java:515)
at org.pentaho.di.core.database.Database.normalConnect(Database.java:456)
...48more
Caused by: java.lang.ClassNotFoundException: sun.jdbc.odbc.JdbcOdbcDriver
at java.net.URLClassLoader.findClass(URLClassLoader.java:382)
at java.lang.ClassLoader.loadClass(ClassLoader.java:418)
at java.lang.ClassLoader.loadClass(ClassLoader.java:351)
at org.pentaho.di.core.database.Database.connectUsingClass(Database.java:490)
...49more
主机名 :
端口 :1521数据库名:mytest
最终把mysql-connector-java-5.1.49-bin.jar放到lib文件夹下，成功了。
Kettle-pdi-ce-7.1.0.0-12\data-integration\lib\
MS SQL SERVER
JDBC Driver
It is recommended to use the official Microsoft JDBC Driver for SQL Server (v4.0) to connect PDI to a Microsoft SQL Server.
For Integrated Security authentication, the JDBC driver requires the bundled "DLL" file to also be added. The DLL file can be added to the "libswt/win64/" directory of the data-integration client.
报错：
错误连接数据库 [sql] : org.pentaho.di.core.exception.KettleDatabaseException:
Error occurredwhiletrying to connect to the database
Error connecting to database: (using classcom.microsoft.sqlserver.jdbc.SQLServerDriver)
通过端口1433 连接到主机 localhost 的 TCP/IP 连接失败。错误:“Connection refused: connect。请验证连接属性。确保 SQL Server 的实例正在主机上运行，且在此端口接受 TCP/IP 连接，还要确保防火墙没有阻止到此端口的 TCP 连接。”。
org.pentaho.di.core.exception.KettleDatabaseException:
Error occurredwhiletrying to connect to the database
Error connecting to database: (using classcom.microsoft.sqlserver.jdbc.SQLServerDriver)
通过端口1433 连接到主机 localhost 的 TCP/IP 连接失败。错误:“Connection refused: connect。请验证连接属性。确保 SQL Server 的实例正在主机上运行，且在此端口接受 TCP/IP 连接，还要确保防火墙没有阻止到此端口的 TCP 连接。”。
at org.pentaho.di.core.database.Database.normalConnect(Database.java:472)
at org.pentaho.di.core.database.Database.connect(Database.java:370)
at org.pentaho.di.core.database.Database.connect(Database.java:341)
at org.pentaho.di.core.database.Database.connect(Database.java:331)
at org.pentaho.di.core.database.DatabaseFactory.getConnectionTestReport(DatabaseFactory.java:80)
at org.pentaho.di.core.database.DatabaseMeta.testConnection(DatabaseMeta.java:2783)
at org.pentaho.ui.database.event.DataHandler.testDatabaseConnection(DataHandler.java:597)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.pentaho.ui.xul.impl.AbstractXulDomContainer.invoke(AbstractXulDomContainer.java:313)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:157)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:141)
at org.pentaho.ui.xul.swt.tags.SwtButton.access$500(SwtButton.java:43)
at org.pentaho.ui.xul.swt.tags.SwtButton$4.widgetSelected(SwtButton.java:137)
at org.eclipse.swt.widgets.TypedListener.handleEvent(Unknown Source)
at org.eclipse.swt.widgets.EventTable.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Widget.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Unknown Source)
at org.eclipse.swt.widgets.Display.readAndDispatch(Unknown Source)
at org.eclipse.jface.window.Window.runEventLoop(Window.java:820)
at org.eclipse.jface.window.Window.open(Window.java:796)
at org.pentaho.di.ui.xul.KettleDialog.show(KettleDialog.java:80)
at org.pentaho.di.ui.xul.KettleDialog.show(KettleDialog.java:47)
at org.pentaho.di.ui.core.database.dialog.XulDatabaseDialog.open(XulDatabaseDialog.java:116)
at org.pentaho.di.ui.core.database.dialog.DatabaseDialog.open(DatabaseDialog.java:60)
at org.pentaho.di.ui.spoon.delegates.SpoonDBDelegate.newConnection(SpoonDBDelegate.java:485)
at org.pentaho.di.ui.spoon.delegates.SpoonDBDelegate.newConnection(SpoonDBDelegate.java:472)
at org.pentaho.di.ui.spoon.Spoon.newConnection(Spoon.java:8788)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.pentaho.ui.xul.impl.AbstractXulDomContainer.invoke(AbstractXulDomContainer.java:313)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:157)
at org.pentaho.ui.xul.impl.AbstractXulComponent.invoke(AbstractXulComponent.java:141)
at org.pentaho.ui.xul.jface.tags.JfaceMenuitem.access$100(JfaceMenuitem.java:43)
at org.pentaho.ui.xul.jface.tags.JfaceMenuitem$1.run(JfaceMenuitem.java:106)
at org.eclipse.jface.action.Action.runWithEvent(Action.java:498)
at org.eclipse.jface.action.ActionContributionItem.handleWidgetSelection(ActionContributionItem.java:545)
at org.eclipse.jface.action.ActionContributionItem.access$2(ActionContributionItem.java:490)
at org.eclipse.jface.action.ActionContributionItem$5.handleEvent(ActionContributionItem.java:402)
at org.eclipse.swt.widgets.EventTable.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Widget.sendEvent(Unknown Source)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Unknown Source)
at org.eclipse.swt.widgets.Display.readAndDispatch(Unknown Source)
at org.pentaho.di.ui.spoon.Spoon.readAndDispatch(Spoon.java:1366)
at org.pentaho.di.ui.spoon.Spoon.waitForDispose(Spoon.java:8022)
at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9277)
at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:692)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.pentaho.commons.launcher.Launcher.main(Launcher.java:92)
Caused by: org.pentaho.di.core.exception.KettleDatabaseException:
Error connecting to database: (using classcom.microsoft.sqlserver.jdbc.SQLServerDriver)
通过端口1433 连接到主机 localhost 的 TCP/IP 连接失败。错误:“Connection refused: connect。请验证连接属性。确保 SQL Server 的实例正在主机上运行，且在此端口接受 TCP/IP 连接，还要确保防火墙没有阻止到此端口的 TCP 连接。”。
at org.pentaho.di.core.database.Database.connectUsingClass(Database.java:585)
at org.pentaho.di.core.database.Database.normalConnect(Database.java:456)
...57more
Caused by: com.microsoft.sqlserver.jdbc.SQLServerException: 通过端口1433 连接到主机 localhost 的 TCP/IP 连接失败。错误:“Connection refused: connect。请验证连接属性。确保 SQL Server 的实例正在主机上运行，且在此端口接受 TCP/IP 连接，还要确保防火墙没有阻止到此端口的 TCP 连接。”。
at com.microsoft.sqlserver.jdbc.SQLServerException.makeFromDriverError(SQLServerException.java:191)
at com.microsoft.sqlserver.jdbc.SQLServerException.ConvertConnectExceptionToSQLServerException(SQLServerException.java:242)
at com.microsoft.sqlserver.jdbc.SocketFinder.findSocket(IOBuffer.java:2280)
at com.microsoft.sqlserver.jdbc.TDSChannel.open(IOBuffer.java:493)
at com.microsoft.sqlserver.jdbc.SQLServerConnection.connectHelper(SQLServerConnection.java:1388)
at com.microsoft.sqlserver.jdbc.SQLServerConnection.login(SQLServerConnection.java:1069)
at com.microsoft.sqlserver.jdbc.SQLServerConnection.connectInternal(SQLServerConnection.java:905)
at com.microsoft.sqlserver.jdbc.SQLServerConnection.connect(SQLServerConnection.java:452)
at com.microsoft.sqlserver.jdbc.SQLServerDriver.connect(SQLServerDriver.java:1014)
at java.sql.DriverManager.getConnection(DriverManager.java:664)
at java.sql.DriverManager.getConnection(DriverManager.java:270)
at org.pentaho.di.core.database.Database.connectUsingClass(Database.java:558)
...58more
主机名 : localhost
端口 :1433数据库名:MyDatabase

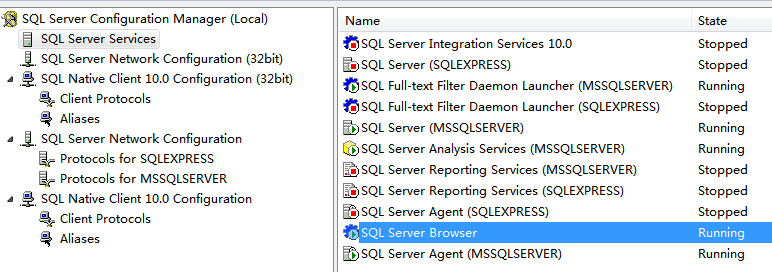

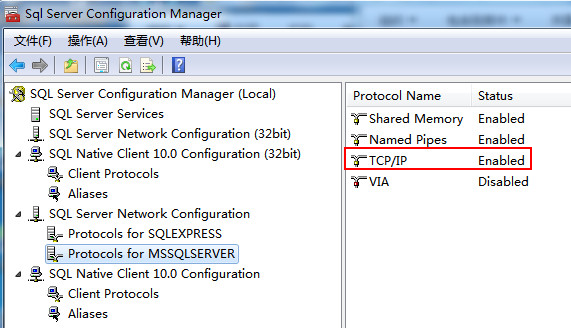

【解决方案】安装jdbc包：sqljdbc42.jar 放到kettle的lib\下。TCP/IP设为Enabled和SQL SERVER BROWSER启动。

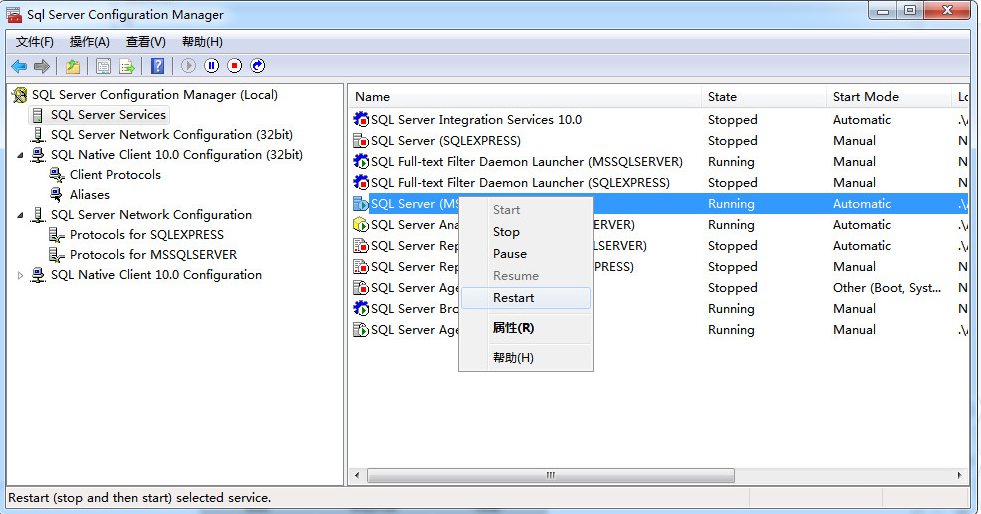

必须要重启生效。

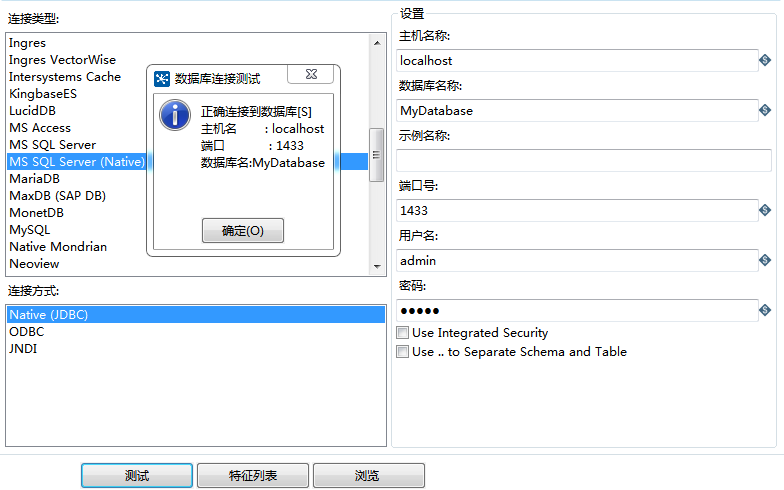

测试成功：
魔乐社区（Modelers.cn) 是一个中立、公益的人工智能社区，提供人工智能工具、模型、数据的托管、展示与应用协同服务，为人工智能开发及爱好者搭建开放的学习交流平台。社区通过理事会方式运作，由全产业链共同建设、共同运营、共同享有，推动国产AI生态繁荣发展。
更多推荐
0
0- 0
已为社区贡献6条内容
所有评论(0)
