即插即用 | 损失函数IoU篇之Wise-IoU：最新YOLOv12结合最新WIoU损失函数，超越CIoU, SIoU性能，涨点神器｜让YOLO模型高效涨点，目标检测的新损失： Wise-IoU

重点：🔥🔥🔥YOLOv12 使用这个 Wise-IoU 创新点 在数据集改进做实验：即插即用

内附的改进源代码改进，按步骤操作运行改进后的代码即可

适合用来改进作为 🚀改进点 重点：原创给出多种配置：针对论文原版的改进版本

来自COCO数据集训练 涨点情况

本博客附其他IoU损失函数改进：包括SIoU、GIoU、EIoU、α-IoU等，包含完整源代码

改进源码教程 | 详情如下🥇

一、Wise-IoU理论部分 + YOLOv12代码实践

边界框回归 (BBR) 的损失函数对于对象检测至关重要。其良好的定义将为模型带来显着的性能提升。大多数现有工作都假设训练数据中的示例是高质量的，并且侧重于加强 BBR 损失的拟合能力。如果我们盲目地在低质量示例上加强 BBR，将会危及本地化性能。Focal-EIoU v1被提出来解决这个问题，但由于其静态聚焦机制（FM），非单调FM的潜力没有得到充分发挥。基于这个想法，我们提出了一种基于 IoU 的损失，该损失具有名为 Wise-IoU (WIoU) 的动态非单调 FM。

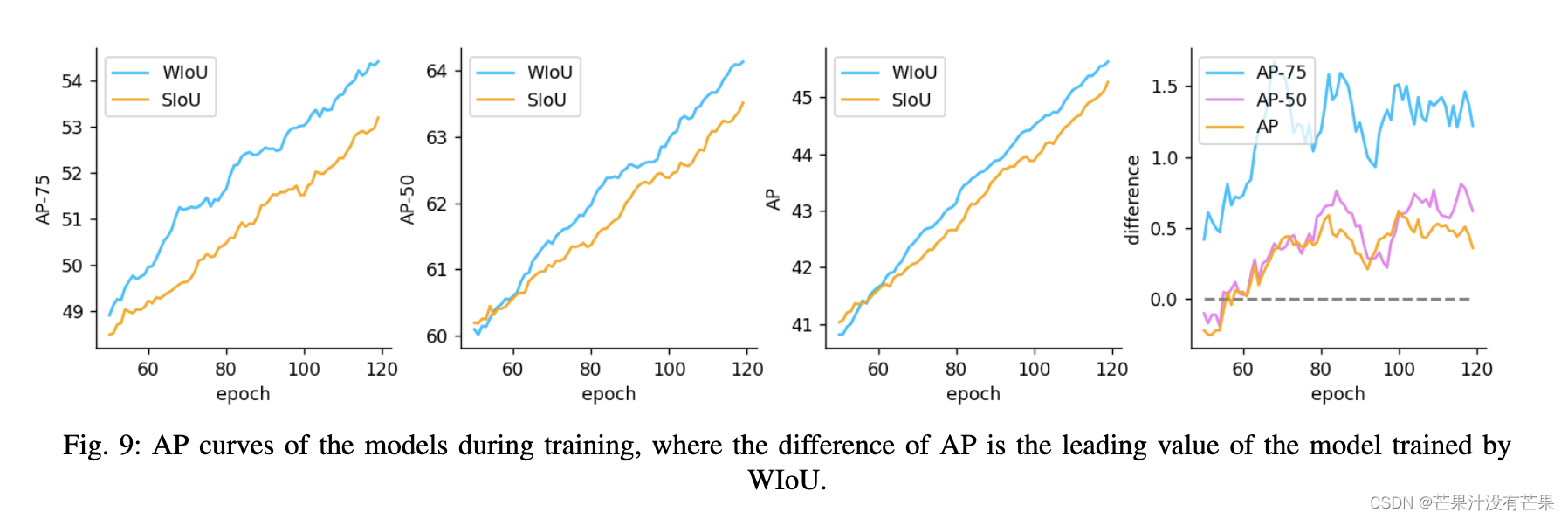

当 WIoU 应用于最先进的实时检测器 YOLOv7 时，MS-COCO 数据集上的 AP-75 从 53.03% 提高到 54.50%。

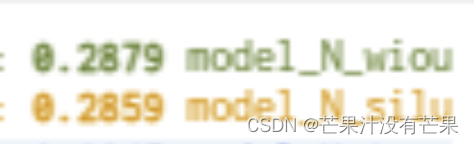

涨点效果（实测涨点）

有同学反馈，YOLOv5 进行改进实验 实测涨点。

其他YOLO系列实验（涨点）

在其他YOLO系列上也尝试过，也是涨点的情况

来自COCO数据集训练中

论文主要贡献

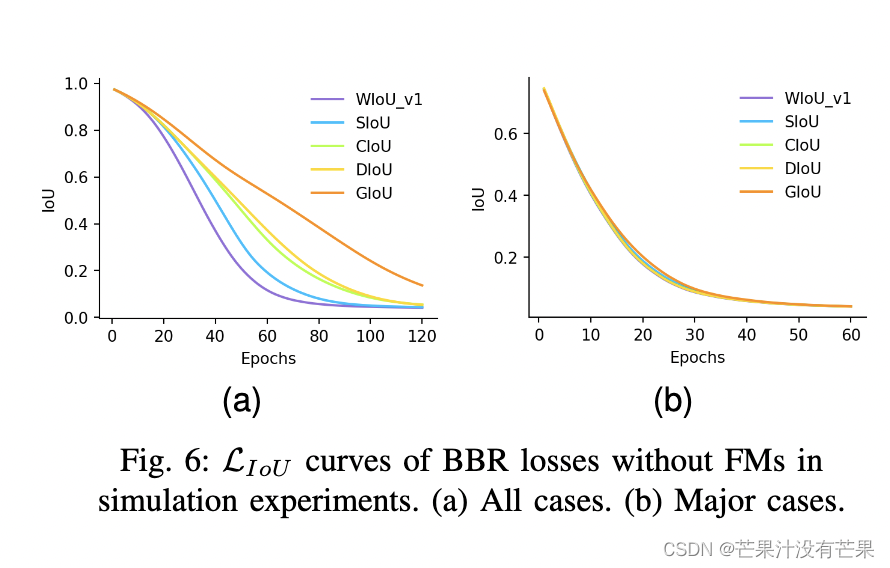

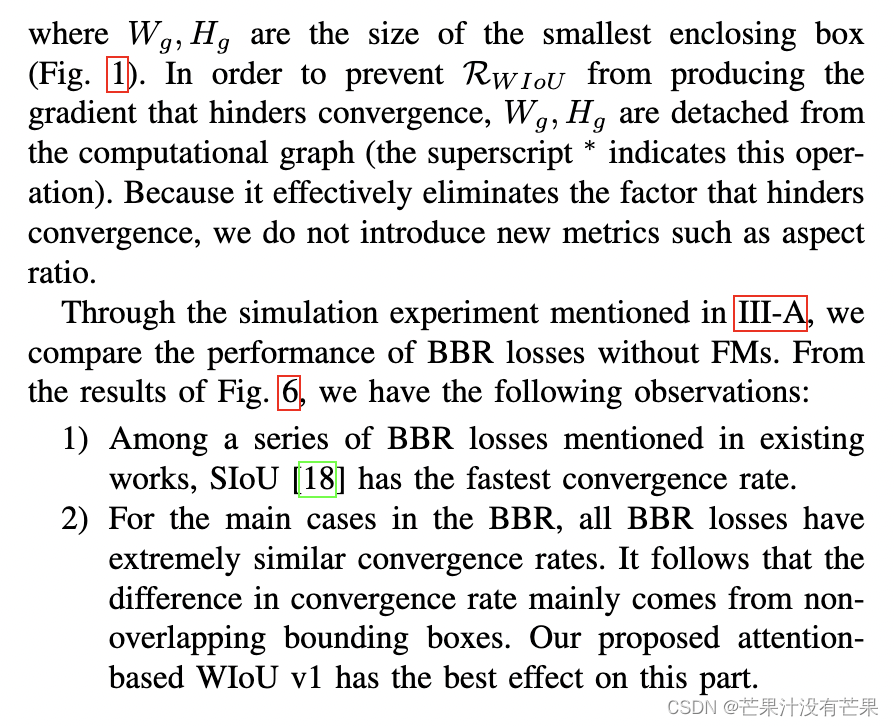

• 提出了BBR的基于注意力的损失WIoU v1，它在仿真实验中实现了比最先进的SIoU更低的回归误差。

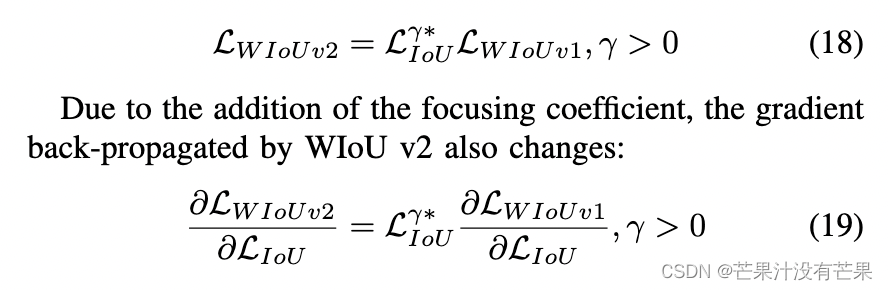

• 设计了具有单调FM的WIoU v2和具有动态非单调FM的WIoU v3。利用动态非单调FM的明智的梯度增益分配策略。
• 对低质量的样本的影响进行了一系列详细的研究，证明了动态非单调调频的有效性和效率。

论文方法

梯度消失问题的解决方案

现有的 BBR 损失 [15]-[18] 是基于加法的，并且遵循低范式如方程式所示。 4.
距离 IoU：Zhaohui Zheng 等人。

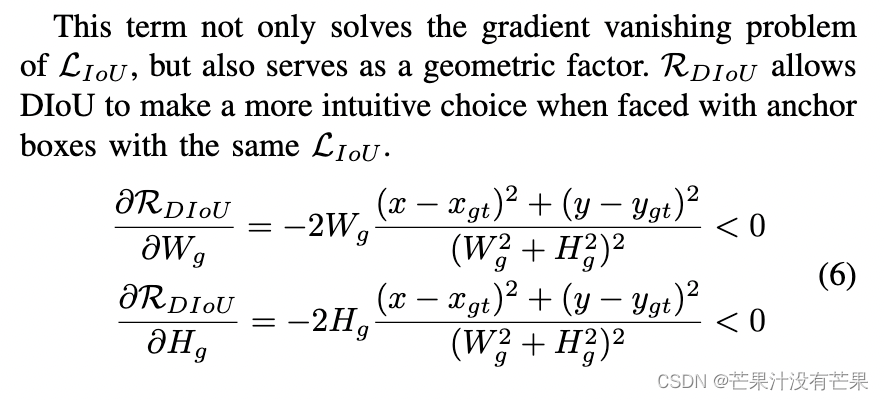

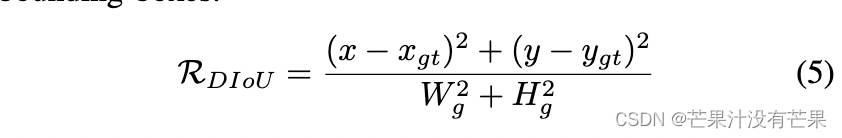

• 定义 R_DIoU [16]作为两个中心点之间的归一化距离边界框：

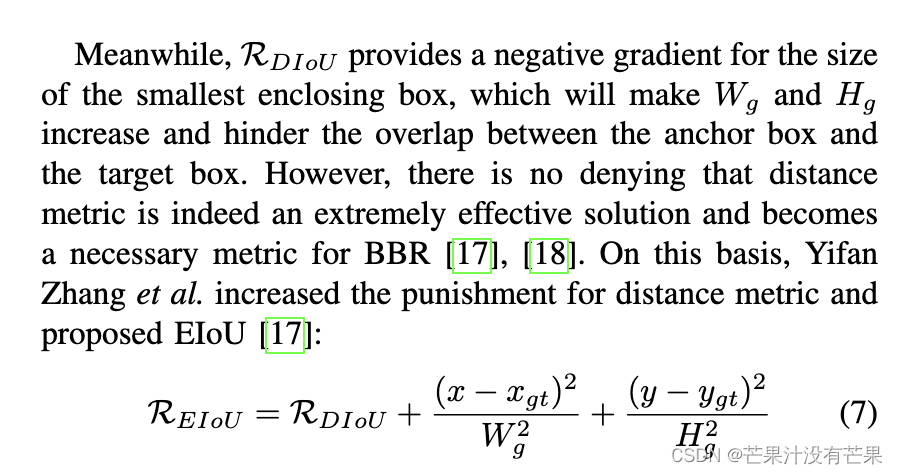

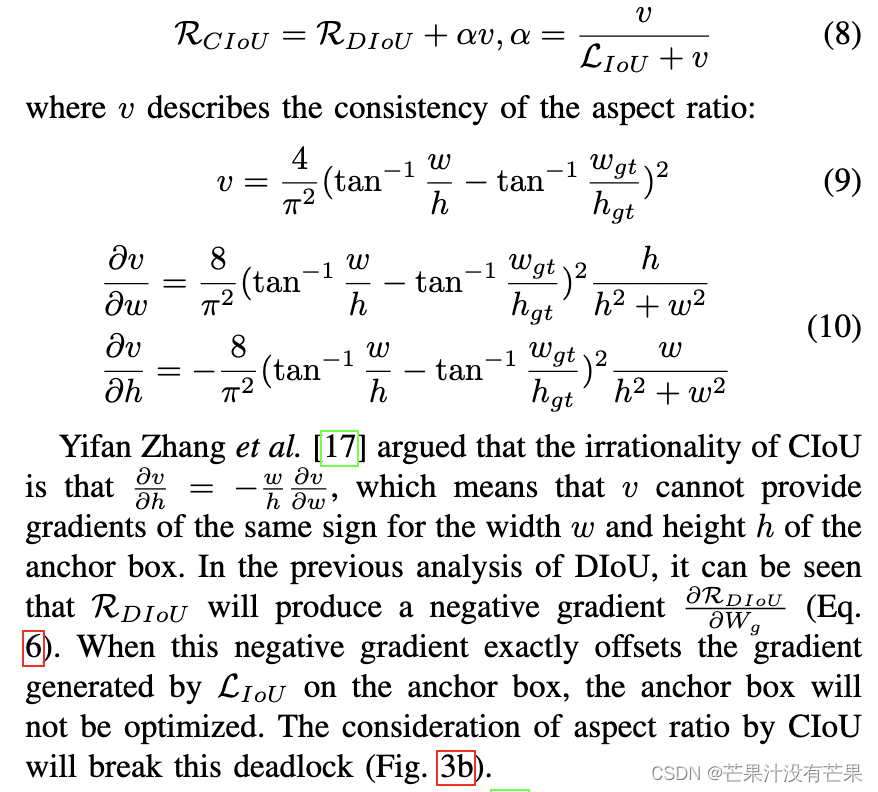

• Complete IoU：在 RDIoU 的基础上，Zhaohui Zheng 等人。 添加了纵横比的考虑，提出了 RCIoU [16]：

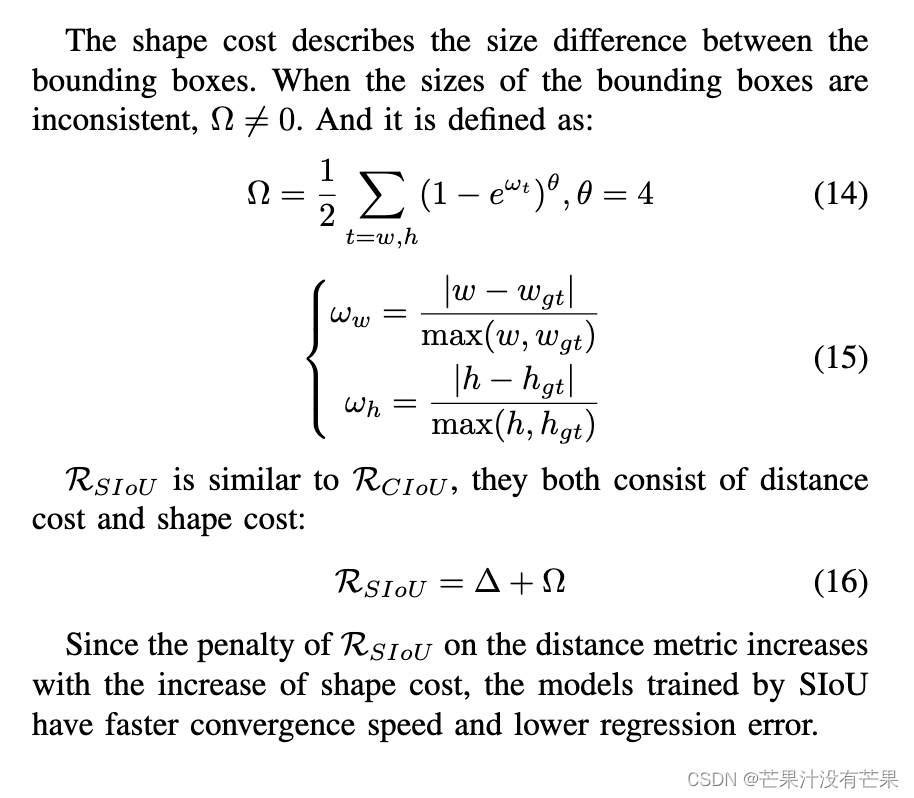

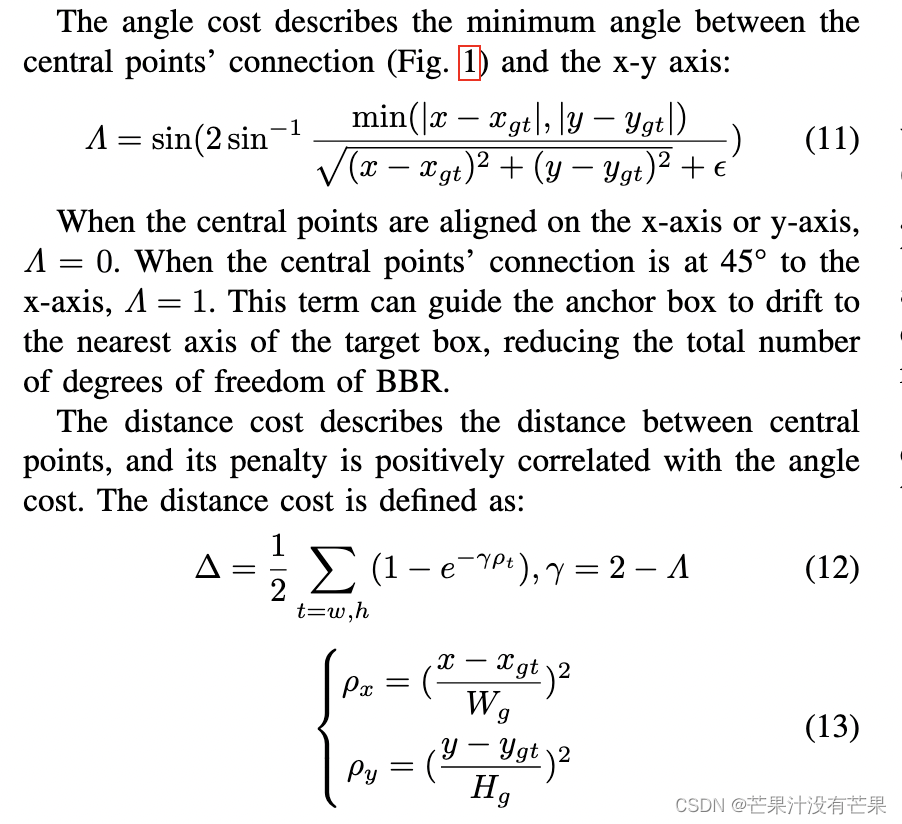

• Zhora Gevorgyan [18] 证明了中心-对齐的anchor box会有更快的收敛速度，并根据角度成本、距离成本和形状成本构造了SIoU。



论文方法

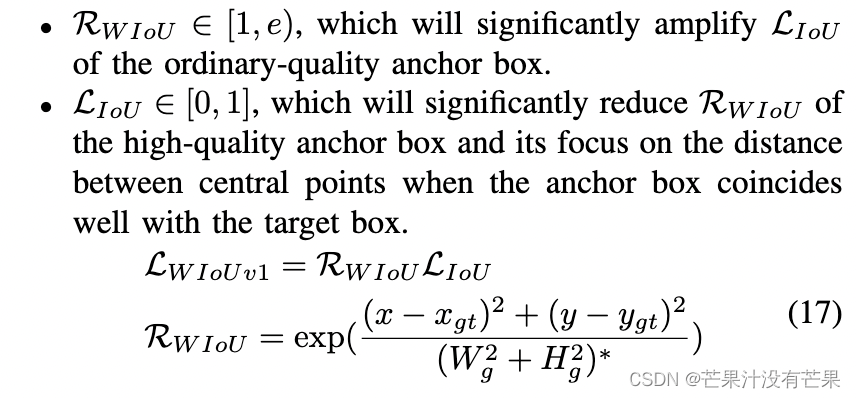

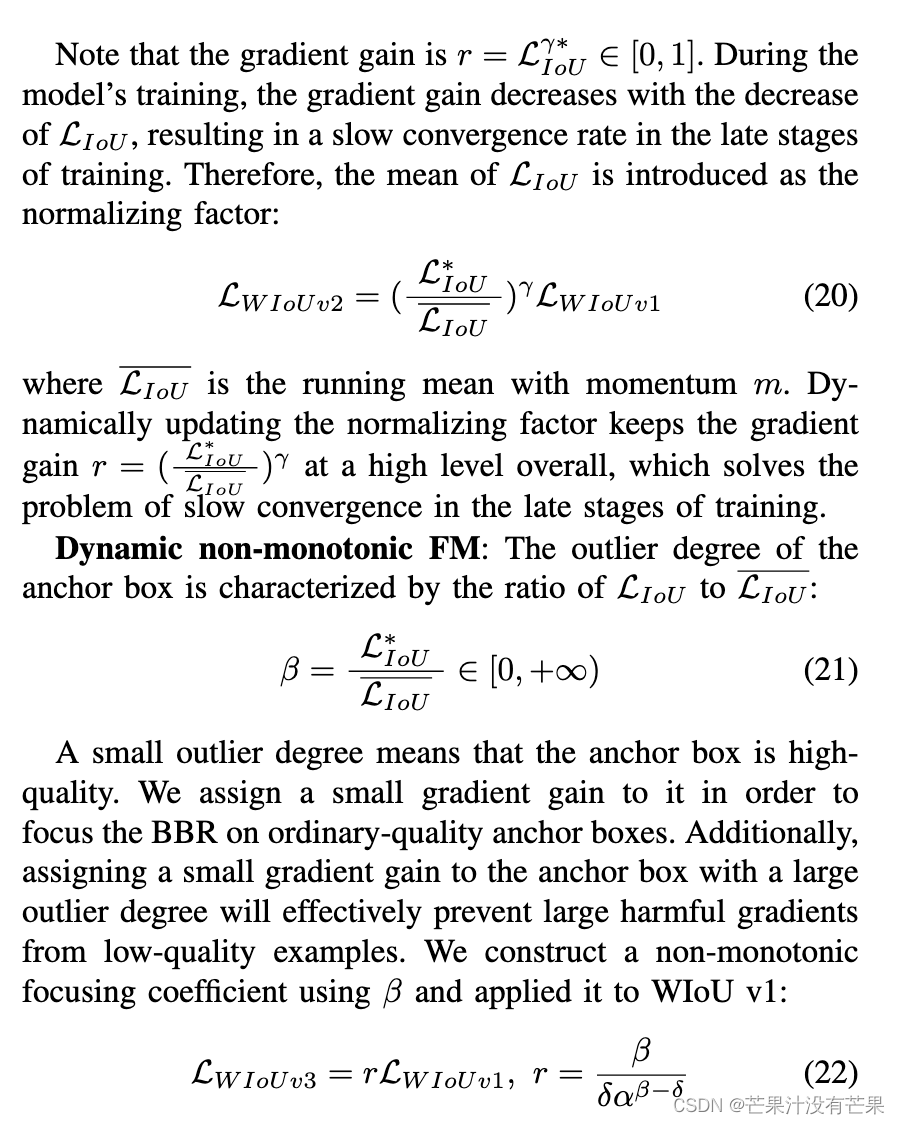

• 从 focal loss 中学习：
  Focal loss [20] 设计了一个交叉熵的单调FM，有效降低简单示例对损失值的贡献。 就这样模型可以专注于困难的例子并获得分类性能改进。 同样，我们构造单调的聚焦系数 Lγ* LW IoU v1 的 IoU


论文实验

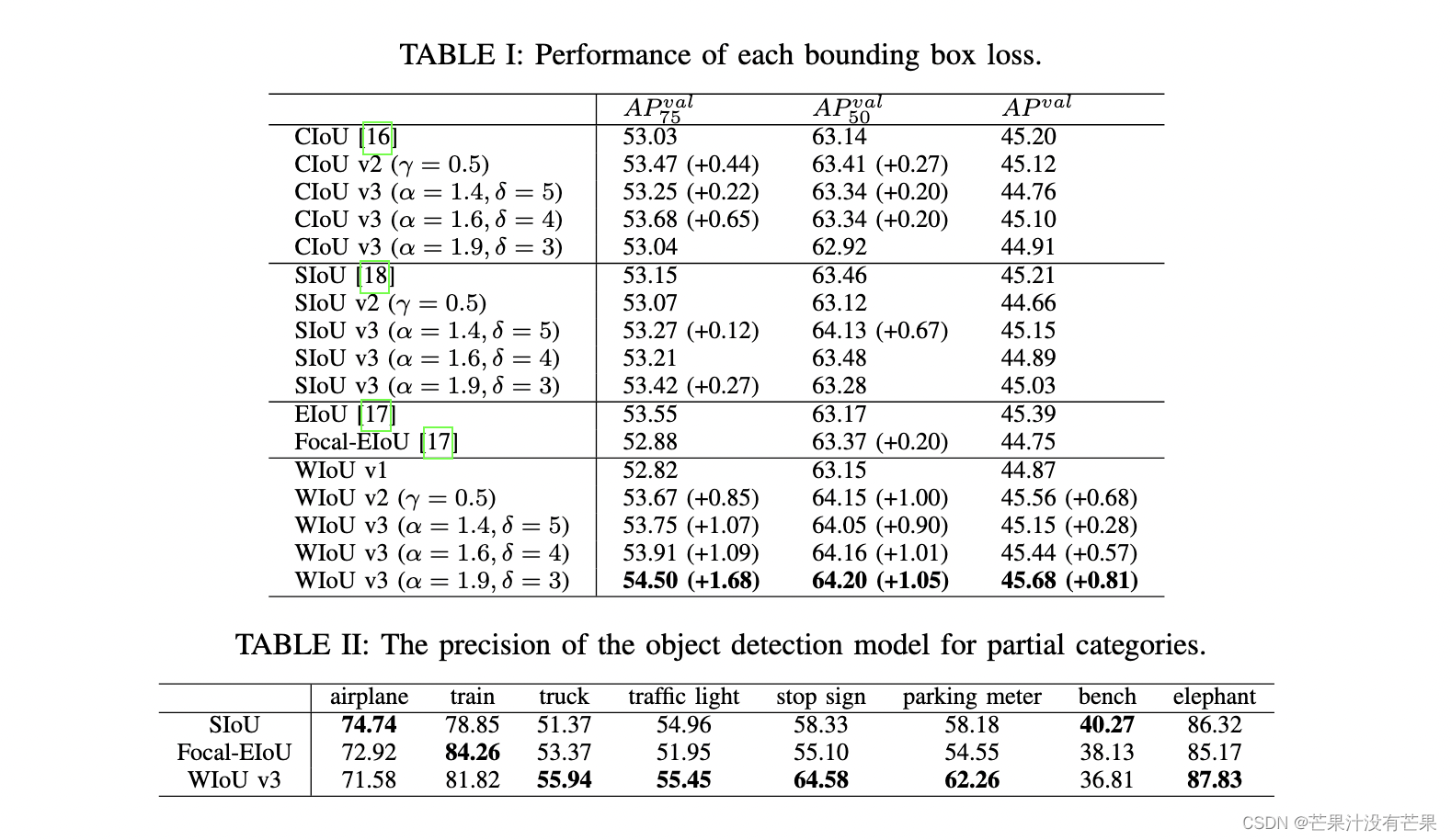

消融实验

消融实验分析

在表一中，BBR损失的原始版本的性能排名为：EIoU > SIoU > CIoU > WIoU v1。这样的命令也符合对距离度量的惩罚的强度。然而，当应用FMs时，BBR损失的性能增益的顺序则相反。在进行的实验中，由WIoU v3训练的模型取得了最好的性能。

更多论文细节，可以查看作者的原论文

一、 代码｜ 将 Wise-IoU 应用到YOLOv12

---

🥇🥇🥇
添加博主联系方式：

已订阅专栏用户可以添加博主QQ: 2434798737, 可以拉友好的读者进 芒果YOLOv12改进专栏交流群
🚀🚀🚀

---

改进核心代码（Wise-IoU + YOLOv12）

新增部分

在ultralytics.yolo.utils文件下面，新增一个wiou.py文件, 增加以下代码

import math
import torch

red = 'orangered'
orange = 'darkorange'
yellow = 'gold'
green = 'greenyellow'
cyan = 'aqua'
blue = 'deepskyblue'
purple = 'mediumpurple'
pink = 'violet'

COLORS = [purple, blue, green, yellow, orange]


def xywh_to_ltrb(attr):
    attr[..., :2] -= attr[..., 2: 4] / 2
    attr[..., 2: 4] += attr[..., :2]
    return attr


def ltrb_to_xywh(attr):
    attr[..., 2: 4] -= attr[..., :2]
    attr[..., :2] += attr[..., 2: 4] / 2
    return attr

class IoU_Cal:
    ''' pred, target: x0,y0,x1,y1
        monotonous: {
            None: origin
            True: monotonic FM
            False: non-monotonic FM
        }
        momentum: The momentum of running mean'''
    iou_mean = 1.
    monotonous = False
    momentum = 1 - pow(0.5, exp=1 / 7000)
    # 如果有File "C:/yolov7-main\utils\iouc.py", line 38, in IoU_Cal momentum = 1 - pow(0.5, exp=1 / 7000) TypeError: pow() takes no keyword arguments类似的报错改成下面的
    # momentum = 1 - 0.5 ** (1 / 7000)
    _is_train = True

    def __init__(self, pred, target):
        self.pred, self.target = pred, target
        self._fget = {
            # x,y,w,h
            'pred_xy': lambda: (self.pred[..., :2] + self.pred[..., 2: 4]) / 2,
            'pred_wh': lambda: self.pred[..., 2: 4] - self.pred[..., :2],
            'target_xy': lambda: (self.target[..., :2] + self.target[..., 2: 4]) / 2,
            'target_wh': lambda: self.target[..., 2: 4] - self.target[..., :2],
            # x0,y0,x1,y1
            'min_coord': lambda: torch.minimum(self.pred[..., :4], self.target[..., :4]),
            'max_coord': lambda: torch.maximum(self.pred[..., :4], self.target[..., :4]),
            # The overlapping region
            'wh_inter': lambda: self.min_coord[..., 2: 4] - self.max_coord[..., :2],
            's_inter': lambda: torch.prod(torch.relu(self.wh_inter), dim=-1),
            # The area covered
            's_union': lambda: torch.prod(self.pred_wh, dim=-1) +
                               torch.prod(self.target_wh, dim=-1) - self.s_inter,
            # The smallest enclosing box
            'wh_box': lambda: self.max_coord[..., 2: 4] - self.min_coord[..., :2],
            's_box': lambda: torch.prod(self.wh_box, dim=-1),
            'l2_box': lambda: torch.square(self.wh_box).sum(dim=-1),
            # The central points' connection of the bounding boxes
            'd_center': lambda: self.pred_xy - self.target_xy,
            'l2_center': lambda: torch.square(self.d_center).sum(dim=-1),
            # IoU
            'iou': lambda: 1 - self.s_inter / self.s_union
        }
        self._update(self)

    def __setitem__(self, key, value):
        self._fget[key] = value

    def __getattr__(self, item):
        if callable(self._fget[item]):
            self._fget[item] = self._fget[item]()
        return self._fget[item]

    @classmethod
    def train(cls):
        cls._is_train = True

    @classmethod
    def eval(cls):
        cls._is_train = False

    @classmethod
    def _update(cls, self):
        if cls._is_train: cls.iou_mean = (1 - cls.momentum) * cls.iou_mean + \
                                         cls.momentum * self.iou.detach().mean().item()

    def _scaled_loss(self, loss, gamma=1.9, delta=3):
        if isinstance(self.monotonous, bool):
            if self.monotonous:
                loss *= (self.iou.detach() / self.iou_mean).sqrt()
            else:
                beta = self.iou.detach() / self.iou_mean
                alpha = delta * torch.pow(gamma, beta - delta)
                loss *= beta / alpha
        return loss

    @classmethod
    def IoU(cls, pred, target, self=None):
        self = self if self else cls(pred, target)
        return self.iou

    @classmethod
    def WIoU(cls, pred, target, self=None):
        self = self if self else cls(pred, target)
        dist = torch.exp(self.l2_center / self.l2_box.detach())
        return self._scaled_loss(dist * self.iou)

修改部分

PS：友好的专栏读者 还没加群的可以私信博主加群

修改步骤0

---

将ultralytics/yolo/utils/metrics.py文件下的bbox_iou函数替换如下

def bbox_iou(box1, box2, xywh=True, GIoU=False, DIoU=False, CIoU=False, WIoU=False, eps=1e-7):
    """
    Calculate Intersection over Union (IoU) of box1(1, 4) to box2(n, 4).

    Args:
        box1 (torch.Tensor): A tensor representing a single bounding box with shape (1, 4).
        box2 (torch.Tensor): A tensor representing n bounding boxes with shape (n, 4).
        xywh (bool, optional): If True, input boxes are in (x, y, w, h) format. If False, input boxes are in
                               (x1, y1, x2, y2) format. Defaults to True.
        GIoU (bool, optional): If True, calculate Generalized IoU. Defaults to False.
        DIoU (bool, optional): If True, calculate Distance IoU. Defaults to False.
        CIoU (bool, optional): If True, calculate Complete IoU. Defaults to False.
        eps (float, optional): A small value to avoid division by zero. Defaults to 1e-7.

    Returns:
        (torch.Tensor): IoU, GIoU, DIoU, or CIoU values depending on the specified flags.
    """

    # Get the coordinates of bounding boxes
    if xywh:  # transform from xywh to xyxy
        (x1, y1, w1, h1), (x2, y2, w2, h2) = box1.chunk(4, -1), box2.chunk(4, -1)
        w1_, h1_, w2_, h2_ = w1 / 2, h1 / 2, w2 / 2, h2 / 2
        b1_x1, b1_x2, b1_y1, b1_y2 = x1 - w1_, x1 + w1_, y1 - h1_, y1 + h1_
        b2_x1, b2_x2, b2_y1, b2_y2 = x2 - w2_, x2 + w2_, y2 - h2_, y2 + h2_
    else:  # x1, y1, x2, y2 = box1
        b1_x1, b1_y1, b1_x2, b1_y2 = box1.chunk(4, -1)
        b2_x1, b2_y1, b2_x2, b2_y2 = box2.chunk(4, -1)
        w1, h1 = b1_x2 - b1_x1, b1_y2 - b1_y1 + eps
        w2, h2 = b2_x2 - b2_x1, b2_y2 - b2_y1 + eps

    # Intersection area
    inter = (b1_x2.minimum(b2_x2) - b1_x1.maximum(b2_x1)).clamp_(0) * \
            (b1_y2.minimum(b2_y2) - b1_y1.maximum(b2_y1)).clamp_(0)

    # Union Area
    union = w1 * h1 + w2 * h2 - inter + eps

    # IoU
    iou = inter / union
    if CIoU or DIoU or GIoU or WIoU:
        cw = b1_x2.maximum(b2_x2) - b1_x1.minimum(b2_x1)  # convex (smallest enclosing box) width
        ch = b1_y2.maximum(b2_y2) - b1_y1.minimum(b2_y1)  # convex height
        if CIoU or DIoU:  # Distance or Complete IoU https://arxiv.org/abs/1911.08287v1
            c2 = cw ** 2 + ch ** 2 + eps  # convex diagonal squared
            rho2 = ((b2_x1 + b2_x2 - b1_x1 - b1_x2) ** 2 + (b2_y1 + b2_y2 - b1_y1 - b1_y2) ** 2) / 4  # center dist ** 2
            if CIoU:  # https://github.com/Zzh-tju/DIoU-SSD-pytorch/blob/master/utils/box/box_utils.py#L47
                v = (4 / math.pi ** 2) * (torch.atan(w2 / h2) - torch.atan(w1 / h1)).pow(2)
                with torch.no_grad():
                    alpha = v / (v - iou + (1 + eps))
                return iou - (rho2 / c2 + v * alpha)  # CIoU
            return iou - rho2 / c2  # DIoU
        elif WIoU:
            from ultralytics.yolo.utils.wiou import IoU_Cal
            b1 = torch.stack([b1_x1, b1_y1, b1_x2, b1_y2], dim=-1)
            b2 = torch.stack([b2_x1, b2_y1, b2_x2, b2_y2], dim=-1)

            self = IoU_Cal(b1, b2)
            loss = getattr(IoU_Cal, 'WIoU')(b1, b2, self=self)
            iou = 1 - self.iou
            return loss, iou
        c_area = cw * ch + eps  # convex area
        return iou - (c_area - union) / c_area  # GIoU https://arxiv.org/pdf/1902.09630.pdf
    return iou  # IoU

修改步骤1

在ultralytics/yolo/utils/loss.py文件中
在class BboxLoss(nn.Module):内部：
将

iou = bbox_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, CIoU=True)
loss_iou = ((1.0 - iou) * weight).sum() / target_scores_sum

改为

loss, iou = bbox_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, WIoU=True)
loss_iou = (loss * weight).sum() / target_scores_sum

---

YOLOv12网络配置文件

YOLOv12s网络配置文件 (自带)

### YOLOv5网络配置文件

```python
# Ultralytics YOLO 🚀, GPL-3.0 license

# Parameters
nc: 80  # number of classes
depth_multiple: 0.33  # scales module repeats
width_multiple: 0.25  # scales convolution channels

# YOLOv12.0n backbone
backbone:
  # [from, repeats, module, args]
  - [-1, 1, Conv, [64, 3, 2]]  # 0-P1/2
  - [-1, 1, Conv, [128, 3, 2]]  # 1-P2/4
  - [-1, 3, C2f, [128, True]]
  - [-1, 1, Conv, [256, 3, 2]]  # 3-P3/8
  - [-1, 6, C2f, [256, True]]
  - [-1, 1, Conv, [512, 3, 2]]  # 5-P4/16
  - [-1, 6, C2f, [512, True]]
  - [-1, 1, Conv, [1024, 3, 2]]  # 7-P5/32
  - [-1, 3, C2f, [1024, True]]
  - [-1, 1, SPPF, [1024, 5]]  # 9

# YOLOv12.0n head
head:
  - [-1, 1, nn.Upsample, [None, 2, 'nearest']]
  - [[-1, 6], 1, Concat, [1]]  # cat backbone P4
  - [-1, 3, C2f, [512]]  # 12

  - [-1, 1, nn.Upsample, [None, 2, 'nearest']]
  - [[-1, 4], 1, Concat, [1]]  # cat backbone P3
  - [-1, 3, C2f, [256]]  # 15 (P3/8-small)

  - [-1, 1, Conv, [256, 3, 2]]
  - [[-1, 12], 1, Concat, [1]]  # cat head P4
  - [-1, 3, C2f, [512]]  # 18 (P4/16-medium)

  - [-1, 1, Conv, [512, 3, 2]]
  - [[-1, 9], 1, Concat, [1]]  # cat head P5
  - [-1, 3, C2f, [1024]]  # 21 (P5/32-large)

  - [[15, 18, 21], 1, Detect, [nc]]  # Detect(P3, P4, P5)

运行训练命令

运行以下命令即可

python train.py --YOLOv12.yaml

注

---

以上内容可以忽略

附录: SIoU、EIoU、GIoU、α-IoU改进

以下SIoU、EIoU、GIoU、α-IoU改进作为附录，代码均在博主开源的https://github1s.com/iscyy/yoloair/blob/HEAD/utils/metrics.py 中有写

核心代码

使用以下函数替换原有的ultralytics/utils/loss.py文件中的bbox_iou函数

def bbox_iou(box1, box2, xywh=True, GIoU=False, DIoU=False, CIoU=False, EIoU=False, SIoU=False, eps=1e-7):
    # Returns the IoU of box1 to box2. box1 is 4, box2 is nx4
    box2 = box2.T

    # Get the coordinates of bounding boxes
    if xywh:  # transform from xywh to xyxy
        (x1, y1, w1, h1), (x2, y2, w2, h2) = box1.chunk(4, -1), box2.chunk(4, -1)
        w1_, h1_, w2_, h2_ = w1 / 2, h1 / 2, w2 / 2, h2 / 2
        b1_x1, b1_x2, b1_y1, b1_y2 = x1 - w1_, x1 + w1_, y1 - h1_, y1 + h1_
        b2_x1, b2_x2, b2_y1, b2_y2 = x2 - w2_, x2 + w2_, y2 - h2_, y2 + h2_
    else:  # x1, y1, x2, y2 = box1
        b1_x1, b1_y1, b1_x2, b1_y2 = box1.chunk(4, -1)
        b2_x1, b2_y1, b2_x2, b2_y2 = box2.chunk(4, -1)
        w1, h1 = b1_x2 - b1_x1, b1_y2 - b1_y1 + eps
        w2, h2 = b2_x2 - b2_x1, b2_y2 - b2_y1 + eps

    # Intersection area
    inter = (b1_x2.minimum(b2_x2) - b1_x1.maximum(b2_x1)).clamp_(0) * (
        b1_y2.minimum(b2_y2) - b1_y1.maximum(b2_y1)
    ).clamp_(0)
    union = w1 * h1 + w2 * h2 - inter + eps

    iou = inter / union
    if CIoU or DIoU or GIoU or EIoU or SIoU:
        cw = torch.max(b1_x2, b2_x2) - torch.min(b1_x1, b2_x1)  # convex (smallest enclosing box) width
        ch = torch.max(b1_y2, b2_y2) - torch.min(b1_y1, b2_y1)  # convex height
        if CIoU or DIoU or EIoU or SIoU:  # Distance or Complete IoU https://arxiv.org/abs/1911.08287v1
            c2 = cw ** 2 + ch ** 2 + eps  # convex diagonal squared
            rho2 = ((b2_x1 + b2_x2 - b1_x1 - b1_x2) ** 2 +
                    (b2_y1 + b2_y2 - b1_y1 - b1_y2) ** 2) / 4  # center distance squared
            if DIoU: #DIoU
                return iou - rho2 / c2  # DIoU
            elif CIoU:  #CIoU  https://github.com/Zzh-tju/DIoU-SSD-pytorch/blob/master/utils/box/box_utils.py#L47
                v = (4 / math.pi ** 2) * torch.pow(torch.atan(w2 / h2) - torch.atan(w1 / h1), 2)
                with torch.no_grad():
                    alpha = v / (v - iou + (1 + eps))
                return iou - (rho2 / c2 + v * alpha)  # CIoU
            elif SIoU:# SIoU
                s_cw = (b2_x1 + b2_x2 - b1_x1 - b1_x2) * 0.5
                s_ch = (b2_y1 + b2_y2 - b1_y1 - b1_y2) * 0.5
                sigma = torch.pow(s_cw ** 2 + s_ch ** 2, 0.5)
                sin_alpha_1 = torch.abs(s_cw) / sigma
                sin_alpha_2 = torch.abs(s_ch) / sigma
                threshold = pow(2, 0.5) / 2
                sin_alpha = torch.where(sin_alpha_1 > threshold, sin_alpha_2, sin_alpha_1)
                angle_cost = torch.cos(torch.arcsin(sin_alpha) * 2 - math.pi / 2)
                rho_x = (s_cw / cw) ** 2
                rho_y = (s_ch / ch) ** 2
                gamma = angle_cost - 2
                distance_cost = 2 - torch.exp(gamma * rho_x) - torch.exp(gamma * rho_y)
                omiga_w = torch.abs(w1 - w2) / torch.max(w1, w2)
                omiga_h = torch.abs(h1 - h2) / torch.max(h1, h2)
                shape_cost = torch.pow(1 - torch.exp(-1 * omiga_w), 4) + torch.pow(1 - torch.exp(-1 * omiga_h), 4)
                return iou - 0.5 * (distance_cost + shape_cost)
            else:# EIoU
                w_dis=torch.pow(b1_x2-b1_x1-b2_x2+b2_x1, 2)
                h_dis=torch.pow(b1_y2-b1_y1-b2_y2+b2_y1, 2)
                cw2=torch.pow(cw , 2)+eps
                ch2=torch.pow(ch , 2)+eps
                return iou-(rho2/c2+w_dis/cw2+h_dis/ch2)
        else:
            c_area = cw * ch + eps  # convex area
            return iou - (c_area - union) / c_area  # GIoU https://arxiv.org/pdf/1902.09630.pdf
    return iou  # IoU

α-IoU核心代码

def bbox_alpha_iou(box1, box2, xywh=True, GIoU=False, DIoU=False, CIoU=False, alpha=2, eps=1e-9):
    # Returns tsqrt_he IoU of box1 to box2. box1 is 4, box2 is nx4
    box2 = box2.T

    # Get the coordinates of bounding boxes
    if xywh:  # transform from xywh to xyxy
        (x1, y1, w1, h1), (x2, y2, w2, h2) = box1.chunk(4, -1), box2.chunk(4, -1)
        w1_, h1_, w2_, h2_ = w1 / 2, h1 / 2, w2 / 2, h2 / 2
        b1_x1, b1_x2, b1_y1, b1_y2 = x1 - w1_, x1 + w1_, y1 - h1_, y1 + h1_
        b2_x1, b2_x2, b2_y1, b2_y2 = x2 - w2_, x2 + w2_, y2 - h2_, y2 + h2_
    else:  # x1, y1, x2, y2 = box1
        b1_x1, b1_y1, b1_x2, b1_y2 = box1.chunk(4, -1)
        b2_x1, b2_y1, b2_x2, b2_y2 = box2.chunk(4, -1)
        w1, h1 = b1_x2 - b1_x1, b1_y2 - b1_y1 + eps
        w2, h2 = b2_x2 - b2_x1, b2_y2 - b2_y1 + eps

    # Intersection area
    inter = (b1_x2.minimum(b2_x2) - b1_x1.maximum(b2_x1)).clamp_(0) * (
        b1_y2.minimum(b2_y2) - b1_y1.maximum(b2_y1)
    ).clamp_(0)
    union = w1 * h1 + w2 * h2 - inter + eps

    # change iou into pow(iou+eps)
    # iou = inter / union
    iou = torch.pow(inter/union + eps, alpha)
    # beta = 2 * alpha
    if GIoU or DIoU or CIoU:
        cw = torch.max(b1_x2, b2_x2) - torch.min(b1_x1, b2_x1)  # convex (smallest enclosing box) width
        ch = torch.max(b1_y2, b2_y2) - torch.min(b1_y1, b2_y1)  # convex height
        if CIoU or DIoU:  # Distance or Complete IoU https://arxiv.org/abs/1911.08287v1
            c2 = (cw ** 2 + ch ** 2) ** alpha + eps  # convex diagonal
            rho_x = torch.abs(b2_x1 + b2_x2 - b1_x1 - b1_x2)
            rho_y = torch.abs(b2_y1 + b2_y2 - b1_y1 - b1_y2)
            rho2 = ((rho_x ** 2 + rho_y ** 2) / 4) ** alpha  # center distance
            if DIoU:
                return iou - rho2 / c2  # DIoU
            elif CIoU:  # https://github.com/Zzh-tju/DIoU-SSD-pytorch/blob/master/utils/box/box_utils.py#L47
                v = (4 / math.pi ** 2) * torch.pow(torch.atan(w2 / h2) - torch.atan(w1 / h1), 2)
                with torch.no_grad():
                    alpha_ciou = v / ((1 + eps) - inter / union + v)
                # return iou - (rho2 / c2 + v * alpha_ciou)  # CIoU
                return iou - (rho2 / c2 + torch.pow(v * alpha_ciou + eps, alpha))  # CIoU
        else:  # GIoU https://arxiv.org/pdf/1902.09630.pdf
            # c_area = cw * ch + eps  # convex area
            # return iou - (c_area - union) / c_area  # GIoU
            c_area = torch.max(cw * ch + eps, union) # convex area
            return iou - torch.pow((c_area - union) / c_area + eps, alpha)  # GIoU
    else:
        return iou # torch.log(iou+eps) or iou

SIoU改进

参考上面的核心代码

将
iou = bbox_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, CIoU=True)
替换为
iou = bbox_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, SIoU=True)

EIoU改进

参考上面的核心代码

将
iou = bbox_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, CIoU=True)
替换为
iou = bbox_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, EIoU=True)

GIoU改进

参考上面的核心代码

将
iou = bbox_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, CIoU=True)
替换为
iou = bbox_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, GIoU=True)

α-IoU改进

参考上面的核心代码

bbox_alpha_iou

将
iou = bbox_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, CIoU=True)
替换为
iou = bbox_alpha_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, CIoU=True)
