3、云原生 --- 高可用集群KEEPALIVED
keepalived的日志会被保存在/var/log/messages文件中，这个文件中除了含有keepalived的日志外，还有其他服务的日志信息，这样不利于对于keepalived的日志进行查看。#网易邮箱----->设置----->POP3/SMTP/IMAP/----->开启------>继续开启----->码---->确定。#把ka1中的keepalived关闭查看ka2中是否自动生成l
一、高可用集群
1.1 集群类型
- LB：Load Balance 负载均衡
- LVS/HAProxy/nginx（http/upstream, stream/upstream）
- HA：High Availability 高可用集群
- 数据库、Redis
- SPoF: Single Point of Failure，解决单点故障 HPC：High Performance Computing 高性能集群
1.2 系统可用性
SLA：Service-Level Agreement 服务等级协议（提供服务的企业与客户之间就服务的品质、水准、性能 等方面所达成的双方共同认可的协议或契约）
A = MTBF / (MTBF+MTTR）
1.3 系统故障
- 硬件故障：设计缺陷、wear out（损耗）、非人为不可抗拒因素
- 软件故障：设计缺陷 bug
1.4 实现高可用
提升系统高用性的解决方案：降低MTTR- Mean Time To Repair(平均故障时间) 解决方案：建立冗余机制
- active/passive 主/备
- active/active 双主
- active --> HEARTBEAT --> passive
- active <--> HEARTBEAT <--> active
1.5.VRRP：Virtual Router Redundancy Protocol
虚拟路由冗余协议,解决静态网关单点风险
- 物理层:路由器、三层交换机
- 软件层:keepalived
1.5.1 VRRP 相关术语
- 虚拟路由器：Virtual Router
- 虚拟路由器标识：VRID(0-255)，唯一标识虚拟路由器
- VIP：Virtual IP
- VMAC：Virutal MAC (00-00-5e-00-01-VRID)
- 物理路由器：
master：主设备
backup：备用设备
priority：优先级
1.5.2 VRRP 相关技术
通告：心跳，优先级等；周期性
工作方式：抢占式，非抢占式
安全认证：
- 无认证
- 简单字符认证：预共享密
- MD5
工作模式：
- 主/备：单虚拟路由器
- 主/主：主/备（虚拟路由器1），备/主（虚拟路由器2）
二.Keepalived 部署
2.1 keepalived 简介
vrrp 协议的软件实现，原生设计目的为了高可用 ipvs服务
官网：http://keepalived.org/
功能：
- 基于vrrp协议完成地址流动
- 为vip地址所在的节点生成ipvs规则(在配置文件中预先定义)
- 为ipvs集群的各RS做健康状态检测
- 基于脚本调用接口完成脚本中定义的功能，进而影响集群事务，以此支持nginx、haproxy等服务
三、Keepalived实验环境设定

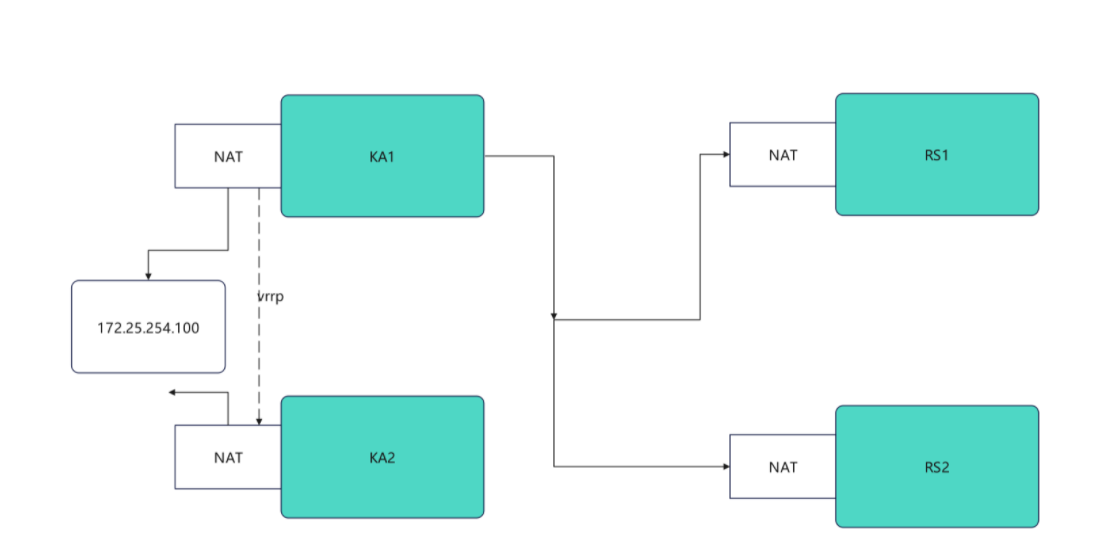

1.环境设定图
2.环境设定
#部署rs1和rh2（单网卡NAT模式）
[root@rs1 ~]# vmset.sh eth0 172.25.254.10 rs1
[root@rs1 ~]# dnf install httpd -y
[root@rs1 ~]# echo RS1 - 172.25.254.10 > /var/www/html/index.html
[root@rs1 ~]# systemctl enable --now httpd
[root@rs2 ~]# vmset.sh eth0 172.25.254.20 rs2
[root@rs2 ~]# dnf install httpd -y
[root@rs2 ~]# echo RS2 - 172.25.254.20 > /var/www/html/index.html
[root@rs2 ~]# systemctl enable --now httpd
#测试：
[Administrator.DESKTOP-VJ307M3] ➤ curl 172.25.254.10
RS1 - 172.25.254.10
[2026-01-28 10:36.42] ~
[Administrator.DESKTOP-VJ307M3] ➤ curl 172.25.254.20
RS2 - 172.25.254.20
#设定ka1和ka2
[root@KA1 ~]# vmset.sh eth0 172.25.254.50 KA1
[root@KA2 ~]# vmset.sh eth0 172.25.254.60 KA6
#设定本地解析
[root@KA1 ~]# vim /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
172.25.254.50 KA1
172.25.254.60 KA2
172.25.254.10 rs1
172.25.254.20 rs2
[root@KA1 ~]# for i in 60 10 20
> do
> scp /etc/hosts 172.25.254.$i:/etc/hosts
> done
#在所有主机中查看/etc/hosts
#在ka1中开启时间同步服务
[root@KA1 ~]# vim /etc/chrony.conf
26 allow 0.0.0.0/0
29 local stratum 10
[root@KA1 ~]# systemctl restart chronyd
[root@KA1 ~]# systemctl enable --now chronyd
#在ka2中使用ka1的时间同步服务
[root@KA2 ~]# vim /etc/chrony.conf
pool 172.25.254.50 iburst
[root@KA2 ~]# systemctl restart chronyd
[root@KA2 ~]# systemctl enable --now chronyd
[root@KA2 ~]# chronyc sources -v
.-- Source mode '^' = server, '=' = peer, '#' = local clock.
/ .- Source state '*' = current best, '+' = combined, '-' = not combined,
| / 'x' = may be in error, '~' = too variable, '?' = unusable.
|| .- xxxx [ yyyy ] +/- zzzz
|| Reachability register (octal) -. | xxxx = adjusted offset,
|| Log2(Polling interval) --. | | yyyy = measured offset,
|| \ | | zzzz = estimated error.
|| | | \
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^* KA1 3 6 17 13 +303ns[+6125ns] +/- 69ms 四、Keepalived虚拟路由配置
1.Keepalived安装
[root@KA1 ~]# dnf install keepalived.x86_64 -y
[root@KA2 ~]# dnf install keepalived.x86_64 -y
2.配置虚拟路由
#在master
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
vrrp_mcast_group4 224.0.0.44
}
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
[root@KA1 ~]# systemctl enable --now keepalived.service
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.#在KA2中设定
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
vrrp_mcast_group4 224.0.0.44
}
vrrp_instance WEB_VIP {
state BACKUP
interface eth0
virtual_router_id 51
priority 80
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
[root@KA2 ~]# systemctl enable --now keepalived.service
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.#验证
[root@KA1 ~]# tcpdump -i eth0 -nn host 224.0.0.44
11:38:46.183386 IP 172.25.254.50 > 224.0.0.44: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20
11:38:47.184051 IP 172.25.254.50 > 224.0.0.44: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20

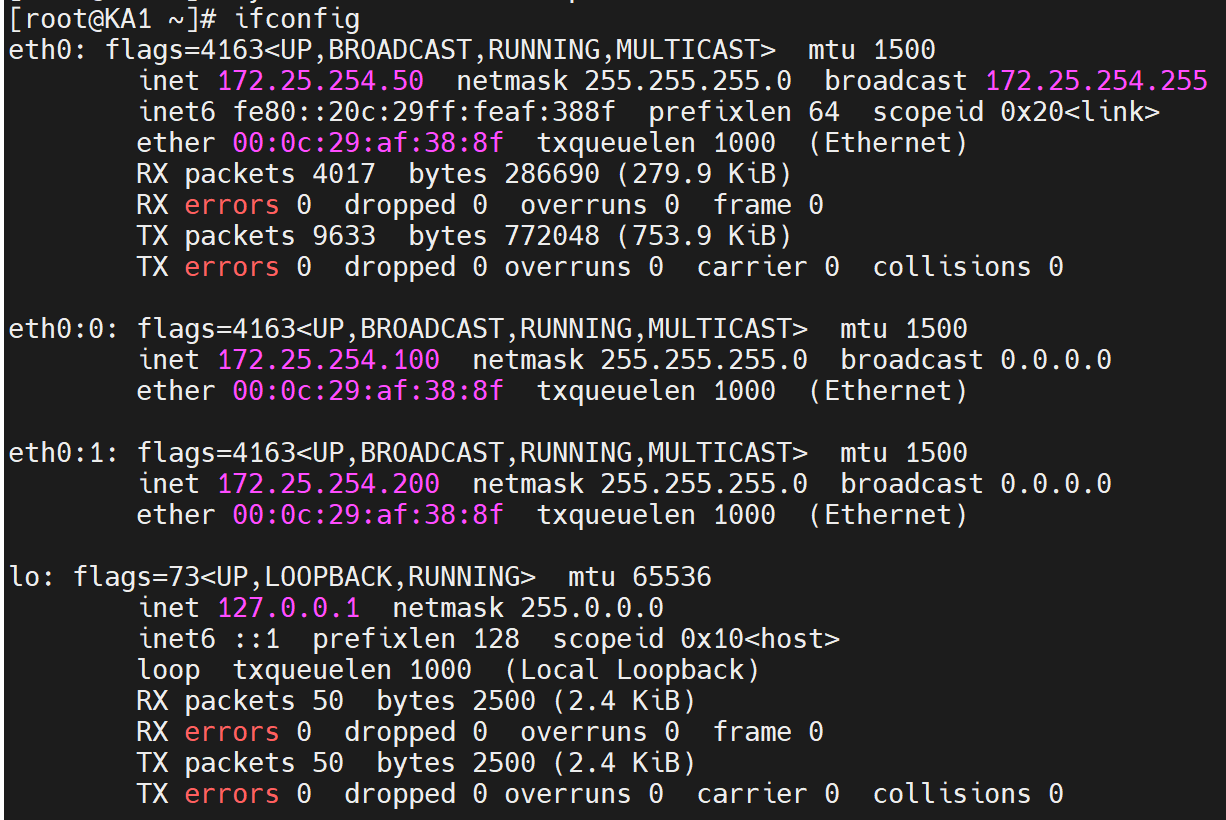

[root@KA1 ~]# ifconfig
#测试故障
#在一个独立的shell中执行
[root@KA1 ~]# tcpdump -i eth0 -nn host 224.0.0.44#在kA1中模拟故障
[root@KA1 ~]# systemctl stop keepalived.service#在KA2中看vip是否被迁移到当前主机

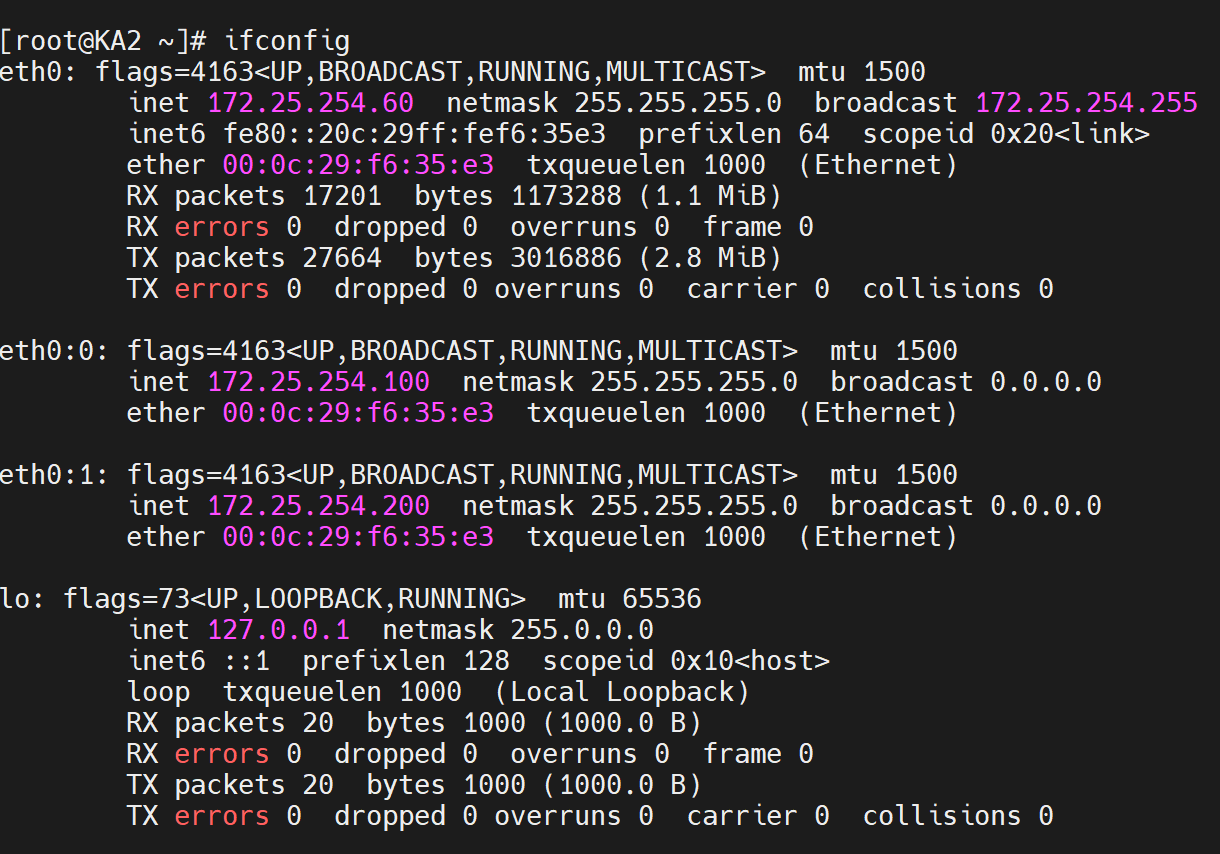

[root@KA2 ~]# ifconfig
五、Keepalived日志分离
默认情况下。keepalived的日志会被保存在/var/log/messages文件中，这个文件中除了含有keepalived的日志外，还有其他服务的日志信息，这样不利于对于keepalived的日志进行查看。si
[root@KA1 ~]# vim /etc/sysconfig/keepalived
KEEPALIVED_OPTIONS="-D -S 6"
[root@KA1 ~]# systemctl restart keepalived.service
[root@KA1 ~]# vim /etc/rsyslog.conf
local6.* /var/log/keepalived.log
[root@KA1 ~]# systemctl restart rsyslog.service
#测试
[root@KA1 log]# ls -l /var/log/keepalived.log
ls: 无法访问 'keepalived.log': 没有那个文件或目录
[root@KA1 log]# ls keepalived.log
keepalived.log六、Keepalived的子配置文件设定
在主配置文件中如果写入过多的配置不利于对于主配置文件的阅读
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
vrrp_mcast_group4 224.0.0.44
}
include /etc/keepalived/conf.d/*.conf #指定独立子配置文件
[root@KA1 ~]# mkdir /etc/keepalived/conf.d -p
[root@KA1 ~]# vim /etc/keepalived/conf.d/webvip.conf
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
[root@KA1 ~]# keepalived -t -f /etc/keepalived/keepalived.conf
[root@KA1 ~]# systemctl restart keepalived.service

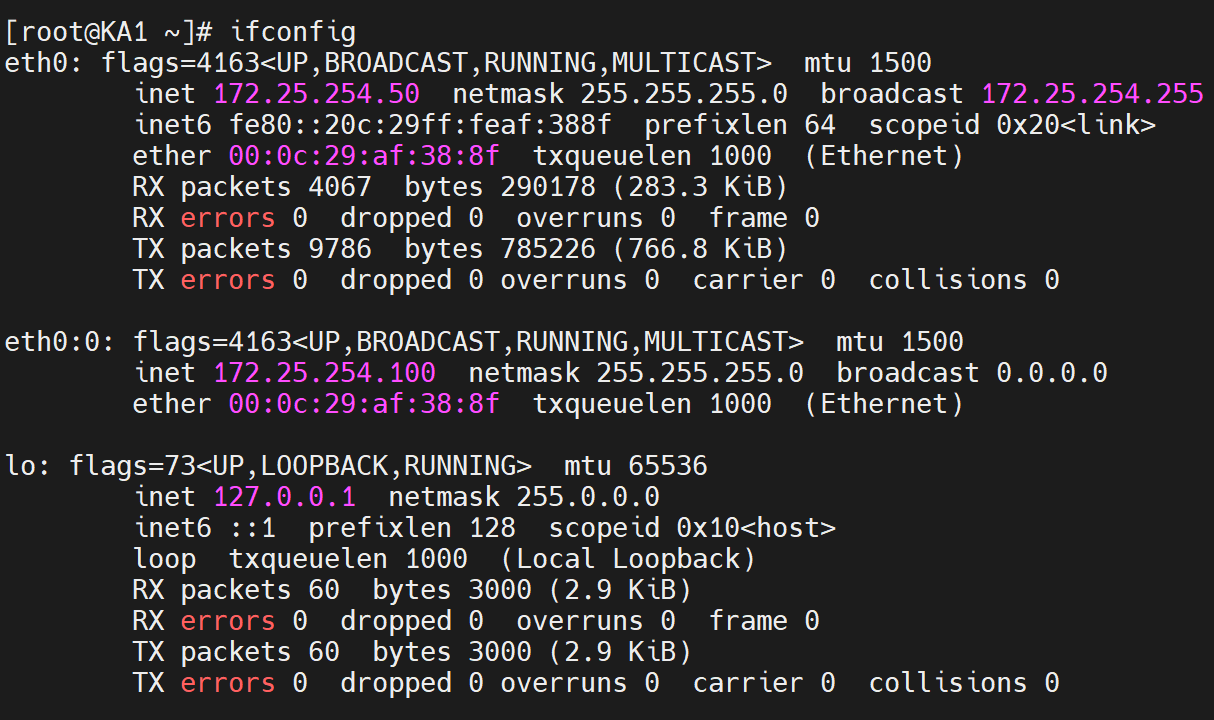

[root@KA1 ~]# ifconfig七、抢占模式
1.抢占模式( 默认的，谁优先级高就把vip放到哪里)
2.非抢占模式（持有vip只要vrrp通告正常就不做vip迁移）
#kA1中
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP {
state BACKUP #非抢占模式互为backup
interface eth0
virtual_router_id 51
nopreempt #启动非抢占模式
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
[root@KA1 ~]# systemctl stop keepalived.service
#KA2中
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP {
state BACKUP
interface eth0
virtual_router_id 51
nopreempt #开启非抢占模式
priority 80
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
[root@KA2 ~]# systemctl stop keepalived.service
#测试：
[root@KA1 ~]# systemctl start keepalived.service
[root@KA2 ~]# systemctl start keepalived.service[root@KA1 ~]# ifconfig
[root@KA1 ~]# systemctl stop keepalived.service
[root@KA2 ~]# ifconfig
#开启KA1的服务ip不会被抢占到1中
[root@KA1 ~]# ifconfig
3.延迟抢占
#kA1中
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP {
state BACKUP #非抢占模式互为backup
interface eth0
virtual_router_id 51
preempt_delay 10 #启动延迟抢占，延迟10s抢占
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
[root@KA1 ~]# systemctl stop keepalived.service
#KA2中
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP {
state BACKUP
interface eth0
virtual_router_id 51
preempt_delay 10 #启动延迟抢占，延迟10s抢占
priority 80
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
[root@KA2 ~]# systemctl stop keepalived.service
#测试：
[root@KA1 ~]# systemctl start keepalived.service
[root@KA2 ~]# systemctl start keepalived.service
#在一个独立的shell中开启ip的监控
[root@KA1 ~]# watch -n 1 ifconfig
#在KA1另外的shell中关闭keepalived
[root@KA1 ~]# systemctl stop keepalived.service
[root@KA1 ~]# systemctl start keepalived.service
#操作完毕后观察监控中vip的迁移延迟过程八、keepalived的单播模式
为什么要单播，组播模式使用的网址资源最少，但是不能跨网络，如果主备两台主机是跨网络的，那么只能启用单播来实现vrrp通告
#在KA1中
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
#vrrp_mcast_group4 224.0.0.44 #关闭组播
}
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
unicast_src_ip 172.25.254.50 #指定单播源地址，通常是本机IP
unicast_peer {
172.25.254.60 #指定单播接收地址
}
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
#在KA2中
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
#vrrp_mcast_group4 224.0.0.44 #关闭组播
}
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
unicast_src_ip 172.25.254.60 #指定单播源地址，通常是本机IP
unicast_peer {
172.25.254.50 #指定单播接收地址
}
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
[root@KA1 ~]# systemctl restart keepalived.service
[root@KA2 ~]# systemctl restart keepalived.service
#测试
#在KA1中开启独立shell监控播报信息
[root@KA1 ~]# tcpdump -i eth0 -nn src host 172.25.254.50 and dst 172.25.254.60
#在KA2中开启独立shell监控播报信息
[root@KA2 ~]# tcpdump -i eth0 -nn src host 172.25.254.60 and dst 172.25.254.50
#在KA1正常时
#ka2播报信息不显示通告内容
[root@KA1 ~]# systemctl stop keepalived.service
#vip会被迁移到KA2,KA2上开始显示播报内容
[root@KA1 ~]# systemctl start keepalived.service
#vip因为优先级被KA1抢占，KA2中播报停止九、Keepalived业务vip迁移告警
1.邮件告警环境构建
#安装邮件软件
[root@KA1 ~]# dnf install s-nail postfix -y
[root@KA2 ~]# dnf install s-nail postfix -y
#启动邮件代理
[root@KA1 ~]# systemctl start postfix.service
[root@KA2 ~]# systemctl start postfix.service#设定sendmail可以通过公网邮箱发送邮件下面方式人选其一
#网易邮箱----->设置----->POP3/SMTP/IMAP/----->开启------>继续开启----->码---->确定
#在Linux主机中配置mailrc（KA1+KA2）
[root@KA1+KA2 ~]# vim /etc/mail.rc
set smtp=smtp.163.com
set smtp-auth=login
set smtp-auth-user=15243811669@163.com
set smtp-auth-password=TGfdKaJT7EB
set from=15243811669@163.com
set ssl-verify=ignore
#测试邮件
[root@KA1 mail]# echo hello | mailx -s test 1122334455@qq.com
[root@KA1 mail]# mailq #查看邮件队列
Mail queue is empty
[root@KA1 mail]# mail #查看是否又退信
s-nail version v14.9.22. Type `?' for help
/var/spool/mail/root: 1 message
▸ 1 Mail Delivery Subsys 2026-01-28 16:26 69/2210 "Returned mail: see transcript for details "
&q 退出
#查看对应邮箱是否有邮件收到2.设定keepalived告警脚本
[root@KA1 ~]# mkdir -p /etc/keepalived/scripts
[root@KA2 ~]# mkdir -p /etc/keepalived/scripts
#编写告警脚本
[root@KA1+2 ~]# vim /etc/keepalived/scripts/waring.sh
#!/bin/bash
mail_dest='15243811669@163.com'
mail_send()
{
mail_subj="$HOSTNAME to be $1 vip 转移"
mail_mess="`date +%F\ %T`: vrrp 转移,$HOSTNAME 变为 $1"
echo "$mail_mess" | mail -s "$mail_subj" $mail_dest
}
case $1 in
master)
mail_send master
;;
backup)
mail_send backup
;;
fault)
mail_send fault
;;
*)
exit 1
;;
esac
[root@KA1+2 ~]# chmod +x /etc/keepalived/scripts/waring.sh
[root@KA1 ~]# /etc/keepalived/scripts/waring.sh master
#对应邮箱中会出现邮件b3.配置keepalived告警
#在KA1和KA2中设定配置文件
[root@KA1/KA2 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
timinglee_zln@163.com
}
notification_email_from timinglee_zln@163.com
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id KA1
vrrp_skip_check_adv_addr
#vrrp_strict
vrrp_garp_interval 1
vrrp_gna_interval 1
vrrp_mcast_group4 224.0.0.44
enable_script_security
script_user root
}
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
# unicast_src_ip 172.25.254.50
# unicast_peer {
# 172.25.254.60
# }
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
notify_master "/etc/keepalived/scripts/waring.sh master"
notify_backup "/etc/keepalived/scripts/waring.sh backup"
notify_fault "/etc/keepalived/scripts/waring.sh fault"
}
[root@KA1+2 ~]# systemctl restart keepalived.service
#测试
[root@KA1 ~]# systemctl stop keepalived.service #停止服务后查看邮件
[root@KA1 ~]# systemctl start keepalived.service #开启服务后查看邮件十、Keepalived双主模式
在KA1中：
#在KA1中
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP { #第一个虚拟路由，以master身份设定
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
vrrp_instance DB_VIP { #第二个虚拟路由。以backup身份设定
state BACKUP
interface eth0
virtual_router_id 52
priority 80
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.200/24 dev eth0 label eth0:1
}
}
[root@KA1 ~]# systemctl restart keepalived.service
在KA2中：
#KA2中
[root@KA2 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance WEB_VIP {
state BACKUP
interface eth0
virtual_router_id 51
preempt_delay 10
priority 80
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
}
vrrp_instance DB_VIP {
state MASTER
interface eth0
virtual_router_id 52
preempt_delay 10
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.200/24 dev eth0 label eth0:1
}
}
[root@KA2 ~]# systemctl restart keepalived.service
#测试：
[root@KA1 ~]# ifconfig

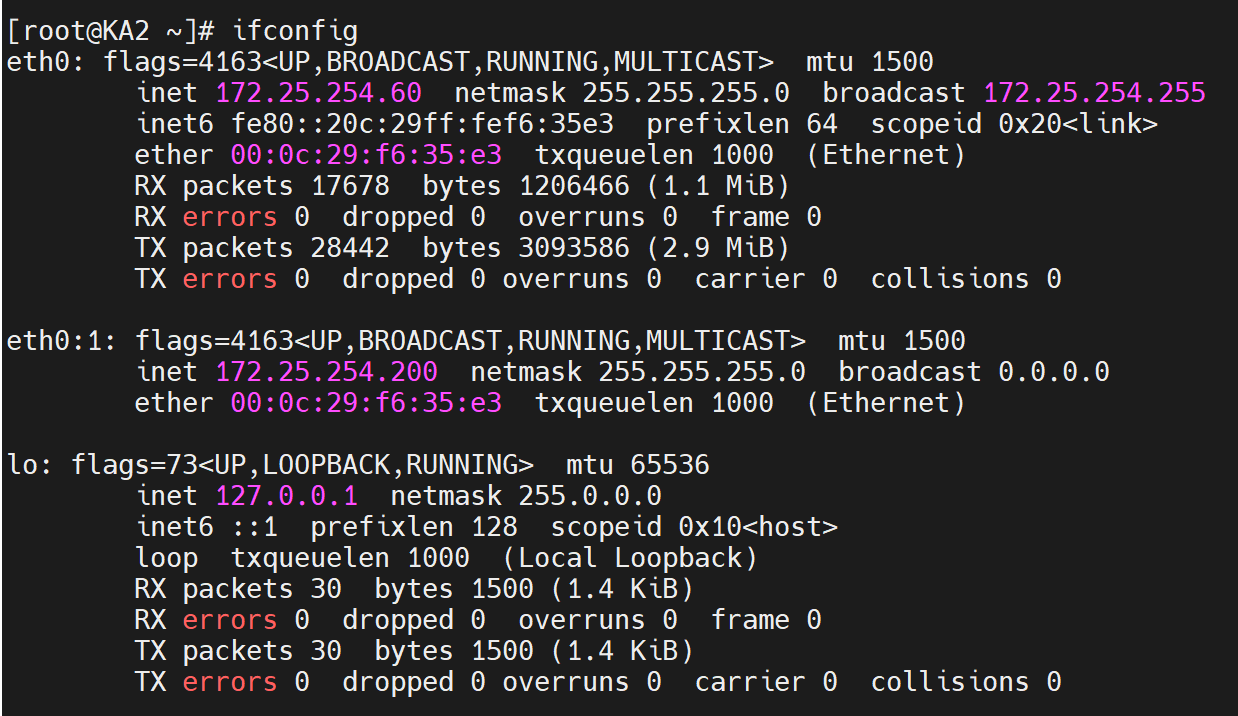

[root@KA2 ~]# ifconfig
[root@KA1 ~]# systemctl stop keepalived.service
[root@KA2 ~]# ifconfig
[root@KA2 ~]# systemctl stop keepalived.service
[root@KA1 ~]# ifconfig
十一、实现IPVS的高可用性
1.配置RS
[root@rs1+2 ~]# cd /etc/NetworkManager/system-connections/
[root@rs1+2 system-connections]# ls
eth0.nmconnection
[root@rs1+2 system-connections]# cp eth0.nmconnection lo.nmconnection -p
[root@rs1+2 system-connections]# vim lo.nmconnection[connection]
id=lo
type=loopback
interface-name=lo
[ipv4]
method=manual
address1=127.0.0.1/8
address2=172.25.254.100/32
[root@rs1+2 system-connections]# nmcli connection reload
[root@rs1+2 system-connections]# nmcli connection up lo
[root@rs1+2 system-connections]# ip a[root@rs1+2 system-connections]# vim /etc/sysctl.conf
net.ipv4.conf.all.arp_ignore=1
net.ipv4.conf.all.arp_announce=2
net.ipv4.conf.lo.arp_announce=2
net.ipv4.conf.lo.arp_ignore=1[root@rs1+2 system-connections]# sysctl -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1#安装ipvsadm
[root@KA1+KA2 ~]# dnf install ipvsadm -y
2.实现方式
#在keepalived的所有主机中 KA1和KA2
[root@KA1+2 ~]# vim /etc/keepalived/keepalived.conf
virtual_server 172.25.254.100 80 {
delay_loop 6
lb_algo rr
lb_kind DR
protocol TCP
real_server 172.25.254.10 80 {
weight 1
HTTP_GET {
url {
path /
status_code 200
}
connect_timeout 1
retry 3
delay_before_retry 1
}
}
real_server 172.25.254.20 80 {
weight 1
TCP_CHECK {
connect_timeout 5
retry 3
delay_before_retry 3
connect_port 80
}
}
}
[root@KA1+2 ~]# systemctl restart keepalived.service3.测试
#友情提示：不要再KA1和KA2中访问vip，会检测不出效果
#在ka1中开启独立的shell
[root@KA1 ~]# watch -n 1 ipvsadm -Ln#在RS1中关闭wen服务查看lvs策略是否变化
systemctl stop httpd
systemctl start httpd
#把ka1中的keepalived关闭查看ka2中是否自动生成lvs策略
systemctl stop keepalived
systemctl start keepalived
十二、利用VRRP Script 实现全能高可用
1.实验环境
#在KA1和KA2中安装haproxy
[root@KA1+2 ~]# dnf install haproxy-2.4.22-4.el9.x86_64 -y[root@KA1+2 ~]# vim /etc/sysctl.conf
net.ipv4.ip_nonlocal_bind=1[root@KA1+2 ~]# vim /etc/haproxy/haproxy.cfg
listen webserver
bind 172.25.254.100:80
mode http
server web1 172.25.254.10:80 check
server web2 172.25.254.20:80 check
[root@KA1+2 ~]# systemctl enable --now haproxy.service
2.利用案例理解vrrp_scripts
[root@KA1 ~]# vim /etc/keepalived/scripts/test.sh
#!/bin/bash
[ ! -f "/mnt/lee" ]
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_script check_lee {
script "/etc/keepalived/scripts/test.sh"
interval 1
weight -30
fall 2
rise 2
timeout 2
user root
}
vrrp_instance DB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:1
}
track_script {
check_lee
}
}
[root@KA1 ~]# systemctl restart keepalived.service
#测试：
[root@KA1 ~]# ifconfig
3.keepalived + haproxy
[root@KA1 ~]# vim /etc/keepalived/scripts/haproxy_check.sh
#!/bin/bash
killall -0 haproxy &> /dev/null[root@KA1 ~]# chmod +x /etc/keepalived/scripts/haproxy_check.sh
[root@KA1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_script haporxy_check {
script "/etc/keepalived/scripts/haproxy_check.sh"
interval 1
weight -30
fall 2
rise 2
timeout 2
user root
}
vrrp_instance WEB_VIP {
state MASTER
interface eth0
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
172.25.254.100/24 dev eth0 label eth0:0
}
track_script {
haporxy_check
}
}[root@KA1 ~]# systemctl restart keepalived.service
#测试
通过关闭和开启haproxy来观察vip是否迁移# 1. 主节点：查看初始VIP
ip a | grep 172.25.254.100# 2. 主节点：关闭HAProxy
systemctl stop haproxy# 3. 备节点：查看VIP是否迁移
ip a | grep 172.25.254.100# 4. 主节点：启动HAProxy
systemctl start haproxy# 5. 主节点：查看VIP是否迁回
ip a | grep 172.25.254.100
魔乐社区（Modelers.cn) 是一个中立、公益的人工智能社区，提供人工智能工具、模型、数据的托管、展示与应用协同服务，为人工智能开发及爱好者搭建开放的学习交流平台。社区通过理事会方式运作，由全产业链共同建设、共同运营、共同享有，推动国产AI生态繁荣发展。
更多推荐
21
0- 0
已为社区贡献1条内容
所有评论(0)
