1.项目版本说明

组件	版本	说明
springboot	2.4.2	是为了后面集成cloud2020.0.0 和 cloud-alibaba2021.1 版本
mybatis-plus	3.4.3.1

2.idea 创建springboot项目

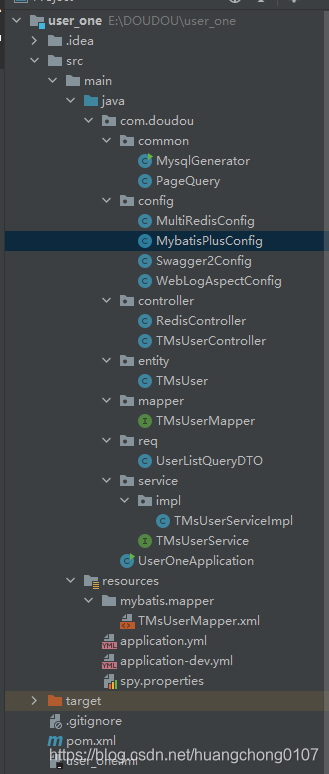

2.0 项目整体结构预览

2.1 pom.xml引入pom依赖

    <!--springboot-web-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>2.4.2</version>
        </dependency>
        <!--spring-boot-starter-aop-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
            <version>2.4.2</version>
        </dependency>
        <!-- mysql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.16</version>
        </dependency>
        <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.3.1</version>
        </dependency>
        <!--mybatis plus 代码生成及分页 start-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus</artifactId>
            <version>3.4.3.1</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>3.4.1</version>
        </dependency>
        <!--打印mybatis plus 执行sql-->
        <dependency>
            <groupId>p6spy</groupId>
            <artifactId>p6spy</artifactId>
            <version>3.8.1</version>
        </dependency>
        <!-- mybatis-plus-generator默认模板引擎依赖 -->
        <dependency>
            <groupId>org.apache.velocity</groupId>
            <artifactId>velocity-engine-core</artifactId>
            <version>2.0</version>
        </dependency>
        <!--swagger-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>
        <!--mybatis plus 代码生成及分页 end-->
          <!-- lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
            <version>1.18.8</version>
        </dependency>

2.2 common 包下创建MysqlGenerator类 ，利用main方法生成基础代码

package com.doudou.common;

import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.config.DataSourceConfig;
import com.baomidou.mybatisplus.generator.config.GlobalConfig;
import com.baomidou.mybatisplus.generator.config.PackageConfig;
import com.baomidou.mybatisplus.generator.config.StrategyConfig;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
/**
 * @Date 2021/7/22 13:40
 */
public class MysqlGenerator {
    public static void main(String[] args) {
        AutoGenerator mpg = new AutoGenerator();     // 代码生成器

        GlobalConfig gc = new GlobalConfig(); // 全局配置
        //根据项目灵活选择要生成的文件放置的第一级目录
        //E:\dubbo-nacos-mybatisplus\dubbo-service-provider\src\main\java\com\douyu\dubbo_Service_Provider\controller
        // String projectPath = System.getProperty("user.dir");
        String projectPath = "E:/DOUDOU/mybatis-plus-code";
        gc.setOutputDir(projectPath + "/src/main/java");
        gc.setAuthor("hc);   // 作者
        gc.setOpen(false);      //生成代码后是否打开文件夹
        gc.setServiceName("%sService");  // 设置Service接口生成名称,这样生成接口前面就不会有 I
        gc.setSwagger2(true);//实体属性 Swagger2 注解
        mpg.setGlobalConfig(gc);

        // 数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://ip:端口/hczr?useUnicode=true&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=UTC");
        // dsc.setSchemaName("public");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("root");
        dsc.setPassword("password");
        mpg.setDataSource(dsc);

        // 包配置
        PackageConfig pc = new PackageConfig();
        pc.setModuleName("user_one"); // 模块名称, 这里可以根据不同模块来写
        pc.setParent("com.doudou"); // 父包名
        mpg.setPackageInfo(pc);

        // 策略配置
        StrategyConfig strategy = new StrategyConfig();
        strategy.setNaming(NamingStrategy.underline_to_camel);
        strategy.setColumnNaming(NamingStrategy.underline_to_camel);

        // 自定义实体父类
        //strategy.setSuperControllerClass("com.douyu.controller.BaseController");
        //strategy.setSuperEntityClass("com.douyu.entity.BaseEntity");
        // strategy.setTablePrefix("sys_");// 此处可以修改为您的表前缀
        strategy.setEntityLombokModel(true);
        // strategy.setInclude(new String[] { "t_user" }); // 需要生成的表
        strategy.setInclude("t_ms_user");  //需要生成代码的表； 如果要生成多个,这里可以传入String[]
        //   strategy.setTablePrefix(new String[]{"t_"});// 此处可以修改为您的表前缀
        // strategy.setExclude(new String[]{"test"}); // 排除生成的表
        mpg.setStrategy(strategy);
        mpg.execute();
    }
}

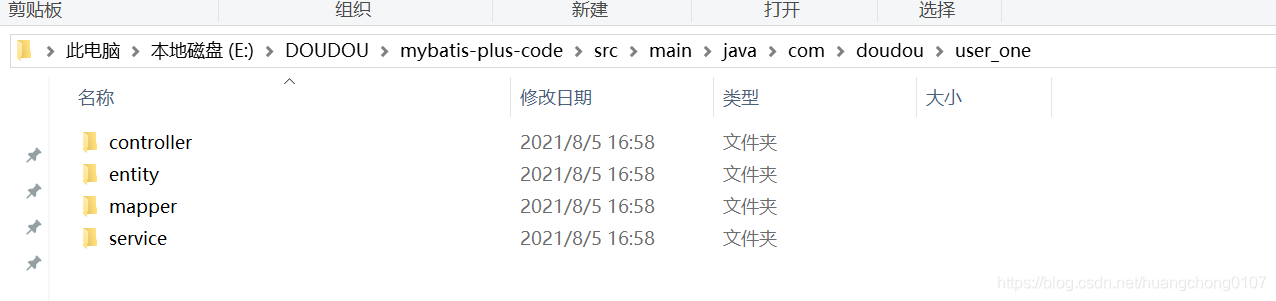

生成后，本地结构如下图：

2.3 config包配置相关java配置类
2.3.1 mybatis-plus 分页插件配置类：MybatisPlusConfig

package com.doudou.config;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Configuration
@EnableTransactionManagement(proxyTargetClass = true)
public class MybatisPlusConfig {

    // 最新版  添加mybatisPlus 分页插件
    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));
        return interceptor;
    }
}

2.3.2 log 切面配置类:WebLogAspectConfig

package com.doudou.config;

import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.*;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.servlet.http.HttpServletRequest;
import java.time.LocalDateTime;
import java.util.Arrays;

/**
 * weblog切面
 */
@Aspect
@Component
public class WebLogAspectConfig {

    public static final Logger log = LoggerFactory.getLogger(WebLogAspectConfig.class);
    /**
     * 进入方法时间戳
     */
    private Long startTime;
    /**
     * 方法结束时间戳(计时)
     */
    private Long endTime;

    public WebLogAspectConfig() {
    }

    /**
     * 定义请求日志切入点，其切入点表达式有多种匹配方式,这里是指定路径
     */
    @Pointcut("execution(public * com.doudou.controller.*.*(..))")
    public void webLogPointcut() {
    }


    /**
     * 前置通知：
     * 1. 在执行目标方法之前执行，比如请求接口之前的登录验证;
     * 2. 在前置通知中设置请求日志信息，如开始时间，请求参数，注解内容等
     *
     * @param joinPoint
     * @throws Throwable
     */
    @Before("webLogPointcut()")
    public void doBefore(JoinPoint joinPoint) {
        // 接收到请求，记录请求内容
        ServletRequestAttributes attributes = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
        HttpServletRequest request = attributes.getRequest();
        //打印请求的内容
        startTime = System.currentTimeMillis();
        log.info("请求开始时间：{}", LocalDateTime.now());
        log.info("请求Url : {}", request.getRequestURL().toString());
        log.info("请求方式 : {}", request.getMethod());
        log.info("请求ip : {}", request.getRemoteAddr());
        log.info("请求方法 : {}", joinPoint.getSignature().getDeclaringTypeName() + "." + joinPoint.getSignature().getName());
        log.info("请求参数 : {}", Arrays.toString(joinPoint.getArgs()));
    }

    /**
     * 返回通知：
     * 1. 在目标方法正常结束之后执行
     * 1. 在返回通知中补充请求日志信息，如返回时间，方法耗时，返回值，并且保存日志信息
     *
     * @param ret
     * @throws Throwable
     */
    @AfterReturning(returning = "ret", pointcut = "webLogPointcut()")
    public void doAfterReturning(Object ret) throws Throwable {
        endTime = System.currentTimeMillis();
        log.info("请求结束时间：{}", LocalDateTime.now());
        log.info("请求耗时：{}", (endTime - startTime));
        // 处理完请求，返回内容
        log.info("请求返回 : {}", ret);
    }

    /**
     * 异常通知：
     * 1. 在目标方法非正常结束，发生异常或者抛出异常时执行
     * 1. 在异常通知中设置异常信息，并将其保存
     * @param throwable
     */
    @AfterThrowing(value = "webLogPointcut()", throwing = "throwable")
    public void doAfterThrowing(Throwable throwable) {
        // 保存异常日志记录
        log.error("发生异常时间：{}", LocalDateTime.now());
        log.error("抛出异常：{}", throwable.getMessage());
    }
}

2.3.3 swagger java配置类:Swagger2Config

package com.doudou.config;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 * @description swagger2控制器
 */
@Configuration
@EnableSwagger2
public class Swagger2Config {

    @Value("${swagger.is.enable}")
    private boolean swaggerIsEnable;

    /**
     * Docket对象包含三个方面信息：
     * 1. 整个API的描述信息，即ApiInfo对象包括的信息，这部分信息会在页面上展示。
     * 2. 指定生成API文档的包名。
     * 3. 指定生成API的路径。
     *
     * @return docket
     */
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2).enable(swaggerIsEnable)
                .apiInfo(apiInfo())
                //是否开启 (true 开启  false隐藏。生产环境建议隐藏)
                //.enable(false)
                .select()
                //扫描的路径包,设置basePackage会将包下的所有被@Api标记类的所有方法作为api
                .apis(RequestHandlerSelectors.basePackage("com.midea.smart.iot.ota.mgmt.controller"))
                //指定路径处理PathSelectors.any()代表所有的路径
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                //设置文档标题(API名称)
                .title("user_one:API接口文档")
                //文档描述
//                .description("接口说明")
                //服务条款URL
//                .termsOfServiceUrl("http://localhost:8080/")
                //版本号
                .version("1.0.0")
                .build();
    }
}

2.4 resources包下 添加项目配置:

2.4.1 appliaction.yml ：springboot

server:
  port: 7010

spring:
  application:
    name: user-one
 # profiles:
  #  active: dev
  #数据源
  datasource:
    #driverClassName: com.mysql.cj.jdbc.Driver
    #url: jdbc:mysql://106.14.150.2:3306/hczr?useUnicode=true&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=UTC
    #添加mybatis-plus执行时打印sql 语句
    driverClassName: com.p6spy.engine.spy.P6SpyDriver
    url: jdbc:p6spy:mysql://106.14.150.2:3306/hczr?useUnicode=true&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=UTC
    username: root
    password: Hc200217zr@
    hikari:
      minimum-idle: 5
      maximum-pool-size: 15
      auto-commit: true
      idle-timeout: 30000
      pool-name: DatebookHikariCP
      max-lifetime: 1800000
      connection-timeout: 10000
      connection-test-query: SELECT 1

swagger:
  is:
    enable: true

2.4.2 spy.properties ：mybatis-plus 添加执行sql必要的配置文件

#mybatis-plus 添加执行sql打印
modulelist=com.baomidou.mybatisplus.extension.p6spy.MybatisPlusLogFactory,com.p6spy.engine.outage.P6OutageFactory
# 自定义日志打印
logMessageFormat=com.baomidou.mybatisplus.extension.p6spy.P6SpyLogger
#日志输出到控制台
appender=com.baomidou.mybatisplus.extension.p6spy.StdoutLogger
# 使用日志系统记录 sql
#appender=com.p6spy.engine.spy.appender.Slf4JLogger
# 设置 p6spy driver 代理
deregisterdrivers=true
# 取消JDBC URL前缀
useprefix=true
# 配置记录 Log 例外,可去掉的结果集有error,info,batch,debug,statement,commit,rollback,result,resultset.
excludecategories=info,debug,result,commit,resultset
# 日期格式
dateformat=yyyy-MM-dd HH:mm:ss
# 实际驱动可多个
#driverlist=org.h2.Driver
# 是否开启慢SQL记录
outagedetection=true
# 慢SQL记录标准 2 秒
outagedetectioninterval=2

2.5分页接口测试

1.controller类

package com.doudou.controller;

import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.doudou.entity.TMsUser;
import com.doudou.req.UserListQueryDTO;
import com.doudou.service.TMsUserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @since 2021-07-22
 */
@RestController
@RequestMapping("/user_one/tMsUser")
public class TMsUserController {

    @Autowired
    private TMsUserService userService;

    @PostMapping("/getList")
    public Object getList(@RequestBody UserListQueryDTO dto) {
        return userService.getList(dto);
    }
}

2.请求dto类

package com.doudou.req;

import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import com.doudou.common.PageQuery;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;

import java.time.LocalDateTime;

@ApiModel(value = "用户查询对象",description = "用户查询对象封装")
@Data
public class UserListQueryDTO extends PageQuery {

    @ApiModelProperty(value = "用户昵称")
    private String nickName;

    @ApiModelProperty(value = "用户密码")
    private String password;

    @ApiModelProperty(value = "用户手机")
    private String mobile;

    @ApiModelProperty(value = "用户邮箱")
    private String email;

    @ApiModelProperty(value = "地址")
    private String address;

    @ApiModelProperty(value = "1未激活 2激活 3禁止")
    private Integer accountStatus;

    @ApiModelProperty(value = "注册时间")
    private LocalDateTime registerTime;

    @ApiModelProperty(value = "个性签名")
    private String signature;

    @ApiModelProperty(value = "头像")
    private String profilePicUrl;

    @ApiModelProperty(value = "性别")
    private Integer sex;

    @ApiModelProperty(value = "电话")
    private String phone;

    @ApiModelProperty(value = "年龄")
    private Integer age;
}

package com.doudou.common;

import lombok.Data;
import lombok.experimental.Accessors;

@Data
@Accessors(chain = true)
public class PageQuery {

    public Integer pageSize=10;

    public Integer pageIndex = 1;
}

3.services相关类

package com.doudou.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.doudou.entity.TMsUser;
import com.doudou.req.UserListQueryDTO;
/**
 * 服务类
 */
public interface TMsUserService extends IService<TMsUser> {
    /**
     * 条件分页查询
     *
     * @return
     */
    Object getList(UserListQueryDTO dto);
}
package com.doudou.service.impl;

import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.doudou.entity.TMsUser;
import com.doudou.mapper.TMsUserMapper;
import com.doudou.req.UserListQueryDTO;
import com.doudou.service.TMsUserService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * <p>
 * 服务实现类
 * </p>

 */
@Service
public class TMsUserServiceImpl extends ServiceImpl<TMsUserMapper, TMsUser> implements TMsUserService {

    @Autowired
    private TMsUserMapper userMapper;

    /**
     * 分页条件查询
     *
     * @param dto
     * @return
     */
    @Override
    public Object getList(UserListQueryDTO dto) {
        //创建page对象
        Page<TMsUser> userPage = new Page<>(dto.getPageIndex(),dto.getPageSize());

        //构建条件
        QueryWrapper<TMsUser> wrapper = new QueryWrapper<>();

        //获取传入讲师的条件是否为空
        String name = dto.getNickName();
        Integer age = dto.getAge();

        //多条件组合查询
        //判断条件值是否为空,如果不为空拼接条件
        if (!StringUtils.isEmpty(name)) {
            //构建条件 模糊查询
            wrapper.like("nick_name", name);
        }

        if (null != age) {
            //等于
            wrapper.eq("age", age);
            //大于等于
            //wrapper.ge("age",age);
            //小于等于
            //wrapper.le("age",age);
        }

        //调用mybatis plus分页方法进行查询
        userMapper.selectPage(userPage, wrapper);

        //通过Page对象获取分页信息
        //long current = page.getCurrent();//当前页
        List<TMsUser> records = userPage.getRecords(); //每页的数据 list集合
        //long size = eduTeacherPage.getSize(); //每页显示的条数
        long total = userPage.getTotal(); //总记录数
        long pages = userPage.getPages(); //总页数
        boolean pagehasNext = userPage.hasNext(); //下一页
        boolean pagehasPrevious = userPage.hasPrevious(); //上一页
        return userPage;
    }
}

3.测试

3.1 请求接口

localhost:7010/user_one/tMsUser/getList

3.2 请求参数

{
    "nickName":"HC",
    "age":29,
    "pageIndex":1,
    "pageSize":12
}

3.3请求返回

本地控制台输出 aop 请求切面log
mysql执行sql语句输出

2021-08-05 17:48:48.222  INFO 43324 --- [nio-7010-exec-1] com.doudou.config.WebLogAspectConfig     : 请求开始时间：2021-08-05T17:48:48.222
2021-08-05 17:48:48.223  INFO 43324 --- [nio-7010-exec-1] com.doudou.config.WebLogAspectConfig     : 请求Url : http://localhost:7010/user_one/tMsUser/getList
2021-08-05 17:48:48.223  INFO 43324 --- [nio-7010-exec-1] com.doudou.config.WebLogAspectConfig     : 请求方式 : POST
2021-08-05 17:48:48.223  INFO 43324 --- [nio-7010-exec-1] com.doudou.config.WebLogAspectConfig     : 请求ip : 0:0:0:0:0:0:0:1
2021-08-05 17:48:48.224  INFO 43324 --- [nio-7010-exec-1] com.doudou.config.WebLogAspectConfig     : 请求方法 : com.doudou.controller.TMsUserController.getList
2021-08-05 17:48:48.224  INFO 43324 --- [nio-7010-exec-1] com.doudou.config.WebLogAspectConfig     : 请求参数 : [UserListQueryDTO(nickName=HC, password=null, mobile=null, email=null, address=null, accountStatus=null, registerTime=null, signature=null, profilePicUrl=null, sex=null, phone=null, age=29)]
2021-08-05 17:48:48.359  INFO 43324 --- [nio-7010-exec-1] com.zaxxer.hikari.HikariDataSource       : DatebookHikariCP - Starting...
 Consume Time：30 ms 2021-08-05 17:48:49
 Execute SQL：SELECT 1

2021-08-05 17:48:49.294  INFO 43324 --- [nio-7010-exec-1] com.zaxxer.hikari.HikariDataSource       : DatebookHikariCP - Start completed.
 Consume Time：23 ms 2021-08-05 17:48:49
 Execute SQL：SELECT COUNT(*) FROM t_ms_user WHERE (nick_name LIKE '%HC%' AND age = 29)

 Consume Time：23 ms 2021-08-05 17:48:49
 Execute SQL：SELECT id,nick_name,password,mobile,email,address,account_status,register_time,signature,profile_pic_url,sex,phone,age FROM t_ms_user WHERE (nick_name LIKE '%HC%' AND age = 29) LIMIT 12

2021-08-05 17:48:49.373  INFO 43324 --- [nio-7010-exec-1] com.doudou.config.WebLogAspectConfig     : 请求结束时间：2021-08-05T17:48:49.373
2021-08-05 17:48:49.373  INFO 43324 --- [nio-7010-exec-1] com.doudou.config.WebLogAspectConfig     : 请求耗时：1154
2021-08-05 17:48:49.373  INFO 43324 --- [nio-7010-exec-1] com.doudou.config.WebLogAspectConfig     : 请求返回 : com.baomidou.mybatisplus.extension.plugins.pagination.Page@66d34d07

返回body：

{
    "records": [
        {
            "id": 1,
            "nickName": "HC",
            "password": "123456",
            "mobile": "18062731207",
            "email": "4649@qq.com",
            "address": null,
            "accountStatus": 0,
            "registerTime": "2021-07-22T14:16:20",
            "signature": null,
            "profilePicUrl": null,
            "sex": null,
            "phone": null,
            "age": 29
        }
    ],
    "total": 1,
    "size": 12,
    "current": 1,
    "orders": [],
    "optimizeCountSql": true,
    "searchCount": true,
    "countId": null,
    "maxLimit": null,
    "pages": 1
}
