1、查询指定ID下所有的子节点（从顶层到底层--多层结构）

id为0 查询所有节点

import java.util.List;

/**

 */
public class TreeVO {

	private Integer id;
	private String name;
	private Integer pid;
	private List<TreeVO> list;

	public Integer getId() {
		return id;
	}

	public void setId(Integer id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public Integer getPid() {
		return pid;
	}

	public void setPid(Integer pid) {
		this.pid = pid;
	}

	public List<TreeVO> getList() {
		return list;
	}

	public void setList(List<TreeVO> list) {
		this.list = list;
	}

}



<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.manage.bussiness.mapper.TreeVOMapper">


	<resultMap id="treeVoMap" type="com.manage.bussiness.domain.TreeVO">
		<id column="id" property="id" jdbcType="INTEGER" />
		<result column="name" property="name" jdbcType="VARCHAR" />
		<result column="pid" property="pid" jdbcType="INTEGER" />
		<collection property="list" ofType="com.manage.bussiness.domain.TreeVO"
			column="id" select="findTreeByPid"/>
	</resultMap>

	<!--级联查询父菜单-->
    <select id="selectAllTree" resultMap="treeVoMap" >
         select * from t_tree where pid = 0
    </select>

    <!--级联查询子菜单-->
    <select id="findTreeByPid" resultMap="treeVoMap" >
         select * from t_tree where pid = #{id}
    </select>



</mapper>

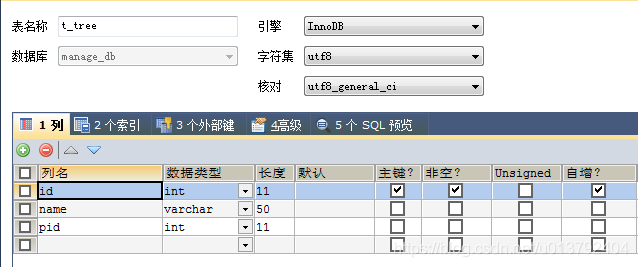

数据库数据结构如下：

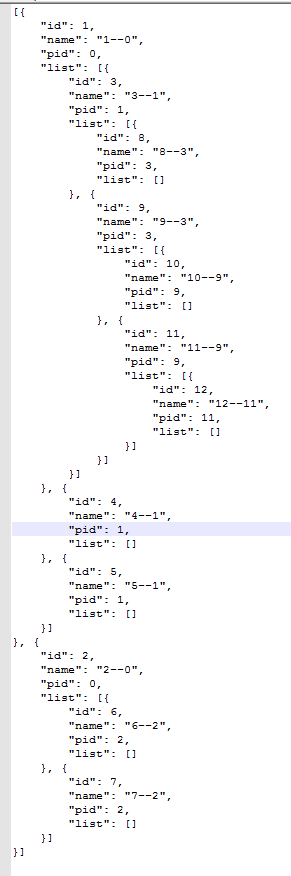

查询出来后，json格式化：

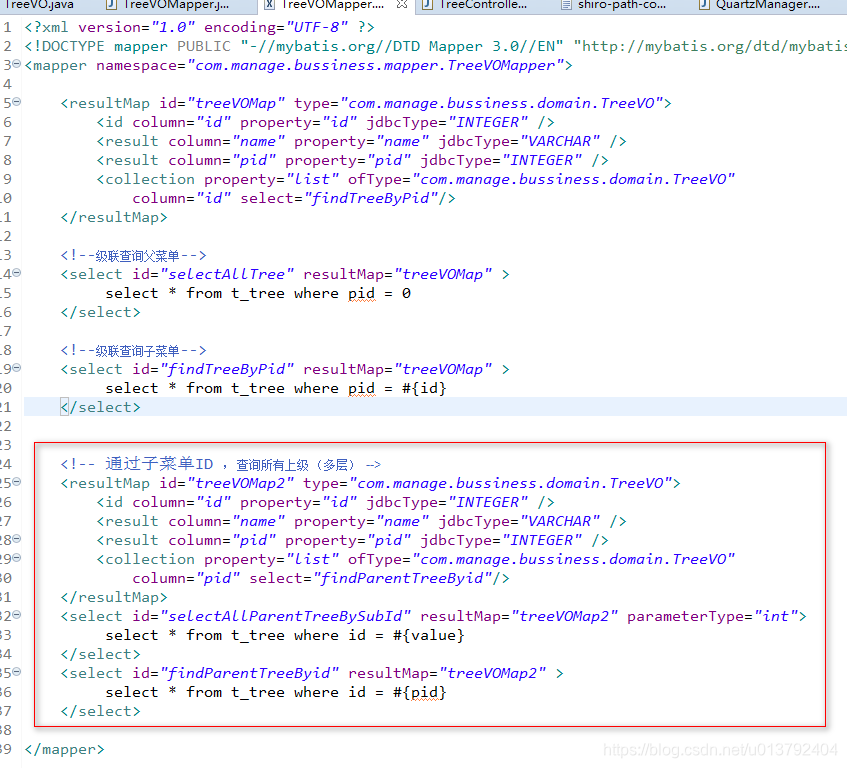

2、根据指定ID 查询其所有父级（从底层到顶层--多层结构）

import java.util.List;

/**

 */
public class TreeVO {

	private Integer id;
	private String name;
	private Integer pid;
	private List<TreeVO> list;

	public Integer getId() {
		return id;
	}

	public void setId(Integer id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public Integer getPid() {
		return pid;
	}

	public void setPid(Integer pid) {
		this.pid = pid;
	}

	public List<TreeVO> getList() {
		return list;
	}

	public void setList(List<TreeVO> list) {
		this.list = list;
	}

}





@Mapper
public interface TreeVOMapper {


	List<TreeVO> selectAllTree() ;

	List<TreeVO> selectAllParentTreeBySubId(Integer id) ;

}

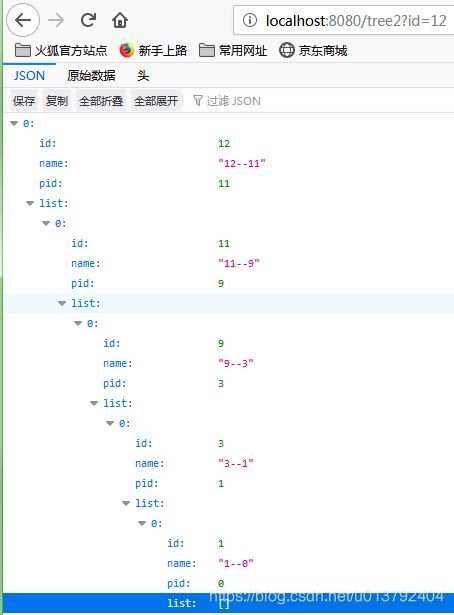

http://localhost:8080/tree2?id=12
