1、背景介绍

ZYNQ在PS部分有两路I2C，但有时候存在不够用的情况，这时就需要使用PL部分的I2C IP核（以下简称AXI I2C）。关于该IP核的信息可以参考XILINX官方的datasheet，不过在使用AXI I2C时需要进行修改才能够正确进行收发数。

2、硬件配置

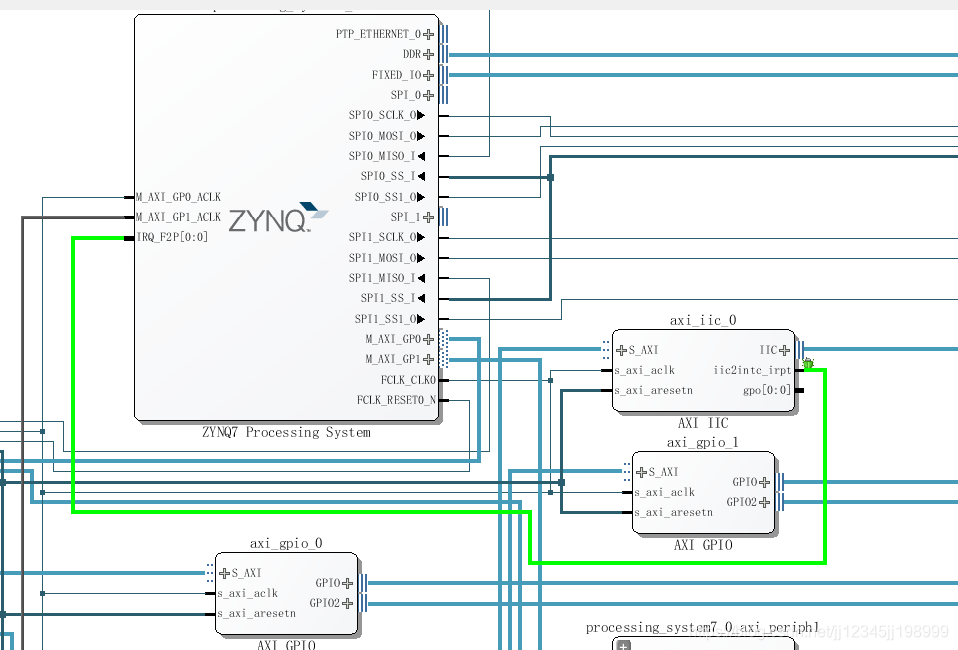

如下图所示，需要在PL部分添加AXI I2C，注意这里直接把中断信号连入ZYNQ PS部分的IRQ

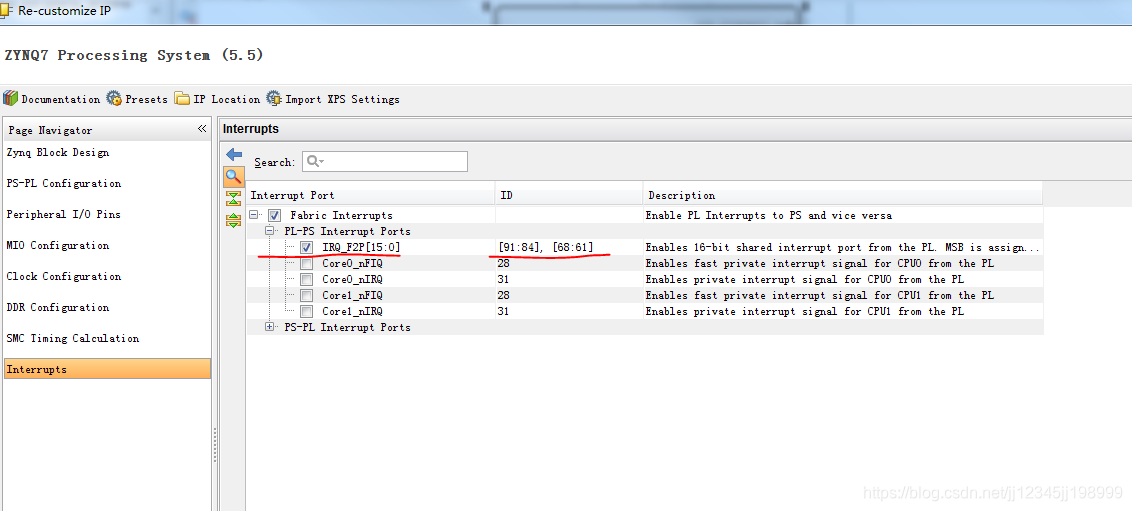

在ZYNQ PS中启用PL-PS中断

由于AXI I2C中断只有一种类型，所以这里启用的中断ID为61，即61号中断，后面会用到。

3、master端代码

在xilinx sdk中提供的axi i2c master示例代码使用了PL部分的INTC IP核，这与硬件设计不符，所以需要对示例代码进行改动才能正常工作。

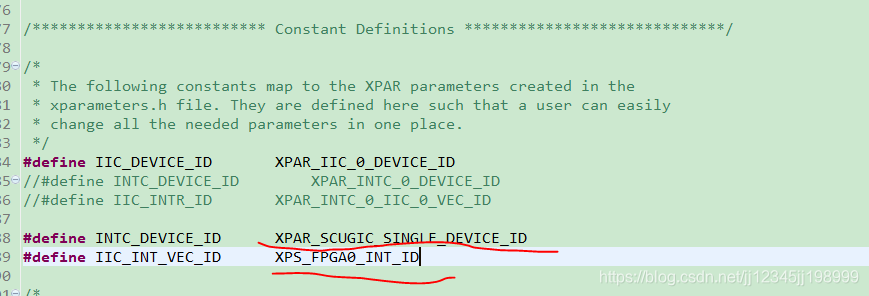

首先是修改中断部分，修改为使用PS部分的GIC中断，如下图

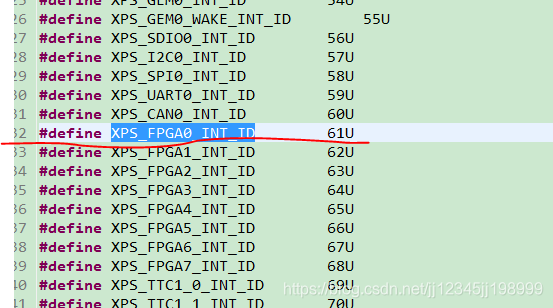

IIC_INT_VEC_ID这里指定的是FPGA0_INT_ID，其实就是61，如下图，这样就把中断引脚配置了。

然后就需要对中断进行初始化，具体参考master端发送代码。这里是基于xiic_repeated_start_example这个例子改动的。

/******************************************************************************
*
* Copyright (C) 2006 - 2014 Xilinx, Inc.  All rights reserved.
*
* Permission is hereby granted, free of charge, to any person obtaining a copy
* of this software and associated documentation files (the "Software"), to deal
* in the Software without restriction, including without limitation the rights
* to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
* copies of the Software, and to permit persons to whom the Software is
* furnished to do so, subject to the following conditions:
*
* The above copyright notice and this permission notice shall be included in
* all copies or substantial portions of the Software.
*
* Use of the Software is limited solely to applications:
* (a) running on a Xilinx device, or
* (b) that interact with a Xilinx device through a bus or interconnect.
*
* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
* IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
* FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL
* XILINX  BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
* WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF
* OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
* SOFTWARE.
*
* Except as contained in this notice, the name of the Xilinx shall not be used
* in advertising or otherwise to promote the sale, use or other dealings in
* this Software without prior written authorization from Xilinx.
*
******************************************************************************/
/*****************************************************************************/
/**
* @file xiic_repeated_start_example.c
*
* This file consists of a interrupt mode design example to demonstrate the use
* of repeated start using the XIic driver.
*
* The XIic_MasterSend() API is used to transmit the data and XIic_MasterRecv()
* API is used to receive the data.
*
* The IIC devices that are present on the Xilinx boards donot support the
* repeated start option. These examples have been tested with an IIC
* device external to the boards.
*
* This code assumes that no Operating System is being used.
*
* @note
*
* None.
*
* <pre>
* MODIFICATION HISTORY:
*
* Ver   Who  Date	 Changes
* ----- ---- -------- -----------------------------------------------
* 1.00a mta  02/20/06 Created.
* 2.00a sdm  09/22/09 Updated to use the HAL APIs, replaced call to
*		      XIic_Initialize API with XIic_LookupConfig and
*		      XIic_CfgInitialize. Updated the example with a
*	              fix for CR539763 where XIic_Start was being called
*	              instead of XIic_Stop. Added code for setting up the
*	              StatusHandler callback.
*
* </pre>
*
******************************************************************************/

/***************************** Include Files *********************************/

#include "xparameters.h"
#include "xiic.h"
#include "xintc.h"
#include "xil_exception.h"
#include "xscugic.h"

/************************** Constant Definitions *****************************/

/*
 * The following constants map to the XPAR parameters created in the
 * xparameters.h file. They are defined here such that a user can easily
 * change all the needed parameters in one place.
 */
#define IIC_DEVICE_ID		XPAR_IIC_0_DEVICE_ID
//#define INTC_DEVICE_ID		XPAR_INTC_0_DEVICE_ID
//#define IIC_INTR_ID		XPAR_INTC_0_IIC_0_VEC_ID

#define INTC_DEVICE_ID		XPAR_SCUGIC_SINGLE_DEVICE_ID
#define IIC_INT_VEC_ID		XPS_FPGA0_INT_ID

/*
 * The following constant defines the address of the IIC
 * device on the IIC bus. Note that since the address is only 7 bits, this
 * constant is the address divided by 2.
 */
#define SLAVE_ADDRESS	0x50	/* 0xE0 as an 8 bit number. */

#define SEND_COUNT	25
#define RECEIVE_COUNT   25

/**************************** Type Definitions *******************************/

/***************** Macros (Inline Functions) Definitions *********************/

/************************** Function Prototypes ******************************/

int IicRepeatedStartExample();
static int WriteData(u16 ByteCount);
static int ReadData(u8 *BufferPtr, u16 ByteCount);
static int SetupInterruptSystem(XIic *IicInstPtr);
static void SendHandler(XIic *InstancePtr);
static void ReceiveHandler(XIic *InstancePtr);
static void StatusHandler(XIic *InstancePtr, int Event);

/************************** Variable Definitions *****************************/

XIic IicInstance;
XScuGic InterruptController;

u8 WriteBuffer[SEND_COUNT];	/* Write buffer for writing a page. */
u8 ReadBuffer[RECEIVE_COUNT];	/* Read buffer for reading a page. */

volatile u8 TransmitComplete;
volatile u8 ReceiveComplete;

/************************** Function Definitions *****************************/

/*****************************************************************************/
/**
* Main function to call the Repeated Start example.
*
* @param	None.
*
* @return	XST_SUCCESS if successful else XST_FAILURE.
*
* @note		None.
*
******************************************************************************/
int main(void)
{
	int Status;

	/*
	 * Run the Repeated Start example.
	 */
	Status = IicRepeatedStartExample();
	if (Status != XST_SUCCESS) {

		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

/*****************************************************************************/
/**
* This function writes and reads the data to the IIC Slave.
*
* @param	None.
*
* @return	XST_SUCCESS if successful else XST_FAILURE.
*
* @note		None.
*
******************************************************************************/
int IicRepeatedStartExample(void)
{
	u8 Index;
	int Status;
	XIic_Config *ConfigPtr;	/* Pointer to configuration data */

	/*
	 * Initialize the data to write and the read buffer.
	 */
	for (Index = 0; Index < SEND_COUNT; Index++) {
		WriteBuffer[Index] = Index;
		ReadBuffer[Index] = 0;
	}

	/*
	 * Initialize the IIC driver so that it is ready to use.
	 */
	ConfigPtr = XIic_LookupConfig(XPAR_IIC_0_DEVICE_ID);
	if (ConfigPtr == NULL) {
		return XST_FAILURE;
	}

	Status = XIic_CfgInitialize(&IicInstance, ConfigPtr,
					ConfigPtr->BaseAddress);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Setup the Interrupt System.
	 */
	Status = SetupInterruptSystem(&IicInstance);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Set the Transmit, Receive and Status handlers.
	 */
	XIic_SetSendHandler(&IicInstance, &IicInstance,
				(XIic_Handler) SendHandler);
	XIic_SetRecvHandler(&IicInstance, &IicInstance,
				(XIic_Handler) ReceiveHandler);
	XIic_SetStatusHandler(&IicInstance, &IicInstance,
				  (XIic_StatusHandler) StatusHandler);

	/*
	 * Set the Address of the Slave.
	 */
	Status = XIic_SetAddress(&IicInstance, XII_ADDR_TO_SEND_TYPE,
				 SLAVE_ADDRESS);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Write to the IIC Slave.
	 */
	while(1)
	{
		Status = WriteData(SEND_COUNT);
		delay_SL(0x11111111);
	}
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Read from the IIC Slave.
	 */
	Status = ReadData(ReadBuffer, RECEIVE_COUNT);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

void delay_SL(u32 delayCount) {
	do {
		__asm__("nop");
		delayCount--;
	} while (delayCount > 0);
}

/*****************************************************************************/
/**
* This function writes a buffer of data to IIC Slave.
*
* @param	ByteCount contains the number of bytes in the buffer to be
*		written.
*
* @return	XST_SUCCESS if successful else XST_FAILURE.
*
* @note		None.
*
******************************************************************************/
static int WriteData(u16 ByteCount)
{
	int Status;
	int BusBusy;

	/*
	 * Set the defaults.
	 */
	TransmitComplete = 1;

	/*
	 * Start the IIC device.
	 */
	Status = XIic_Start(&IicInstance);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Set the Repeated Start option.
	 */
	IicInstance.Options = XII_REPEATED_START_OPTION;

	/*
	 * Send the data.
	 */
	Status = XIic_MasterSend(&IicInstance, WriteBuffer, ByteCount);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	xil_printf("i2c master send begin \r\n");

//	delay_SL(0x11111111);
	/*
	 * Wait till data is transmitted.
	 */
	while (TransmitComplete) {

	}

	xil_printf("i2c master TransmitComplete end \r\n");

	/*
	 * This is for verification that Bus is not released and still Busy.
	 */
	BusBusy = XIic_IsIicBusy(&IicInstance);

	TransmitComplete = 1;
	IicInstance.Options = 0x0;

	/*
	 * Send the Data.
	 */
	Status = XIic_MasterSend(&IicInstance, WriteBuffer, ByteCount);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	xil_printf("i2c master second send begin \r\n");

//	delay_SL(0x11111111);
	/*
	 * Wait till data is transmitted.
	 */
	while ((TransmitComplete) || (XIic_IsIicBusy(&IicInstance) == TRUE)) {

	}

	xil_printf("i2c master second TransmitComplete end \r\n");
	/*
	 * Stop the IIC device.
	 */
	Status = XIic_Stop(&IicInstance);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

/*****************************************************************************/
/**
* This function reads a data from the IIC Slave into a specified buffer.
*
* @param	BufferPtr contains the address of the data buffer to be filled.
* @param	ByteCount contains the number of bytes to be read.
*
* @return	XST_SUCCESS if successful else XST_FAILURE.
*
* @note		None.
*
******************************************************************************/
static int ReadData(u8 *BufferPtr, u16 ByteCount)
{
	int Status;
	int BusBusy;

	/*
	 * Set the defaults.
	 */
	ReceiveComplete = 1;

	/*
	 * Start the IIC device.
	 */
	Status = XIic_Start(&IicInstance);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Set the Repeated Start option.
	 */
	IicInstance.Options = XII_REPEATED_START_OPTION;

	/*
	 * Receive the data.
	 */
	Status = XIic_MasterRecv(&IicInstance, BufferPtr, ByteCount);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Wait till all the data is received.
	 */
	while (ReceiveComplete) {

	}

	/*
	 * This is for verification that Bus is not released and still Busy.
	 */
	BusBusy = XIic_IsIicBusy(&IicInstance);

	ReceiveComplete = 1;
	IicInstance.Options = 0x0;

	/*
	 * Receive the Data.
	 */
	Status = XIic_MasterRecv(&IicInstance, BufferPtr, ByteCount);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Wait till all the data is received.
	 */
	while ((ReceiveComplete) || (XIic_IsIicBusy(&IicInstance) == TRUE)) {

	}

	/*
	 * Stop the IIC device.
	 */
	Status = XIic_Stop(&IicInstance);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

/*****************************************************************************/
/**
* This function setups the interrupt system so interrupts can occur for the
* IIC. The function is application-specific since the actual system may or
* may not have an interrupt controller. The IIC device could be directly
* connected to a processor without an interrupt controller. The user should
* modify this function to fit the application.
*
* @param	IicInstPtr contains a pointer to the instance of the IIC  which
*		is going to be connected to the interrupt controller.
*
* @return	XST_SUCCESS if successful else XST_FAILURE.
*
* @note		None.
*
******************************************************************************/
static int SetupInterruptSystem(XIic *IicInstPtr)
{

#if 0
	int Status;

	if (InterruptController.IsStarted == XIL_COMPONENT_IS_STARTED) {
		return XST_SUCCESS;
	}

	/*
	 * Initialize the interrupt controller driver so that it's ready to use.
	 */
	Status = XIntc_Initialize(&InterruptController, INTC_DEVICE_ID);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Connect the device driver handler that will be called when an
	 * interrupt for the device occurs, the handler defined above performs
	 *  the specific interrupt processing for the device.
	 */
	Status = XIntc_Connect(&InterruptController, IIC_INTR_ID,
				   (XInterruptHandler) XIic_InterruptHandler,
				   IicInstPtr);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Start the interrupt controller so interrupts are enabled for all
	 * devices that cause interrupts.
	 */
	Status = XIntc_Start(&InterruptController, XIN_REAL_MODE);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Enable the interrupts for the IIC device.
	 */
	XIntc_Enable(&InterruptController, IIC_INTR_ID);

	/*
	 * Initialize the exception table.
	 */
	Xil_ExceptionInit();

	/*
	 * Register the interrupt controller handler with the exception table.
	 */
	Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_INT,
				 (Xil_ExceptionHandler) XIntc_InterruptHandler,
				 &InterruptController);

	/*
	 * Enable non-critical exceptions.
	 */
	Xil_ExceptionEnable();

	return XST_SUCCESS;
#endif

	int Status;
	XScuGic_Config *IntcConfig; /* Instance of the interrupt controller */

	Xil_ExceptionInit();

	/*
	 * Initialize the interrupt controller driver so that it is ready to
	 * use.
	 */
	IntcConfig = XScuGic_LookupConfig(INTC_DEVICE_ID);
	if (NULL == IntcConfig) {
		return XST_FAILURE;
	}

	Status = XScuGic_CfgInitialize(&InterruptController, IntcConfig,
					IntcConfig->CpuBaseAddress);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}


	/*
	 * Connect the interrupt controller interrupt handler to the hardware
	 * interrupt handling logic in the processor.
	 */
	Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_IRQ_INT,
				(Xil_ExceptionHandler)XScuGic_InterruptHandler,
				&InterruptController);

	/*
	 * Connect the device driver handler that will be called when an
	 * interrupt for the device occurs, the handler defined above performs
	 * the specific interrupt processing for the device.
	 */
	Status = XScuGic_Connect(&InterruptController, IIC_INT_VEC_ID,
			(Xil_InterruptHandler)XIic_InterruptHandler,
			(void *)IicInstPtr);
	if (Status != XST_SUCCESS) {
		return Status;
	}

	/*
	 * Enable the interrupt for the Iic device.
	 */
	XScuGic_Enable(&InterruptController, IIC_INT_VEC_ID);


	/*
	 * Enable interrupts in the Processor.
	 */
	Xil_ExceptionEnable();

	return XST_SUCCESS;
}

/*****************************************************************************/
/**
* This Send handler is called asynchronously from an interrupt context and
* indicates that data in the specified buffer has been sent.
*
* @param	InstancePtr is a pointer to the IIC driver instance for which
* 		the handler is being called for.
*
* @return	None.
*
* @note		None.
*
******************************************************************************/
static void SendHandler(XIic *InstancePtr)
{
	TransmitComplete = 0;
}

/*****************************************************************************/
/**
* This Receive handler is called asynchronously from an interrupt context and
* indicates that data in the specified buffer has been Received.
*
* @param	InstancePtr is a pointer to the IIC driver instance for which
* 		the handler is being called for.
*
* @return	None.
*
* @note		None.
*
******************************************************************************/
static void ReceiveHandler(XIic *InstancePtr)
{
	ReceiveComplete = 0;
}

/*****************************************************************************/
/**
* This Status handler is called asynchronously from an interrupt
* context and indicates the events that have occurred.
*
* @param	InstancePtr is a pointer to the IIC driver instance for which
*		the handler is being called for.
* @param	Event indicates the condition that has occurred.
*
* @return	None.
*
* @note		None.
*
******************************************************************************/
static void StatusHandler(XIic *InstancePtr, int Event)
{
	TransmitComplete = 0;
}

注意master在发送时产生中断后进入的回调函数只有StatusHandler，send和receive handler其实都无法响应。

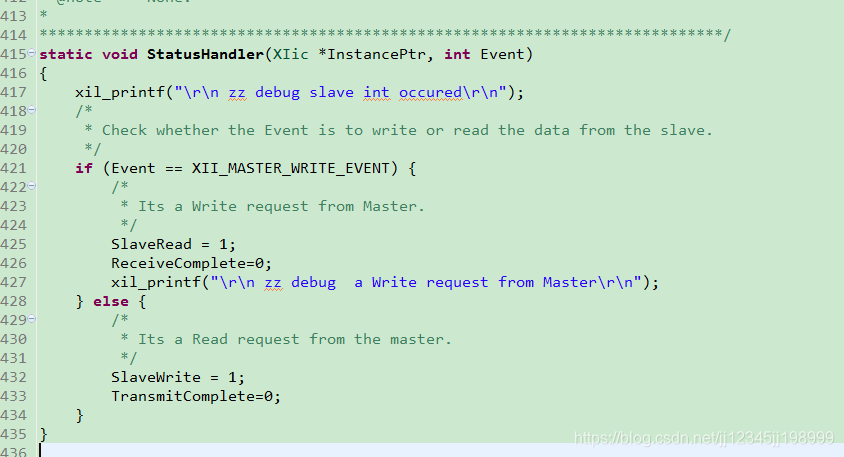

4、slave端代码

slave端和master类似，也需要修改中断处理那部分代码，其中中断处理回调函数如下：

slave端的源码如下，这里基于xiic_slave_example修改

/******************************************************************************
*
* Copyright (C) 2006 - 2014 Xilinx, Inc.  All rights reserved.
*
* Permission is hereby granted, free of charge, to any person obtaining a copy
* of this software and associated documentation files (the "Software"), to deal
* in the Software without restriction, including without limitation the rights
* to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
* copies of the Software, and to permit persons to whom the Software is
* furnished to do so, subject to the following conditions:
*
* The above copyright notice and this permission notice shall be included in
* all copies or substantial portions of the Software.
*
* Use of the Software is limited solely to applications:
* (a) running on a Xilinx device, or
* (b) that interact with a Xilinx device through a bus or interconnect.
*
* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
* IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
* FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL
* XILINX  BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
* WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF
* OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
* SOFTWARE.
*
* Except as contained in this notice, the name of the Xilinx shall not be used
* in advertising or otherwise to promote the sale, use or other dealings in
* this Software without prior written authorization from Xilinx.
*
******************************************************************************/
/*****************************************************************************/
/**
* @file xiic_slave_example.c
*
* This file consists of a Interrupt mode design example which uses the Xilinx
* IIC device and XIic driver to exercise the slave functionality of the IIC
* device.
*
* The XIic_SlaveSend() API is used to transmit the data and
* XIic_SlaveRecv() API is used to receive the data.
*
* The example is tested on ML300/ML310/ML403/ML501 Xilinx boards.
*
* The IIC devices that are present on the Xilinx boards donot support the Master
* functionality. This example has been tested with an off board external IIC
* Master device and the IIC device configured as a Slave.
*
* This code assumes that no Operating System is being used.
*
* @note
*
* None.
*
* <pre>
* MODIFICATION HISTORY:
*
* Ver   Who  Date	 Changes
* ----- ---- -------- -----------------------------------------------
* 1.00a mta  03/01/06 Created.
* 2.00a ktn  11/17/09 Updated to use the HAL APIs and replaced call to
*		      XIic_Initialize API with XIic_LookupConfig and
*		      XIic_CfgInitialize. Some of the macros have been
*		      renamed in the IIC driver and some renamed macros are
*		      used in this example.
* </pre>
*
******************************************************************************/

/***************************** Include Files *********************************/

#include "xparameters.h"
#include "xiic.h"
#include "xintc.h"
#include "xil_exception.h"
#include "xscugic.h"

/************************** Constant Definitions *****************************/

/*
 * The following constants map to the XPAR parameters created in the
 * xparameters.h file. They are defined here such that a user can easily
 * change all the needed parameters in one place.
 */
#define IIC_DEVICE_ID		XPAR_IIC_0_DEVICE_ID
//#define INTC_DEVICE_ID		XPAR_INTC_0_DEVICE_ID
//#define IIC_INTR_ID		XPAR_INTC_0_IIC_0_VEC_ID

#define INTC_DEVICE_ID		XPAR_SCUGIC_SINGLE_DEVICE_ID
#define IIC_INT_VEC_ID		XPS_FPGA0_INT_ID

/*
 * The following constant defines the address of the IIC device on the IIC bus.
 * Since the address is only 7 bits, this constant is the address divided by 2.
 */
#define SLAVE_ADDRESS		0x50	/* 0xE0 as an 8 bit number. */

#define RECEIVE_COUNT		30
#define SEND_COUNT		30


/**************************** Type Definitions *******************************/

/***************** Macros (Inline Functions) Definitions *********************/

/************************** Function Prototypes ******************************/

int IicSlaveExample();
int SlaveWriteData(u16 ByteCount);
int SlaveReadData(u8 *BufferPtr, u16 ByteCount);
static int SetupInterruptSystem(XIic * IicInstPtr);
static void StatusHandler(XIic *InstancePtr, int Event);
static void SendHandler(XIic *InstancePtr);
static void ReceiveHandler(XIic *InstancePtr);

/************************** Variable Definitions *****************************/

XIic IicInstance;		/* The instance of the IIC device. */
XScuGic InterruptController;	/* The instance of the Interrupt Controller */


u8 WriteBuffer[SEND_COUNT];	/* Write buffer for writing a page. */
u8 ReadBuffer[RECEIVE_COUNT];	/* Read buffer for reading a page. */

volatile u8 TransmitComplete;
volatile u8 ReceiveComplete;

volatile u8 SlaveRead;
volatile u8 SlaveWrite;

/************************** Function Definitions *****************************/

/*****************************************************************************/
/**
* Main function to call the IIC Slave example.
*
* @param	None.
*
* @return	XST_SUCCESS if successful else XST_FAILURE.
*
* @note		None.
*
******************************************************************************/
int main(void)
{
	int Status;

	/*
	 * Run the IIC Slave example.
	 */
	xil_printf("i2c slave example begin\n");
	Status = IicSlaveExample();
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

void delay_SL(u32 delayCount) {
	do {
		__asm__("nop");
		delayCount--;
	} while (delayCount > 0);
}
/*****************************************************************************/
/**
* This function writes and reads the data as a slave. The IIC master on the bus
* initiates the transfers.
*
* @param	None.
*
* @return	XST_SUCCESS if successful else XST_FAILURE.
*
* @note		None.
*
******************************************************************************/
int IicSlaveExample()
{
	int Status;
	u8 Index;
	XIic_Config *ConfigPtr;	/* Pointer to configuration data */


	/*
	 * Initialize the IIC driver so that it is ready to use.
	 */
	ConfigPtr = XIic_LookupConfig(IIC_DEVICE_ID);
	if (ConfigPtr == NULL) {
		return XST_FAILURE;
	}

	Status = XIic_CfgInitialize(&IicInstance, ConfigPtr,
					ConfigPtr->BaseAddress);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Setup the Interrupt System.
	 */
	Status = SetupInterruptSystem(&IicInstance);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	xil_printf("i2c slave example begin test1\r\n");
	/*
	 * Include the Slave functions.
	 */
	XIic_SlaveInclude();

	/*
	 * Set the Transmit, Receive and Status Handlers.
	 */
	XIic_SetStatusHandler(&IicInstance, &IicInstance,
				  (XIic_StatusHandler) StatusHandler);
	XIic_SetSendHandler(&IicInstance, &IicInstance,
				(XIic_Handler) SendHandler);
	XIic_SetRecvHandler(&IicInstance, &IicInstance,
				(XIic_Handler) ReceiveHandler);

//	xil_printf("i2c slave example begin test2\r\n");
	/*
	 * Set the Address as a RESPOND type.
	 */
	Status = XIic_SetAddress(&IicInstance, XII_ADDR_TO_RESPOND_TYPE,
				 SLAVE_ADDRESS);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

//	xil_printf("i2c slave example begin test3\r\n");
	/*
	 * The IIC Master on this bus should initiate the transfer
	 * and write data to the slave at this instance.
	 */
	while(1)
	{
		xil_printf("i2c slave example recv data\r\n");
		SlaveReadData(ReadBuffer, RECEIVE_COUNT);


		delay_SL(0x1fffff);

	}
		for (Index = 0; Index < SEND_COUNT; Index++) {
			WriteBuffer[Index] = Index;
		}

		xil_printf("i2c slave example write data to master\r\n");
		/*
		 * The IIC Master on this bus should initiate the transfer
		 * and read data from the slave.
		 */
		SlaveWriteData(SEND_COUNT);


	return XST_SUCCESS;
}

/*****************************************************************************/
/**
* This function reads a buffer of bytes  when the IIC Master on the bus writes
* data to the slave device.
*
* @param	BufferPtr contains the address of the data buffer to be filled.
* @param	ByteCount contains the number of bytes in the buffer to be read.
*
* @return	XST_SUCCESS if successful else XST_FAILURE.
*
* @note		None
*
******************************************************************************/
int SlaveReadData(u8 *BufferPtr, u16 ByteCount)
{
	int Status;
	int i=0;

	/*
	 * Set the defaults.
	 */
	ReceiveComplete = 1;

	/*
	 * Start the IIC device.
	 */
	//xil_printf("i2c slave example begin test4\r\n");
	Status = XIic_Start(&IicInstance);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Set the Global Interrupt Enable.
	 */
	XIic_IntrGlobalEnable(IicInstance.BaseAddress);

	//xil_printf("i2c slave example begin test5\r\n");

//	while(1)
//	{
//		XIic_SlaveRecv(&IicInstance, ReadBuffer, RECEIVE_COUNT);

		//delay_SL(0x1fffff);

//	}
	/*
	 * Wait for AAS interrupt and completion of data reception.
	 */
	while ((ReceiveComplete) || (XIic_IsIicBusy(&IicInstance) == TRUE)) {
		if (SlaveRead) {
			XIic_SlaveRecv(&IicInstance, ReadBuffer, RECEIVE_COUNT);
			SlaveRead = 0;
		}
	}

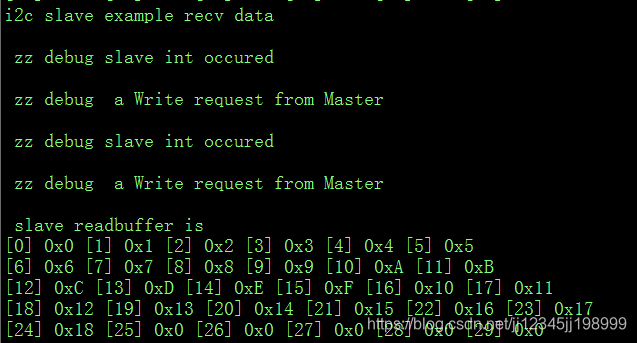

	xil_printf("\r\n slave readbuffer is \r\n");
	for(i=0;i<25;i+=6)
	{
		xil_printf("[%d] 0x%x [%d] 0x%x [%d] 0x%x [%d] 0x%x [%d] 0x%x [%d] 0x%x\r\n",i,ReadBuffer[i],i+1,ReadBuffer[i+1],i+2,ReadBuffer[i+2],i+3,ReadBuffer[i+3],i+4,ReadBuffer[i+4],i+5,ReadBuffer[i+5]);
	}
//	xil_printf("i2c slave example begin test6\r\n");
	/*
	 * Disable the Global Interrupt Enable.
	 */
	XIic_IntrGlobalDisable(IicInstance.BaseAddress);

//	xil_printf("i2c slave example begin test7\r\n");
	/*
	 * Stop the IIC device.
	 */
	Status = XIic_Stop(&IicInstance);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

/*****************************************************************************/
/**
* This function writes a buffer of bytes to the IIC bus when the IIC master
* initiates a read operation.
*
* @param	ByteCount contains the number of bytes in the buffer to be
*		written.
*
* @return	XST_SUCCESS if successful else XST_FAILURE.
*
* @note		None.
*
******************************************************************************/
int SlaveWriteData(u16 ByteCount)
{
	int Status;

	/*
	 * Set the defaults.
	 */
	TransmitComplete = 1;

	/*
	 * Start the IIC device.
	 */
	Status = XIic_Start(&IicInstance);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Set the Global Interrupt Enable.
	 */
	XIic_IntrGlobalEnable(IicInstance.BaseAddress);

	/*
	 * Wait for AAS interrupt and transmission to complete.
	 */
	while ((TransmitComplete) || (XIic_IsIicBusy(&IicInstance) == TRUE)) {
		if (SlaveWrite) {
			XIic_SlaveSend(&IicInstance, WriteBuffer, SEND_COUNT);
			SlaveWrite = 0;
		}
	}

	/*
	 * Disable the Global Interrupt Enable bit.
	 */
	XIic_IntrGlobalDisable(IicInstance.BaseAddress);

	/*
	 * Stop the IIC device.
	 */
	Status = XIic_Stop(&IicInstance);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

/****************************************************************************/
/**
* This Status handler is called asynchronously from an interrupt context and
* indicates the events that have occurred.
*
* @param	InstancePtr is not used, but contains a pointer to the IIC
* 		device driver instance which the handler is being called for.
* @param	Event indicates whether it is a request for a write or read.
*
* @return	None.
*
* @note		None.
*
****************************************************************************/
static void StatusHandler(XIic *InstancePtr, int Event)
{
	xil_printf("\r\n zz debug slave int occured\r\n");
	/*
	 * Check whether the Event is to write or read the data from the slave.
	 */
	if (Event == XII_MASTER_WRITE_EVENT) {
		/*
		 * Its a Write request from Master.
		 */
		SlaveRead = 1;
		ReceiveComplete=0;
		xil_printf("\r\n zz debug  a Write request from Master\r\n");
	} else {
		/*
		 * Its a Read request from the master.
		 */
		SlaveWrite = 1;
		TransmitComplete=0;
	}
}

/****************************************************************************/
/**
* This Send handler is called asynchronously from an interrupt
* context and indicates that data in the specified buffer has been sent.
*
* @param	InstancePtr is a pointer to the IIC driver instance for which
*		the handler is being called for.
*
* @return	None.
*
* @note		None.
*
****************************************************************************/
static void SendHandler(XIic *InstancePtr)
{
	TransmitComplete = 0;
}

/****************************************************************************/
/**
* This Receive handler is called asynchronously from an interrupt
* context and indicates that data in the specified buffer has been Received.
*
* @param	InstancePtr is a pointer to the IIC driver instance for which
* 		the handler is being called for.
*
* @return	None.
*
* @note		None.
*
****************************************************************************/
static void ReceiveHandler(XIic *InstancePtr)
{
	ReceiveComplete = 0;
}

/****************************************************************************/
/**
* This function setups the interrupt system so interrupts can occur for the
* IIC. The function is application-specific since the actual system may or
* may not have an interrupt controller. The IIC device could be directly
* connected to a processor without an interrupt controller. The user should
* modify this function to fit the application.
*
* @param	IicInstPtr contains a pointer to the instance of the IIC  which
*		is going to be connected to the interrupt controller.
*
* @return	XST_SUCCESS if successful else XST_FAILURE.
*
* @note		None.
*
****************************************************************************/
static int SetupInterruptSystem(XIic * IicInstPtr)
{
#if 0
	int Status;

	if (InterruptController.IsStarted == XIL_COMPONENT_IS_STARTED) {
		return XST_SUCCESS;
	}

	/*
	 * Initialize the interrupt controller driver so that it's ready to use.
	 */
	Status = XIntc_Initialize(&InterruptController, INTC_DEVICE_ID);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Connect the device driver handler that will be called when an
	 * interrupt for the device occurs, the handler defined above
	 * performs the specific interrupt processing for the device.
	 */
	Status = XIntc_Connect(&InterruptController, IIC_INTR_ID,
				   (XInterruptHandler) XIic_InterruptHandler,
				   IicInstPtr);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Start the interrupt controller so interrupts are enabled for all
	 * devices that cause interrupts.
	 */
	Status = XIntc_Start(&InterruptController, XIN_REAL_MODE);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}

	/*
	 * Enable the interrupts for the IIC device.
	 */
	XIntc_Enable(&InterruptController, IIC_INTR_ID);

	/*
	 * Initialize the exception table.
	 */
	Xil_ExceptionInit();

	/*
	 * Register the interrupt controller handler with the exception table.
	 */
	Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_INT,
				 (Xil_ExceptionHandler) XIntc_InterruptHandler,
				 &InterruptController);

	/*
	 * Enable non-critical exceptions.
	 */
	Xil_ExceptionEnable();


	return XST_SUCCESS;
#endif

	int Status;
	XScuGic_Config *IntcConfig; /* Instance of the interrupt controller */

	Xil_ExceptionInit();

	/*
	 * Initialize the interrupt controller driver so that it is ready to
	 * use.
	 */
	IntcConfig = XScuGic_LookupConfig(INTC_DEVICE_ID);
	if (NULL == IntcConfig) {
		return XST_FAILURE;
	}

	Status = XScuGic_CfgInitialize(&InterruptController, IntcConfig,
					IntcConfig->CpuBaseAddress);
	if (Status != XST_SUCCESS) {
		return XST_FAILURE;
	}


	/*
	 * Connect the interrupt controller interrupt handler to the hardware
	 * interrupt handling logic in the processor.
	 */
	Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_IRQ_INT,
				(Xil_ExceptionHandler)XScuGic_InterruptHandler,
				&InterruptController);

	/*
	 * Connect the device driver handler that will be called when an
	 * interrupt for the device occurs, the handler defined above performs
	 * the specific interrupt processing for the device.
	 */
	Status = XScuGic_Connect(&InterruptController, IIC_INT_VEC_ID,
			(Xil_InterruptHandler)XIic_InterruptHandler,
			(void *)IicInstPtr);
	if (Status != XST_SUCCESS) {
		return Status;
	}

	/*
	 * Enable the interrupt for the Iic device.
	 */
	XScuGic_Enable(&InterruptController, IIC_INT_VEC_ID);


	/*
	 * Enable interrupts in the Processor.
	 */
	Xil_ExceptionEnable();

	return XST_SUCCESS;
}

5、测试

最后看一下效果，两块板子，一块做master，一块做slave，slave能够正确收到递增数了。
