1.执行sql

jimureport/db at master · jeecgboot/jimureport · GitHub

2.ruoyi-framework 的pom中引入积木依赖（基于springboot3)

<!-- 积木报表 -->
        <dependency>
            <groupId>org.jeecgframework.jimureport</groupId>
            <artifactId>jimureport-spring-boot3-starter-fastjson2</artifactId>
            <version>1.9.5</version>
        </dependency>
        <!--积木BI大屏-->
        <dependency>
            <groupId>org.jeecgframework.jimureport</groupId>
            <artifactId>jimubi-spring-boot3-starter</artifactId>
            <version>1.9.5</version>
        </dependency>

3.RuoYiApplication添加积木扫描目录

@SpringBootApplication(exclude = { DataSourceAutoConfiguration.class },scanBasePackages = {"org.jeecg","com.ruoyi"})public class RuoYiApplication

4.修改ruoyi-framework模块下的SecurityConfig

           // 添加 , "/jmreport/**","/drag/**"
.requestMatchers("/swagger-ui.html", "/v3/api-docs/**", "/swagger-ui/**", "/druid/**", "/jmreport/**","/drag/**").permitAll()

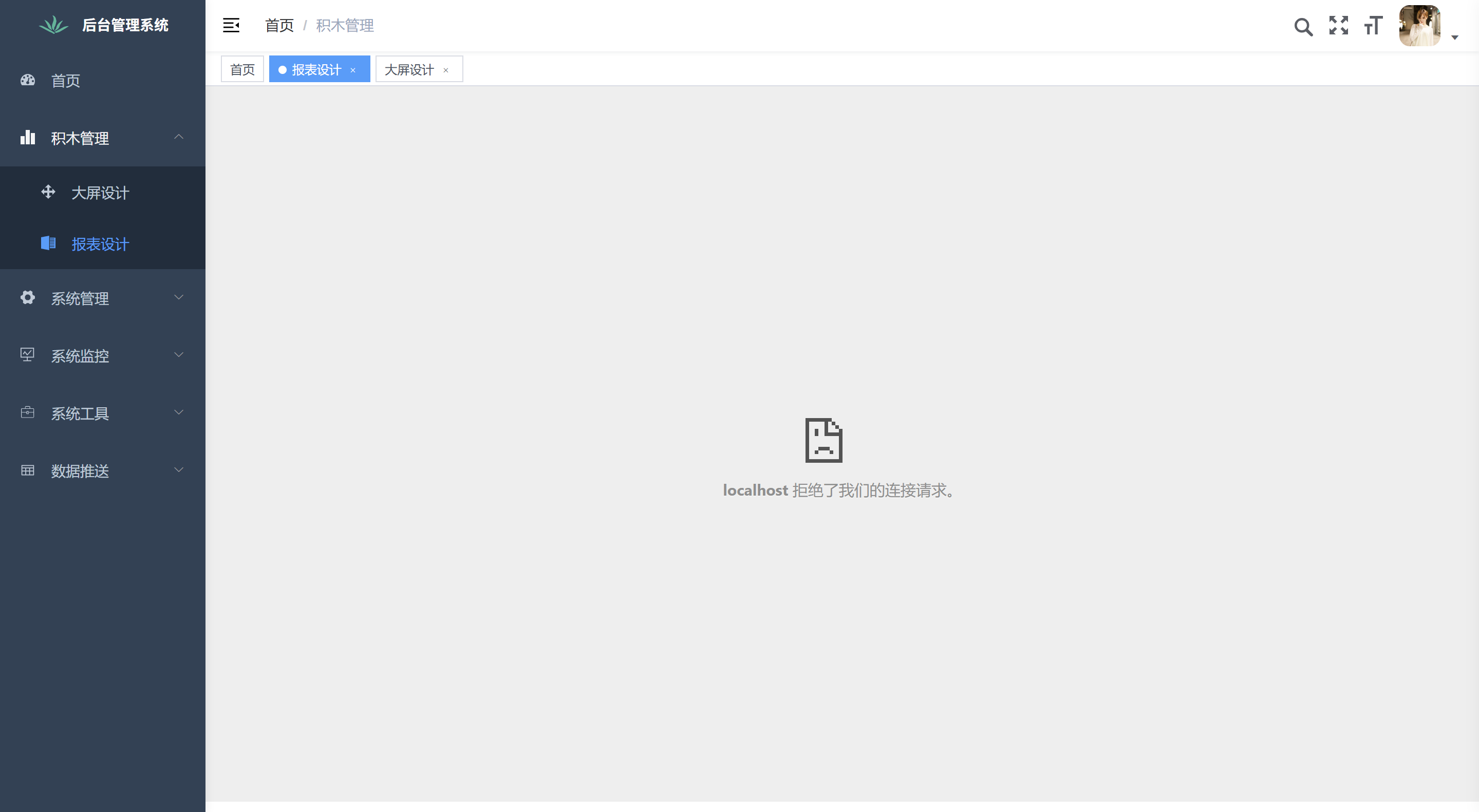

如果希望积木报表和大屏内嵌在若依，需修改如下配置，否则只能使用外链

修改修改ruoyi-framework模块下的SecurityConfig

// 禁用HTTP响应标头
            /*.headers((headersCustomizer) -> {
                headersCustomizer.cacheControl(cache -> cache.disable()).frameOptions(options -> options.sameOrigin());
            })*/
            // 禁用HTTP响应标头
            .headers((headersCustomizer) -> {
                headersCustomizer.cacheControl(cache -> cache.disable()).frameOptions(options -> options.disable());
            })

5.自动识别json对象白名单配置修改 修改ruoyi-framework模块下的Constants

    // 添加"org.jeecg.modules.drag"
public static final String[] JSON_WHITELIST_STR = { "org.springframework", "com.ruoyi", "org.jeecg.modules.drag" };

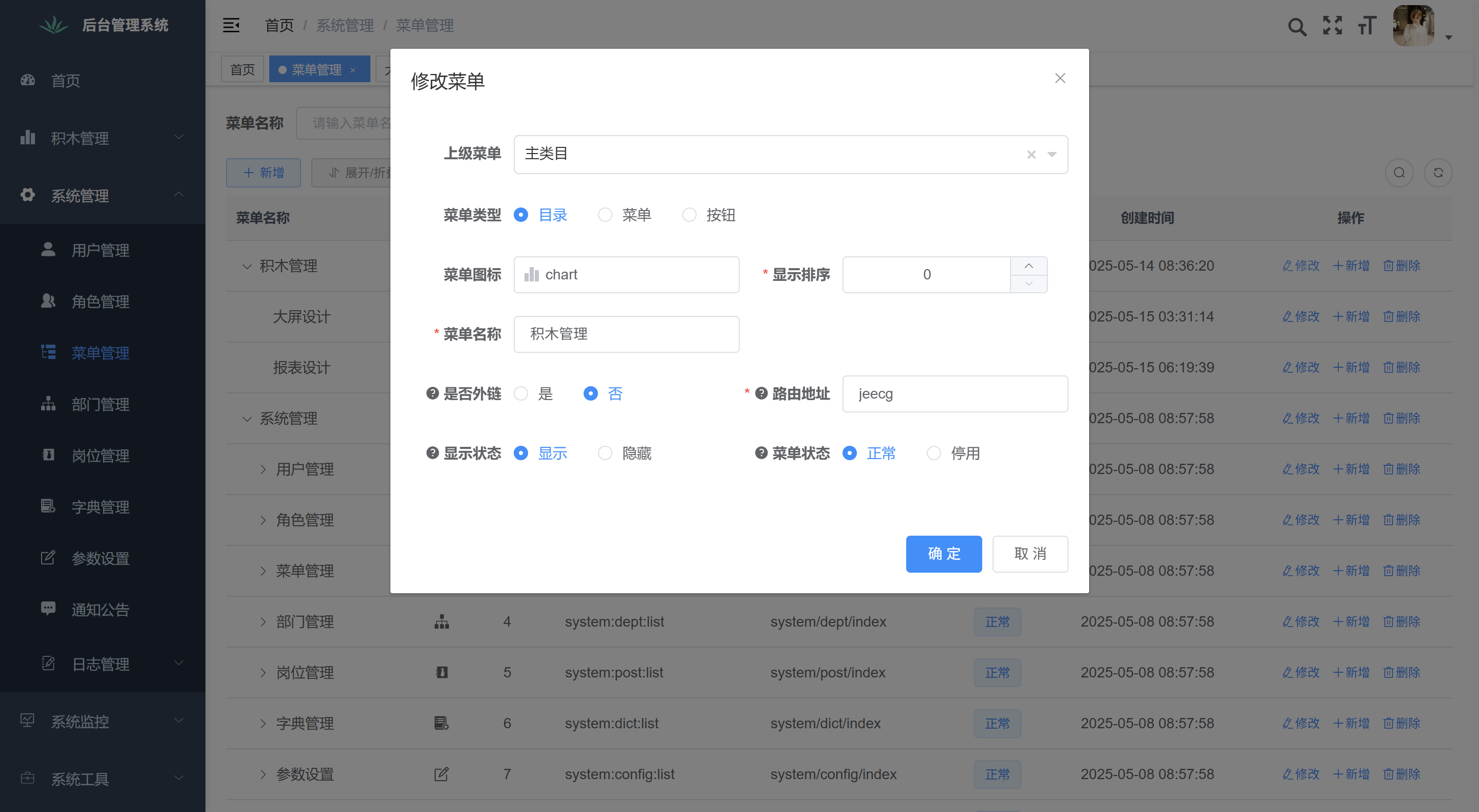

6.菜单管理设置

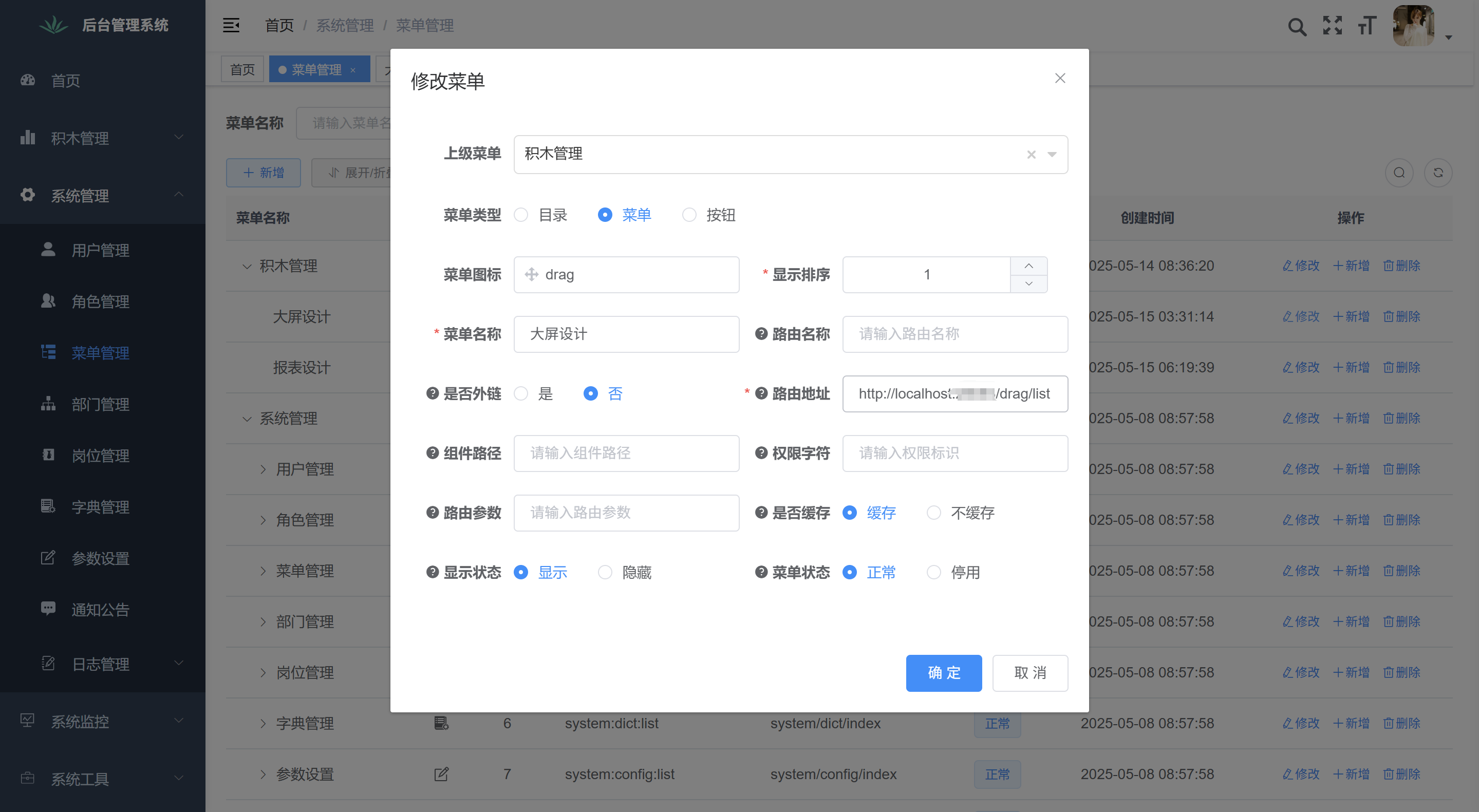

路由地址：http://IP:port/drag/list

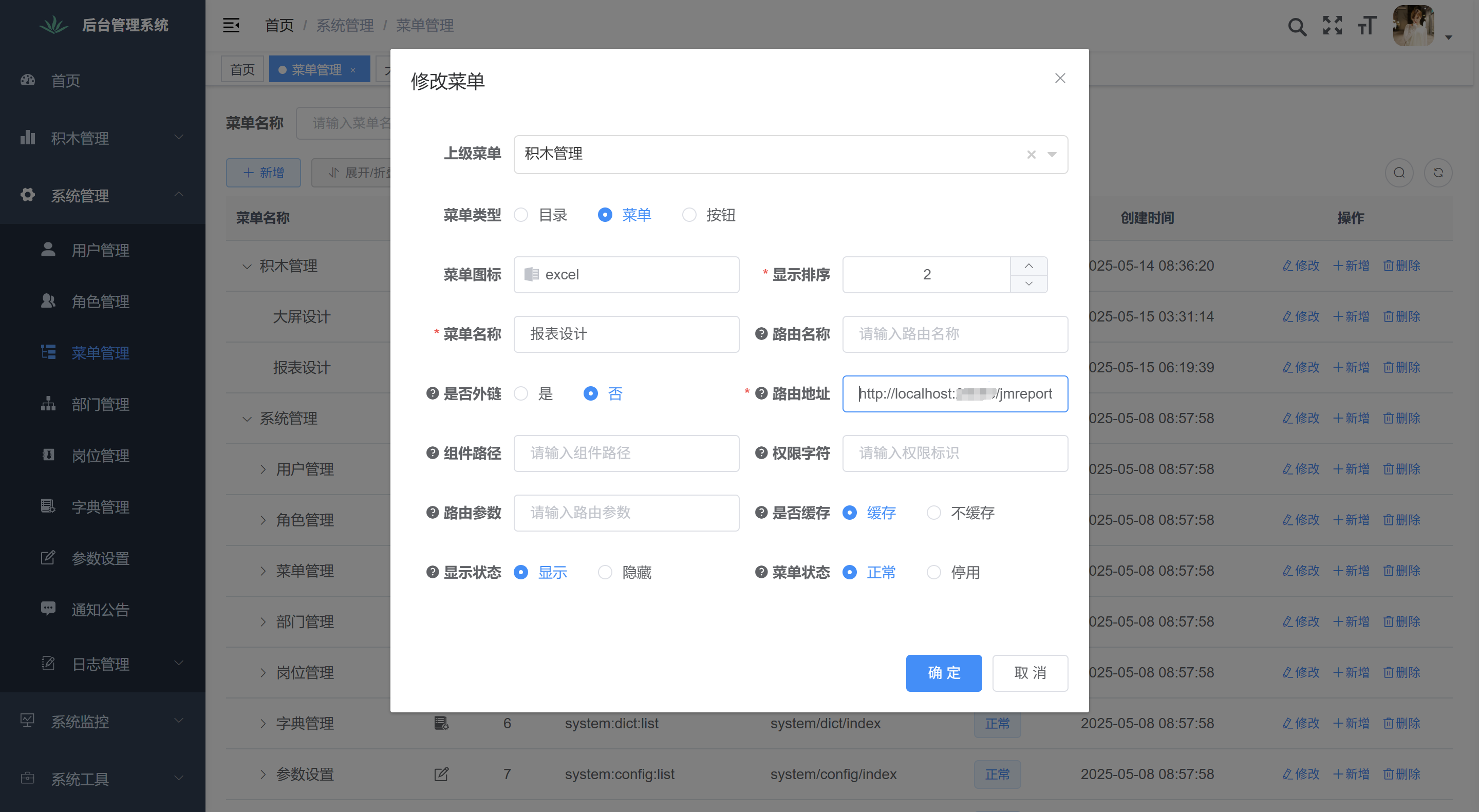

路由地址：http://IP:port/jmreport/list

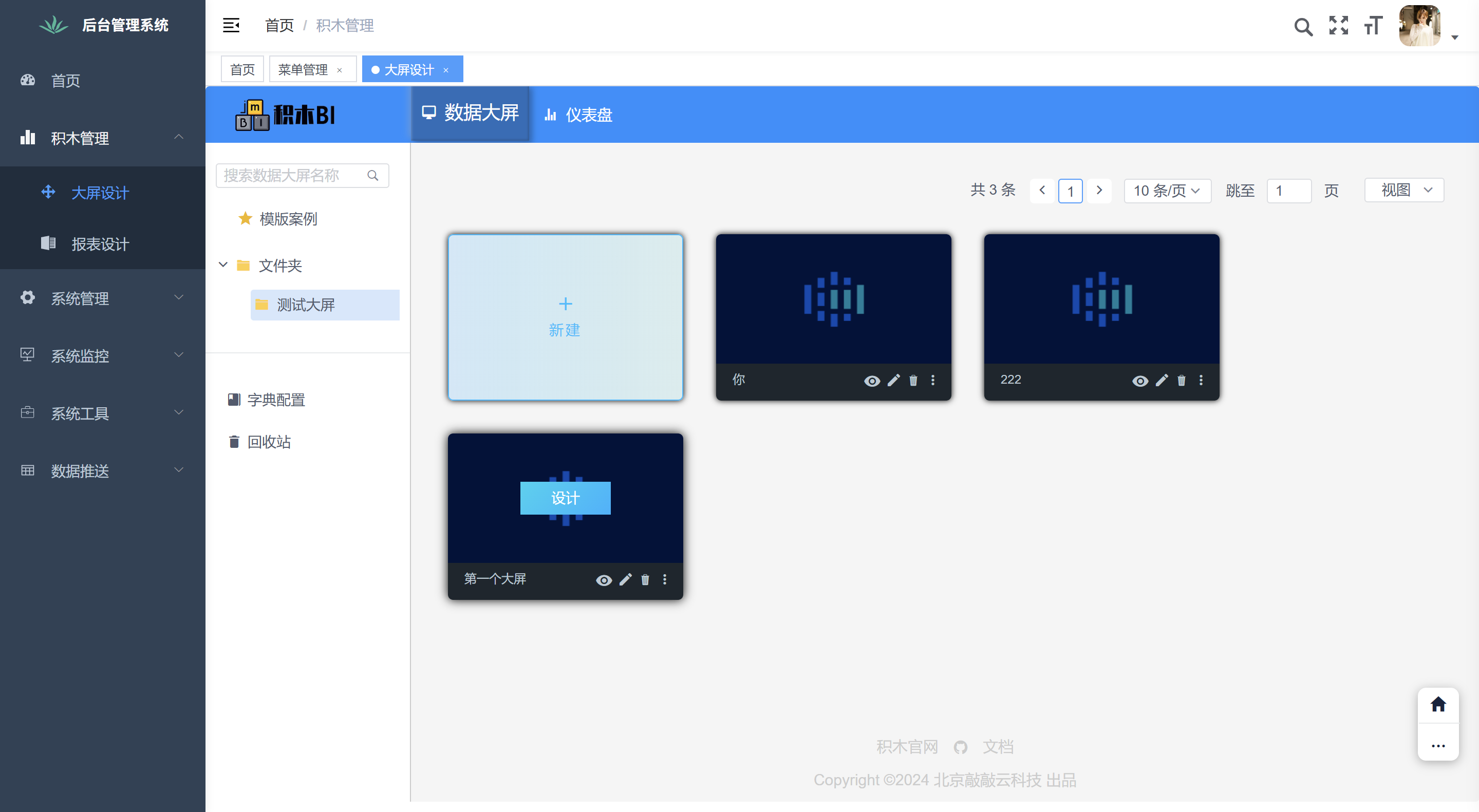

7.结果
