数字图像处理——影像融合

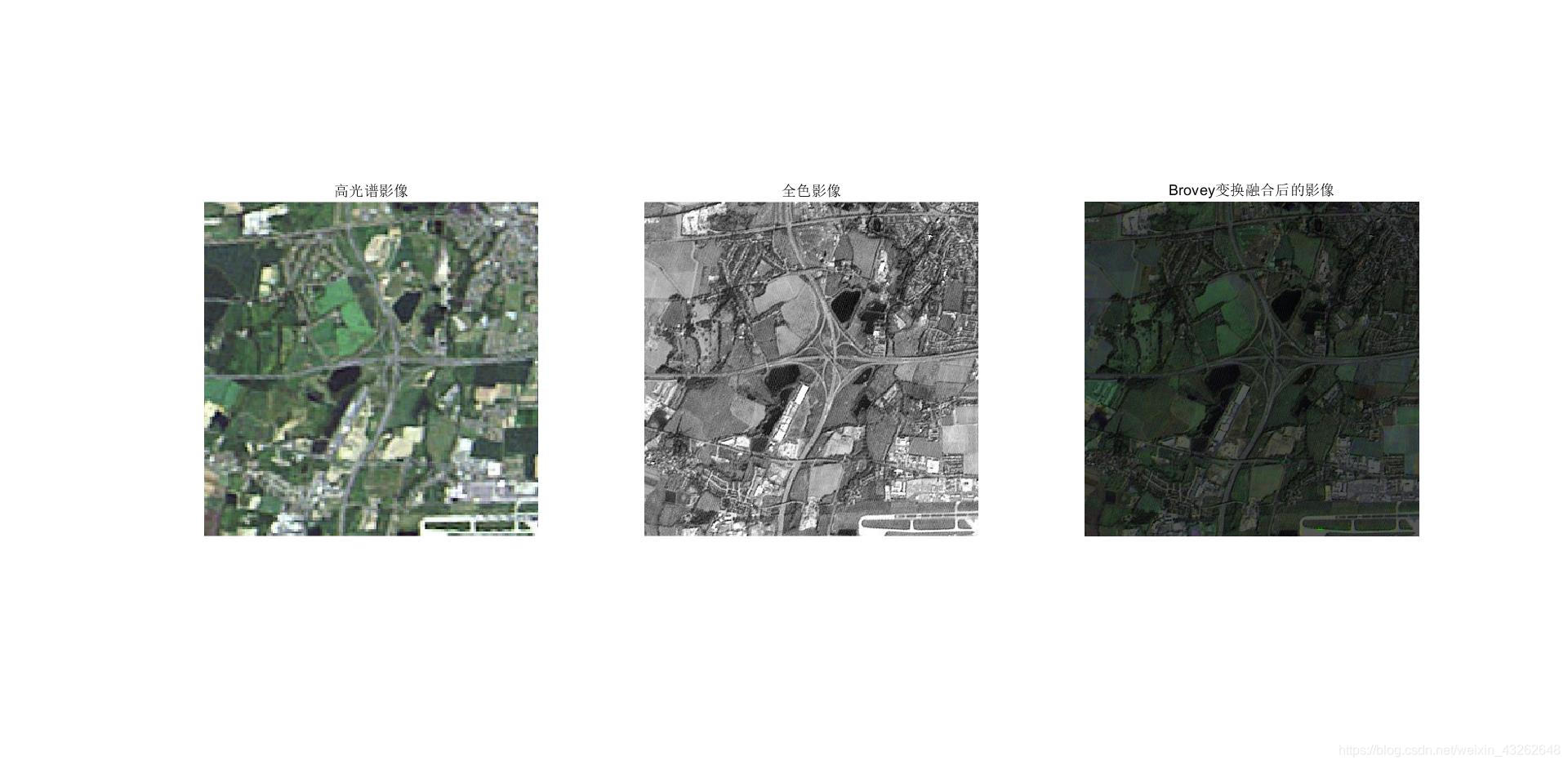

1. Brovey变换

for k = 1:bands1
    for i = 1:lines2
        for j = 1:samples2
            Image3(i,j,k) = Image2(i,j,k)*Image1(i,j,k)/sum(Image1(i,j,:));
        end
    end
end
figure(1)
subplot(1,3,1);
imshow(uint8(Image1));
title('高光谱影像');
subplot(1,3,2);
imshow(uint8(Image2));
title('全色影像');
subplot(1,3,3);
imshow(uint8(Image3));
title('Brovey变换融合后的影像');

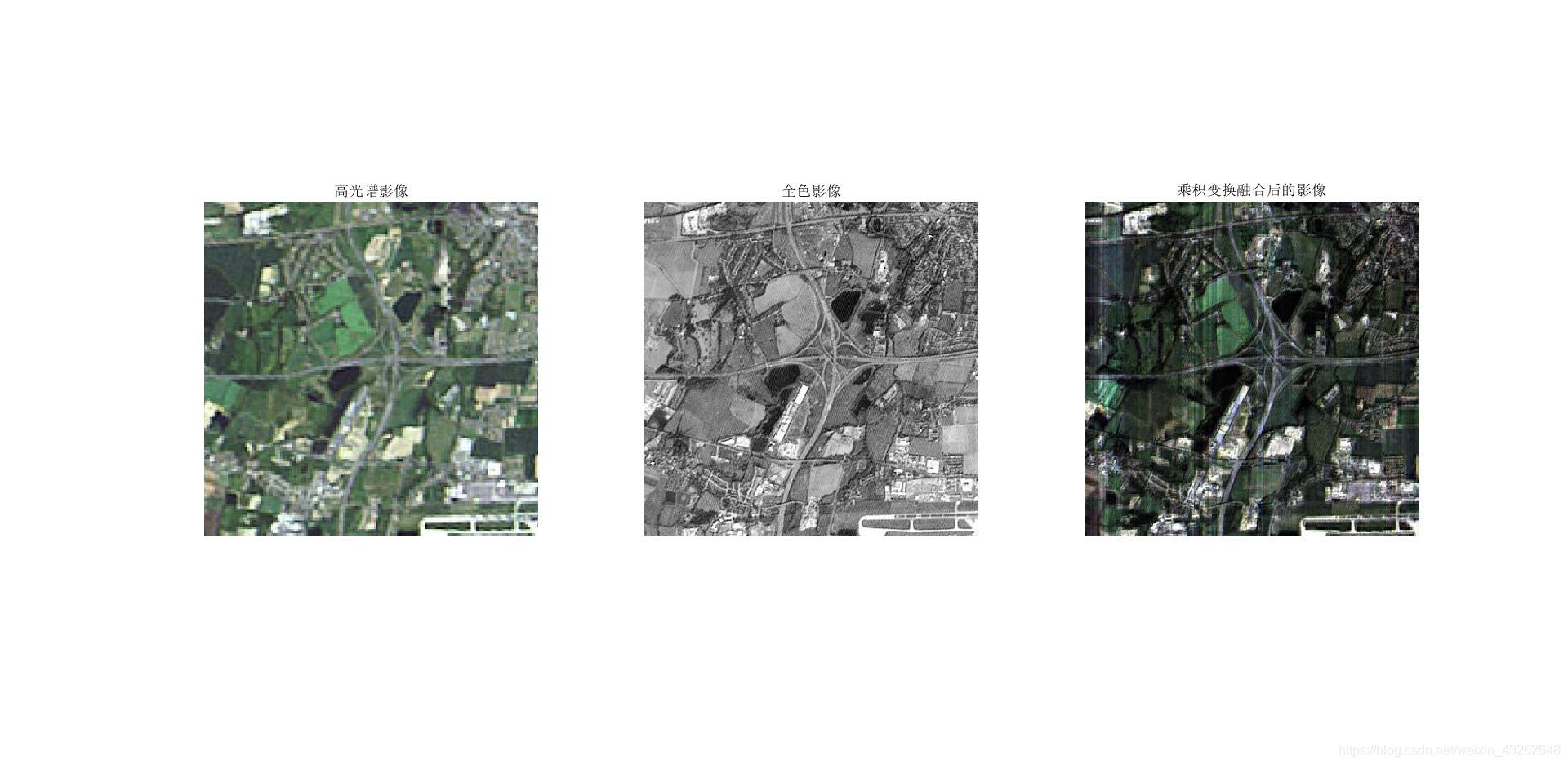

2.乘积变换

for k =1:bands1
    for i = 1:lines2
        for j = 1:samples2
            Image3(i,j,k) = Image1(i,j,k)*Image2(i,j,k);
        end
    end
end
Image3 = round((Image3 - min(Image3))*255./(max(Image3) - min(Image3)));
figure(2)
subplot(1,3,1);
imshow(uint8(Image1));
title('高光谱影像');
subplot(1,3,2);
imshow(uint8(Image2));
title('全色影像');
subplot(1,3,3);
imshow(uint8(Image3));
title('乘积变换融合后的影像');

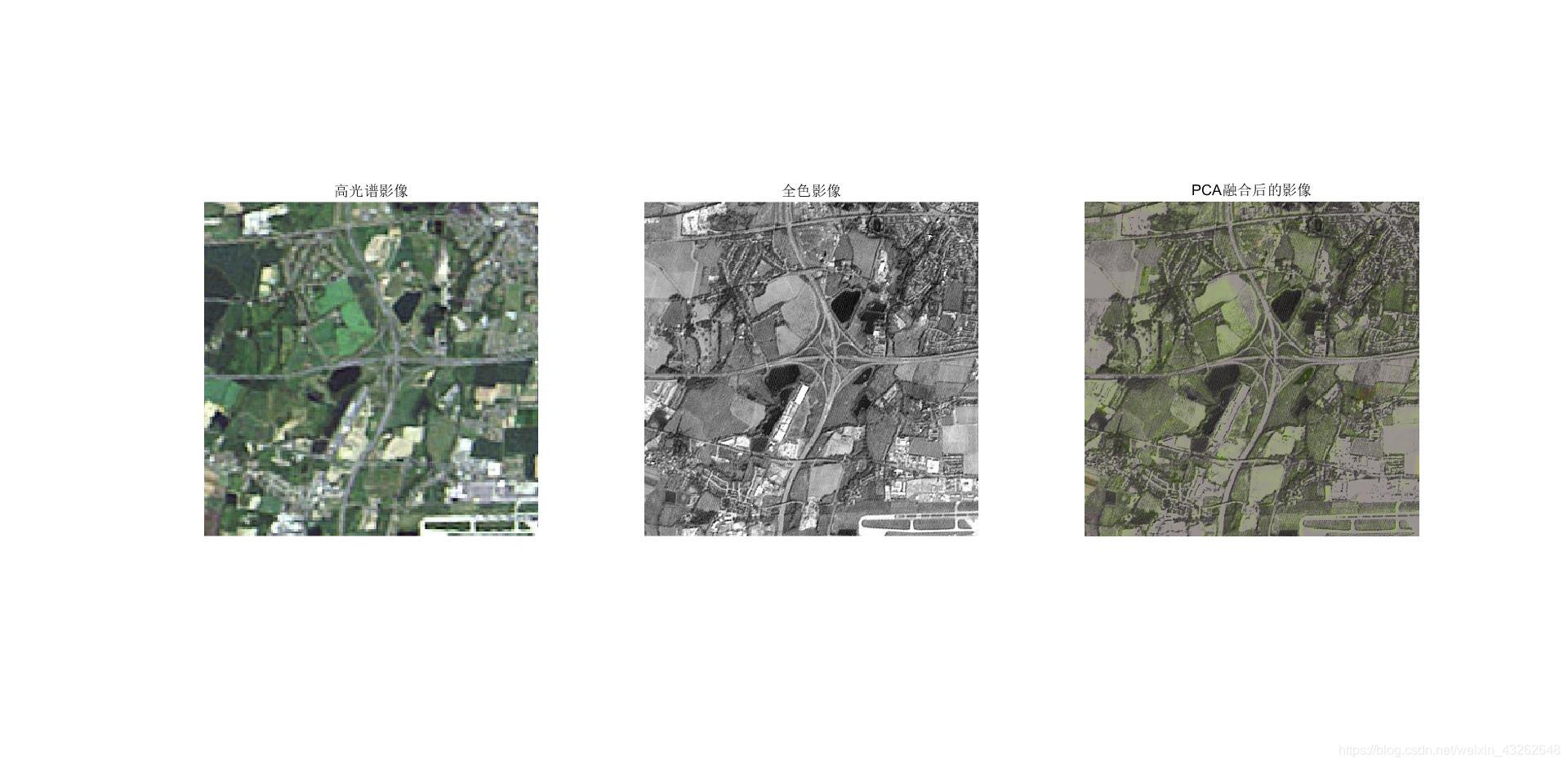

3.PCA变换

AY = PCA(Image1);
A = cell2mat(AY(1));
Y = round(cell2mat(AY(2)));
YY = matching(Image2(:,:,1),reshape(Y(1,:),[lines1,samples1]));
Y(1,:) = reshape(YY,[1,lines2*samples2]);
X = double(uint8(inv(A)* Y));
for i = 1:bands1
Image3(:,:,i) = reshape(X(i,:),[lines1,samples1]);
end
figure(3);
subplot(1,3,1);
imshow(uint8(Image1));
title('高光谱影像');
subplot(1,3,2);
imshow(uint8(Image2));
title('全色影像');
subplot(1,3,3);
imshow(uint8(Image3));
title('PCA融合后的影像');

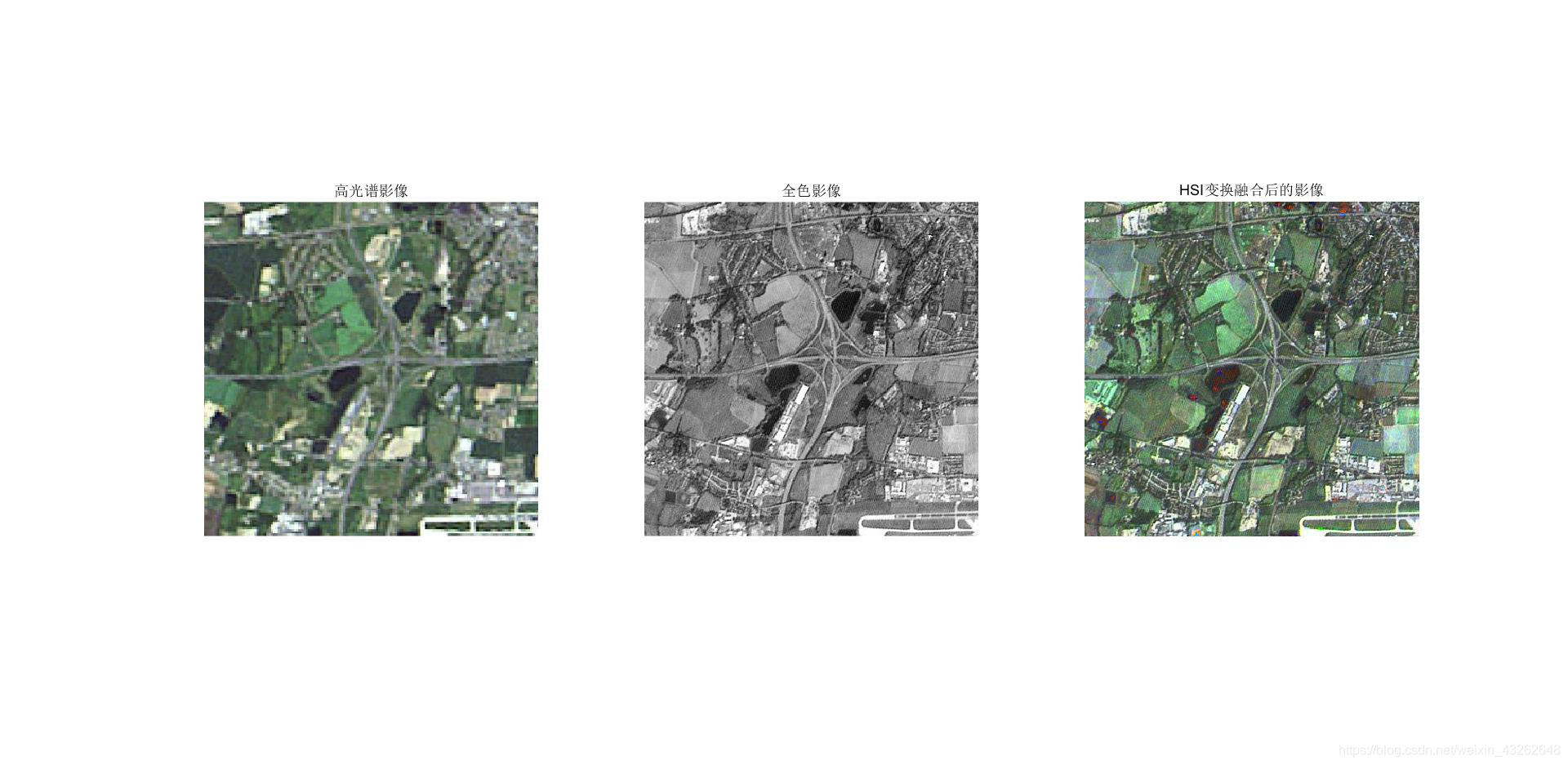

4.HSI变换

HSI = RGB2HSI(Image1);
max = max(max(HSI(:,:,3)));
min = min(min(HSI(:,:,3)));
HSI(:,:,3) = round(HSI(:,:,3));
I = matching(Image2(:,:,1),HSI(:,:,3));
% I = Image2(:,:,1);
HSI(:,:,3) = I;
Image3 =HSI2RGB(HSI);
figure(4)
subplot(1,3,1);
imshow(uint8(Image1));
title('高光谱影像');
subplot(1,3,2);
imshow(uint8(Image2));
title('全色影像');
subplot(1,3,3);
imshow(uint8(Image3));
title('HSI变换融合后的影像');
