基于Django的员工管理系统

django-admin startproject 员工管理系统

派大星先生c

4155人浏览 · 2023-02-21 21:37:47

派大星先生c · 2023-02-21 21:37:47 发布

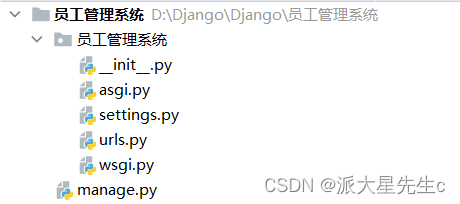

一、新建项目

django-admin startproject 员工管理系统

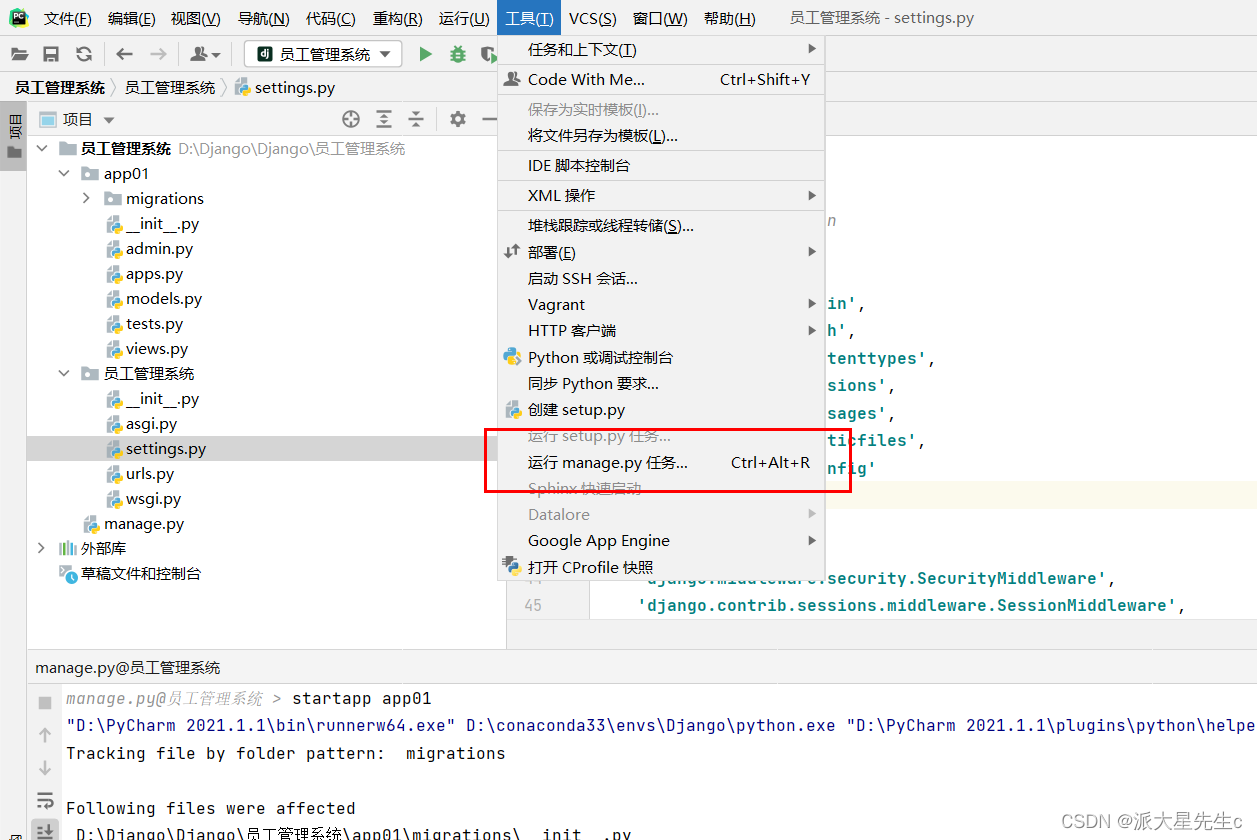

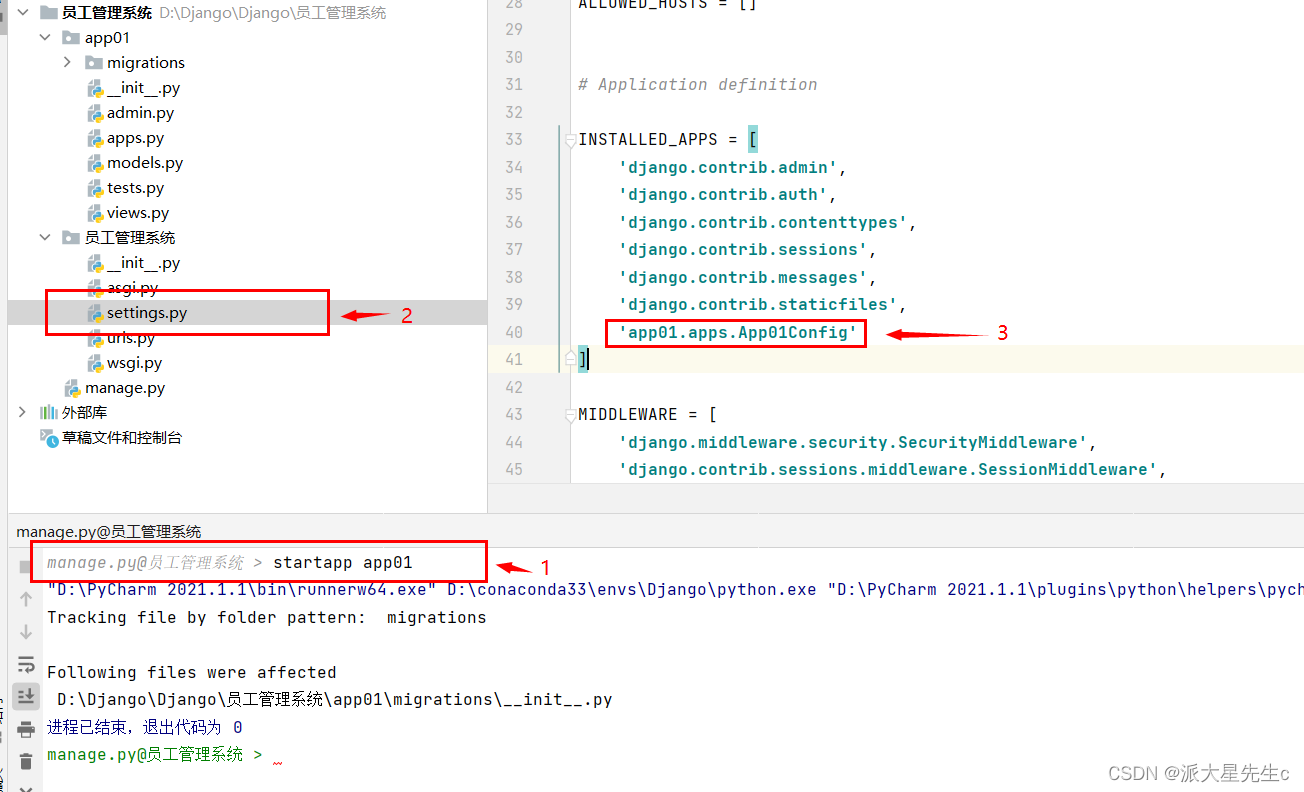

二、创建app

startapp app01

三、设计表结构

app01/migrations/models.py

from django.db import models


class Department(models.Model):
    """ 部门表"""
    title = models.CharField(verbose_name='标题', max_length=32)


class UserInfo(models.Model):
    """员工表"""
    name = models.CharField(verbose_name='姓名', max_length=16)
    password = models.CharField(verbose_name='密码', max_length=64)
    age = models.IntegerField(verbose_name="年龄")
    account = models.DecimalField(verbose_name="账户余额", decimal_places=2, max_digits=10, default=0)  # 小数点后两位，最长有10位数字
    create_time = models.DateTimeField(verbose_name="入职时间")
    depart = models.ForeignKey(to="Department", to_field="id",on_delete=models.CASCADE)
    gender_choice = (
        (1, "男"),
        (2, "女"),
    )
    gender = models.SmallIntegerField(verbose_name="性别",choices=gender_choice)

无约束
depart_id = models.BigIntegerField(verbose_name="部门ID")
约束 只能是部门中已经存在的ID
- to，与那张表关联
- to_field，表中的一列关联
- 写的是depart  生成数据列,depart_id

depart = models.ForeignKey(to="Department",to_field="id")

删除部分的时候，关联的用户

级联删除

depart = models.ForeignKey(to="Department", to_field="id",on_delete=models.CASCADE)

ID列置空

depart = models.ForeignKey(to="Department", to_field="id", null = True,blank=True, on_delete=models.SET_NULL)

Django中的约束

gender_choices = (
    (1, "男"),
    (2, "女"),
)
gender = models.SmallIntegerField(verbose_name="性别", choices=gender_choices)

四、在MySQL中生成表

创建数据库

create database StaffManagement DEFAULT CHARSET utf8 COLLATE utf8_general_ci;

Django修改配置文件，连接数据库员工管理系统/员工管理系统/setting.py

DATABASES = {
    'default': {
        'ENGINE': 'django.db.backends.mysql',
        'NAME': 'staffmanagement',
        'USER': 'root',
        'PASSWORD': '123123',
        'HOST': '127.0.0.1',
        'PORT': '3306',
    }
}

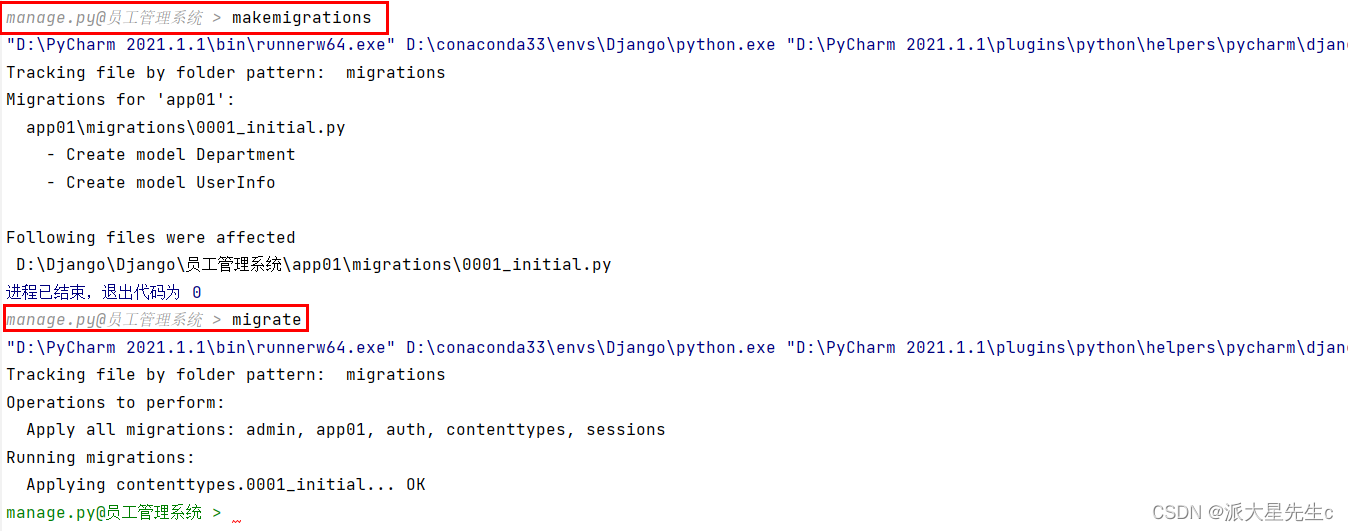

Django命令生成数据库表

makemigrations + migrate

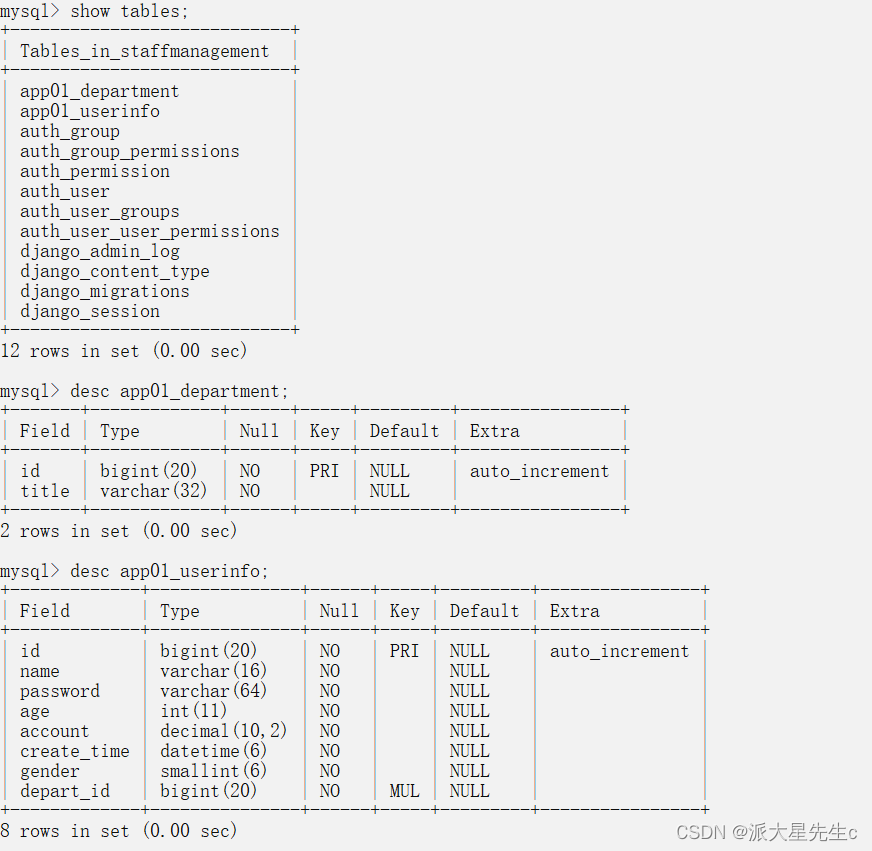

表结构创建成功：

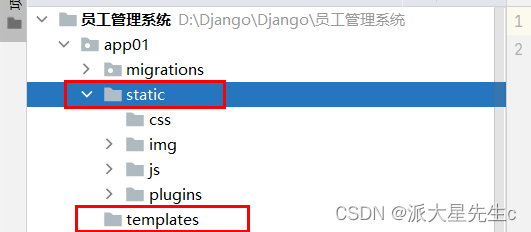

五、静态文件管理

部门管理

Django中提供Form和ModelForm组件（方便）

depart_list.html

{% load static %}
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <link rel="stylesheet" href="{% static 'plugins/bootstrap-3.3.7-dist/css/bootstrap.css' %}">
</head>
<body>
<nav class="navbar navbar-default">
    <div class="container">
        <div class="navbar-header">
            <button type="button" class="navbar-toggle collapsed" data-toggle="collapse"
                    data-target="#bs-example-navbar-collapse-1" aria-expanded="false">
                <span class="sr-only">Toggle navigation</span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
            </button>
            <a class="navbar-brand" href="#">联通用户管理系统</a>
        </div>

        <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
            <ul class="nav navbar-nav">
                <li><a href="/depart/list/">部门管理</a></li>
            </ul>
            <ul class="nav navbar-nav navbar-right">
                <li><a href="#">登录</a></li>
                <li class="dropdown">
                    <a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true"
                       aria-expanded="false">登录信息 <span class="caret"></span></a>
                    <ul class="dropdown-menu">
                        <li><a href="#">个人资料</a></li>
                        <li><a href="#">我的信息</a></li>
                        <li><a href="#">注销</a></li>
                        <li role="separator" class="divider"></li>
                        <li><a href="#">Separated link</a></li>
                    </ul>
                </li>
            </ul>
        </div>
    </div>
</nav>
<div>
    <div class="container">
        <div style="margin-bottom: 10px">
            <a href="#" class="btn btn-primary btn-success">
                <span class="glyphicon glyphicon-plus" aria-hidden="true"></span>新建部门</a>
        </div>
        <table class="table table-bordered">
            <span class="glyphicon glyphicon-th-list" aria-hidden="true"></span>
            部门列表
            <thead>
            <tr>
                <th>ID</th>
                <th>名称</th>
                <th>操作</th>
            </tr>
            </thead>
            <tbody>
            <tr>
                <th scope="row">1</th>
                <td>销售部</td>
                <td>
                    <a href="" class="btn btn-primary btn-xs">编辑</a>
                    <a href="" class="btn btn-danger btn-xs">删除</a>
                </td>
            </tr>
            </tbody>
        </table>
    </div>
</div>
<script src="{% static 'js/jQuery.js' %}"></script>
<script src="{% static 'plugins/bootstrap-3.3.7-dist/js/bootstrap.js' %}"></script>
</body>
</html>

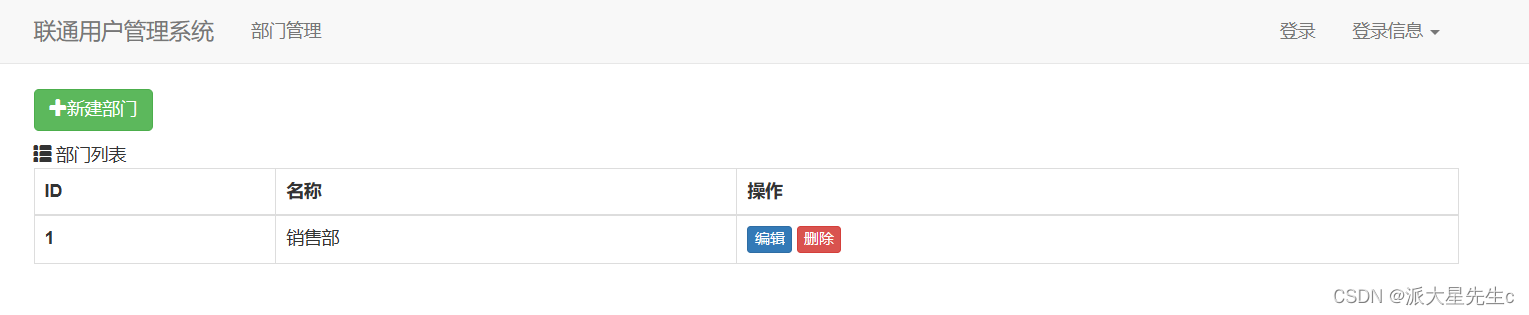

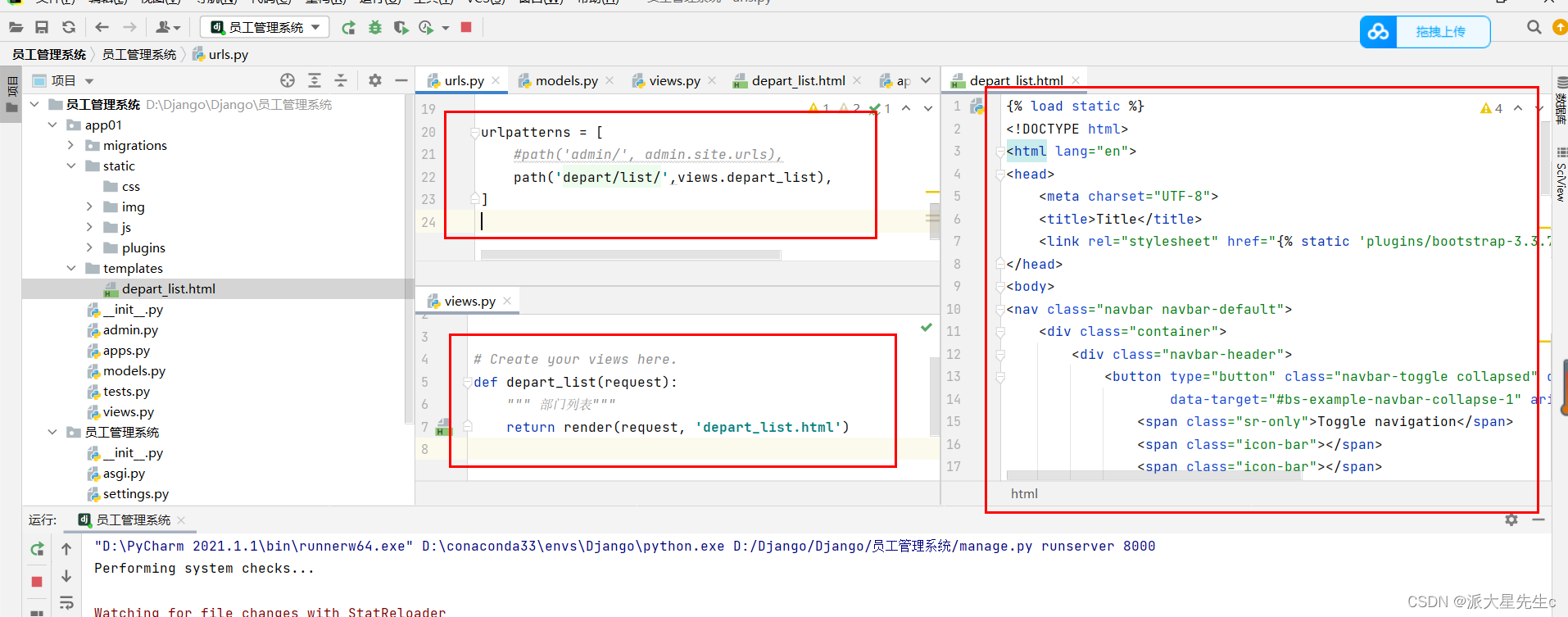

初步结果展示

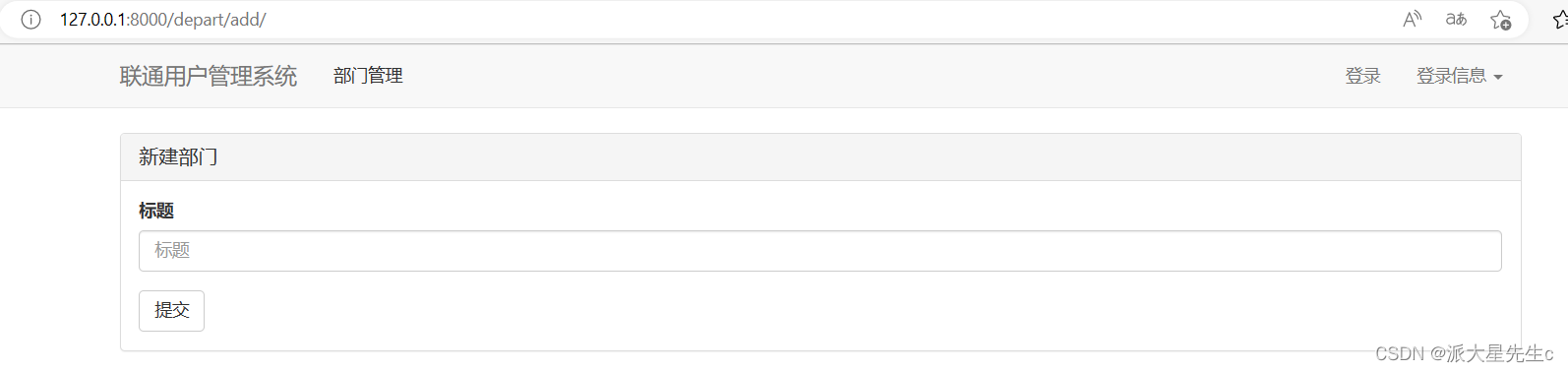

六、添加页面

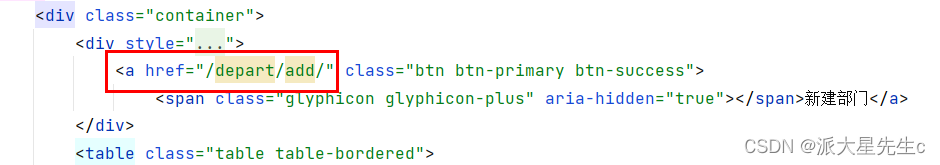

需要一个添加页面的话，实现效果为点击新建部门跳转到新建部门的窗口

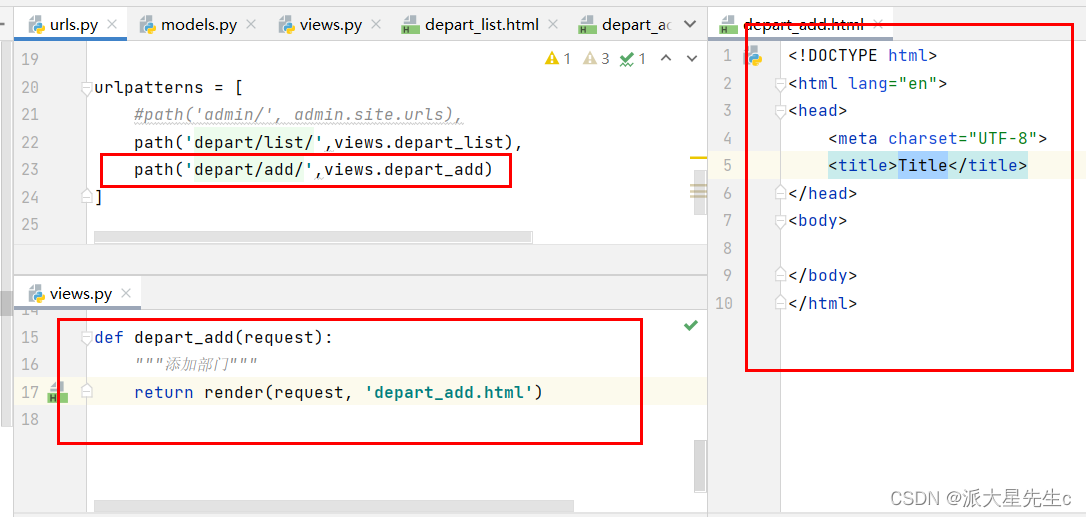

初步创建和编写

编写HTML文件

{% load static %}
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <link rel="stylesheet" href="{% static 'plugins/bootstrap-3.3.7-dist/css/bootstrap.css' %}">
</head>
<body>
<nav class="navbar navbar-default">
    <div class="container">
        <div class="navbar-header">
            <button type="button" class="navbar-toggle collapsed" data-toggle="collapse"
                    data-target="#bs-example-navbar-collapse-1" aria-expanded="false">
                <span class="sr-only">Toggle navigation</span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
            </button>
            <a class="navbar-brand" href="#">联通用户管理系统</a>
        </div>

        <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
            <ul class="nav navbar-nav">
                <li><a href="/depart/list/">部门管理</a></li>
            </ul>
            <ul class="nav navbar-nav navbar-right">
                <li><a href="#">登录</a></li>
                <li class="dropdown">
                    <a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true"
                       aria-expanded="false">登录信息 <span class="caret"></span></a>
                    <ul class="dropdown-menu">
                        <li><a href="#">个人资料</a></li>
                        <li><a href="#">我的信息</a></li>
                        <li><a href="#">注销</a></li>
                        <li role="separator" class="divider"></li>
                        <li><a href="#">Separated link</a></li>
                    </ul>
                </li>
            </ul>
        </div>
    </div>
</nav>

<div>
    <div class="container">
        <div class="panel panel-default">
            <div class="panel-heading">
                <h3 class="panel-title">新建部门</h3>
            </div>
            <div class="panel-body">
                <form>
                    <div class="form-group">
                        <label for="exampleInputEmail1">标题</label>
                        <input type="text" class="form-control"  placeholder="标题" name="title">
                    </div>
                    <button type="submit" class="btn btn-default">提交</button>
                </form>
            </div>
        </div>
    </div>
</div>
<script src="{% static 'js/jQuery.js' %}"></script>
<script src="{% static 'plugins/bootstrap-3.3.7-dist/js/bootstrap.js' %}"></script>
</body>
</html>

添加部门

def depart_add(request):
    """添加部门"""
    if request.method == "GET":
        return render(request, 'depart_add.html')
    title = request.POST.get("title")
    models.Department.objects.create(title=title)
    # 重定向回定向列表
    return redirect("/depart/list/")

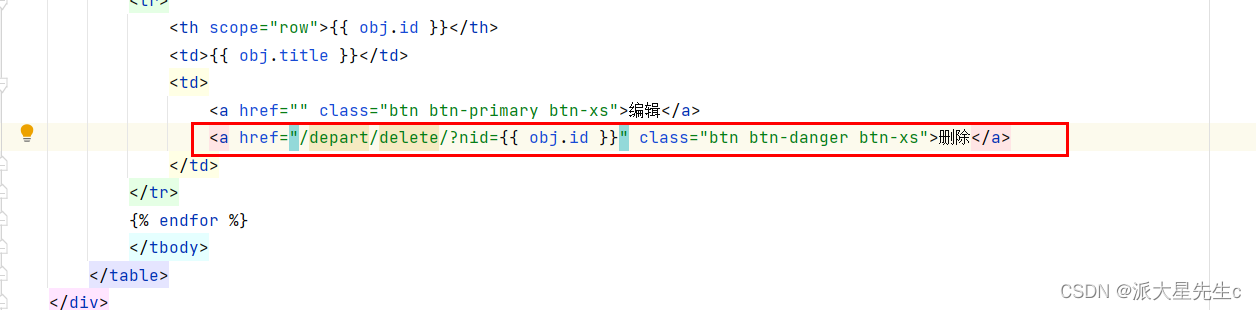

删除部门

def depart_delete(request):
    """删除部门"""
    nid = request.GET.get('nid')
    models.Department.objects.filter(id=nid).delete()
    return redirect("/depart/list/")

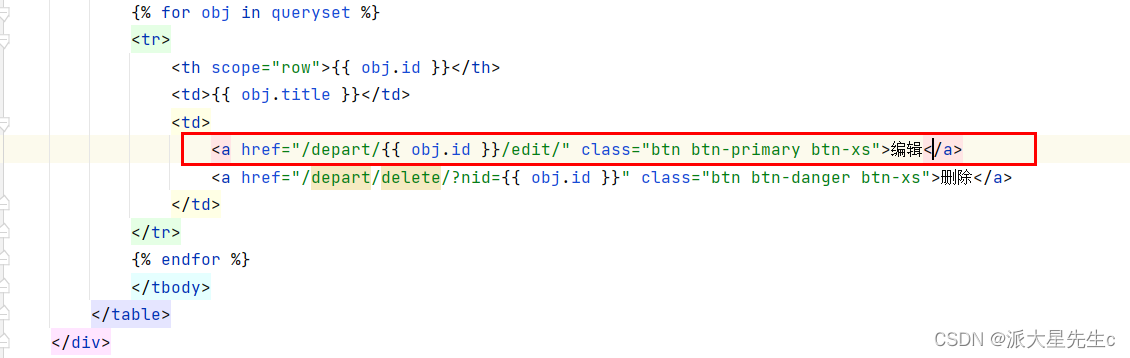

编辑部门

编写HTML文件

{% load static %}
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <link rel="stylesheet" href="{% static 'plugins/bootstrap-3.3.7-dist/css/bootstrap.css' %}">
</head>
<body>
<nav class="navbar navbar-default">
    <div class="container">
        <div class="navbar-header">
            <button type="button" class="navbar-toggle collapsed" data-toggle="collapse"
                    data-target="#bs-example-navbar-collapse-1" aria-expanded="false">
                <span class="sr-only">Toggle navigation</span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
            </button>
            <a class="navbar-brand" href="#">联通用户管理系统</a>
        </div>

        <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
            <ul class="nav navbar-nav">
                <li><a href="/depart/list/">部门管理</a></li>
            </ul>
            <ul class="nav navbar-nav navbar-right">
                <li><a href="#">登录</a></li>
                <li class="dropdown">
                    <a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true"
                       aria-expanded="false">登录信息 <span class="caret"></span></a>
                    <ul class="dropdown-menu">
                        <li><a href="#">个人资料</a></li>
                        <li><a href="#">我的信息</a></li>
                        <li><a href="#">注销</a></li>
                        <li role="separator" class="divider"></li>
                        <li><a href="#">Separated link</a></li>
                    </ul>
                </li>
            </ul>
        </div>
    </div>
</nav>

<div>
    <div class="container">
        <div class="panel panel-default">
            <div class="panel-heading">
                <h3 class="panel-title">修改部门</h3>
            </div>
            <div class="panel-body">
                <form method="post">
                    {% csrf_token %}
                    <div class="form-group">
                        <label for="exampleInputEmail1">标题</label>
                        <input type="text" class="form-control"  placeholder="标题" name="title" value="{{ row_object.title }}">
                    </div>
                    <button type="submit" class="btn btn-default">提交</button>
                </form>
            </div>
        </div>
    </div>
</div>
<script src="{% static 'js/jQuery.js' %}"></script>
<script src="{% static 'plugins/bootstrap-3.3.7-dist/js/bootstrap.js' %}"></script>
</body>
</html>

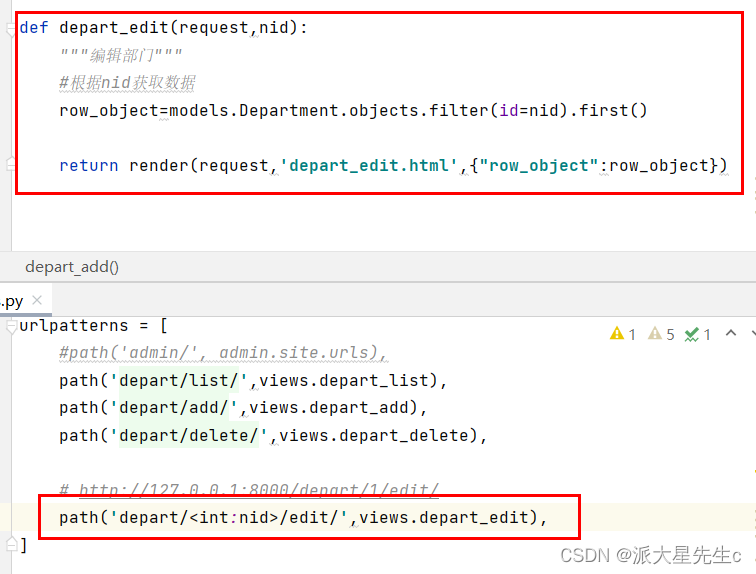

编写view.py

def depart_edit(request, nid):
    """部门编辑"""

    if request.method == "GET":
        # 根据nid,获取数据
        row_object = models.Department.objects.filter(id=nid).first()
        return render(request, 'depart_edit.html', {"row_object": row_object})

    # 如果是POST请求,保存修改
    title = request.POST.get('title')
    models.Department.objects.filter(id=nid).update(title=title)

    # 重定向回部门列表
    return redirect('/depart/list/')

七、模板的继承

继承母版 ‘layout.html’

{% extends 'layout.html' %}

{% block css %}
	<link rel="stylesheet" href="{% static 'pluxxx.css' %}">
	<style>
		...
	</style>
{% endblock %}


{% block content %}
    <h1>首页</h1>
{% endblock %}


{% block js %}
	<script src="{% static 'js/jqxxxin.js' %}"></script>
{% endblock %}

继承的文件

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <link rel="stylesheet" href="{% static 'plugin...min.css' %}">
    {% block css %}{% endblock %}
</head>
<body>
    <h1>标题</h1>
    <div>
        {% block content %}{% endblock %}
    </div>
    <h1>底部</h1>

    <script src="{% static 'js/jquery-3.6.0.min.js' %}"></script>
    {% block js %}{% endblock %}
</body>
</html>
