前言

使用的百度的paddle框架，在AIstudio上面运行本次任务。

---

一、库与数据准备

#一、库与数据准备
import sys
sys.path.append('/home/aistudio/external-libraries')
## 定义数据读取
import paddle
import paddle.fluid as fluid
from paddle.fluid.dygraph import Conv2D, Pool2D, Linear, Conv2DTranspose
import numpy as np
import matplotlib.pyplot as plt

# 噪声维度
Z_DIM = 100
BATCH_SIZE = 128
# BATCH_SIZE = 3 # debug

# 噪声生成，通过由噪声来生成假的图片数据输入。
def z_reader():
    while True:
        yield np.random.normal(0.0, 1.0, (Z_DIM, 1, 1)).astype('float32')

# 生成真实图片reader
mnist_generator = paddle.batch(
    paddle.reader.shuffle(paddle.dataset.mnist.train(), 30000), batch_size=BATCH_SIZE)

# 生成假图片的reader
z_generator = paddle.batch(z_reader, batch_size=BATCH_SIZE)
## import matplotlib.pyplot as plt
%matplotlib inline
data_tmp = next(mnist_generator())
print('一个batch图片数据的形状：batch_size =', len(data_tmp), ', data_shape =', data_tmp[0][0].shape, ', num = ', data_tmp[0][1])
plt.imshow(data_tmp[0][0].reshape(28, 28))
plt.show()
z_tmp = next(z_generator())
print('一个batch噪声z的形状：batch_size =', len(z_tmp), ', data_shape =', z_tmp[0].shape)

二、生成器与判别器

## 定义CGAN
# 定义特征图拼接
def conv_concatenate(x, y):
    # print('---', x.shape, y.shape)
    # y = fluid.dygraph.to_variable(y.numpy().astype('float32'))
    if len(x.shape) == 2: # 给全连接层输出的特征图拼接噪声
        y = fluid.layers.reshape(y, shape=[x.shape[0], 1])
        ones = fluid.layers.fill_constant(y.shape, dtype='float32', value=1.0)
    elif len(x.shape) == 4: # 给卷积层输出的特征图拼接噪声
        y = fluid.layers.reshape(y, shape=[x.shape[0], 1, 1, 1])
        ones = fluid.layers.fill_constant(x.shape, dtype='float32', value=1.0)
    x = fluid.layers.concat([x, ones * y], axis=1)
    # print(ones.shape, x.shape, y.shape, '---')
    return x

# 定义生成器
class G(fluid.dygraph.Layer):
    def __init__(self, name_scope):
        super(G, self).__init__(name_scope)
        name_scope = self.full_name()
        # 第一组全连接和BN层
        self.fc1 = Linear(input_dim=100+1, output_dim=1024)
        self.bn1 = fluid.dygraph.BatchNorm(num_channels=1024, act='relu')
        # 第二组全连接和BN层
        self.fc2 = Linear(input_dim=1024+1, output_dim=128*7*7)
        self.bn2 = fluid.dygraph.BatchNorm(num_channels=128*7*7, act='relu')
        # 第一组转置卷积运算
        self.convtrans1 = Conv2DTranspose(256, 64, 4, stride=2, padding=1)
        self.bn3 = fluid.dygraph.BatchNorm(64, act='relu')
        # 第二组转置卷积运算
        self.convtrans2 = Conv2DTranspose(128, 1, 4, stride=2, padding=1, act='relu')

    def forward(self, z, label):
        z = fluid.layers.reshape(z, shape=[-1, 100])
        z = conv_concatenate(z, label) # 拼接噪声和label
        y = self.fc1(z)
        y = self.bn1(y)
        y = conv_concatenate(y, label) # 拼接特征图和label
        y = self.fc2(y)
        y = self.bn2(y)
        y = fluid.layers.reshape(y, shape=[-1, 128, 7, 7])
        y = conv_concatenate(y, label) # 拼接特征图和label
        y = self.convtrans1(y)
        #print('G第一次transpose：',y.shape)
        y = self.bn3(y)
        y = conv_concatenate(y, label) # 拼接特征图和label
        y = self.convtrans2(y)
        #print('G第2次transpose：',y.shape)
        return y

# 定义判别器
class D(fluid.dygraph.Layer):
    def __init__(self, name_scope):
        super(D, self).__init__(name_scope)
        name_scope = self.full_name()
        # 第一组卷积池化
        self.conv1 = Conv2D(num_channels=2, num_filters=64, filter_size=3)
        self.bn1 = fluid.dygraph.BatchNorm(num_channels=64, act='leaky_relu')
        self.pool1 = Pool2D(pool_size=2, pool_stride=2)
        # 第二组卷积池化
        self.conv2 = Conv2D(num_channels=128, num_filters=128, filter_size=3)
        self.bn2 = fluid.dygraph.BatchNorm(num_channels=128, act='leaky_relu')
        self.pool2 = Pool2D(pool_size=2, pool_stride=2)
        # 全连接输出层
        self.fc1 = Linear(input_dim=128*5*5+1, output_dim=1024)
        self.bnfc1 = fluid.dygraph.BatchNorm(num_channels=1024, act='leaky_relu')
        self.fc2 = Linear(input_dim=1024+1, output_dim=1)

    def forward(self, img, label):
        y = conv_concatenate(img, label) # 拼接输入图片和label
        y = self.conv1(y)
        y = self.bn1(y)
        y = self.pool1(y)
        y = conv_concatenate(y, label) # 拼接特征图和label
        y = self.conv2(y)
        y = self.bn2(y)
        y = self.pool2(y)
        y = fluid.layers.reshape(y, shape=[-1, 128*5*5])
        y = conv_concatenate(y, label) # 拼接特征图和label
        y = self.fc1(y)
        #print('D第一次transpose：',y.shape)
        y = self.bnfc1(y)
        y = conv_concatenate(y, label) # 拼接特征图和label
        y = self.fc2(y)
        #print('D第2次transpose：',y.shape)

        return y

## 测试生成网络G和判别网络D
with fluid.dygraph.guard():
    g_tmp = G('G')
    l_tmp = fluid.dygraph.to_variable(np.array([x[1] for x in data_tmp]).astype('float32'))
    tmp_g = g_tmp(fluid.dygraph.to_variable(np.array(z_tmp)), l_tmp).numpy()
    print('生成器G生成图片数据的形状：', tmp_g.shape)
    plt.imshow(tmp_g[0][0])
    plt.show()

    d_tmp = D('D')
    tmp_d = d_tmp(fluid.dygraph.to_variable(tmp_g), l_tmp).numpy()
    print('判别器D判别生成的图片的概率数据形状：', tmp_d.shape)

三、辅助函数

## 定义显示图片的函数，构建一个18*n大小(n=batch_size/16)的图片阵列，把预测的图片打印到note中。
## import matplotlib.pyplot as plt
%matplotlib inline

def show_image_grid(images, batch_size=128, pass_id=None):
    fig = plt.figure(figsize=(8, batch_size/32))
    fig.suptitle("Pass {}".format(pass_id))
    gs = plt.GridSpec(int(batch_size/16), 16)
    gs.update(wspace=0.05, hspace=0.05)

    for i, image in enumerate(images):
        ax = plt.subplot(gs[i])
        plt.axis('off')
        ax.set_xticklabels([])
        ax.set_yticklabels([])
        ax.set_aspect('equal')
        plt.imshow(image[0], cmap='Greys_r')

    plt.show()

四、模型训练

## 训练CGAN
from visualdl import LogWriter
import time
import random

def train(mnist_generator, epoch_num=10, batch_size=128, use_gpu=True, load_model=False):
    # with fluid.dygraph.guard():
    place = fluid.CUDAPlace(0) if use_gpu else fluid.CPUPlace()
    with fluid.dygraph.guard(place):
        # 模型存储路径
        model_path = './output/'

        d = D('D')
        d.train()
        g = G('G')
        g.train()

        # 创建优化方法
        g_optimizer = fluid.optimizer.AdamOptimizer(learning_rate=2e-4, parameter_list=g.parameters())
        d_optimizer = fluid.optimizer.AdamOptimizer(learning_rate=2e-4, parameter_list=d.parameters())

        # 读取上次保存的模型
        if load_model == True:
            g_para, g_opt = fluid.load_dygraph(model_path+'g')
            d_para, d_opt = fluid.load_dygraph(model_path+'d')
        	  g.load_dict(g_para)
            g_optimizer.set_dict(g_opt)
            d.load_dict(d_para)
            d_optimizer.set_dict(d_opt)

        iteration_num = 0
        print('Start time :', time.strftime("%Y-%m-%d %H:%M:%S", time.localtime()), 'start step:', iteration_num + 1)
        for epoch in range(epoch_num):
            for i, real_data in enumerate(mnist_generator()):
                # 丢弃不满整个batch_size的数据
                if(len(real_data) != BATCH_SIZE):
                    continue

                iteration_num += 1

                '''
                判别器d通过最小化输入真实图片时判别器d的输出与真值标签ones的交叉熵损失，来优化判别器的参数，
                以增加判别器d识别真实图片real_image为真值标签ones的概率。
                '''
                # 将MNIST数据集里的图片读入real_image，将真值标签ones用数字1初始化
                ri = np.array([x[0] for x in real_data]).reshape(-1, 1, 28, 28)
                rl = np.array([x[1] for x in real_data]).astype('float32')
                real_image = fluid.dygraph.to_variable(np.array(ri))
                real_label = fluid.dygraph.to_variable(rl)
                ones = fluid.dygraph.to_variable(np.ones([len(real_image), 1]).astype('float32'))
                # 计算判别器d判断真实图片的概率
                p_real = d(real_image, real_label)
                # 计算判别真图片为真的损失
                # real_cost = fluid.layers.sigmoid_cross_entropy_with_logits(p_real, ones)
                real_cost = (p_real - ones) ** 2 #lsgan
                real_avg_cost = fluid.layers.mean(real_cost)

                '''
                判别器d通过最小化输入生成器g生成的假图片g(z)时判别器的输出与假值标签zeros的交叉熵损失，
                来优化判别器d的参数，以增加判别器d识别生成器g生成的假图片g(z)为假值标签zeros的概率。
                '''
                # 创建高斯分布的噪声z，将假值标签zeros初始化为0
                z = next(z_generator())
                z = fluid.dygraph.to_variable(np.array(z))
                zeros = fluid.dygraph.to_variable(np.zeros([len(real_image), 1]).astype('float32'))
                # 判别器d判断生成器g生成的假图片的概率
                p_fake = d(g(z, real_label), real_label)
                # fl = rl
                # for i in range(batch_size):
                #     fl[i] = random.randint(0, 9)
                # fake_label = fluid.dygraph.to_variable(fl)
                # p_fake = d(g(z, fake_label), fake_label)
                # 计算判别生成器g生成的假图片为假的损失
                # fake_cost = fluid.layers.sigmoid_cross_entropy_with_logits(p_fake, zeros)
                fake_cost = (p_fake - zeros) ** 2 #lsgan
                fake_avg_cost = fluid.layers.mean(fake_cost)

                # 更新判别器d的参数
                d_loss = real_avg_cost + fake_avg_cost
                d_loss.backward()
                d_optimizer.minimize(d_loss)
                d.clear_gradients()

                '''
                生成器g通过最小化判别器d判别生成器生成的假图片g(z)为真的概率d(fake)与真值标签ones的交叉熵损失，
                来优化生成器g的参数，以增加生成器g使判别器d判别其生成的假图片g(z)为真值标签ones的概率。
                '''
                # 生成器用输入的高斯噪声z生成假图片
                fake = g(z, real_label)
                # 计算判别器d判断生成器g生成的假图片的概率
                p_fake = d(fake, real_label)
                # 使用判别器d判断生成器g生成的假图片的概率与真值ones的交叉熵计算损失
                # g_cost = fluid.layers.sigmoid_cross_entropy_with_logits(p_fake, ones)
                g_cost = (p_fake - ones) ** 2 #lsgan
                g_avg_cost = fluid.layers.mean(g_cost)
                # 反向传播更新生成器g的参数
                g_avg_cost.backward()
                g_optimizer.minimize(g_avg_cost)
                g.clear_gradients()

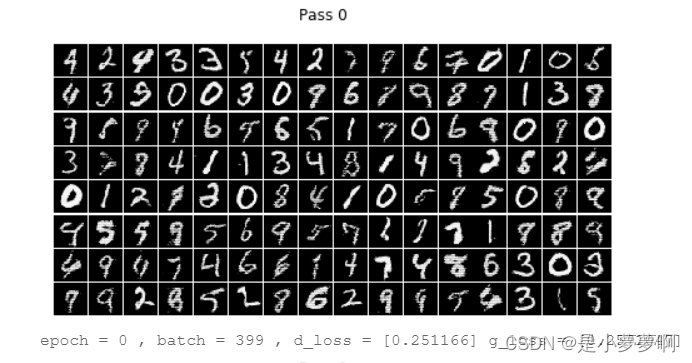

                if(iteration_num % 100 == 0):
                    print('epoch =', epoch, ', batch =', i, ', d_loss =', d_loss.numpy(), 'g_loss =', g_avg_cost.numpy())
                    show_image_grid(fake.numpy(), BATCH_SIZE, epoch)

        print('End time :', time.strftime("%Y-%m-%d %H:%M:%S", time.localtime()), 'End Step:', iteration_num)
        # 存储模型
        fluid.save_dygraph(g.state_dict(), model_path+'g')
        fluid.save_dygraph(g_optimizer.state_dict(), model_path+'g')
        fluid.save_dygraph(d.state_dict(), model_path+'d')
        fluid.save_dygraph(d_optimizer.state_dict(), model_path+'d')

# train(mnist_generator, epoch_num=1, batch_size=BATCH_SIZE, use_gpu=True)
# train(mnist_generator, epoch_num=1, batch_size=BATCH_SIZE, use_gpu=True, load_model=True)
train(mnist_generator, epoch_num=20, batch_size=BATCH_SIZE, use_gpu=True, load_model=True) #11m
# train(mnist_generator, epoch_num=800, batch_size=BATCH_SIZE, use_gpu=True, load_model=True) #440m

五、模型测试

## 使用CGAN分别生成数字0～9
def infer(batch_size=128, num=0, use_gpu=True):
    place = fluid.CUDAPlace(0) if use_gpu else fluid.CPUPlace()
    with fluid.dygraph.guard(place):
        # 模型存储路径
        model_path = './output/'

        g = G('G')
        g.eval()


        # 读取上次保存的模型
        g_para, g_opt = fluid.load_dygraph(model_path+'g')
        g.load_dict(g_para)
        # g_optimizer.set_dict(g_opt)

        z = next(z_generator())
        z = fluid.dygraph.to_variable(np.array(z))

        label = fluid.layers.fill_constant([batch_size], dtype='float32', value=float(num))
        fake = g(z, label)
        show_image_grid(fake.numpy(), batch_size, -1)

for i in range(10):
    infer(batch_size=BATCH_SIZE, num=i)

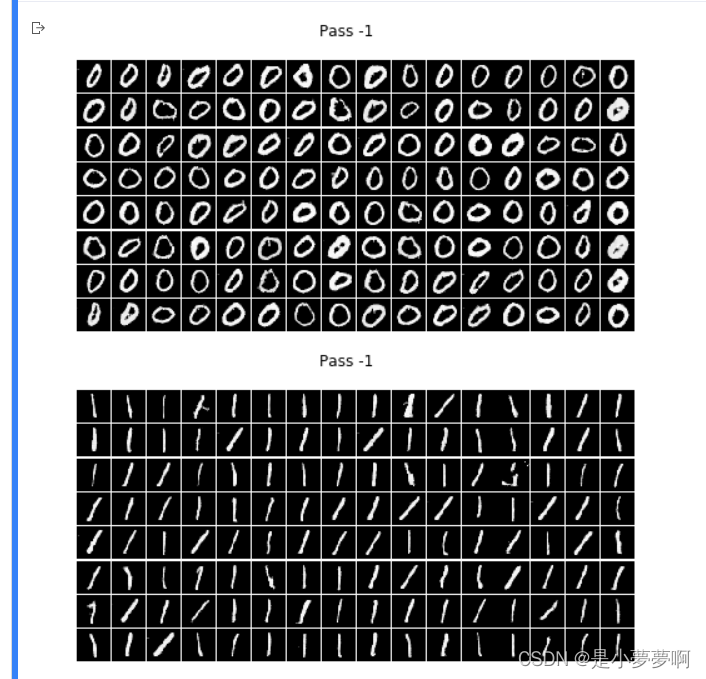

六、效果

---

写在最后

仅对个人的深度学习实验做一次记录，文中不足、错误之处欢迎指正；
创作不易，点个赞吧！
