1.编写docker-compose.yml文件

version: '3.9'
services:
  zookeeper:
    image: wurstmeister/zookeeper
    volumes:
      - ./zookeeper/data:/data
    ports:
      - 2181:2181

  kafka:
    image: wurstmeister/kafka
    ports:
      - 9092:9092
    environment:
      KAFKA_BROKER_ID: 0
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://192.168.33.249:9092 # 暴露在外的地址
      KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9092
    volumes:
      - ./kafka/etc/localtime:/etc/localtime
      - ./kafka/kafka-logs:/kafka
    depends_on:
      - zookeeper
    links:
      - zookeeper
  kafka-manager:
    image: sheepkiller/kafka-manager                ## 镜像：开源的web管理kafka集群的界面
    environment:
        ZK_HOSTS: zookeeper:2181
        KAFKA_MANAGER_AUTH_ENABLED: "true"
        KAFKA_MANAGER_USERNAME: "admin"
        KAFKA_MANAGER_PASSWORD: "admin"
    ports:
      - "9000:9000"
    depends_on:
      - zookeeper
      - kafka
    links:
      - zookeeper

2.docker-compose ps查看是否启动成功

3.查看启动的容器,进入kafka容器

docker ps
docker exec -it kafka_kafka_1 /bin/bash

4.创建一个名称为test的topic：

kafka-topics.sh --create --topic test \
--zookeeper zookeeper:2181 --replication-factor 1 \
--partitions 1

5.查看刚刚创建的topic信息

kafka-topics.sh --zookeeper zookeeper:2181 \
--describe --topic test

6.打开生产者发送若干条消息

kafka-console-producer.sh --topic=test \
--broker-list kafka:9092

7.新开一个shell窗口，进入kafka容器，打开消费者接收消息

kafka-console-consumer.sh \
--bootstrap-server kafka:9092 \
--from-beginning --topic test

8.如果发送消息和接收消息成功，则证明kafka可用
9.查看kafka的版本

find / -name \*kafka_\* | head -1 | grep -o '\kafka[^\n]*'

查出的这个文件名称中，2.13是Scala版本，2.7.0是Kafka版本

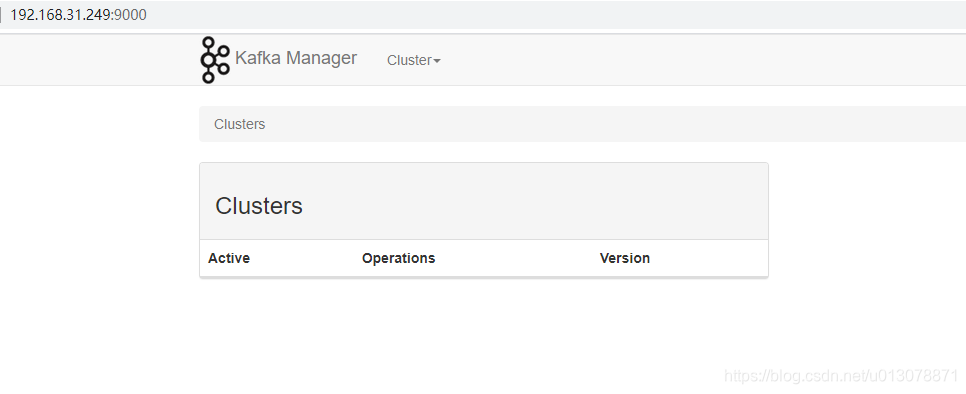

10.访问kafka的管理页面
http://192.168.31.249:9000/

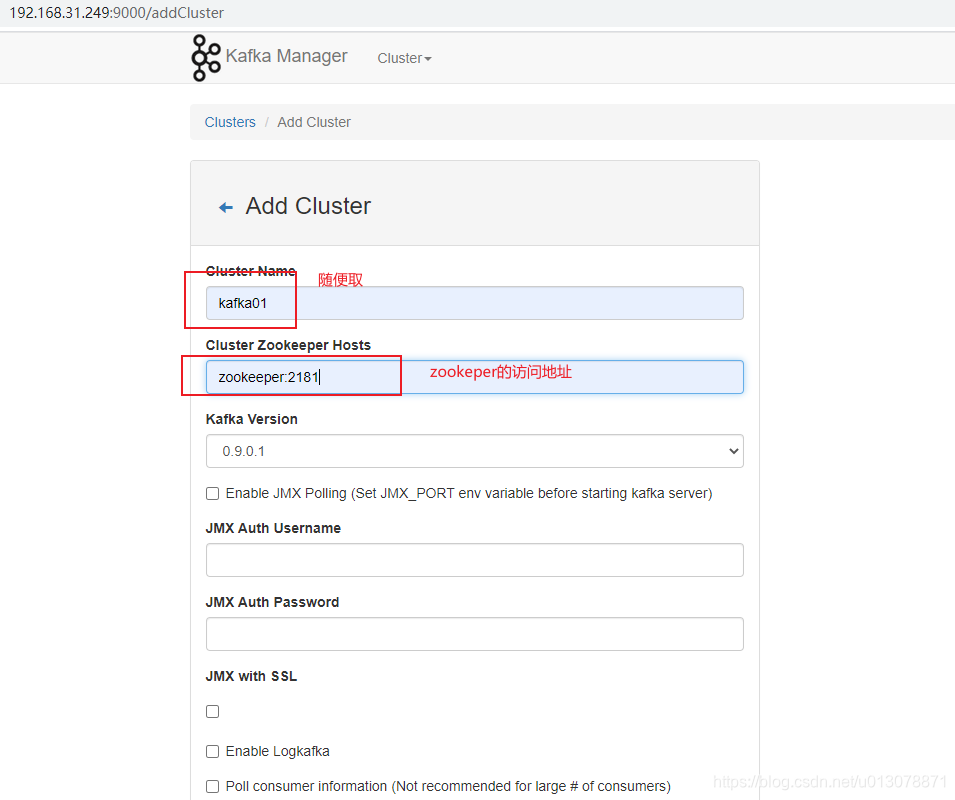

11.添加cluster

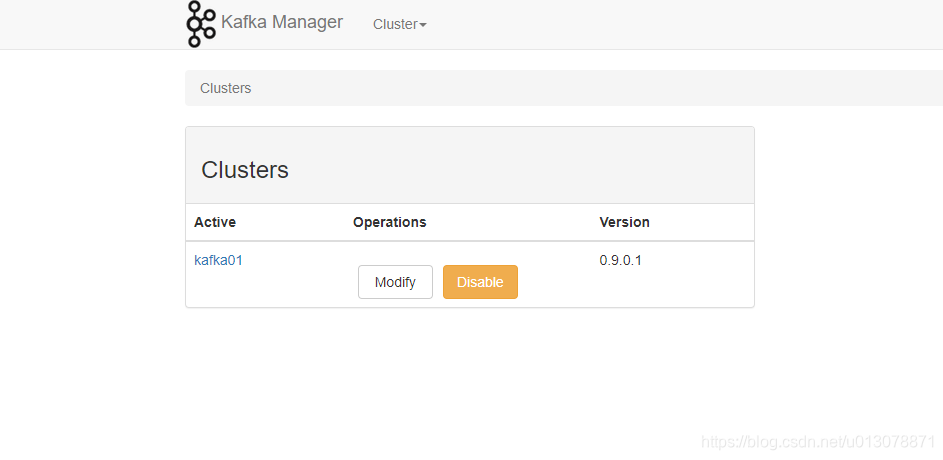

点击保存刷新页面

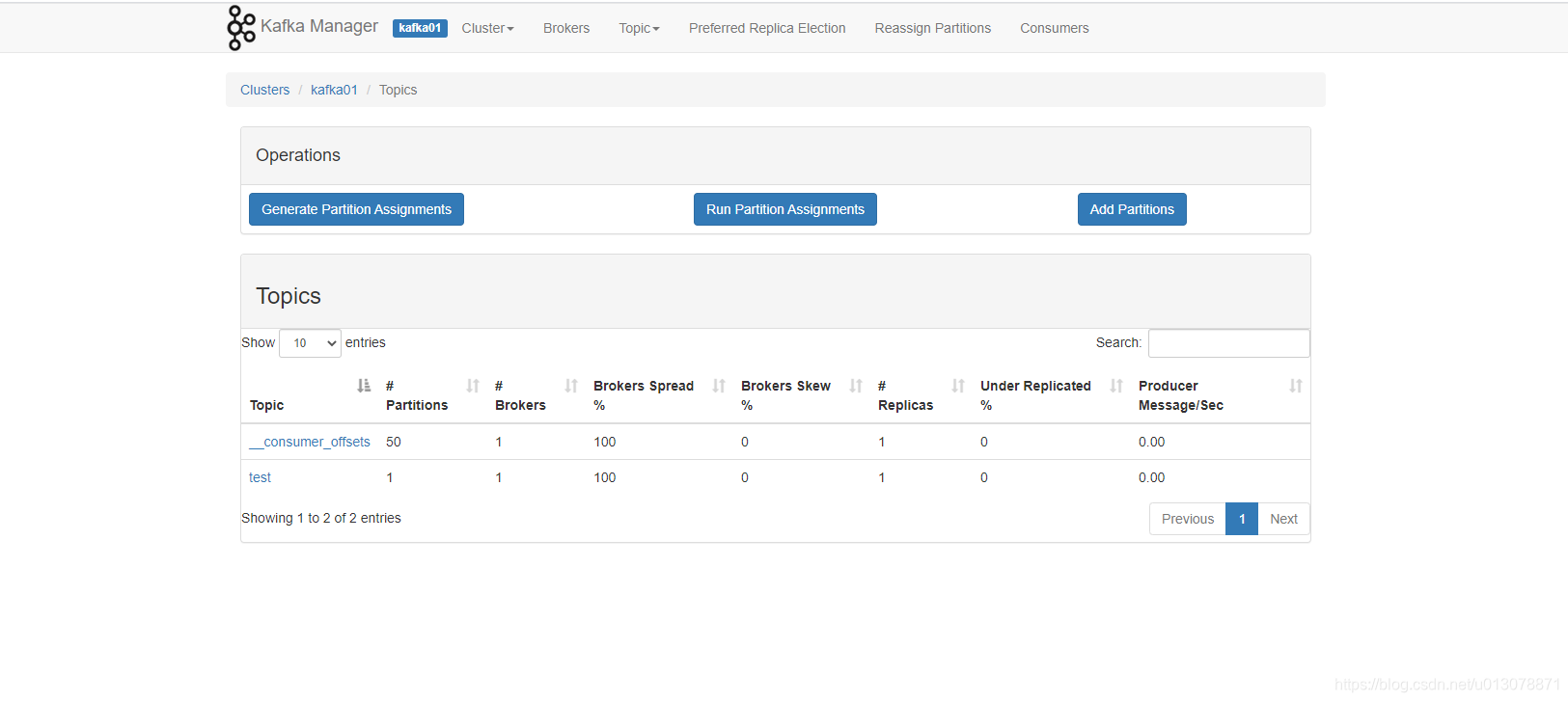

进入可查看kafka相关信息

方式二：安装kafdrop

version: '3.9'
services:
  zookeeper:
    image: wurstmeister/zookeeper
    volumes:
      - ./zookeeper/data:/data
    ports:
      - 2181:2181

  kafka:
    image: wurstmeister/kafka
    ports:
      - 9092:9092
    environment:
      KAFKA_BROKER_ID: 0
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://127.0.0.1:9092 # 暴露在外的地址这里改为自己的
      KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9092
    volumes:
      - ./kafka/etc/localtime:/etc/localtime
      - ./kafka/kafka-logs:/kafka
    depends_on:
      - zookeeper
    links:
      - zookeeper
  kafdrop:
    image: obsidiandynamics/kafdrop:3.27.0
    container_name: kafdrop
    restart: "no"
    environment:
        KAFKA_BROKERCONNECT: "kafka:9092"
        JVM_OPTS: "-Xms64M -Xmx128M"
    ports:
      - "9000:9000"
    depends_on:
      - kafka
